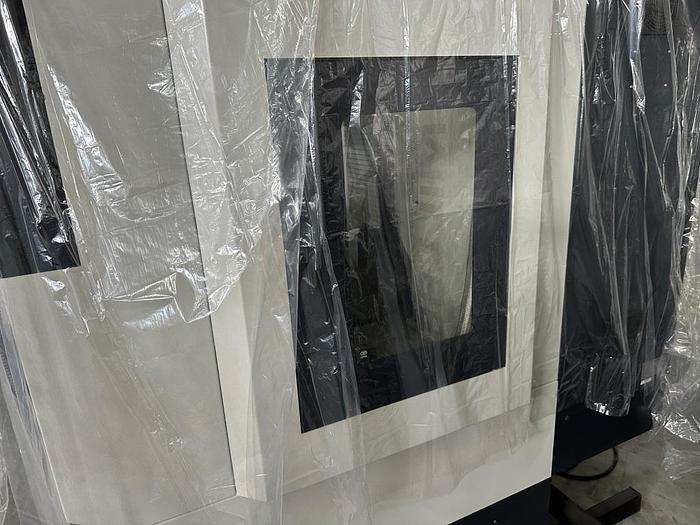

Cormak Mill 500 4 Axis Vertical Machining Centre

Cormak Mill 500 Vertical Machining Centre with 4th Axis

Machine Type: 3 Axis Vertical Machining Centre with 4th Axis

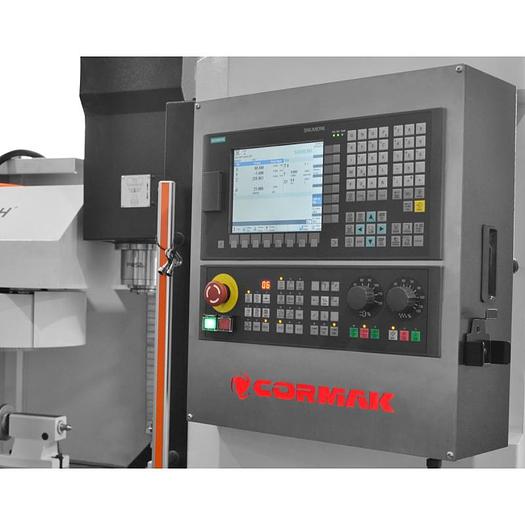

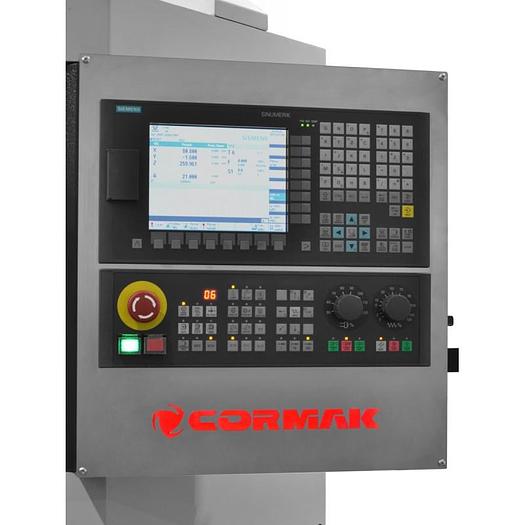

Control: Siemens 808D Control

Machine Description

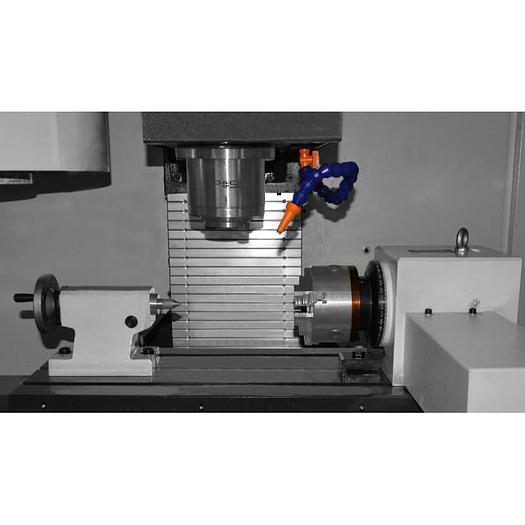

Cormak MILL500 CNC machining centres are equipped with a 4th axis on the basis of verified components, ensuring long-term reliability. The solid body of the machine makes sure that machining is efficient and precise. Hermetic chamber provides security and clean working environment. The table with tempered surface can carry workpieces without burdening mechanical elements of the construction. Every device of this series is equipped with an efficient cooling system, providing optimal machining conditions.

Technical Specifications

Table dimensions: 800×260 mm

Spindle taper: BT40

X-axis travel: 450 mm

Y-axis travel: 320 mm

Z-axis travel: 420 mm

Spindle taper from table surface distance: 90–470 mm

Rapid Feeds (X,Y,Z): 10/10/8 m/min

X/Y/Z axes servomotor torque: 6/6/7.7 Nm

Positioning accuracy: ±0.02 mm

Positioning repeatability accuracy: ±0.01 mm

Spindle speed: 8000 rpm

Motor power: 3.7 kW

Control system: SINUMERIK 808D

Dimensions: 2100×1800×2200 mm

Weight: 2100 kg
