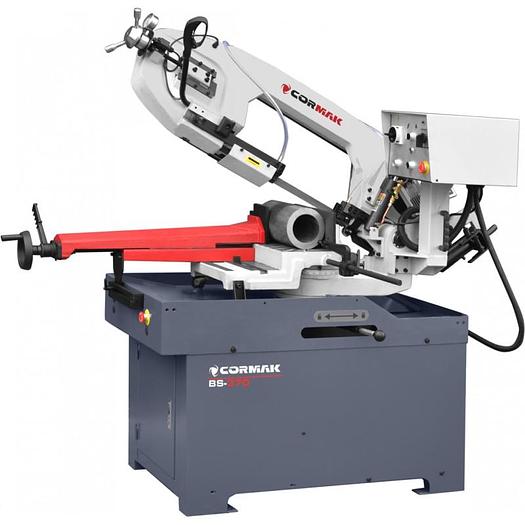

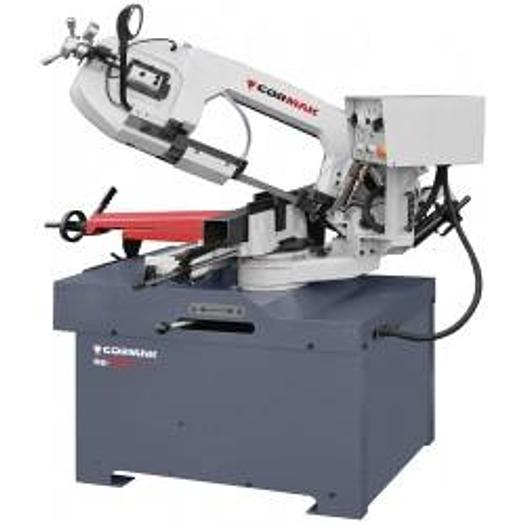

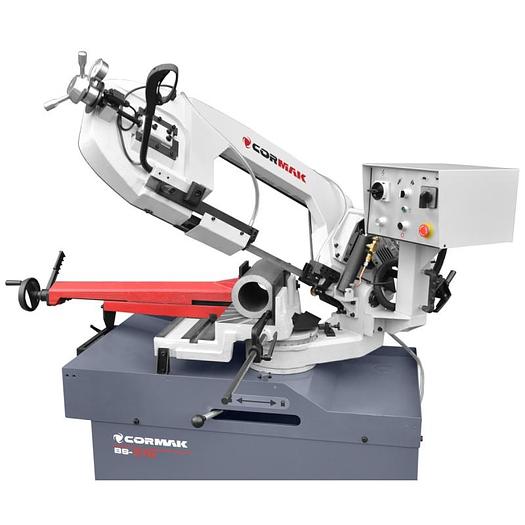

Cormak BS-370 Manual Bandsaw

Cormak BS-370 Manual Bandsaw

Machine Type: 3 Phase/400V Double Mitre Cutting Manual Bandsaw

Machine Description

The CORMAK BS-370 band saw, thanks to the equipping it with a hydraulic cylinder, cooling system and a swivel arm up to 60 °, is widely used in all workshops, where precision, quality and cutting speed are most important.

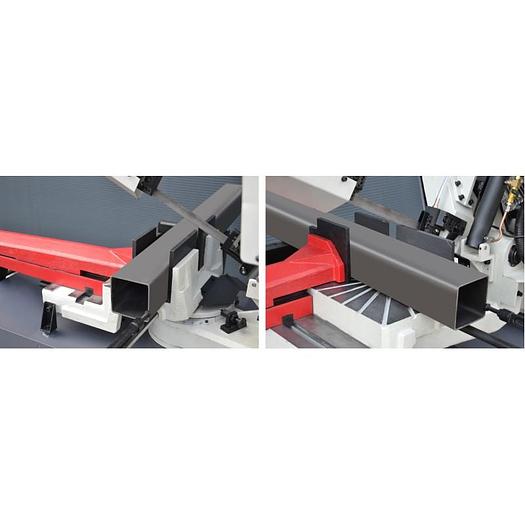

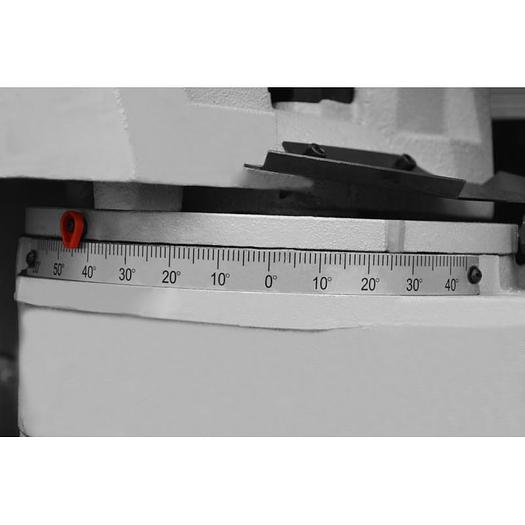

The horizontal band saw for metals, with a swivel arm, enables straight cutting of material and at any angle in the range from -45 ° to 60 °. The blade guides are equipped with special carbide inserts and bearings. This has a huge impact on the blade guiding, its service life, straightness, accuracy and quality of the cut. Carbide guiding significantly reduces the wear of the machine and the saw blade. The machine is equipped with an efficient cooling pump with a closed coolant circuit.

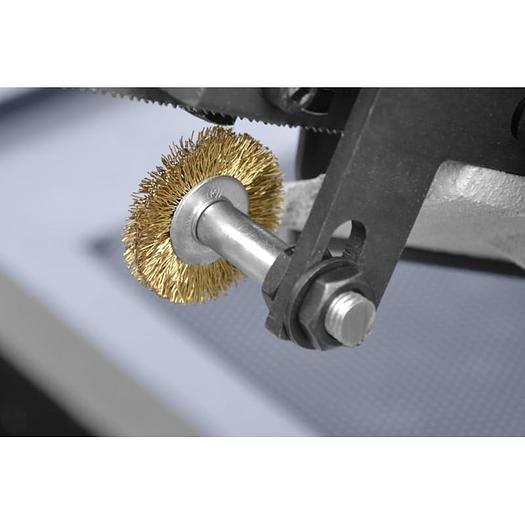

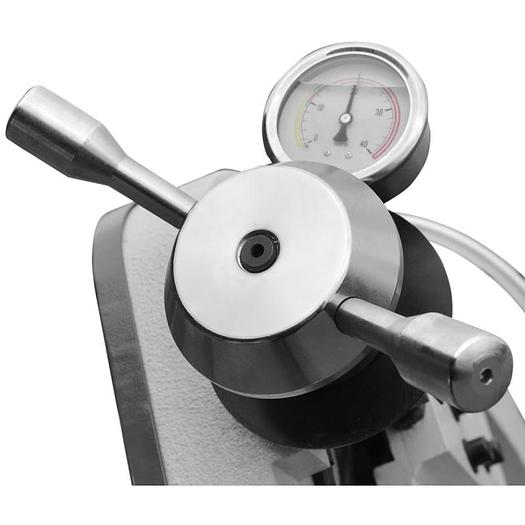

The arm is equipped with an automatic blade tension sensor, it is tilted by 25 degrees, which increases the life of the blade. A cleaning brush is attached to the bottom of the arm for perfect cleanliness and blade function. The machine is driven by a worm gear. The machine has a three-phase motor with two cutting speeds and thermal motor protection. The saw has a GAUGE TENSOMETER - a band tension sensor and an automatic switch in the event of a cutting band breaking.

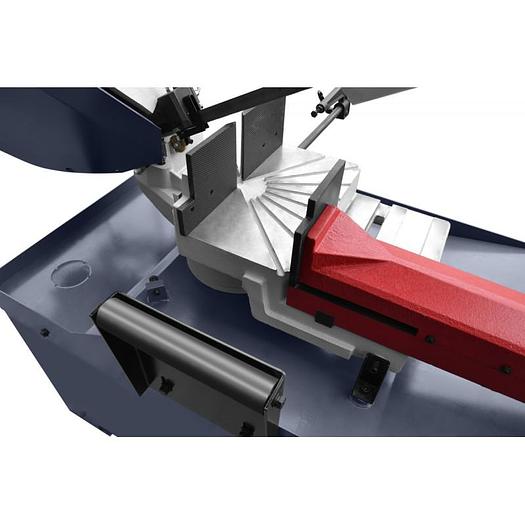

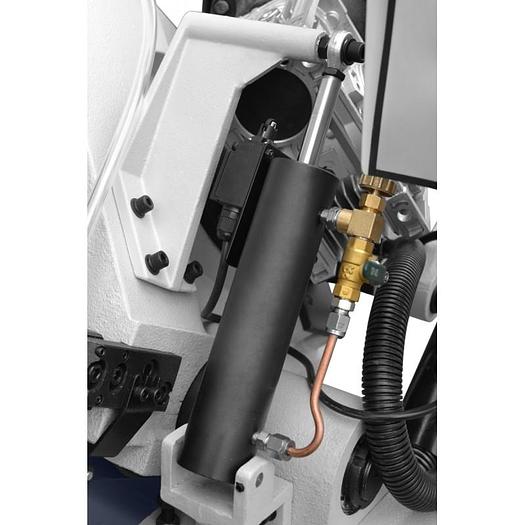

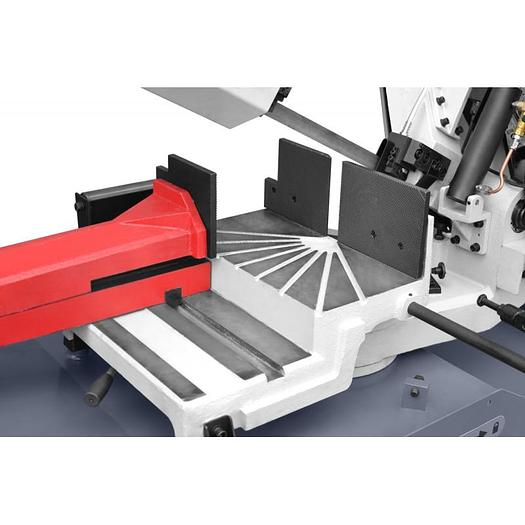

The design of the upper part of the base serves as a basin for draining the coolant and catching the chips produced during cutting the material. A cast iron workbench with a swivel arm and a control panel on a separate arm is attached to the base. In the cutting process, the main cutting movement is the movement of the cutting blade and the movement of the lower arm. The speed of the arm drop (cutting speed) is regulated by a hydraulic actuator.

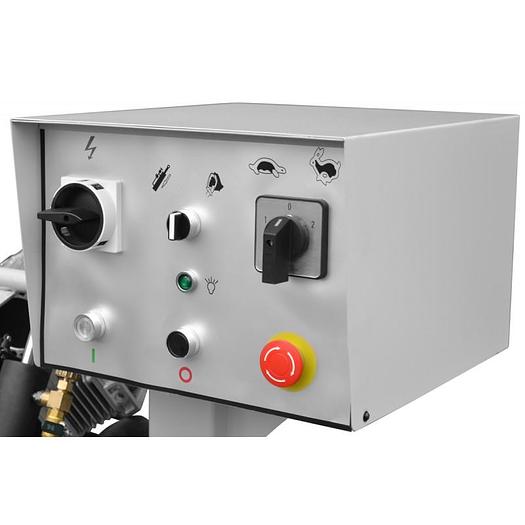

The feed rate is regulated on the cutting machine's control panel. We can choose between two speeds of the cutting band: 34 and 68 m / min. In the lower position of the arm (after cutting the material), the cutting band drive is automatically turned off. Safety will be ensured by the cutting band covers and micro-switches stopping the engine operation after the end of the cutting cycle or opening any of the covers, additional protection consists in switching off the cutter automatically in the event of the cutting band breaking.

Technical Specifications

Distance from the vice to the floor: 890 mm

Dimensions of blade: 3160 x 27 x 0.9 mm

Connected Power: 400V 3 Phase

Motor power: 1.5kW

Blade speed: 34/68 m/min-1

Arm Lowering: Stepless via Hydraulic Cylinder

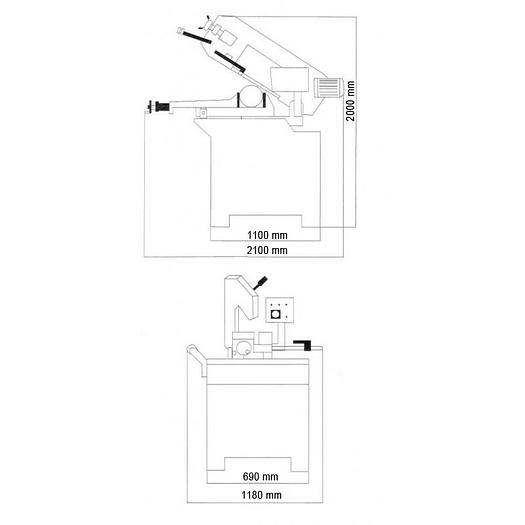

Dimensions: 2200x1100x1500mm

Weight: 480 kg

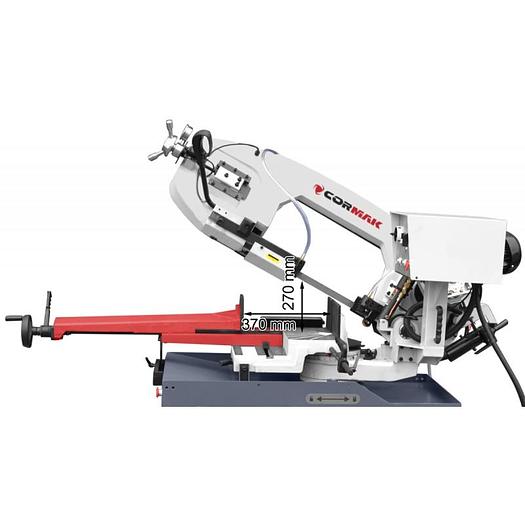

Cutting Capacities

0º Round: ø270mm

0º Rectangle: 370 × 220mm

0º Square: 270 x 270mm

45º L Round: ø200mm

45º L Rectangle: 140 × 200mm

45º L Square: 180x 180mm

45º R Round: ø240mm

45º R Rectangle: 240 × 160mm

45º R Square: 220 x 220mm

60º R Round: Ø160mm

60º R Rectangle: 150 × 150mm

60º R Square: 150x150mm
