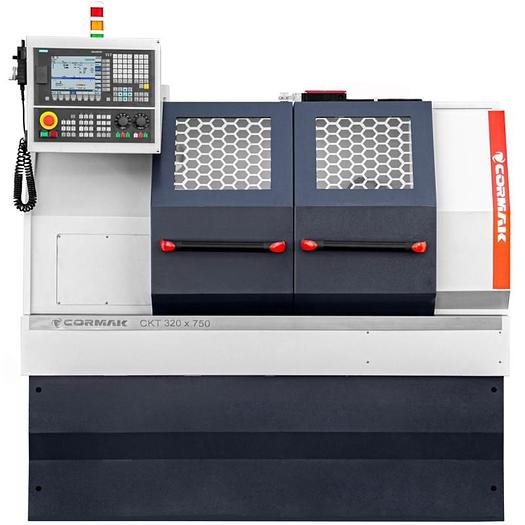

Cormak CKT320x750 Flat Bed CNC Lathe

Cormak CKT320x750 Flat Bed CNC Lathe

Machine Type: CNC Lathe

Control: Siemens Sinumerik 808D

Axis: 2

Includes

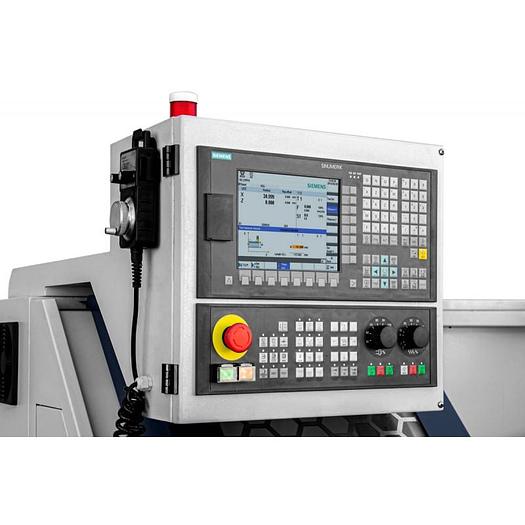

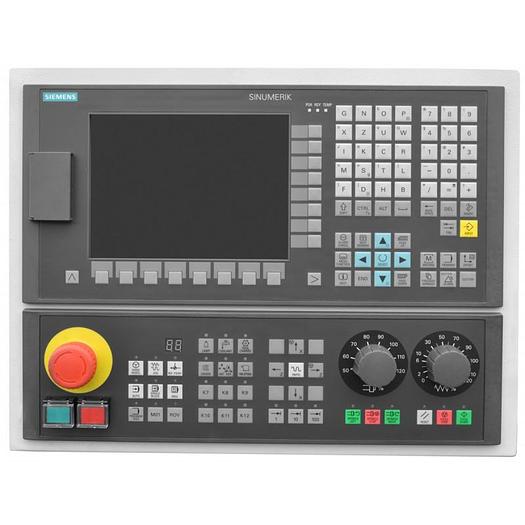

SINUMERIK 808D control system in English

SIEMENS servomotors

3-jaw Manual chuck

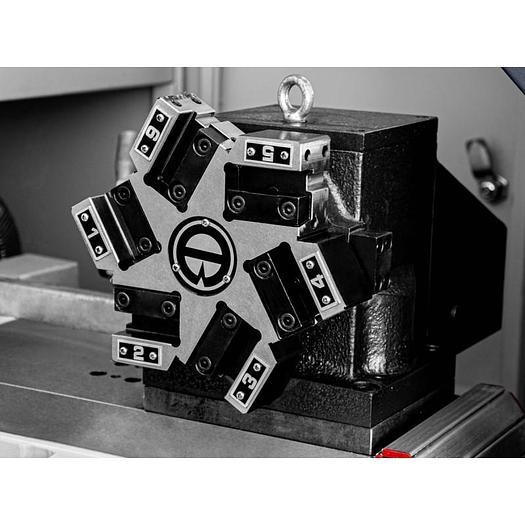

6-position turret head

Soft jaw kit

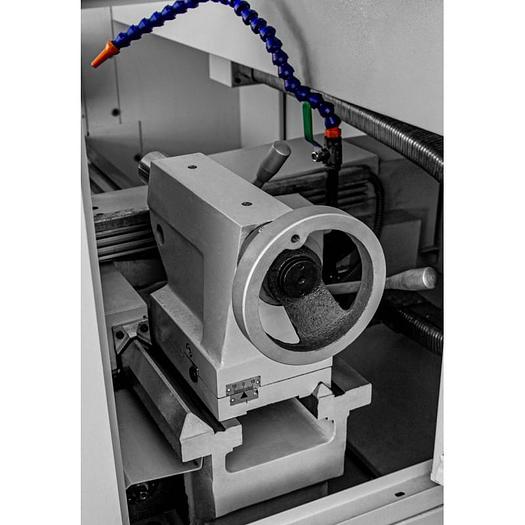

Manual tailstock

Cooling system

Automatic gear and guide lubrication system

24V halogen lighting

English manuals

CE declaration

Technical Specifications

Swing over bed: 320 mm

Swing over cross slide: 160 mm

Maximum turning length: 750 mm

Spindle speed: 100–2500 rpm

Spindle bore: Ø 60 mm

Max Bar Capacity:  Ø 44 mm

Spindle taper: MT5

Number of tools in the holder: 4 (6, 8 optional)

Tools size: 16×16 mm

Tailstock Taper: MT3

Tailstock spindle feed: 100 mm

Main motor power: 3 kW

Dimensions: 2370×1420×2000 mm

Weight: 950 kg

Options

SINUMERIK 828 Control

Hydraulic chuck

Hydraulic tailstock

Follow rest

Steady rest

Tool probe

Additional set of soft jaws

Set of hard jaws

Sleeve chucks

Gripper for workpieces

Bar feeder

Fume Extraction

Oil Separator

Tool holders

CAD/CAM software
