Cormak CK7135A Slant Bed CNC Lathe

Cormak CK7135A Slant Bed CNC Lathe

Machine Type: Slant Bed CNC Lathe

Control: Siemens 808D Control

Axis: 2

Description

This lathe provides not only precise machining but also high X/Z axes positioning repeatability = 0.006 mm (compared to 0.01 mm for ordinary CNC lathes). This is possible due to the factory mounted ball bearings and innovative design solutions implemented in the machine. By default, it comes with a series-array tool holder – stays within the desired place and decreases machining time by as much as 25%.

Includes

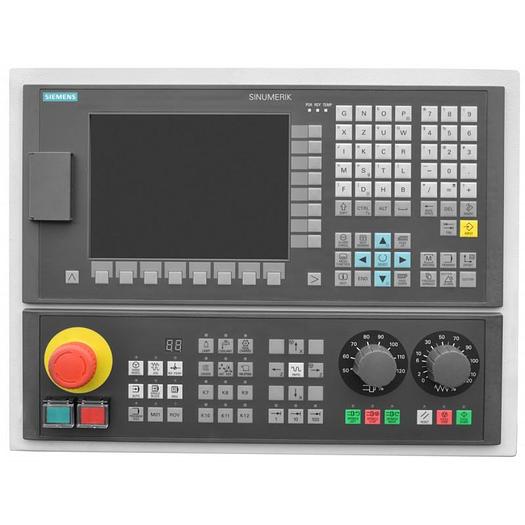

SINUMERIK 808D control system in English

SIEMENS servomotors

3-jaw hydraulic chuck

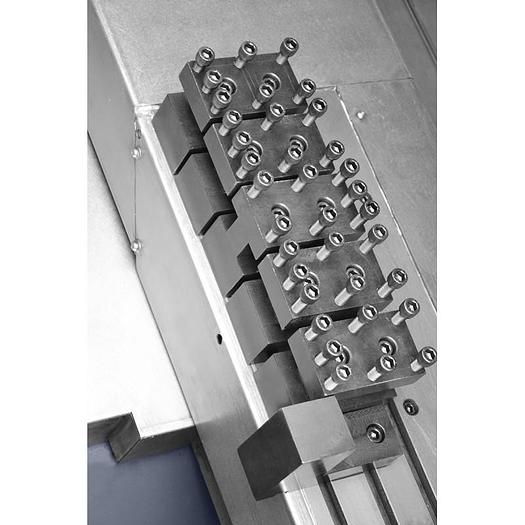

Series-array toolholder

Soft jaw kit

HIWIN linear guides

Telescopic guide guards

Through Tool Coolant System

Automatic gear and guide lubrication system

24V halogen lighting

English manuals

CE declaration

Technical Specification

Swing over bed: 400 mm

Swing over cross slide: 130 mm

Maximum working length: 400 mm

Spindle bore: 56 mm

Spindle speed: 200–3500 rpm

Main motor power: 5.5 kW

Bed type/Guide type: inclined/linear 45°

Maximum shaft diameter in bore: 49 mm

X/Z axes travel: 340/500 mm

Chuck type: rotary

Number of tools in the holder: 6

Tool holder size: 20×20 mm

Tailstock type: hydraulic

Chuck: hydraulic

Dimensions: 2500×1340×1710 mm

Weight: 2500 kg

Options

SINUMERIK 828 control

Tool probe

Swarf Conveyor

Additional set of soft jaws

Set of hard jaws

Sleeve chucks

Gripper for workpieces

Bar feeder

Tool holders

CAD/CAM software
