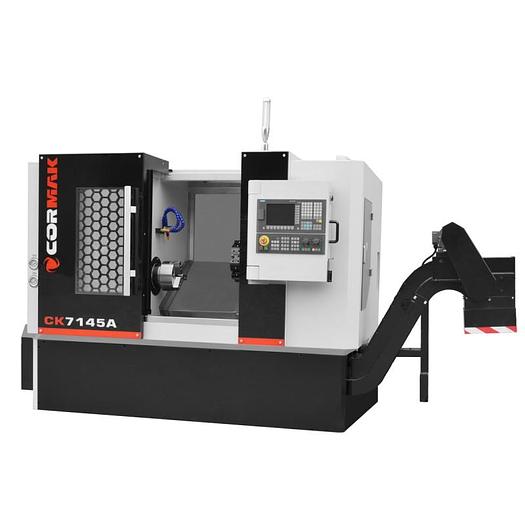

Cormak CK7145 Slant Bed CNC Lathe

Cormak CK7145 Slant Bed CNC Lathe

Machine Type: Slant Bed CNC Lathe

Control: Siemens 808D Control

Axis: 2

Includes

SINUMERIK 808D control system in English

SIEMENS servomotors

3-jaw hydraulic chuck

Swarf Conveyor

8 Station Turret

Soft jaw kit

Hydraulic Tailstock

HWIN Linear Guides

Telescopic guide guards

Coolant System

Automatic gear and guide lubrication system

24V halogen lighting

English manuals

CE declaration

Technical Specification

Bed type: Inclined 45°

Guide type: HIWIN linear guides

Swing over bed: ø 450 mm

Swing over cross slide: ø 170 mm

Maximum working length: 500 mm

Chuck diameter: ø 200 mm

X/Z axes speed: 240/400 mm

Maximum spindle speed: 3500 rpm

Spindle nose: A2-5

Spindle bore: ø 55 mm

Maximum bar diameter: ø 45 mm

Spindle motor power: 7.5 kW

X/Z axes torque: 7.5/7.5 Nm

X/Z repeatability: ±0.003 mm

Tool chuck: 8-position electrical tool chuck

Tool shank diameter: 25×25 mm

Tailstock spindle diameter: ø 70 mm

Tailstock spindle feed: 80 mm

Tailstock spindle taper:MT5

Tailstock feed: 200 mm

Dimensions: 2500×1800×1700 mm

Weight: 3125 kg

Options

SINUMERIK 828 control

Tool probe

Swarf Conveyor

Additional set of soft jaws

Set of hard jaws

Sleeve chucks

Gripper for workpieces

Bar feeder

Tool holders

CAD/CAM software
