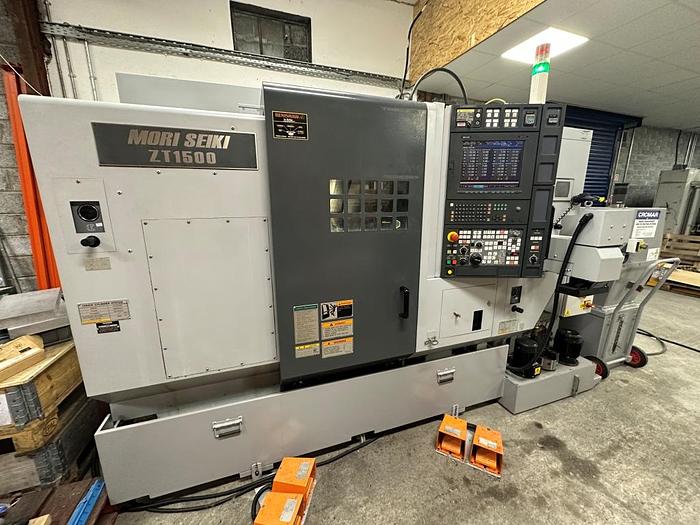

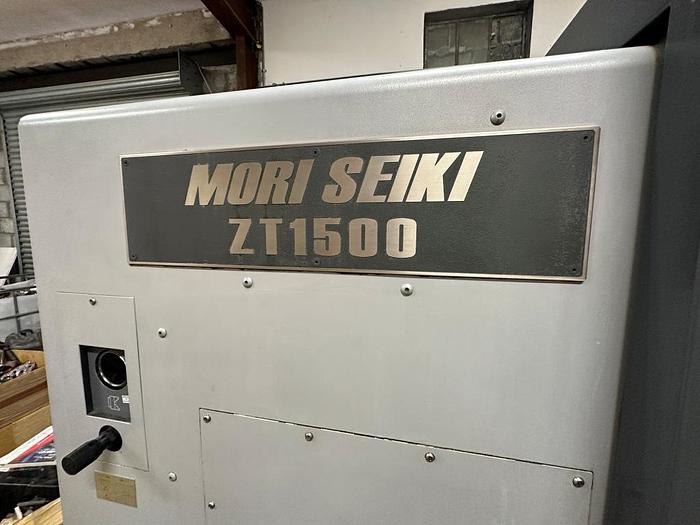

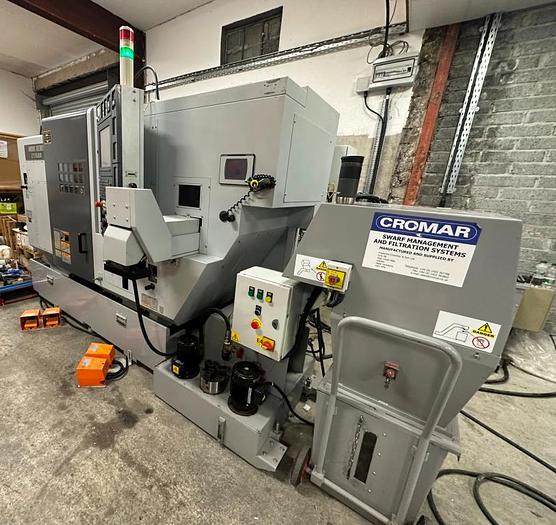

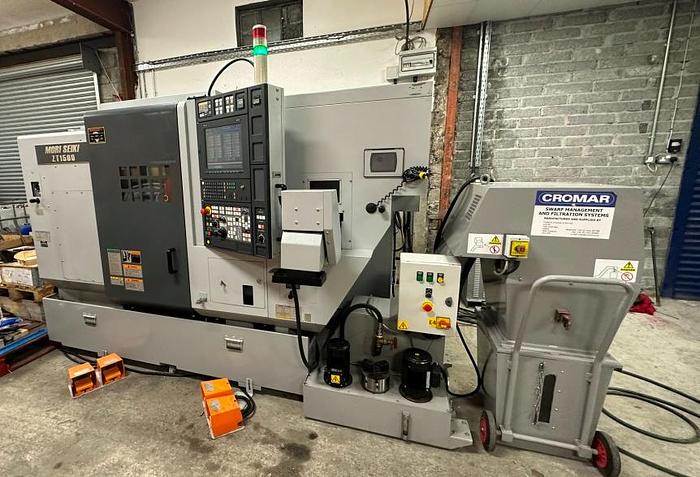

2005 Mori Seiki ZT-1500Y CNC Turning Centre
Description
Mori Seiki ZT 1500Y Turning Centre
Machine Type: Twin Turret, Twin Spindle CNC Lathe
Year: 2005

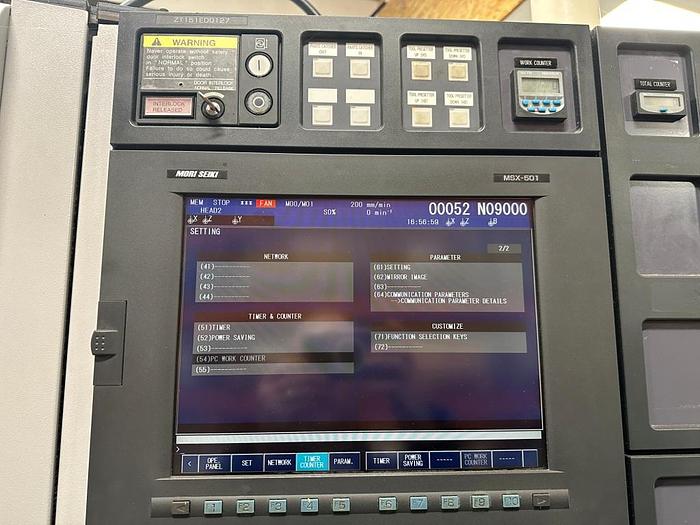

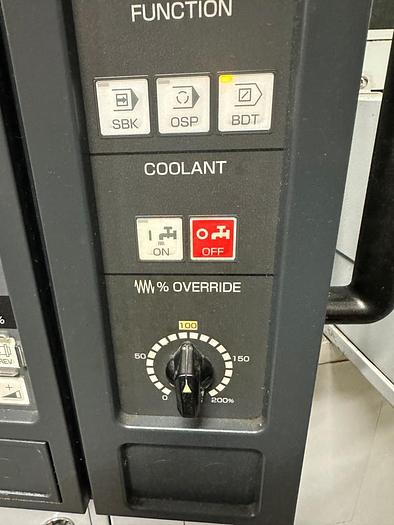

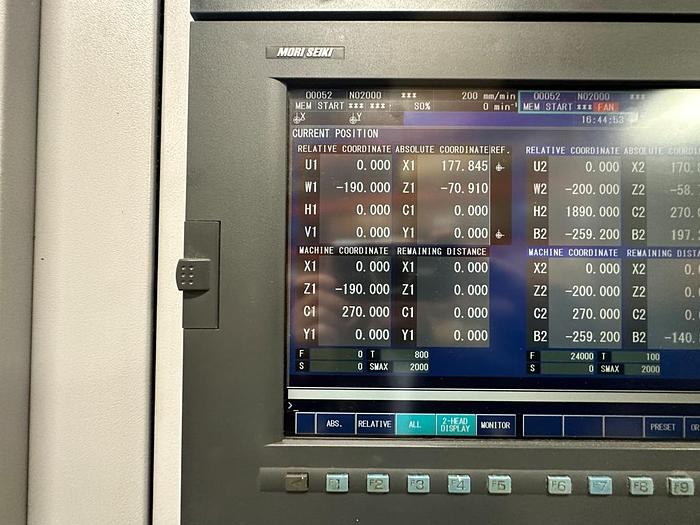

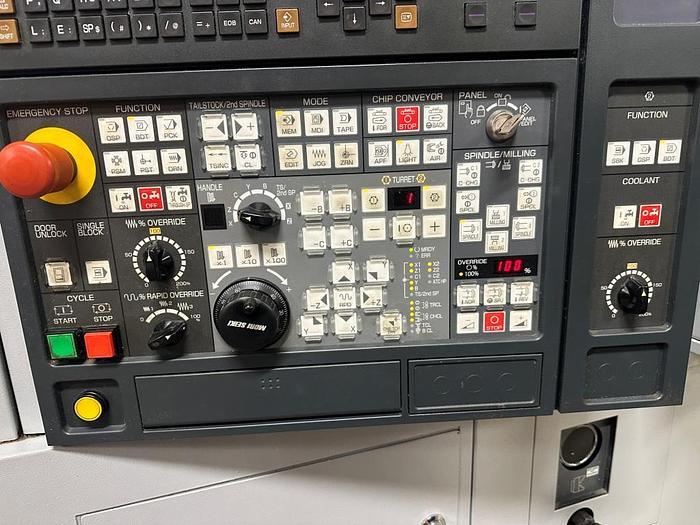

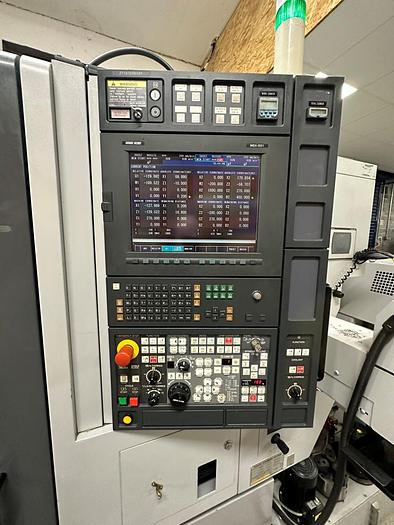

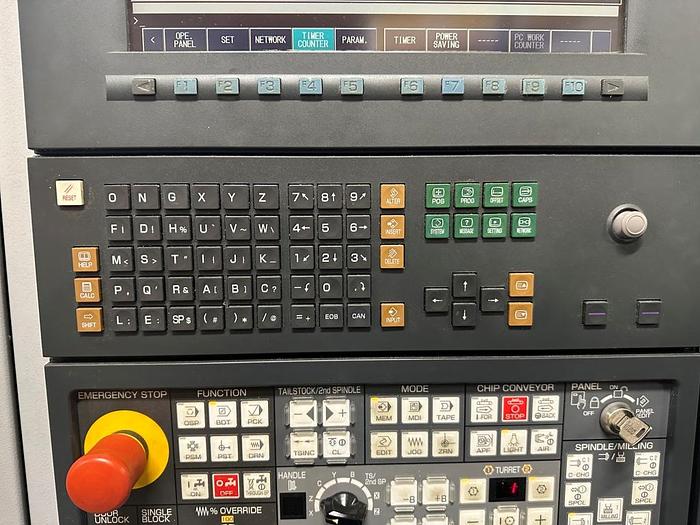

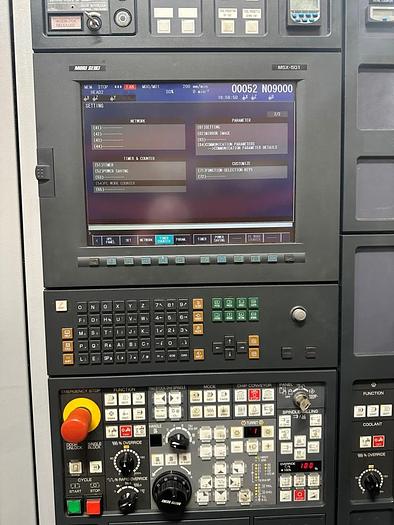

Control: MSX 501 CNC Control

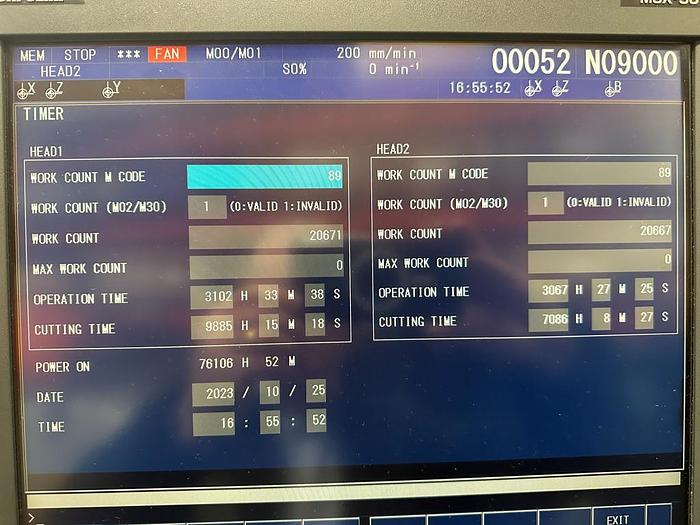

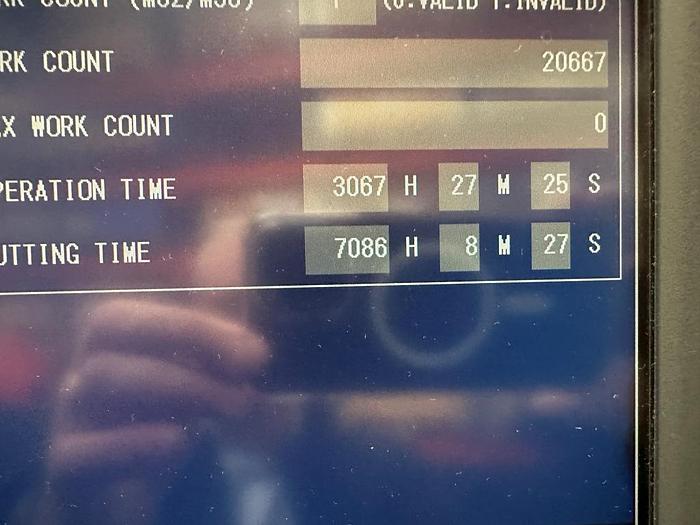

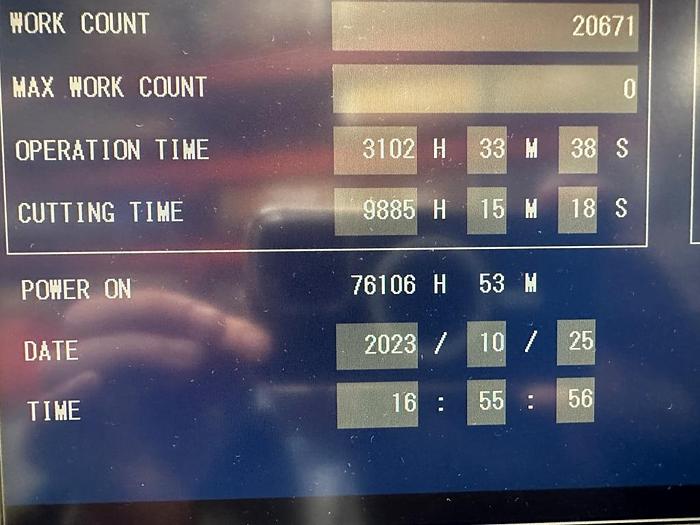

Power On Hours: 76106hrs
Condition: Very Good
Includes

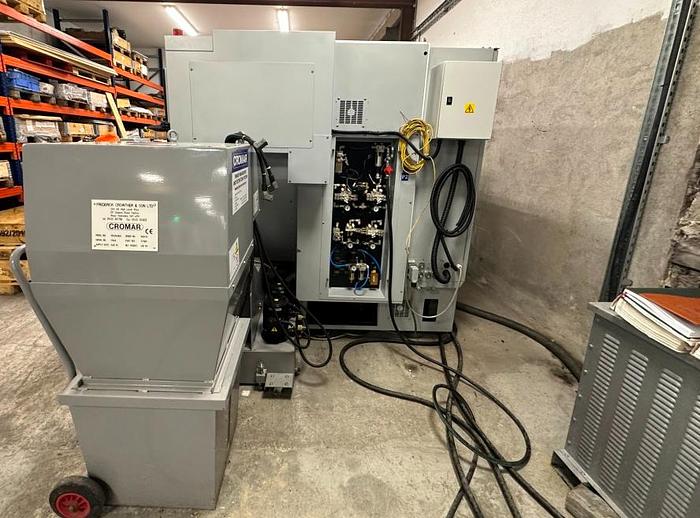

Swarf Conveyor
Selection of Tool Holders

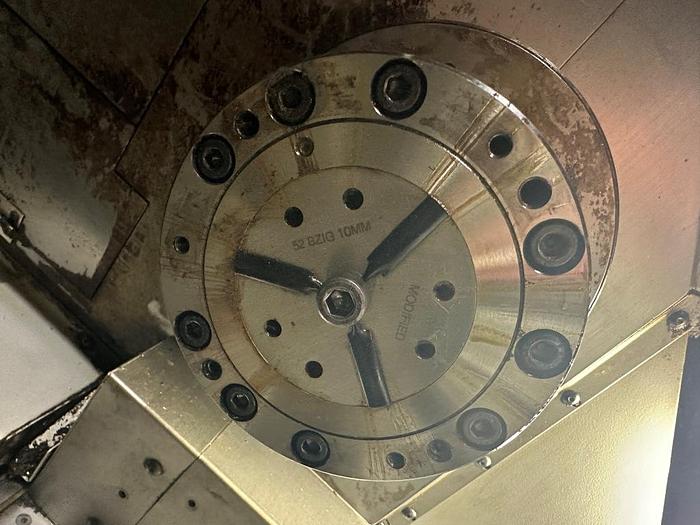

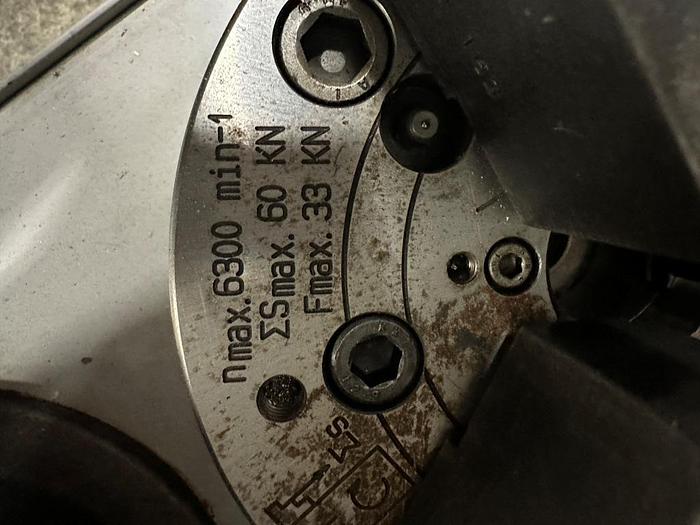

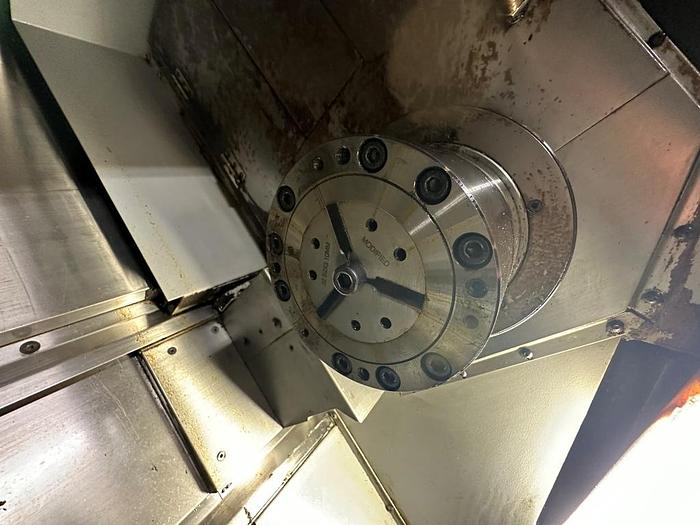

Hainbuch Collet Chuck

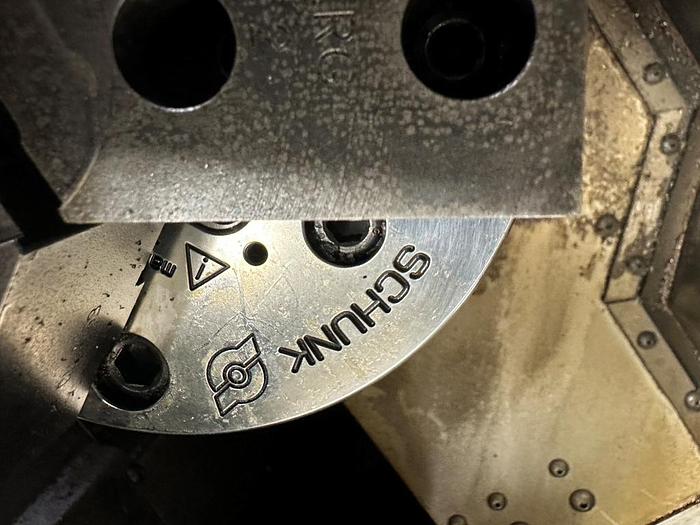

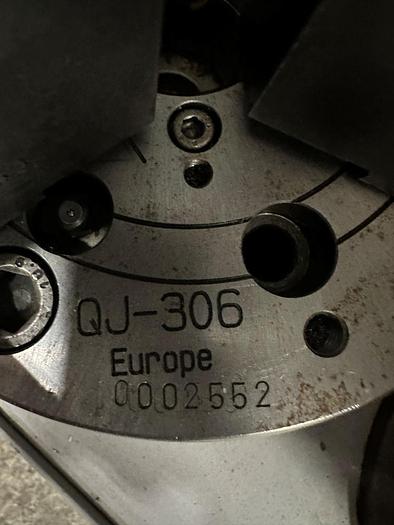

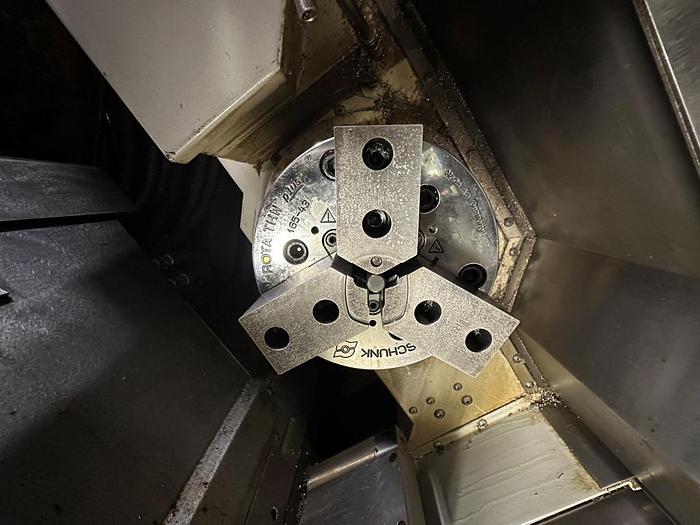

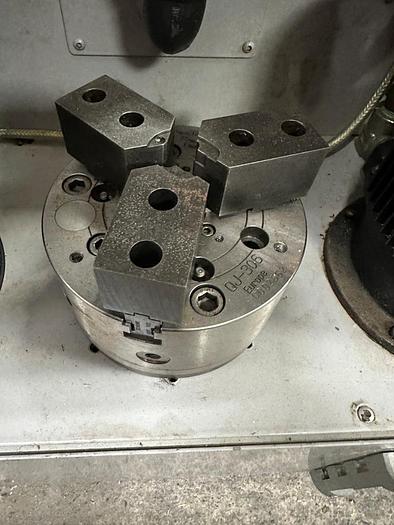

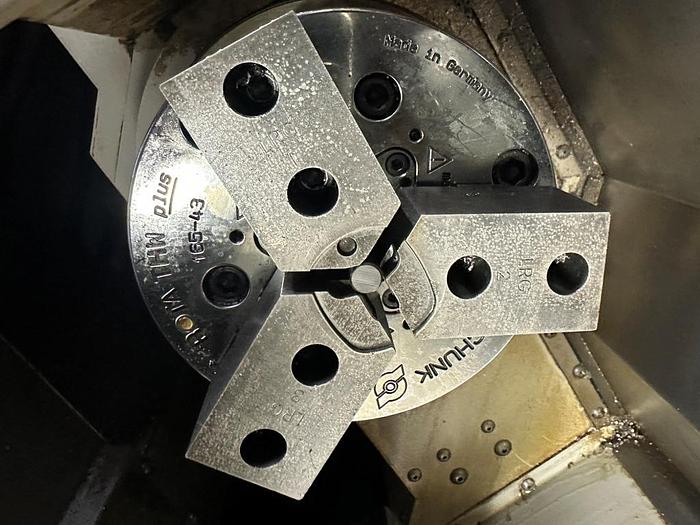

2 x Quick Change 6" Schunk Chucks
Manuals
Technical Specification
Max Swing of Workpiece: 250mm
Max Distance Between Spindles: 750mm
Max Turning Diameter: 190mm
Standard Turning Diameter: 170mm
Max Turning Length: 120mm
Bar Work Capacity: 52mm
X1 & X2 Axis Travel: 140mm
Y Axis Travel: +/- 40mm
Z1 Axis Travel: 450mm
Z2 Axis Travel: 410mm
B Axis Travel: 525mm
Max Spindle Speed: 6000rpm
Sub Spindle Speed: 6000rpm
Main Spindle Power: 22/18.5kW
Sub Spindle Power: 22/18.5kW
Spindle Nose: JIS A2-5
Min Spindle Indexing: 0.001deg

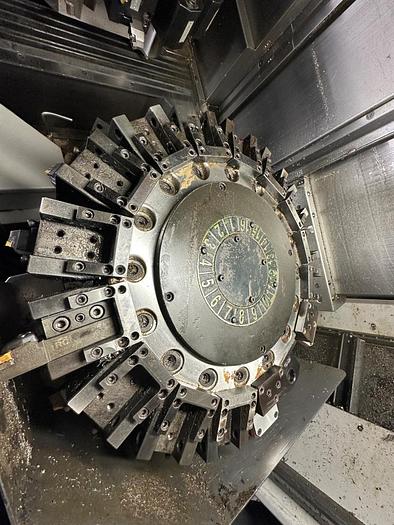

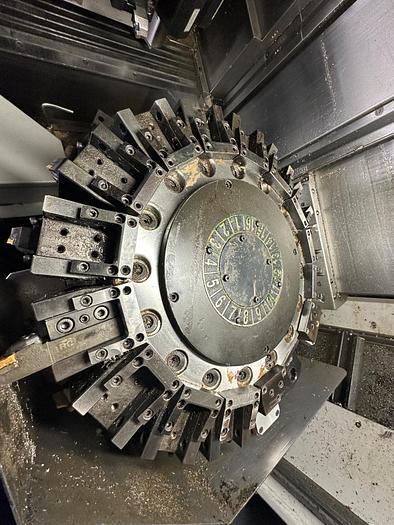

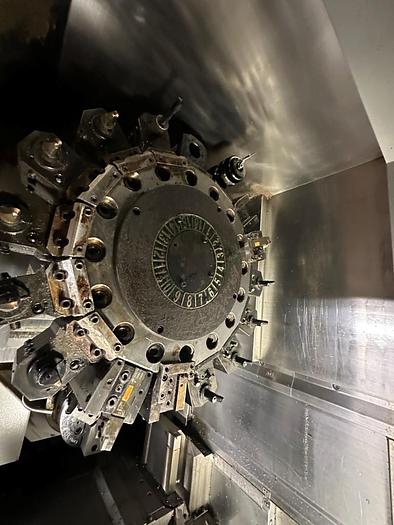

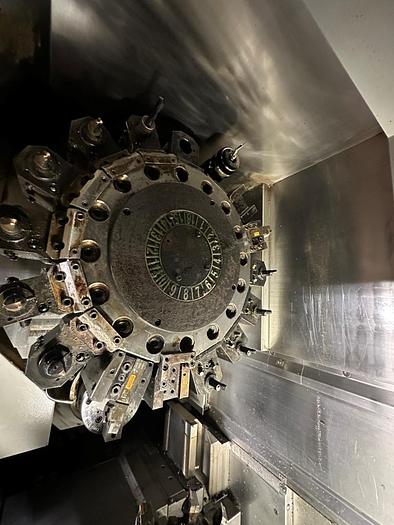

Turret 1: 16 Station
Turret 2: 16 Station
Shank Height: 20mm
Shank Diameter: 25mm
Turret Indexing Time: 0.2sec
VDI Tool Shank: 30
Max Rotary Tool Speed: 6000rpm
Hydraulic Chuck Main Spindle: 6"
Hydraulic Chuck Sub Spindle: 6"

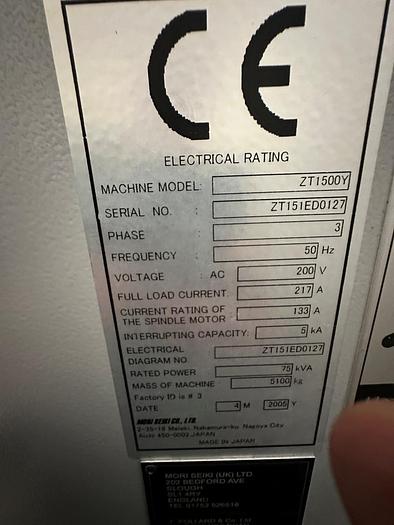

Electrical Power Supply: 73.9kVA
Coolant Tank Capacity: 200L
Machine Dimensions: 2897x 2060x1997mm
Machine Weight: 5100kg
Specifications
Manufacturer | Mori Seiki |
Model | ZT-1500Y CNC Turning Centre |
Year | 2005 |
Condition | Used |
Year | 2005 |
Control | MSX 501 CNC Control |
Condition | Very Good |
Max Swing of Workpiece | 250mm |
Max Distance Between Spindles | 750mm |
Max Turning Diameter | 190mm |
Standard Turning Diameter | 170mm |
Max Turning Length | 120mm |
Bar Work Capacity | 52mm |
Y Axis Travel | +/- 40mm |
Z1 Axis Travel | 450mm |
Z2 Axis Travel | 410mm |
B Axis Travel | 525mm |
Max Spindle Speed | 6000rpm |
Sub Spindle Speed | 6000rpm |
Main Spindle Power | 22/18.5kW |
Sub Spindle Power | 22/18.5kW |
Spindle Nose | JIS A2-5 |
Min Spindle Indexing | 0.001deg |
Turret 1 | 16 Station |
Turret 2 | 16 Station |
Shank Height | 20mm |
Shank Diameter | 25mm |
Turret Indexing Time | 0.2sec |
VDI Tool Shank | 30 |
Max Rotary Tool Speed | 6000rpm |
Hydraulic Chuck Main Spindle | 6" |
Hydraulic Chuck Sub Spindle | 6" |
Electrical Power Supply | 73.9kVA |
Coolant Tank Capacity | 200L |
Machine Dimensions | 2897x 2060x1997mm |
Machine Weight | 5100kg |
