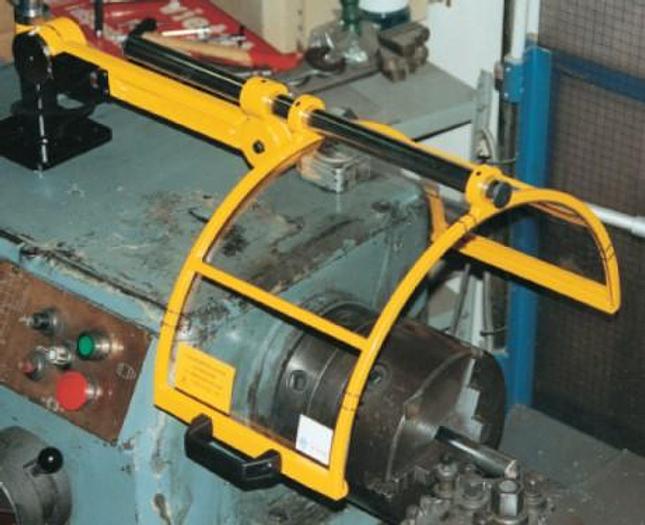

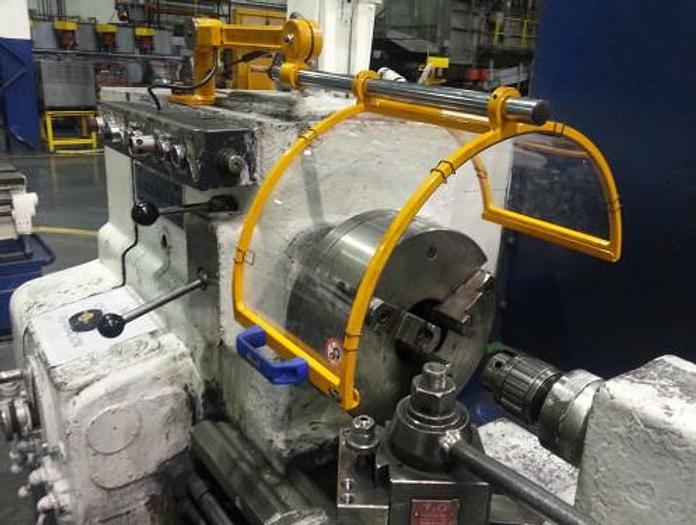

Repar2 300mm Vertical Lifting Arm Chuck Guard for Lathes

Repar2 300mm Lathe Chuck Guard with Vertical Lifting Arm Ref: 1PT300CM Polycarbonate safety guard for lathe chuck with vertical arm lifting, Adjustable in height and length With gas spring Polycarbonate screen Steel frame Includes Safety microswitch Fitting Instructions Included 300mm Diameter Safety Interlocked Chuck Guard Poly Carbonate Screen Width: 240mm Optional Poly-Carbonate Screen Width: 180mm High Quality Italian Made Chuck Guard Other sizes available upon request. Safety Guards for Turning machines (Lathes) – EN ISO 23125:2015 The basics for manually-operated lathes: 1) Interlocked chuck guard 2) Feed shaft and lead screw protection 3) Saddle or splash guard if the risk of ejection demands it (risk assessment) 4) Rear fixed guard 5) Emergency stop 6) Spindle braking above 1.5hp 7) Gear drive cover (fixed or interlocked) 8) Safety levers 9) Protection of hole bar passage
