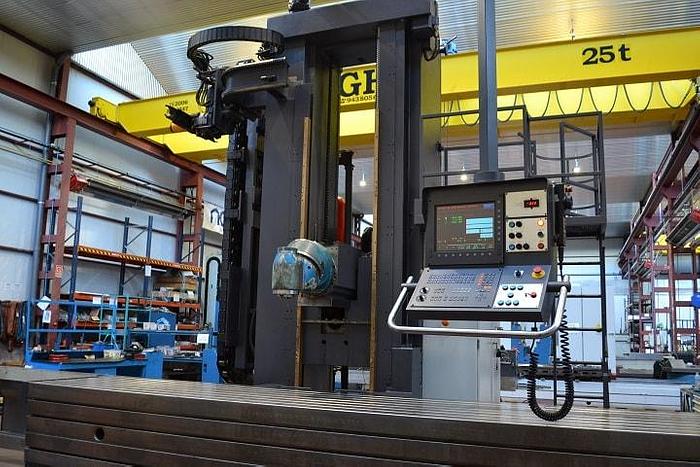

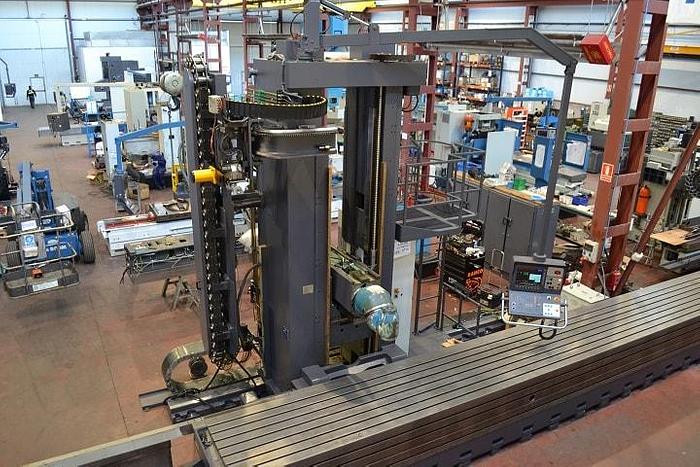

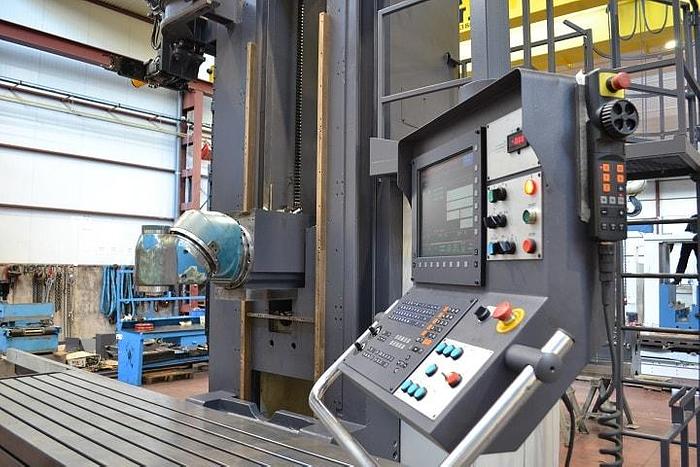

Refurbished 1998 Correa L30/104 Mobile Column Milling Machine
Description
Refurbished Correa L30/104 Mobile Column Milling Machine
Year of Manufacture: 1998
Year Refurbished: Under Going Refurbishment
6 Month Warranty on Mechanical Parts

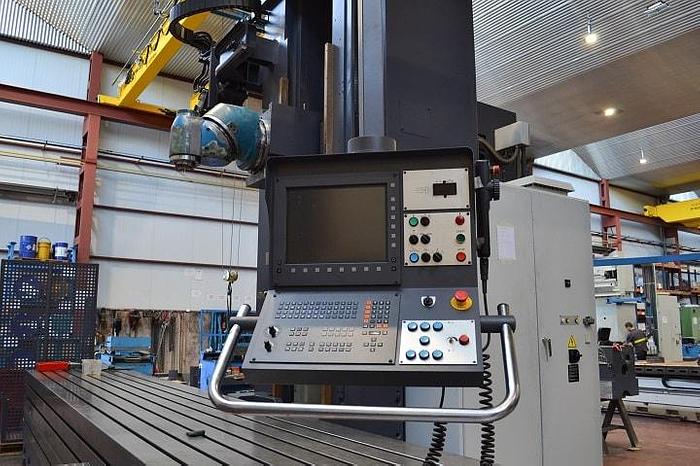

Control: Heidenhain TNC-426

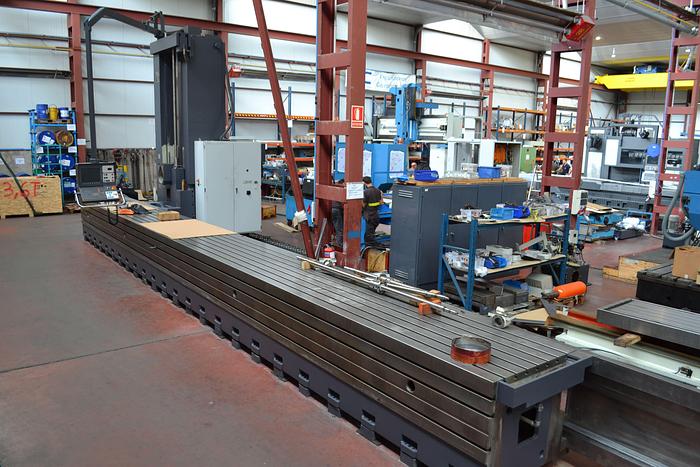

Table Size: 12240 x 1000mm
Travels
X: 10450mm
Y: 1200mm
Z: 2500mm
Milling Head
Universal Auto-indexing UDG-40
Rotation: 2.5º
Taper: ISO50
Spindle Speed: 20-3000rpm
Machine Dimensions
L: 16000mm
W: 5600mm
H: 4830mm
Includes
60 Tool ATC
Through Spindle & External Coolant
Rotary table: Dimensions: 1200 x 1200 mm / H: 368 mm Indexing: +/- 3 sec / Max load: 5000 kg / V: 3,7 r.p.m.
Electronic handwheel: HR-410
Longitudinal chip conveyor
Guarding: Not included. To be defined according to customer’s needs
Specifications
| Manufacturer | Correa |
| Model | L30/104 |
| Year | 1998 |
| Condition | Refurbished |
| Stock Number | 00144 |
| Year of Manufacture | 1998 |
| Year Refurbished | Under Going Refurbishment |
| Control | Heidenhain TNC-426 |
| Table Size | 12240 x 1000 mm |
| Max Part Weight | 42000 kg |
| Tool Clamping System | Hydraulic |
| ATC | 60 Tool Positions |
| Head Type | Universal Auto-indexing UDG-40 (2.5º) |
| Spindle Speed | 20 - 3000 rpm |
| Taper | ISO 50 |
| Travels (X) | 10450mm |
| Travels (Y) | 1200mm |
| Travels (Z) | 2500mm |
| Machine Dimensions (L x W x H) | 16000 x 5600 x 4830 mm |
| Machine Weight | 45000 kg |
