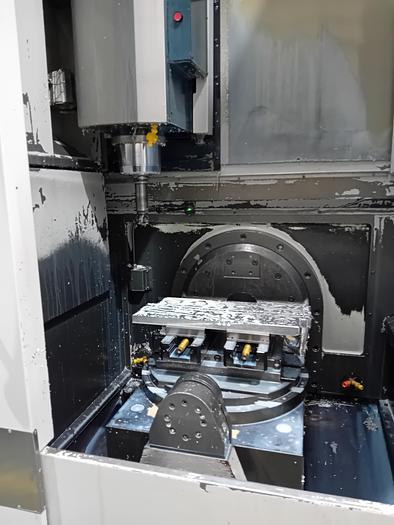

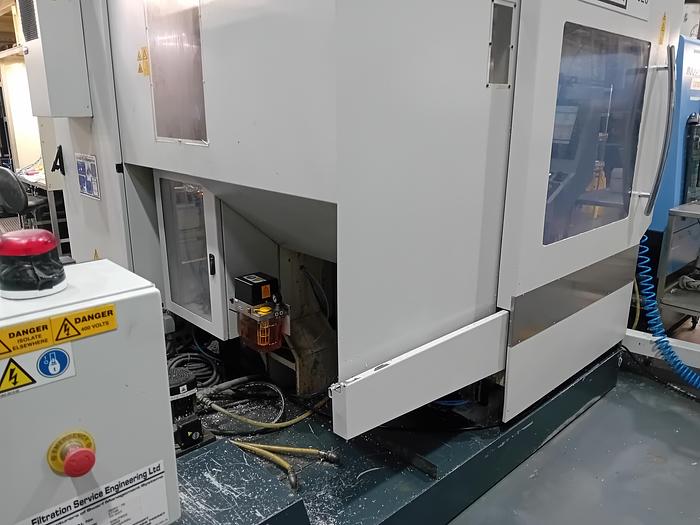

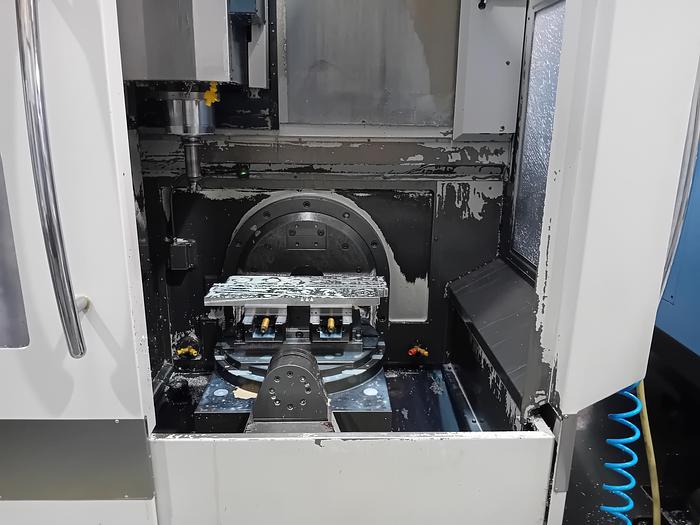

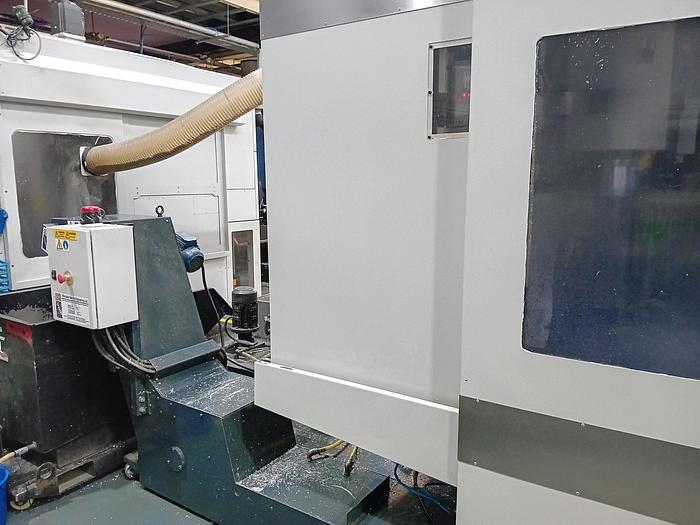

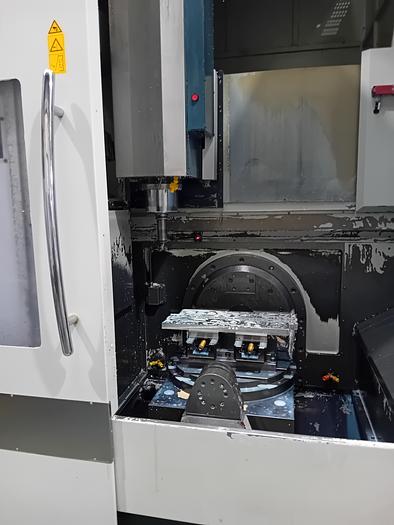

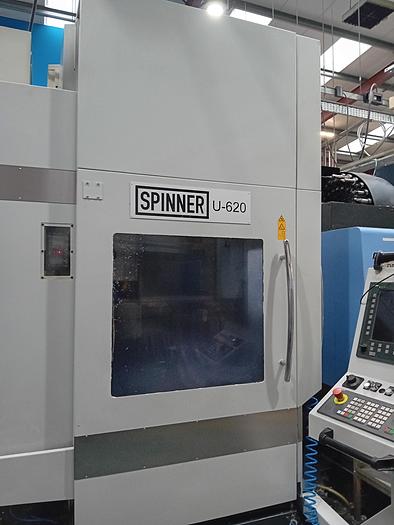

2016 Spinner U5-620 5 Axis(4+1) Machining Centre

Cork, Ireland

Sold

Description

Spinner U5-620 5 Axis(4+1) Machining Centre


Machine Type: 5 Axis (4+1) Machining Centre

Year: 2016

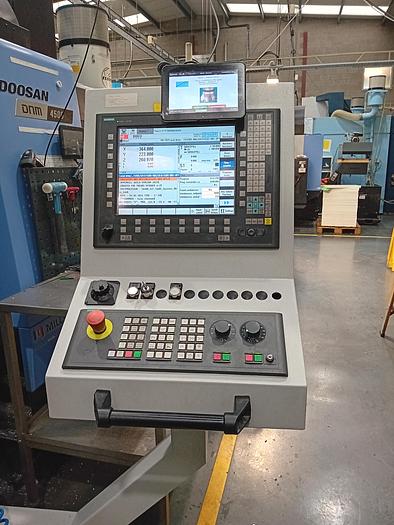

Control: Siemens 840D SL Control

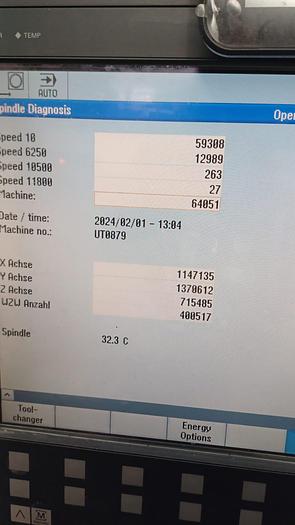

Machine On Hours: 64,051hrs

Spindle On Hours: 13,279hrs

Condition: Very Good


Technical Specification

Table Diameter: 650mm

X Axis Travel: 620mm

Y Axis Travel: 520mm

Z Axis Travel: 460mm

C Axis Travel: 360 Deg

B Axis Travel: +60/-140 Deg

X,Y,Z Axis Rapid Feeds: 48m/min

Spindle Taper: BT40

Spindle Speed: 12,000rpm

ATC: 54 Stations

C Axis Rotation Speed: 250rpm

B Axis Rotation Speed: 50rpm

Max Part Weight: 250kg

Tool Changer: Double Arm

Max Tool Diameter: 76mm

Max Tool Weight: 7kg

Max Tool Length: 290mm

Machine Dimensions: 2260 x 2415 x 3016mm

Machine Weight: 7200kg approx.

Show All

Specifications

ManufacturerSpinner
ModelU5-620 5 Axis(4+1) Machining Centre
Year2016
ConditionUsed
Year2016
ControlSiemens 840D SL Control
ConditionVery Good
Spindle On Hours13,279hrs
Machine On Hours64,051hrs
Table Diameter650mm
X Axis Travel620mm
Y Axis Travel520mm
Z Axis Travel460mm
C Axis Travel360 Deg
B Axis Travel+60/-140 Deg
X,Y,Z Axis Rapid Feeds48m/min
Spindle TaperBT40
Spindle Speed12,000rpm
ATC54 Stations
C Axis Rotation Speed250rpm
B Axis Rotation Speed50rpm
Max Part Weight250kg
Tool ChangerDouble Arm
Max Tool Diameter76mm
Max Tool Weight7kg
Max Tool Length290mm
Machine Weight7200kg approx
