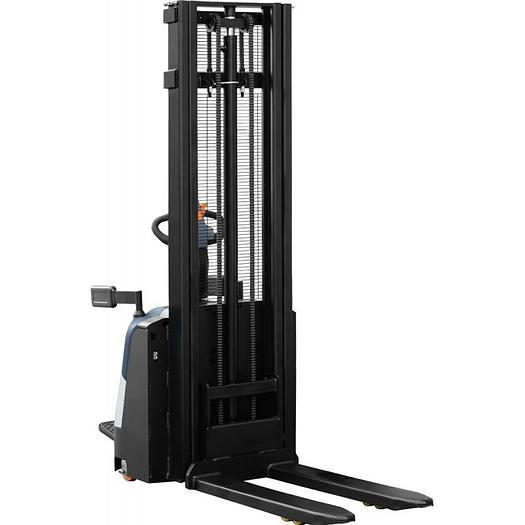

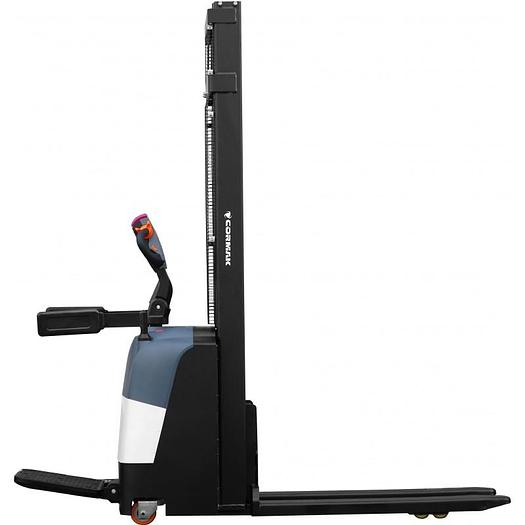

Cormak Q15E35RD Electric Mast Pallet Truck
Description
Cormak Q15E35RD Electric Mast Pallet Truck
Product Type: Electric Pallet Truck
Description
The Q15E35RD mast trolley with electric drive and a load capacity of 1,500 kg is a perfect solution for warehouses and industrial plants where it is necessary to transport heavy loads at various levels. Thanks to innovative technological solutions, the device not only ensures safety and comfort of work, but also saves time and money. It ensures operational safety thanks to the use of a safety switch that prevents accidental turning on or off of the device, which may be dangerous for the user and the surroundings. It is also equipped with a built-in controller that protects the battery against discharge or damage. Thanks to this, the battery is more durable and does not require frequent repairs and replacements. The sealed, maintenance-free AGM battery is an innovative solution that guarantees safe and reliable operation of the device.
Characteristics
A solid structure made of high-quality steel ensures greater stiffness and stability when lifting.
Thanks to the use of a special system, the handle of the pallet truck allows the steering to be transferred directly to the wheel.
Built-in rectifier.
Lifting the forks to the maximum height without load - only 25 seconds!
Maintenance-free motor with brushless technology.
Battery charge indicator on the control box.
Safety switch.
Built-in controller protects the battery against discharge or damage.
Sealed, maintenance-free AGM battery.
Technical Specifications
Max Lifting Height: 3500 mm
Loading Capacity: 1500 Kg
Forks Length: 1150 mm
Fork Width: 550mm
Drive Speed With / Without Load: 3.5/4 Km/h
Lift Speed With Load/Without Load: 0.1/0.2 m/s
Lowering Speed with Load/Without Load: 0.12/0.1 m/s
Total Height: 2340 mm
Total Width: 810 mm
Total Length: 1745mm
Clearance from Floor: 30mm
Turning Radius: 1390mm
Brake: Electromagnetic
Battery Voltage/ Rated Capacity: 12V 75/120Ah
Lift Motor Mower: 2 kW
Drive Motor Power: 0.75 kW
Weight: 656 Kg
Specifications
| Manufacturer | Cormak |
| Model | Q15E35RD Electric Mast Pallet Truck |
| Condition | New |
| Product Type | Electric Pallet Truck |
| Max Lifting Height | 3500 mm |
| Loading Capacity | 1500 Kg |
| Forks Length | 1150 mm |
| Fork Width | 550mm |
| Total Height | 2340 mm |
| Total Width | 810 mm |
| Total Length | 1745mm |
| Clearance from Floor | 30mm |
| Turning Radius | 1390mm |
| Brake | Electromagnetic |
| Battery Voltage/ Rated Capacity | 12V 75/120Ah |
| Lift Motor Mower | 2 kW |
| Drive Motor Power | 0.75 kW |
| Weight | 656 Kg |
