2001 Akyapak APK 35 Section Rolls
Sold
Description

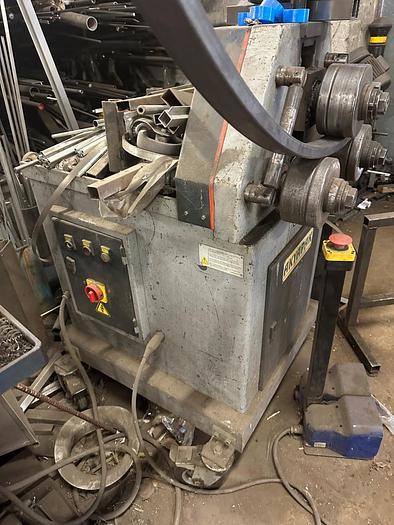

Akyapak Akbend APK-35 Section Rolls
Machine Type: Section Rolls
Year: 2001
Condition: Good
Description
2 Powered Rolls
50mm Shaft Diameter

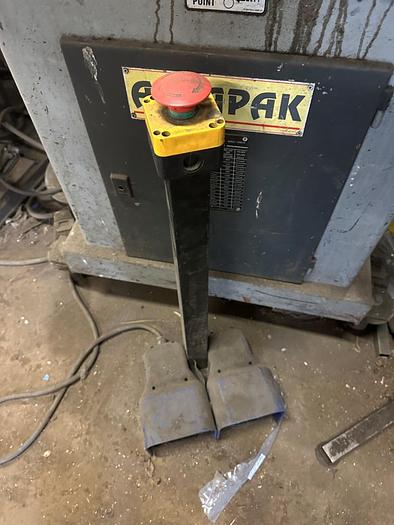

Double Foot Switch
Vertical and Horizontal Use

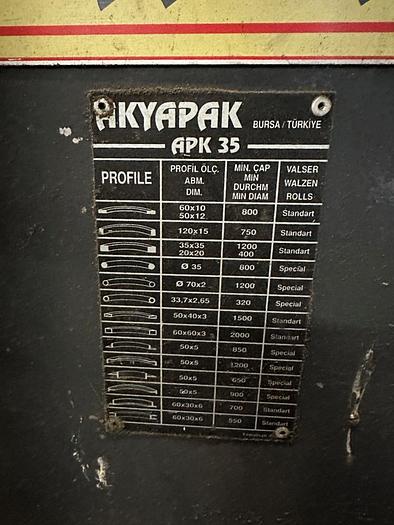

Technical Specification
Capacity (Flat): 120 x 15mm (d 750mm)
Capacity (Flat on Edge): 60 x 10mm (d 800mm)
Angle steel: 50 x 5mm (d 1200mm)
Round material: 35.0mm (d 800mm)
Max. tube diameter: 70 x 2mm (d 1200mm)
Square material: 50 x 40 x 3mm
Bending speed: 4.3 m/min
Roller Diameter Top: 155mm
Shaft Diameter: 50.0mm
Total power requirement: 1.5 kW
Electrical Connection: 400V/3ph
Dimensions LWH: 730 x 830 x 1500 mm
Weight: 320kg
Specifications
| Manufacturer | Akyapak |
| Model | APK 35 Section Rolls |
| Year | 2001 |
| Condition | Used |
| Machine Type | Section Rolls |
| Round material | 35.0mm (d 800mm) |
| Bending speed | 4.3 m/min |
| Roller Diameter Top | 155mm |
| Shaft Diameter | 50.0mm |
| Total power requirement | 1.5 kW |
| Electrical Connection | 400V/3ph |
| Weight | 320kg |
