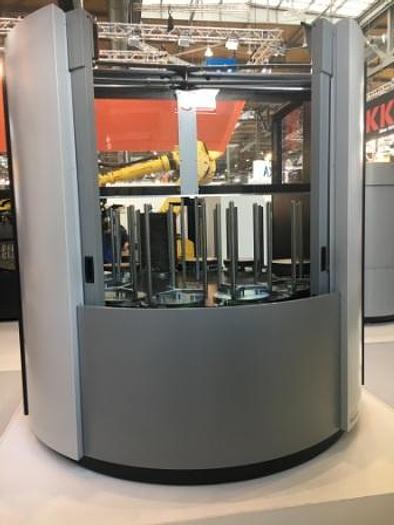

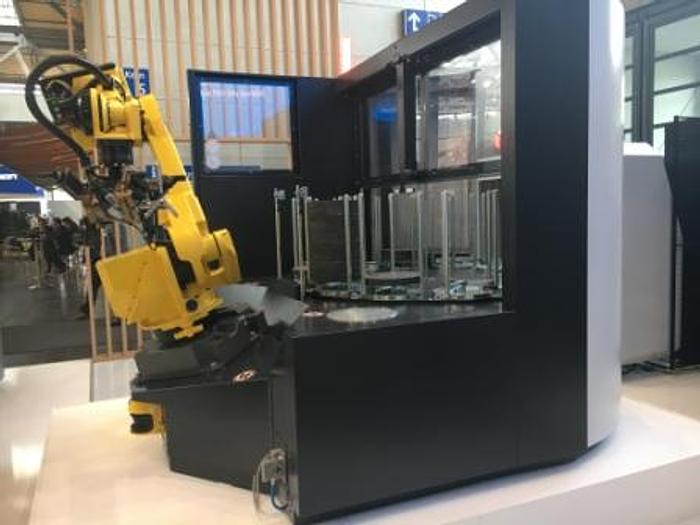

35Kg Halter LoadAssistant TurnStacker BIG 35
Description
Halter LoadAssistant TurnStacker BIG 35 The HALTER LoadAssistant® is a robotic system for automatic loading of your CNC machine. The CNC robot can be connected to any new or existing CNC lathe or milling machine and easily moved from one machine to another. Complete plug-and-play solution for each brand of CNC machine. Set-up time takes less than 5 minutes. No experience with robotics is required. Easily moved from one CNC machine to another. Reliable technology. Weight Capacity: 35KG Designed for Turning Machines Options available to suit your exact applications. Please contact us for more information. n.moloney@haltercnc.com
Specifications
| Manufacturer | Halter CNC Automation |
| Model | LoadAssistant TurnStacker BIG 35 |
| Condition | New |
| Weight Capacity | 35Kg |
| Standard robot-machine interface for every CNC-machine | Yes |
| Max. number of CNC-machines to connect with | 4 |

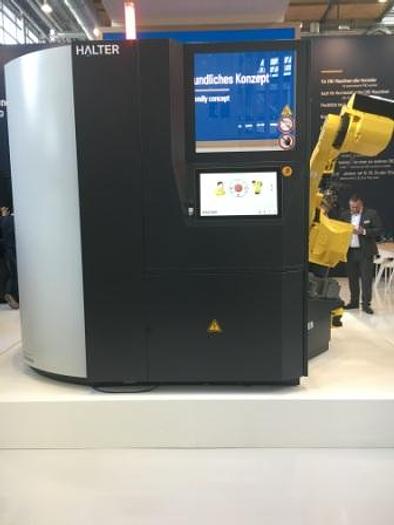

| Control | Halter SmartControl |
| Touch Screen Size | 21" |
| Intuitive and graphical programming in 12 steps | Yes |
| Robot | Fanuc 6 Axis Robot |
| No. of controlled axes | 6 |
| Gripper | 3 Finger Gripper as Standard |
| Other Grippers Available | Yes |
| Safety Scanner | Fanuc DCS area in combination with the Sick floor scanner |
| Portable | Yes |
| Workpiece diameter (min-max) | 43 mm – 300 mm |
| Maximum height of workpiece | 225 mm |
| Maximum load capacity robot arm | 35 kg |
| Maximum total weight on rotating table | 3000 kg |
| Maximum stacking height | 450 mm |

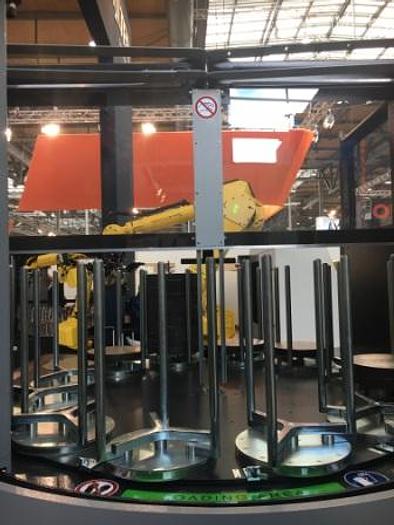

| Number of stacking stations (1 empty) | 12 |
| Maximum weight per station | 250kg |
| Max. number of workpieces at workpiece height of 10 mm | 495 |
| Max. number of workpieces at workpiece height of 20 mm | 242 |
| Max. number of workpieces at workpiece height of 50 mm | 99 |
| Max. number of workpieces at workpiece height of 70 mm | 66 |
| Max. number of workpieces at workpiece height of 85 mm | 55 |
| Max. number of workpieces at workpiece height of 110 mm | 44 |
| Max. number of workpieces at workpiece height of 150 mm | 33 |
| Max. number of workpieces at workpiece height of 225 mm | 22 |
| Power | 400V |
| Dimensions (L x D x H) | 2800 x 2250 x 2220mm |
| Weight | 2490kg |
