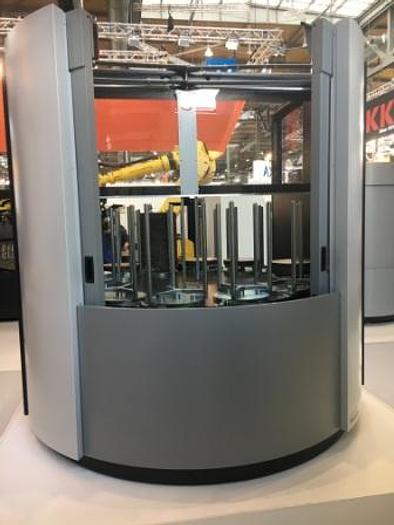

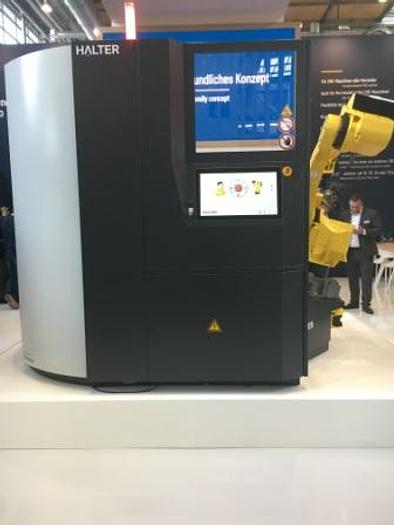

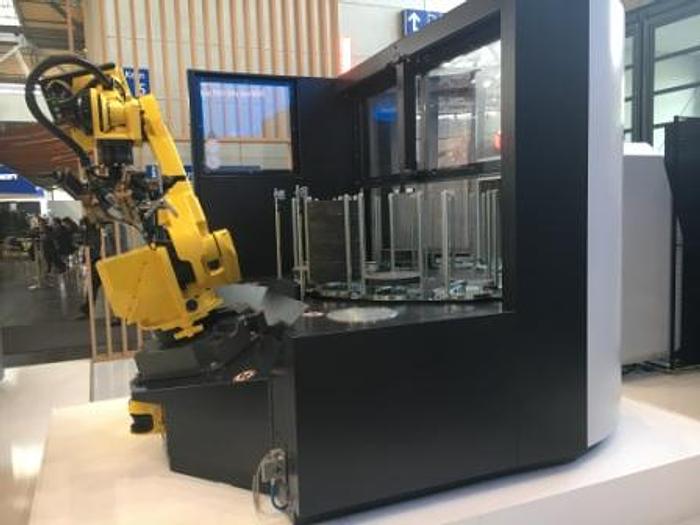

35Kg Halter Universal BIG 35

Netherlands

orCall +353 838108745

Description

Halter LoadAssistant Universal BIG 35 The HALTER LoadAssistant® is a robotic system for automatic loading of your CNC machine. The CNC robot can be connected to any new or existing CNC lathe or milling machine and easily moved from one machine to another. Complete plug-and-play solution for each brand of CNC machine. Set-up time takes less than 5 minutes. No experience with robotics is required. Easily moved from one CNC machine to another. Reliable technology. Weight Capacity: 35KG Designed for Turning Machines & Milling Machines
Show All

Specifications

ManufacturerHalter CNC Automation
ModelLoadAssistant Universal BIG 35
ConditionNew
ControlHalter SmartControl
Standard robot-machine interface for every CNC-machineYes
Max. number of CNC-machines to connect with4
Touch Screen Size21"
Intuitive and graphical programming in 12 stepsYes
RobotFanuc 6 Axis Robot
No. of controlled axes6
Gripper2 or 3 Finger Gripper
Other Grippers AvailableYes
Safety ScannerFanuc DCS area in combination with the Sick floor scanner
PortableYes
Workpiece diameter (min-max)10mm – 300 mm
Maximum height of workpiece300 mm
Maximum load capacity robot arm35 kg
Maximum total weight on rotating table3000 kg
Max Number of Workpieces for Grid Plate 10-35mm320
Max Number of Workpieces for Grid Plate 23-55mm220
Max Number of Workpieces for Grid Plate 23-85mm120
Max Number of Workpieces for Grid Plate 23-115mm82
Max Number of Workpieces for Grid Plate 23-135mm44
Max Number of Workpieces for Grid Plate 23-175mm28
Max Number of Workpieces for Grid Plate 23-195mm24
Max Number of Workpieces for Grid Plate 23-230mm18
Weight Capacity35Kg
Max Number of Workpieces for Grid Plate 23-300mm10
Capacity for Long ShaftsYes
Workpiece Specific Grid PlateOptional
Power400V
Dimensions (L x D x H)2800 x 2250 x 2220mm
Weight2490 kg
