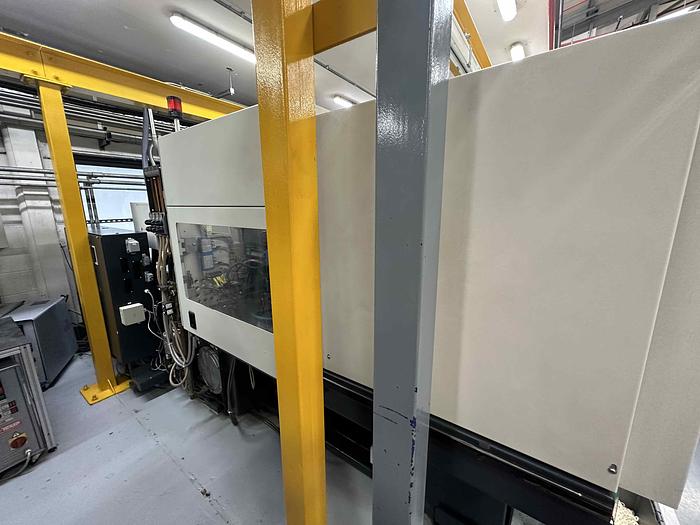

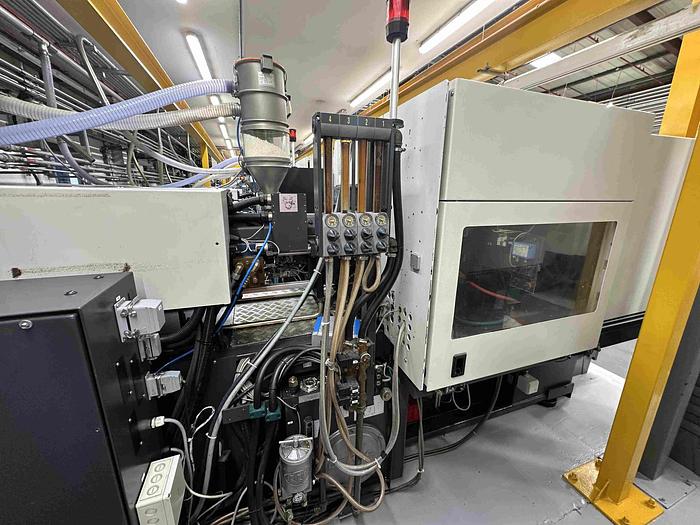

2005 Demag System 60/420-80 Injection Moulding Machine

Demag System 60/420-80 Injection Moulding Machine

Machine Type: Injection Moulding Machine

Year: 2005

International Size: 600-80

Screw Size: 18mm

Clamping Force: 60T

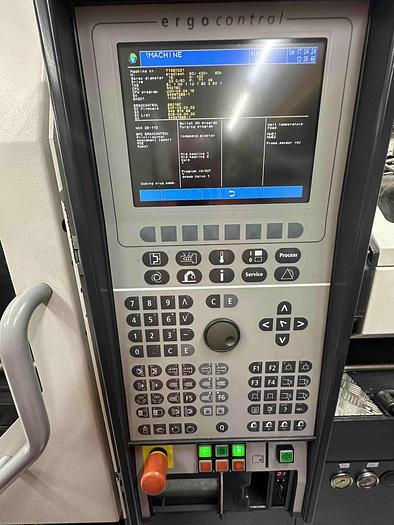

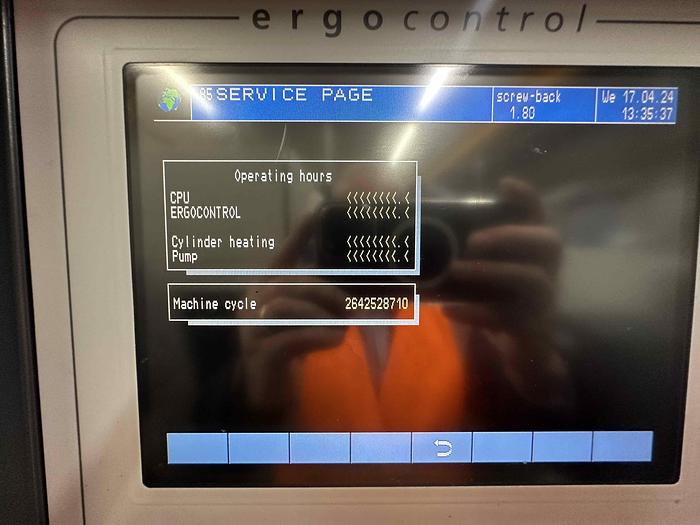

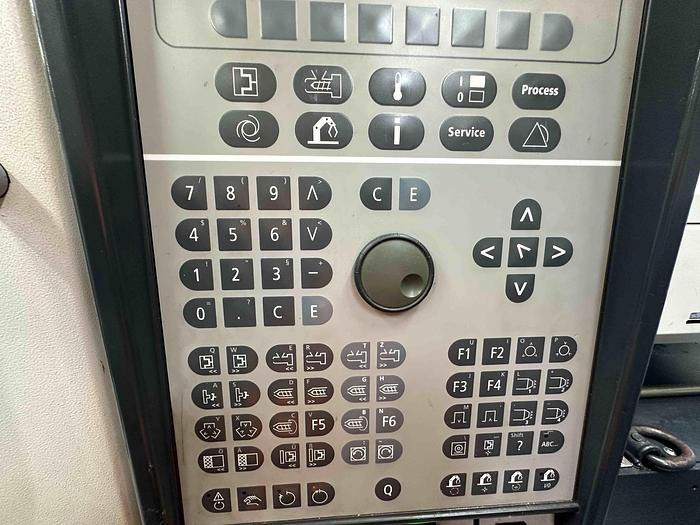

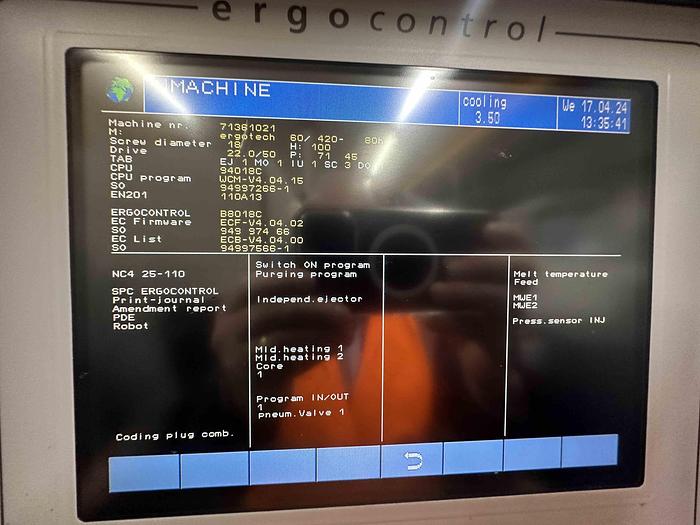

Control: Demag NC4

Availability: July 2024

Condition: Very Good

Notes:

Excludes Hopper & Kistler Unit

Single Shot Machine

Includes

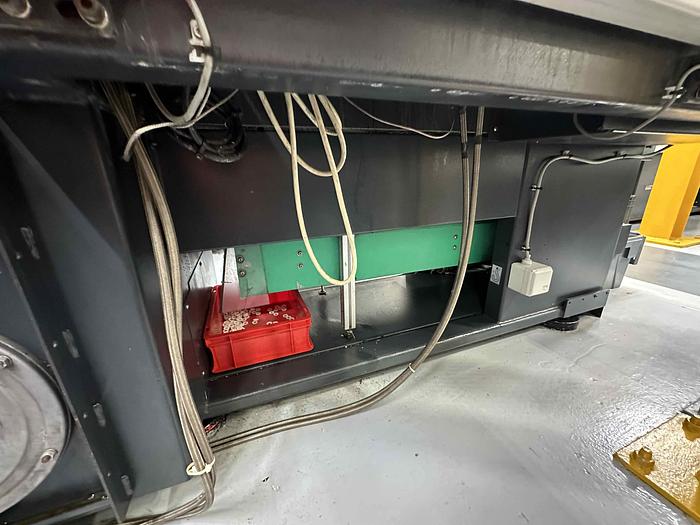

Conveyor

Manuals

Technical Specifications

Clamping Force: 60T/600kN

Distance Between Tie Bars: 420 x 420mm

Platen Dimensions: 590 x 600mm

Min Mould Height: 250mm

Opening Stroke: 450mm

Max Distance Between Platens: 700mm

Max Mould Weight: 700kg

Ejector Stroke: 150mm

Ejector Force: 41.2kN

Ejector Retraction: 14.8kN

Screw Diameter: 18mm

Core Puller: Yes

L/D Ratio: 20

Specific Injection Pressure: 2868bar

Cylinder Head Volume: 23ccm

Shot Weight: 20g

Max Metering Stroke: 90mm

Max Nozzle Stroke: 170mm

Nozzle Dipping Depth:40mm

Nozzle Sealing Force: 60kN

Heating Capacity of Screw Cylinder: 5kW

Total Installed Power: 27kW

Machine Dimensions: 3750x1400x2000mm

Machine Weight: 3250kg
