Cormak S200-R Manual Bandsaw
Description
Cormak S200-R Manual Bandsaw

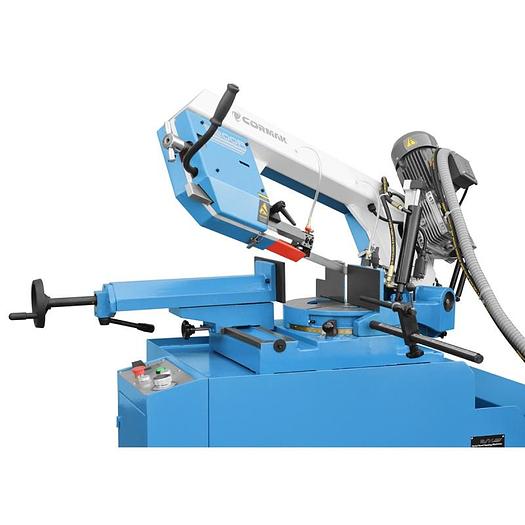

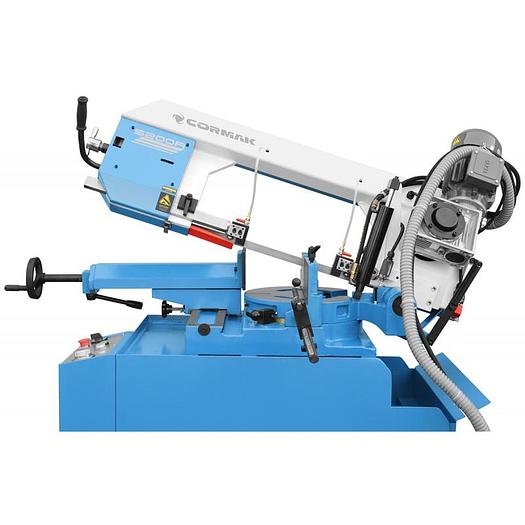

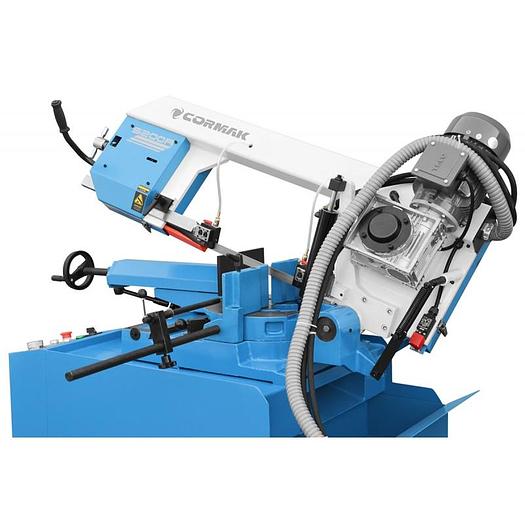

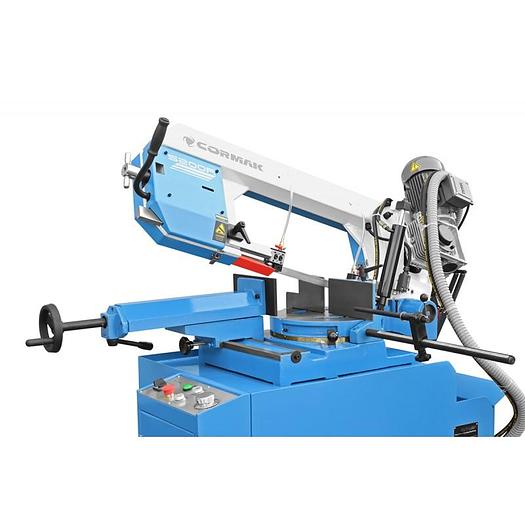

Machine Description CORMAK S-200R MANUAL bandsaws can be used for straight cutting or at any angle from -45° to 60°. The material can be fed manually or by any feeding device. The arm feed during cutting is gravitational controlled by a two-chamber hydraulic cylinder and controlling valve. Features high accuracy metal cutting, even at 45º/60º.

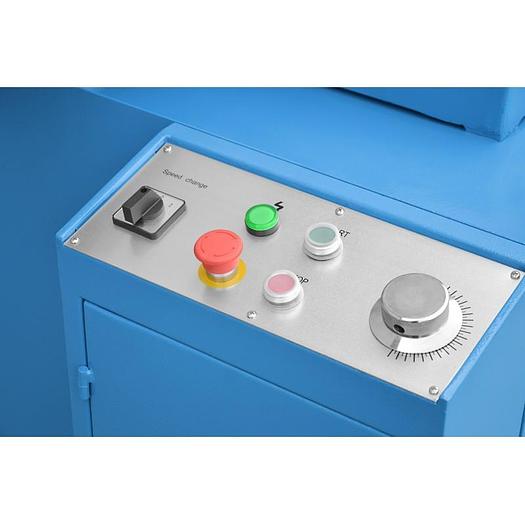

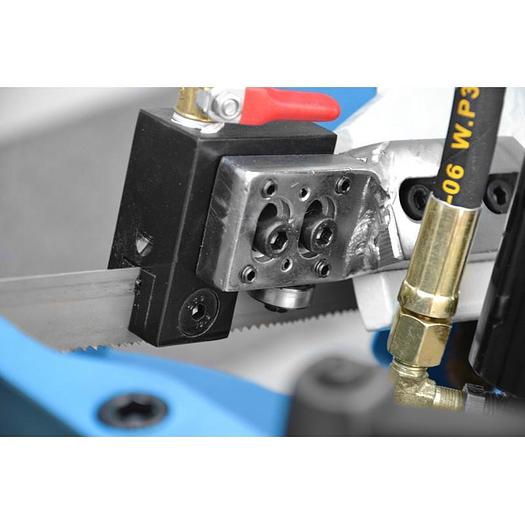

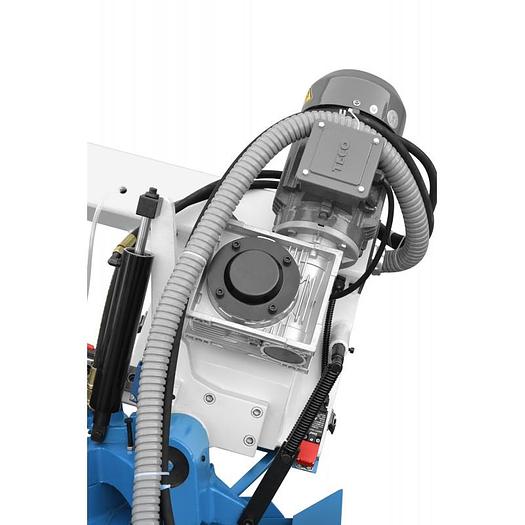

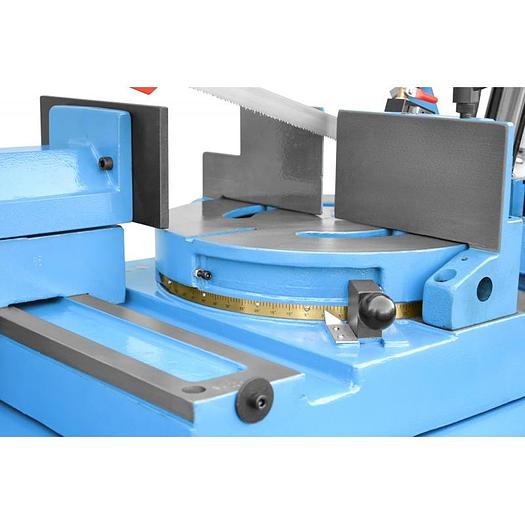

Machine Operation Operator starts the machine by pressing the START button and sets the cutting speed. After the cycle is finished the machine automatically stops and the operator lifts the arm to the starting position. Material is fed manually. This model can be used in both low and high quantity production, and due to its solid construction allows for cutting various materials, including stainless steel, tool steel and profiles. The machine provides cutting at an angle due to rotary arm. The band saw arm is made of uniform cast iron, and together with 27mm wide blade enables high quantity cutting of various materials. The vice is equipped with a quick clamp. Blade guides are equipped with a ball bearings system and cemented carbides, ensuring excellent cutting precision and straight cut. The arm is equipped with an automatic blade tension sensor, at a 25° angle, thus increasing blade's durability. There is a blade cleaning brush attached to the bottom of the arm. Machine drive is transmitted through a worm drive filled with gear oil. The machine is equipped with a threephase motor with double winding and two cutting speeds. The motor is thermally protected. Two cutting band speeds: 35 and 70 m/min. Technical Data Type: Manual Raising and lowering of arm: Gravitational with stepless arm lowering adjustment Band speed: 35/70 mm / min Cutting for angles: Left from 45 ° to 60 ° right Vice: Manual Minimum cutting diameter: Ø 5 mm Minimum length of material in vice: 30 mm Height of the vice base: 890 mm Blade size: 27 x 0.9 x 2910 mm Total power: 2.1 kW Machine Dimensions (L x W x H): 1600 x 800 x 1400 mm Weight: 480 kg
Specifications
| Manufacturer | Cormak |
| Model | S200-R Manual Bandsaw |
| Condition | New |
| Type | Manual |
| Blade length | 2910 x 27 x 0.9 mm |
| Vice | Manual |
| Minimum length of material in vice | 30mm |
| Minimum cutting diameter | ø5 mm |
| Blade speed | 35/70 m • min-1 |
| Total power | 2.1 kw 3 Phase |
| Capacity 0º (Round) | 250mm |
| Capacity 0º (Rectangular) | 320 x 240mm |
| Capacity 0º (Square) | 240 x 240mm |
| Capacity 45º R (Round) | 220mm |
| Capacity 45º R (Rectangular) | 235 x 120mm |
| Capacity 45º R (Square) | 210 x 210mm |
| Capacity 45º L (Round) | 200mm |
| Capacity 45º L (Rectangular) | 220 x 120mm |
| Capacity 45º L (Square) | 190 x 190mm |
| Capacity 60º R (Round) | 110mm |
| Capacity 60º R (Rectangular) | 155 x 110mm |
| Capacity 60º R (Square) | 100 x 100mm |
| Machine Dimensions (L x W x H) | 1600 x 800 x 1400 mm |
| Weight | 480 kg |
