Cormak BS 128HDRC Manual Bandsaw
Description

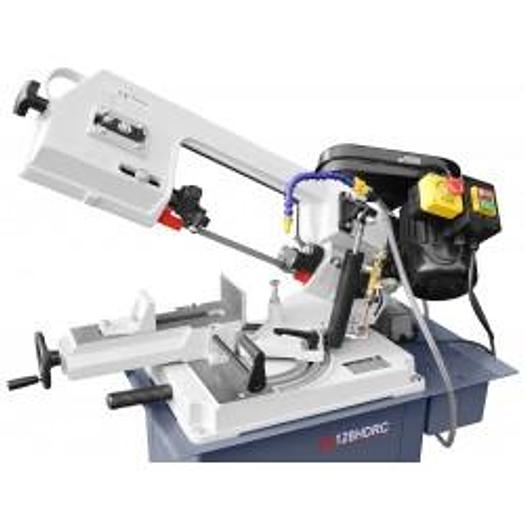

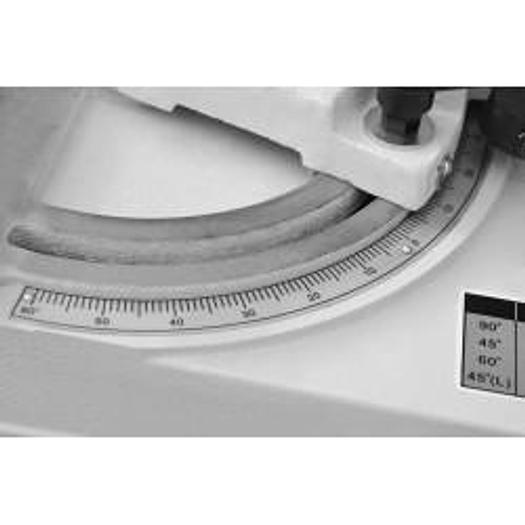

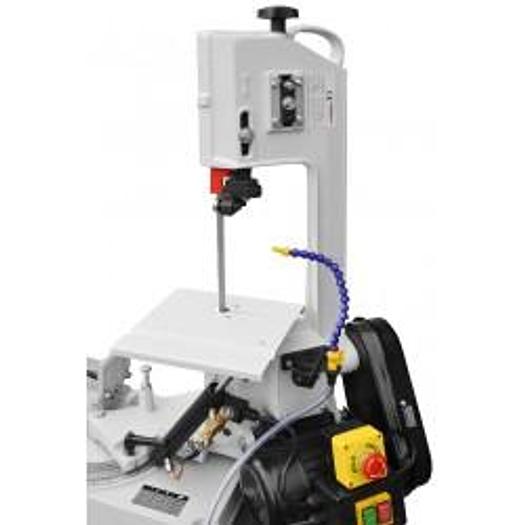

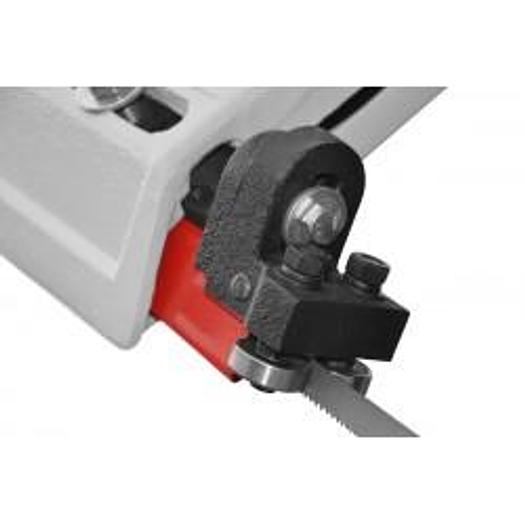

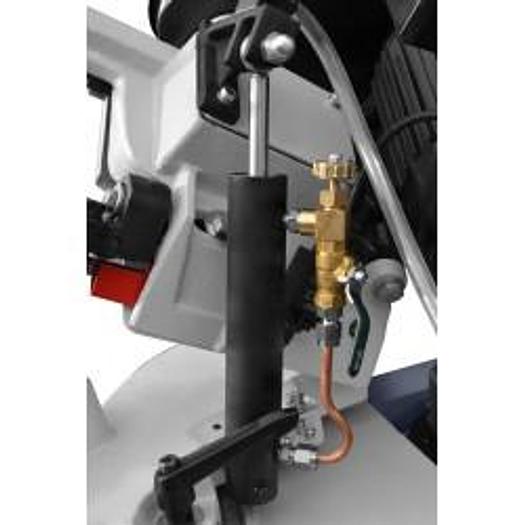

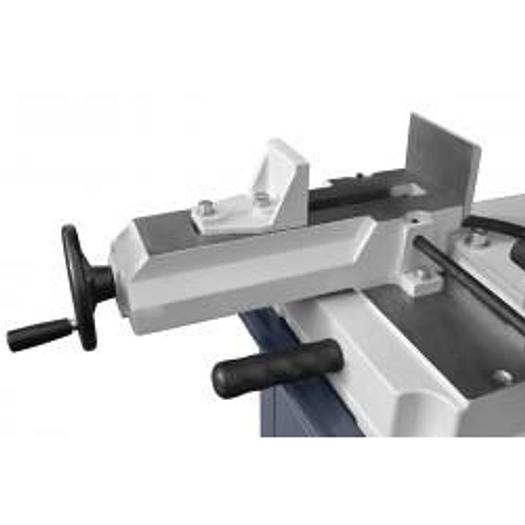

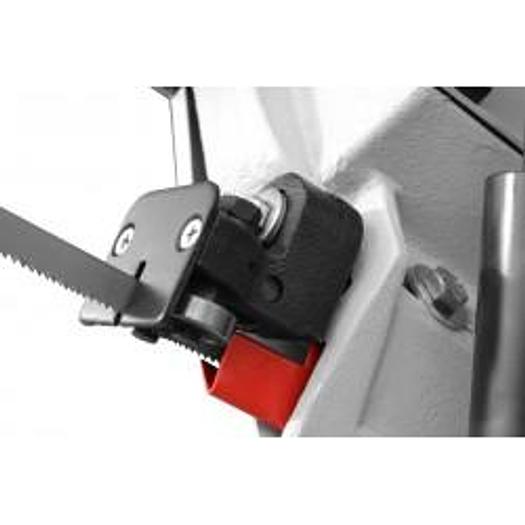

Cormak BS 128HDRC Manual Bandsaw. This Cormak BS128HDRC Manual band saw for metal with optimal cutting range is designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in one direction is a very big advantage in angled cutting. Despite small dimensions, its weight (103 kg) makes it very stable and vibration-free during cutting larger materials. Material can be fed manually or via feeding rollers.. Feed during cutting is gravitational. Arm lowering control is ensured by a hydraulic valve control. Straight cutting is achieved using bearings guiding the blade. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for single bevel cutting within 0 Degrees to - 60 Degrees Standard Equipment 3rd generation hydraulic cylinder Table for vertical cuts Quick-clamping vice Coolant system Workpiece limiter - bumper Automatic limiting switches Modern thermal engine protection Mobile base with four wheels User manual
Specifications
Manufacturer | Cormak |
Model | BS 128HDRC |
Condition | New |
Blade length | 1640 x 13 x 0.65 mm |
Electrical Power | 3 Phase |
Blade speed | 3 Speeds - 24/47/61m/min-1 |
Total power | 0,55 kW/230V |
Capacity 0º (Round) | 128mm |
Capacity 0º (Rectangular) | 128 x 150mm |
Capacity 0º (Square) | 100 x 100mm |
Capacity 45º R (Round) | 95mm |
Capacity 45º R (Rectanagular) | 90 x 75mm |
Capacity 45º R (Square) | 90 x 90mm |
Capacity 60º R (Round) | 44mm |
Capacity 60º R (Rectangular) | 44 x 55mm |
Capacity 60º R (Square) | 55 x 55mm |
Feed Control | Stepless - hydraulic cylinder |
Machine Dimensions (L x W x H) | 980 × 385 × 1060mm |
Weight | 112kg |
