Almi AL1-2U Motor Powered Pipe Notcher - 230V

ALMI AL1-2U Motor Powered Pipe Notcher

Description

Easy Use

With the motor-powered pipe notch AL1-2U you can have external pipe diameters of Ø26.9 (3/4″), Ø337 (1″), Ø42.4 (1 ¼”), Ø48.3 (1 ½”), Ø60.3 (2″) and external tube diameters for zinc tubes from Ø22 to Ø76. The machine is started by the push of a button, the pipe notcher being driven continuously. This allows the user to produce continuously without having to switch on the machine each time.

Electrically Powered

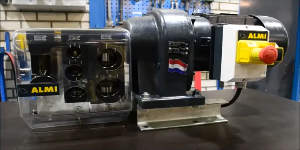

With the motor-powered pipe notcher AL1-2E you can notch external pipe diameters of Ø26.9 (3/4″), Ø337 (1″), Ø42.4 (1 ¼”), Ø48.3 (1 ½”), Ø60.3 (2). Do you notch a lot of tubes? Then the AL1-2U motor-powered pipe notcher with 2.2 kW electric motor is the solution for you! The motor forms a whole with the special eccentric shaft that drives the notching tool. The motor is also fitted with an on/off switch with 0-voltage protection and a protective hood.

Sustainable

ALMI Pipe notchers are made of high-quality steels, which guarantees a long service life.

Technical Details

Suitable for: Ext. pipe diameters Ø 26.9 (3/4″) Ø 33.7 (1″) Ø 42.4 (1_¼”) Ø 48.3 (1_1/2″) Ø 60.3 (2″)

Diameter for End notching: Ø 22 – Ø 76

Advantage: Quick and easy notching

Wall thickness (steel): 5mm

Wall thickness (stainless steel): 3mm

Weight: 93kg

Operation: Electric

Motor Power: 2.2kW

Connection: 230V Single Phase

Application: Round, square and rectangular pipe
