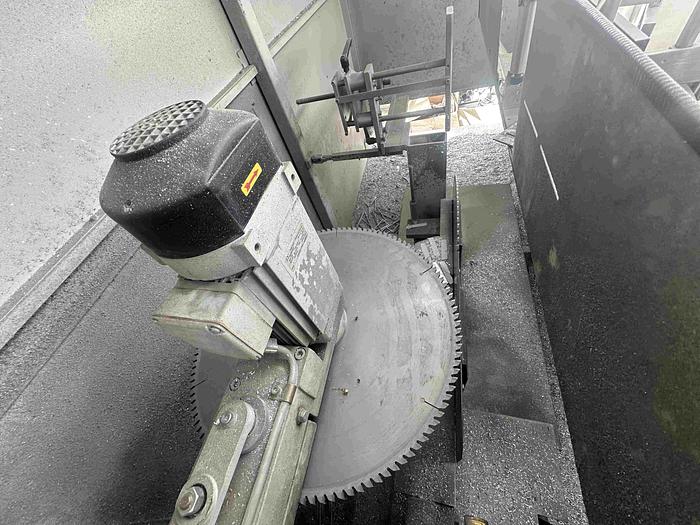

2004 Elumatec AKS 134 Notching Saw

Elumatec AKS 134 Notching Saw

Machine Type: Notching Saw for curtain walls, conservatories, sky lights, and special designs

Year: 2004

Condition: Very Good

Machine Description

• Variable notching possibilities for mullion and transom combinations, e.g. for curtain walls, conservatories, sky lights, and special designs
• Precise and safe notching is ensured because the workpiece is fixed and only the saw units move
• Both saw units are adjusted in height simultaneously by means of a hand wheel (analogue display on the hand wheel)
• The cutting depth is set using an analogue display
• Manual angle adjustment of the saw blades using a digital display of the tilting angles
• Support table is manually adjustable for optimal use of the cutting range
• The angle of the pivoting back fence is shown on a digital display
• Horizontal and vertical profile clamping Automatic working cycle at a 90° pivoting angle (two-hand control when cutting special angles)
• Hydro-pneumatic saw feed

Technical Specifications

Lower Saw Unit(Vertical)

Saw blade diameter: 550 mm

Tilting range: from 45° forwards to 60° towards the rear

Max. cutting height: 210 mm

Power supply: 400 V, 3~, 50 Hz

Power output: 3 kW with motor brake

Saw blade speed: 2,800 rpm

Manual tilting angle adjustment with digital display

Upper Saw Unit(Horizontal)

Saw blade diameter: 500 mm

Tilting range: from 55° downwards up to 60° upwards

Notching depth: max. 190 mm

Power supply: 400 V, 3~, 50 Hz

Power output: 3 kW with motor brake

Saw blade speed: 2,800 rpm

Manual tilting angle adjustment with digital display (standard)

Travel: 830 mm max.

Compressed Air Supply: 7 Bar

Air Consumption: 35L/Cycle without Spraying, 45L/Cycle with Spraying

Machine Dimensions: 3000x1420x1600mm

Weight: 1250kg
