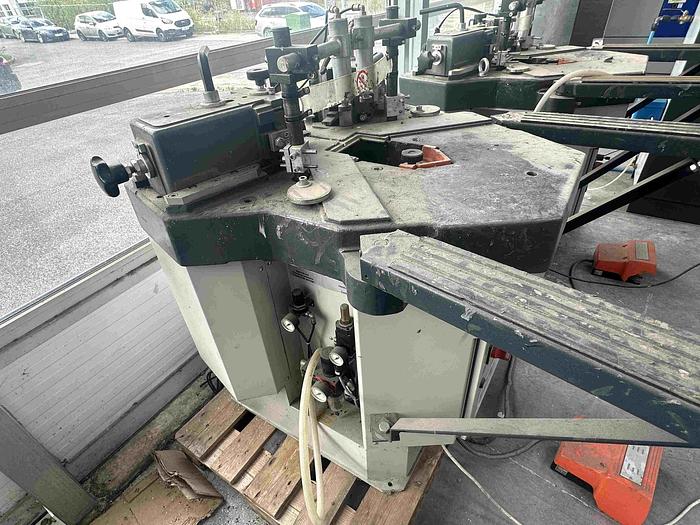

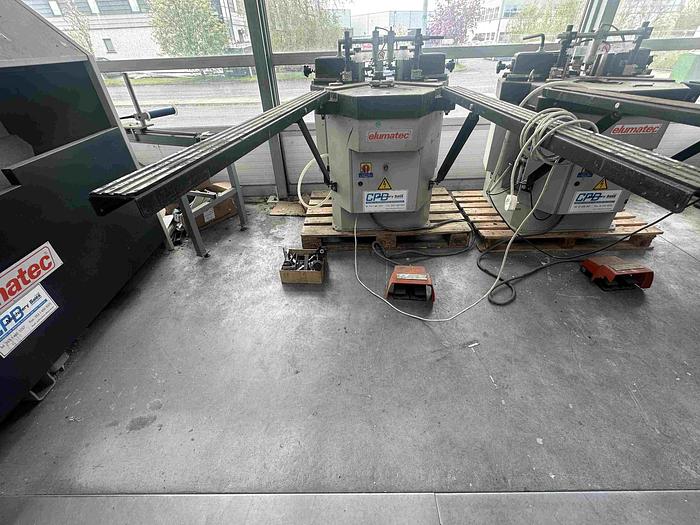

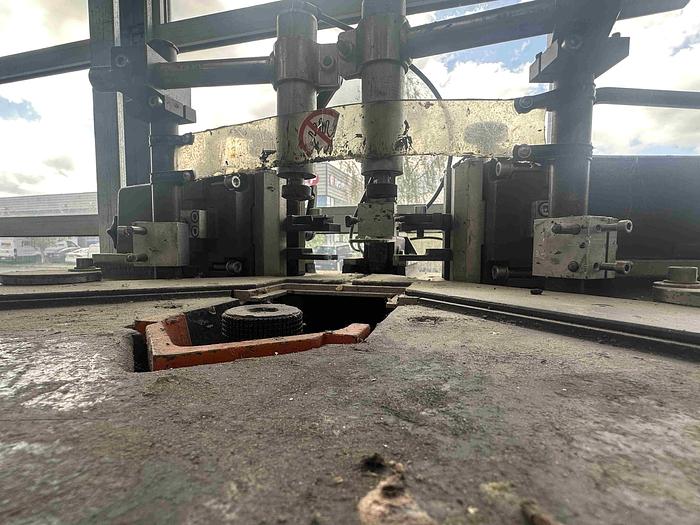

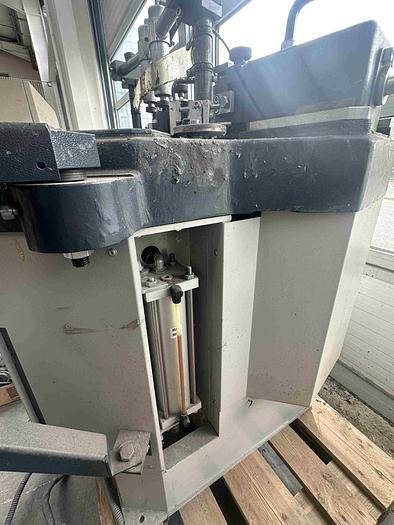

2004 Elumatec EP 124 Corner Crimper

Elumatec EP 124 Corner Crimper

Machine Type: Corner Crimper for pressing profiles with large dimensions with the highest quality requirements

Year: 2004

Condition: Very Good

Machine Description

• For pressing profiles with large dimensions with the highest quality requirements
• The machine is easy to adjust and operate and has short changeover times thanks to a simple blade-changing system

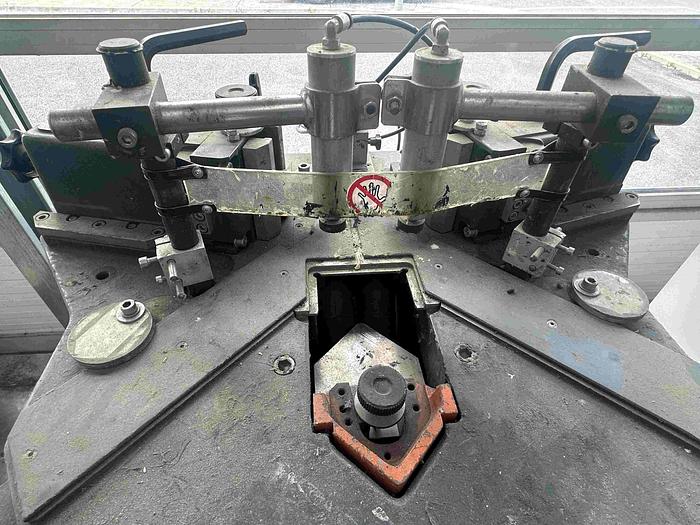

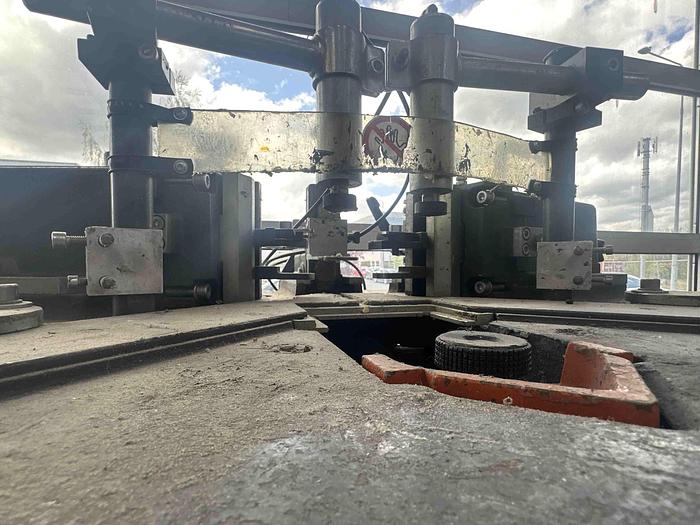

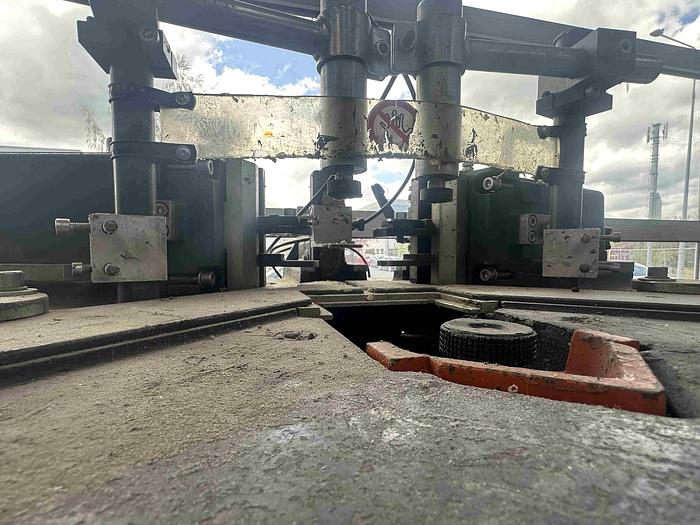

• Extremely high pressing force due to large-volume bellows cylinder (maintenance free) With retractable, hydro-pneumatically controlled counter bearing
• The specially-designed counter bearing head allows pressing of frames with an inner dimension starting at 150 mm (clear dimension)
• The pressing depth can be set separately for each tool carriage

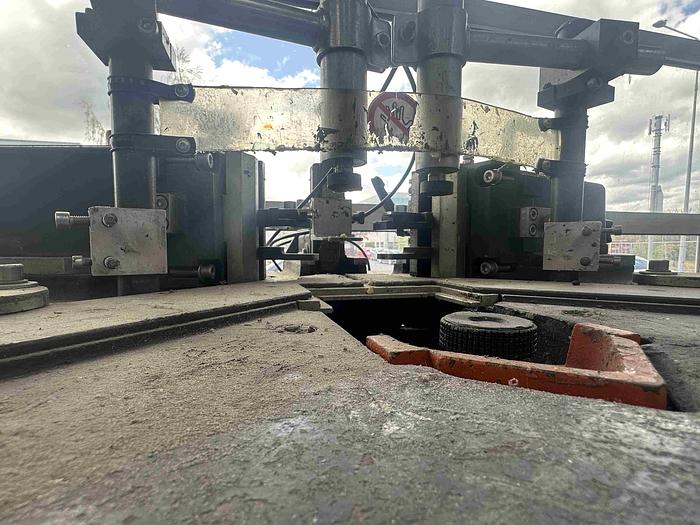

• An adjustable pressing blade is also available to compensate for the profile chamber offset (-5 to 15 mm as standard)

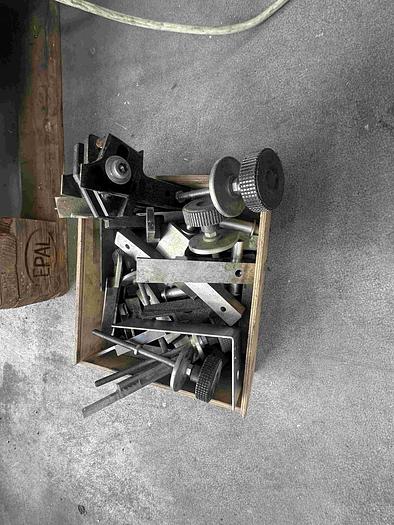

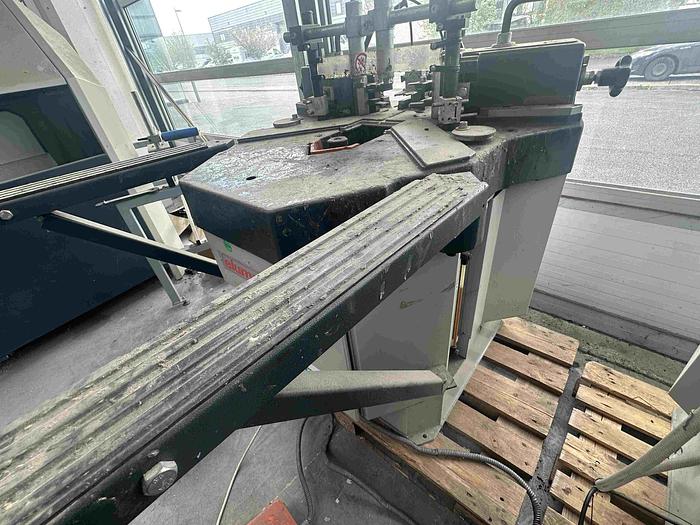

• Support arms and pressing blades included

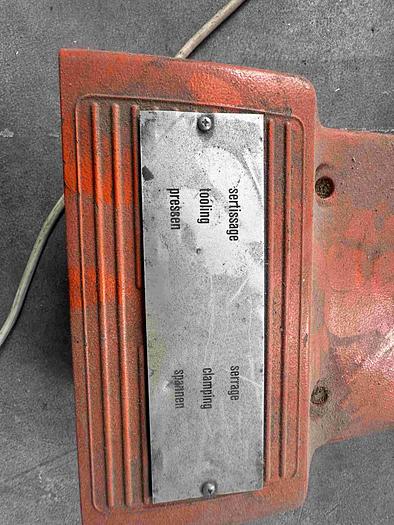

• 2-hand operation

Technical Specifications

Pressing height: 140 mm

Pressing force: 70 kN (7 t)

Drive: Pneumatic

Power supply: 230 V, 1~, 50/60 Hz

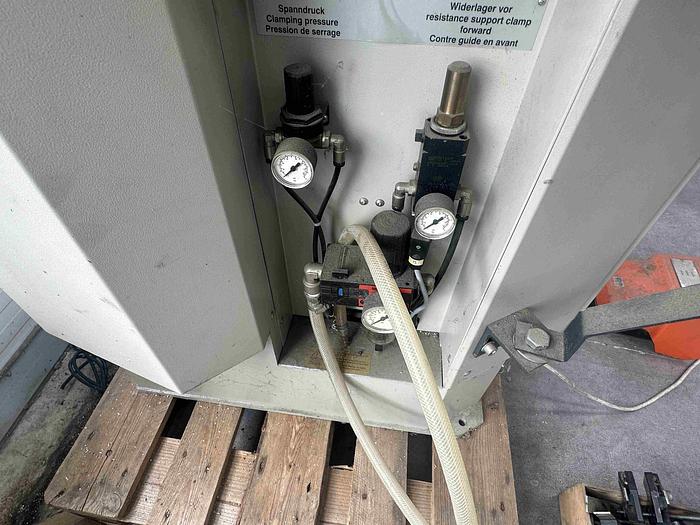

Compressed air supply: 7 bar

Air consumption per working cycle: 35 Litres

Machine Dimensions: 1,100x950x1,230 mm

Weight: 545 kg
