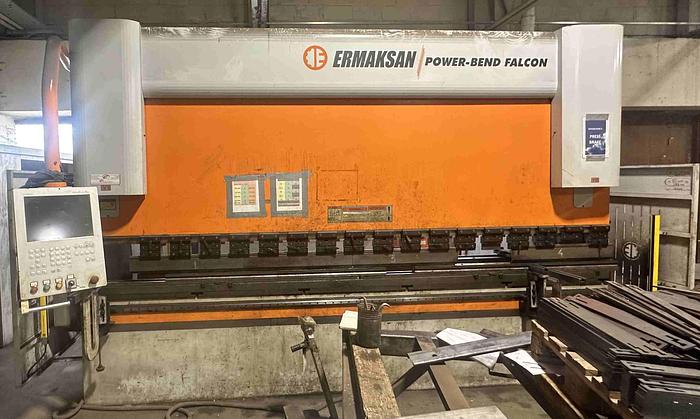

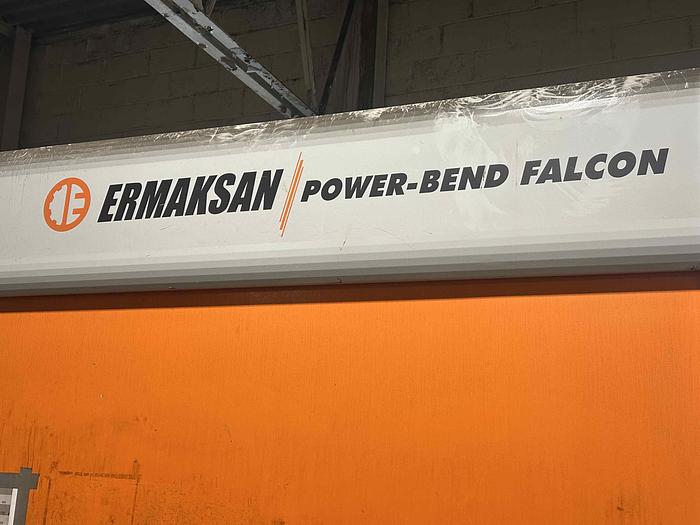

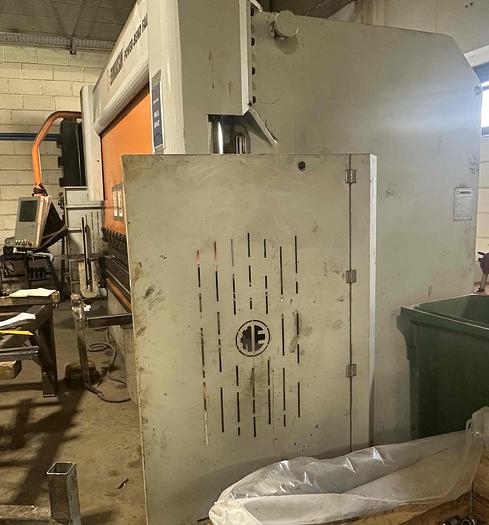

2016 Ermaksan Power-Bend Falcon 4100x175 CNC Pressbrake
Description
Ermaksan Power-Bend Falcon 4100x175 CNC Pressbrake
Machine Type: 4 Axis CNC Pressbrake
Year: 2016
Capacity: 4100 x 175T

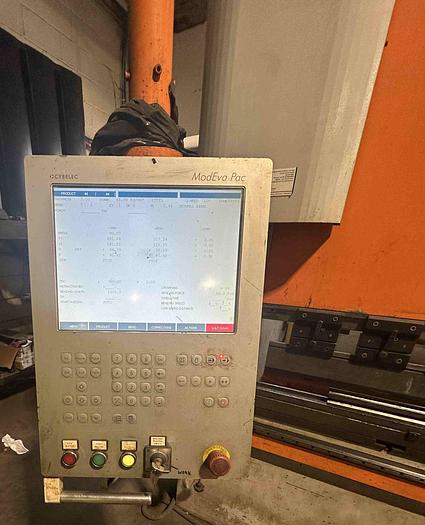

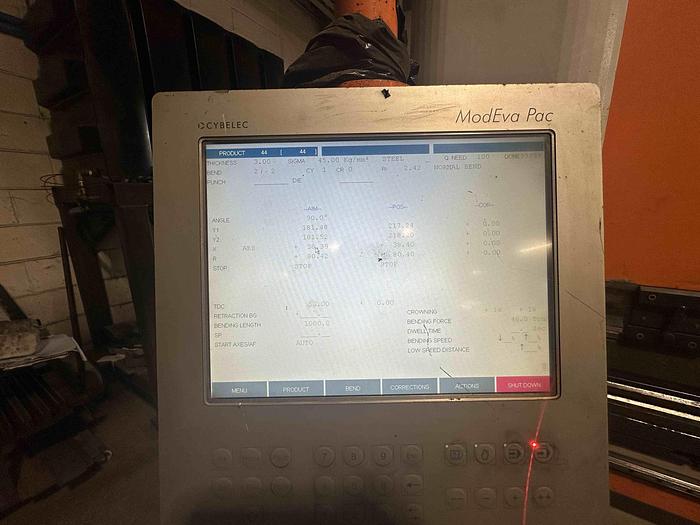

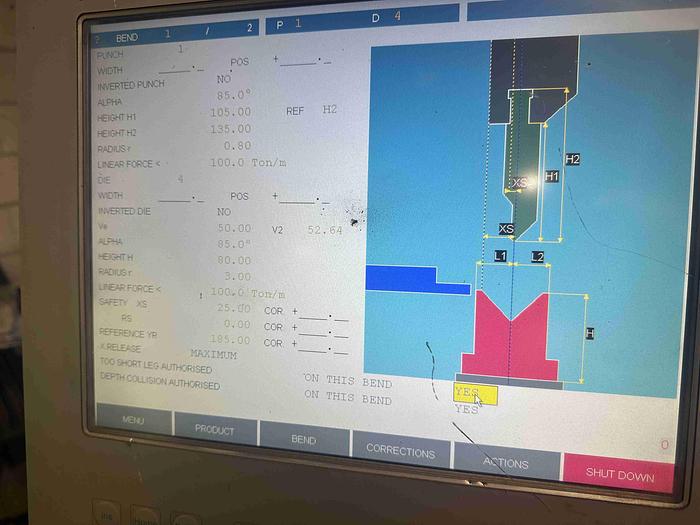

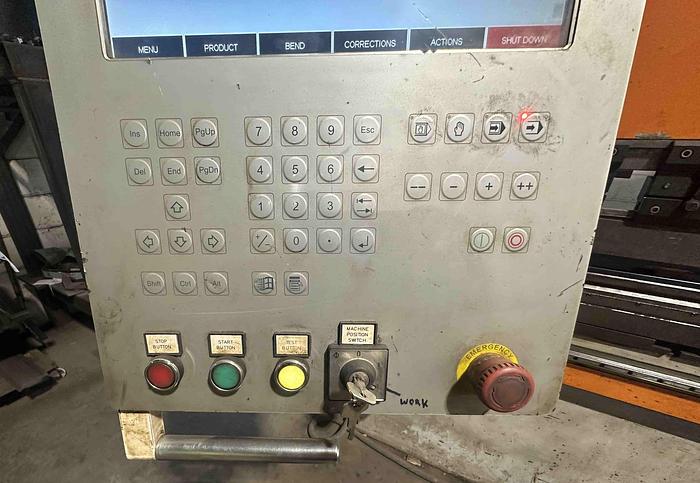

Control: Cybelec ModEva Pac Graphic Control
CNC Controlled Axes: Y1,Y2,X,R
Manual Axes: Z1,Z2
Condition: Excellent
Available: From 01/08/2024
Includes

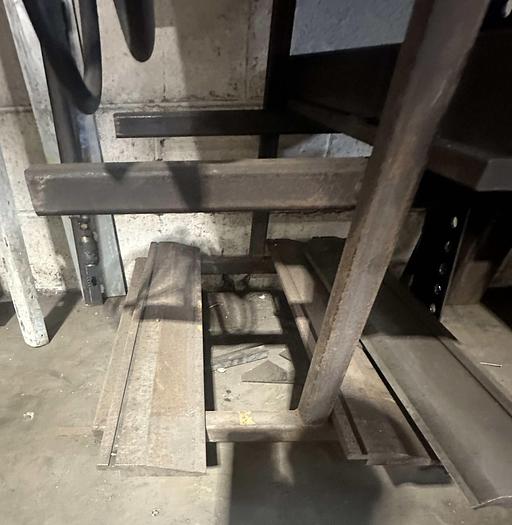

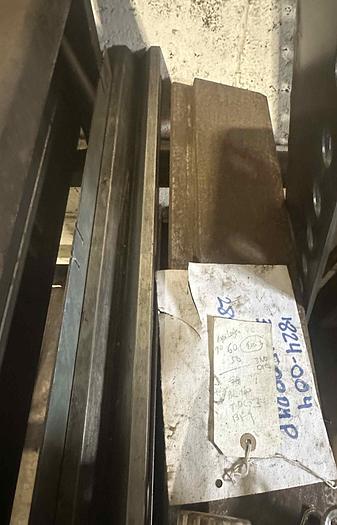

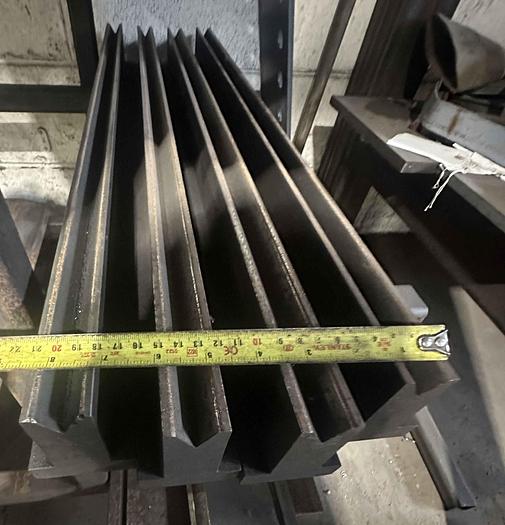

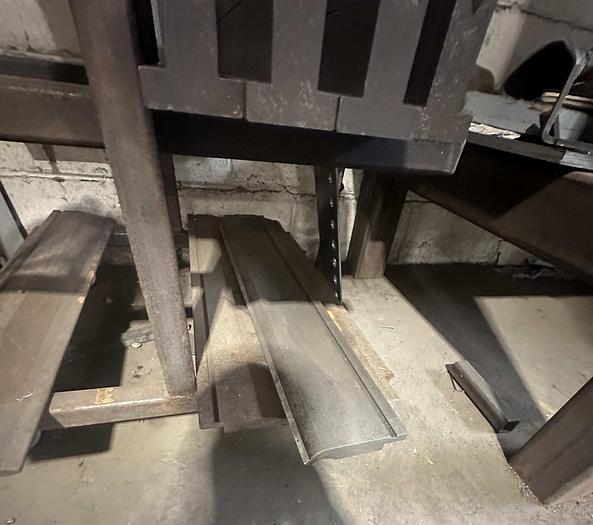

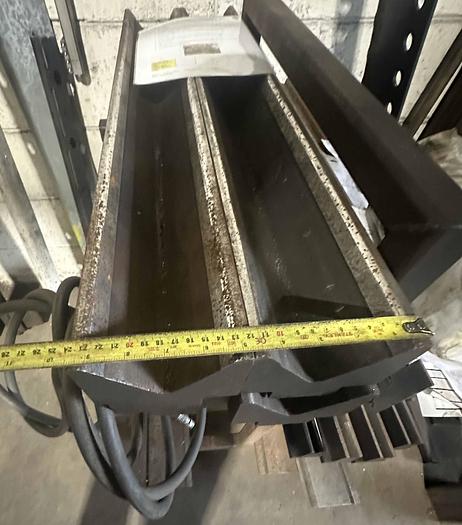

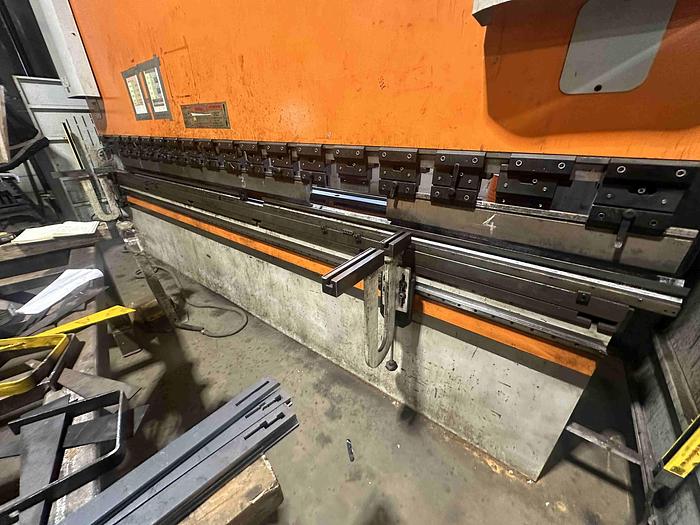

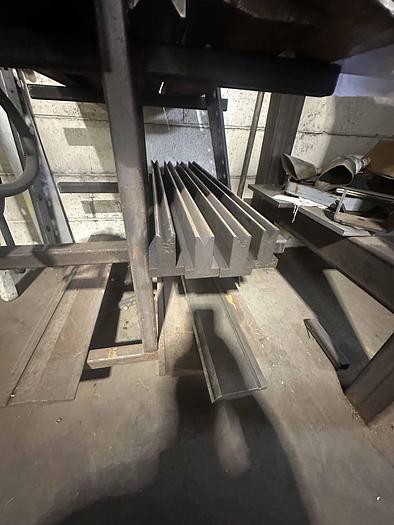

Selection of top & bottom Tooling

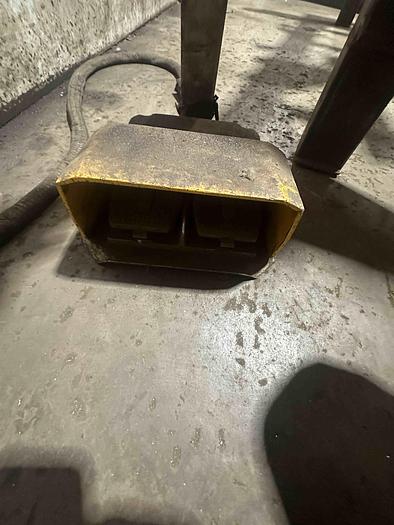

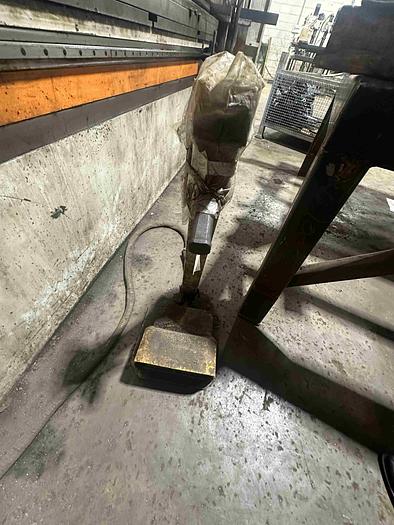

Wanderer Type Foot Pedal

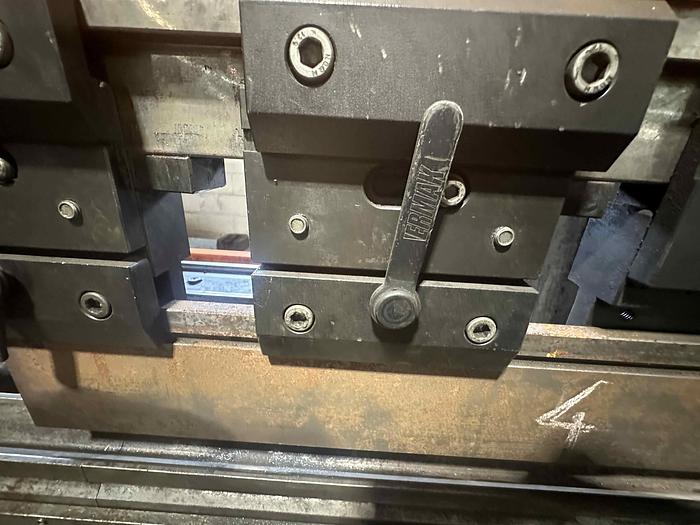

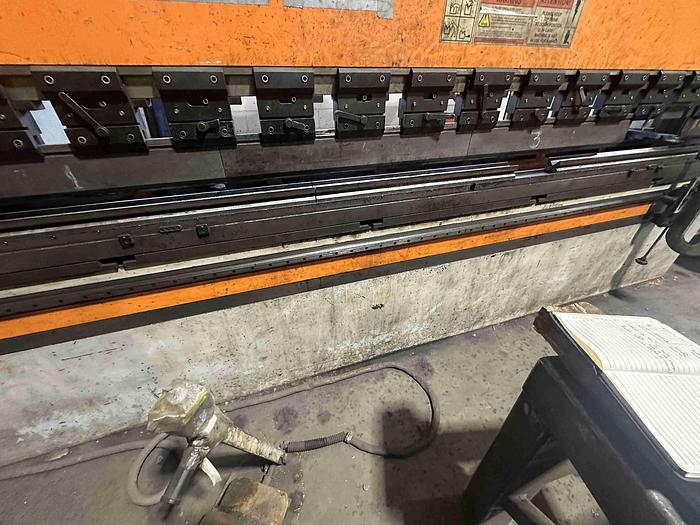

Quick Release Top Clamping
Light Guards at Front & Rear of Machine

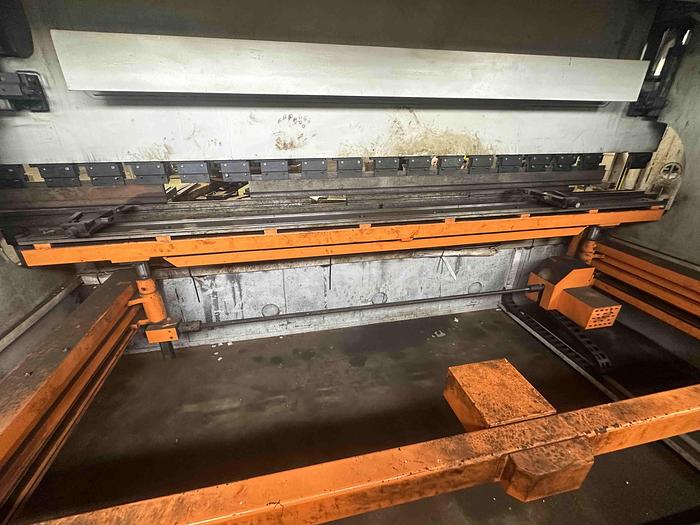

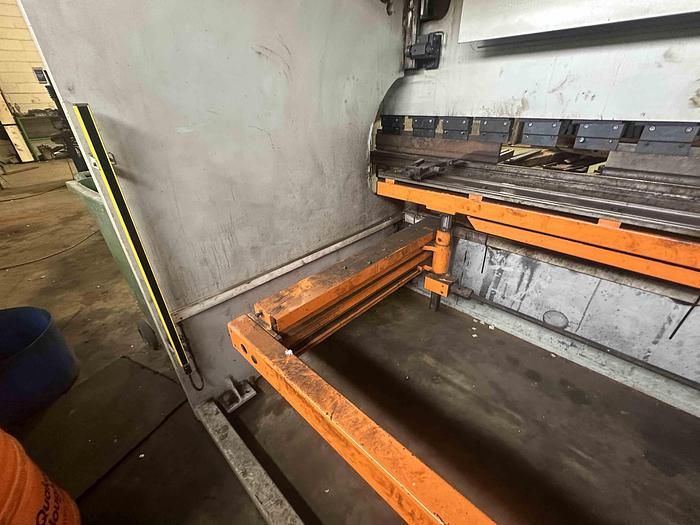

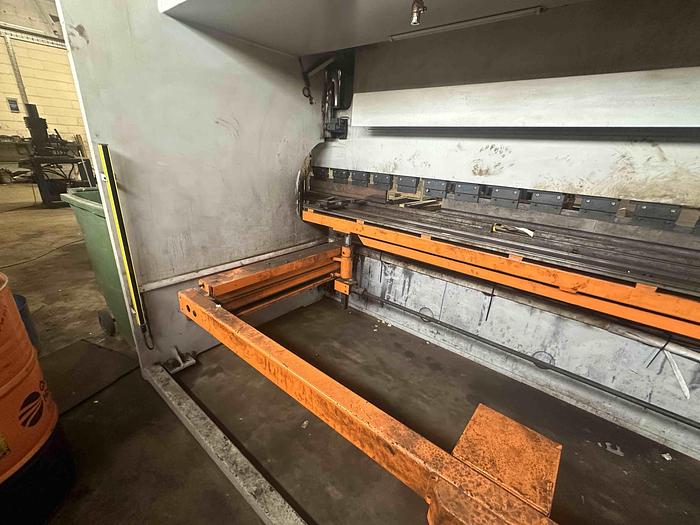

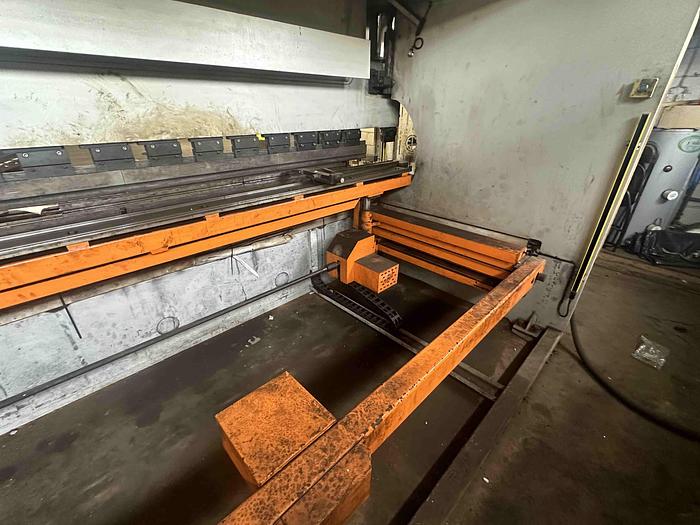

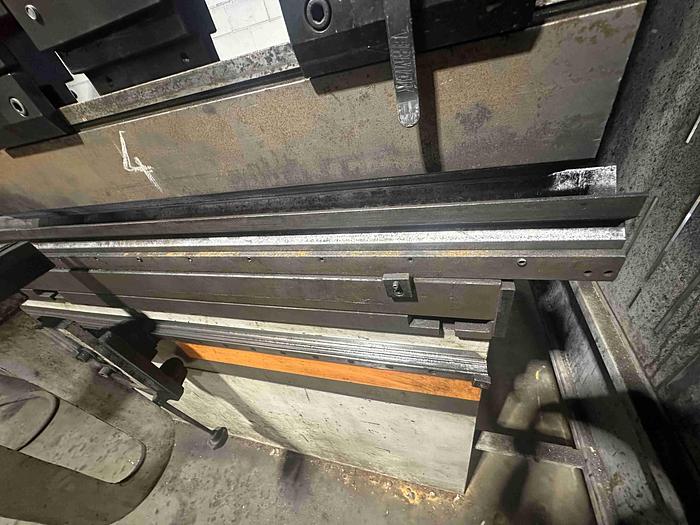

Sliding Front Support Arms
Motorised Crowning
Technical Specifications
Max Bending Length: 4100mm
Max Bending Tonnage: 175T
Distance Between Side Frames: 3600mm
Approach Speed(Y): 180mm/sec
Bending Speed(Y): 10mm/sec
Return Speed(Y): 135mm/sec
Crowning: Motorised
Tooling: Eurostyle Tooling
Safety Distance: 1500mm
Stroke Length: 275mm
Daylight: 550mm
Table Height: 900mm
Table Width: 90mm
Throat Depth: 410mm

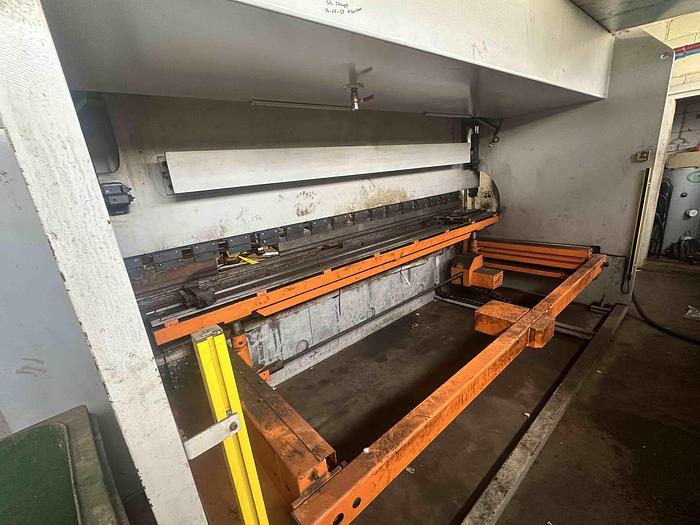

Back Gauge Travel(X): 800mm
Speed of Backgauge(X): 500mm/sec
R Axis Travel: 250mm
R Axis Speed: 350mm/sec
Back Gauge Fingers(Z): 2
Front Sheet Supports: 2
Motor Power: 15kW
Oil Capacity: 200L
Machine Dimensions: 5100x2150x2850mm
Machine Weight: 10,640kg

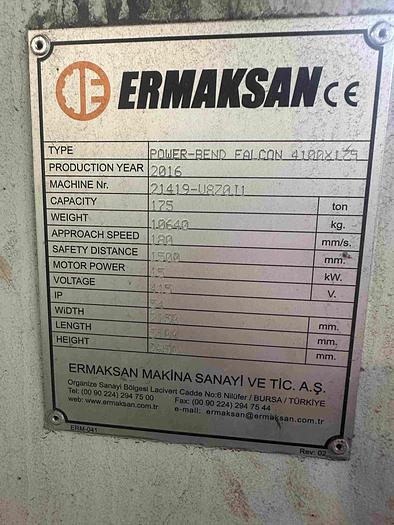

Specifications
| Manufacturer | Ermaksan |
| Model | Power-Bend Falcon 4100x175 CNC Pressbrake |
| Year | 2016 |
| Condition | Used |
| Serial Number | 21419 |
| Machine Type | 4 Axis CNC Pressbrake |
| Year | 2016 |
| Capacity | 4100 x 175T |
| Condition | Excellent |
| Available | From 01/08/2024 |
| Max Bending Length | 4100mm |
| Max Bending Tonnage | 175T |
| Distance Between Side Frames | 3600mm |
| Approach Speed(Y) | 180mm/sec |
| Bending Speed(Y) | 10mm/sec |
| Return Speed(Y) | 135mm/sec |
| Crowning | Motorised |
| Tooling | Eurostyle Tooling |
| Safety Distance | 1500mm |
| Stroke Length | 275mm |
| Daylight | 550mm |
| Table Height | 900mm |
| Table Width | 90mm |
| Throat Depth | 410mm |
| Back Gauge Travel(X) | 800mm |
| Speed of Backgauge(X) | 500mm/sec |
| R Axis Travel | 250mm |
| R Axis Speed | 350mm/sec |
| Back Gauge Fingers(Z) | 2 |
| Front Sheet Supports | 2 |
| Motor Power | 15kW |
| Oil Capacity | 200L |
| Machine Dimensions | 5100x2150x2850mm |
| Machine Weight | 10,640kg |
