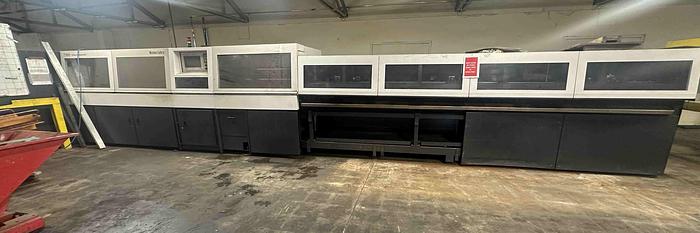

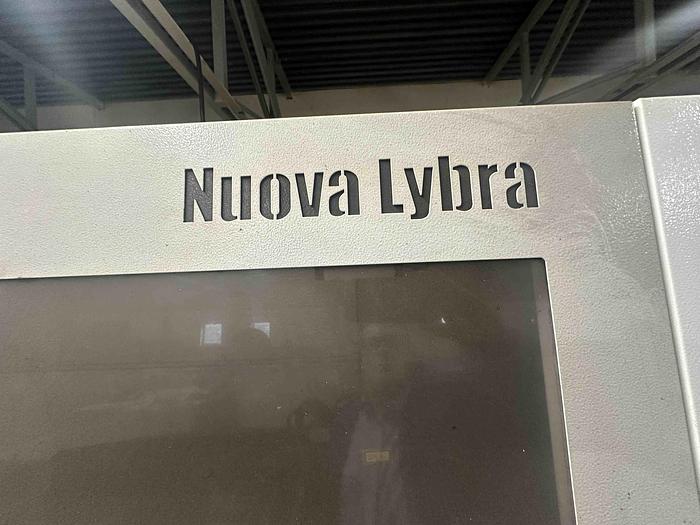

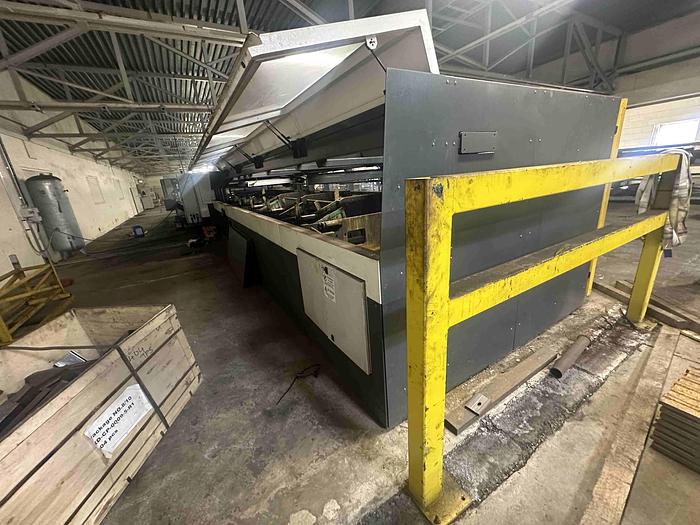

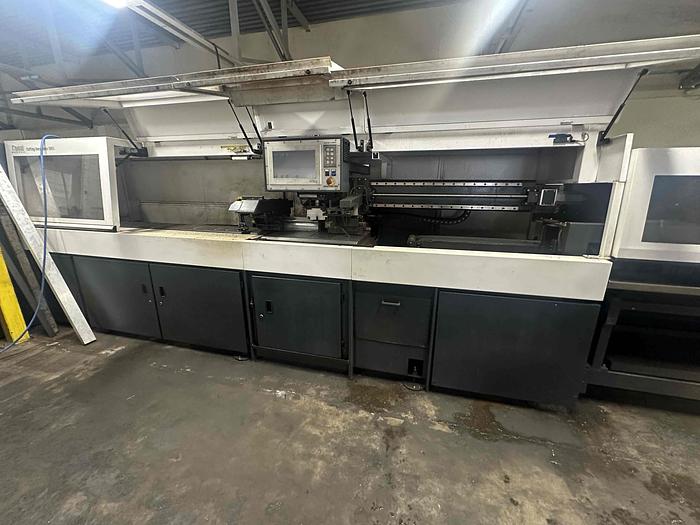

2019 RALC Italia Nuova Lybra CNC Cutting Line
Description

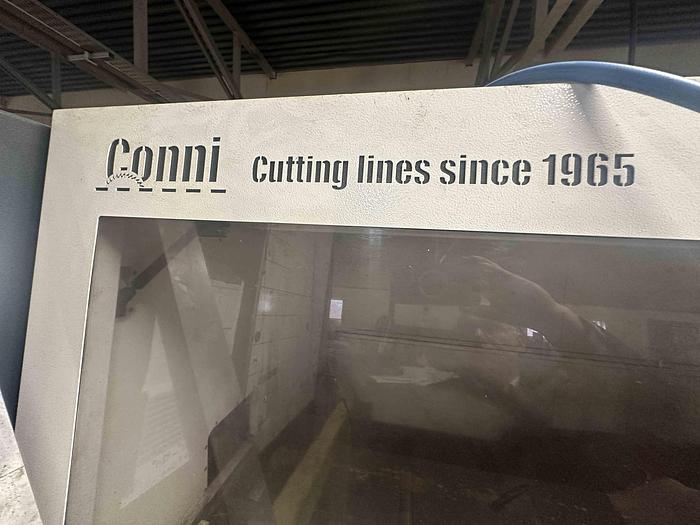

RALC Italia Conni Nuova Lybra Automatic Cutting Line
Machine Type: Universal automatic sawing machine for straight and angular cutting of pipes, profiles and bars.
Year: 2019

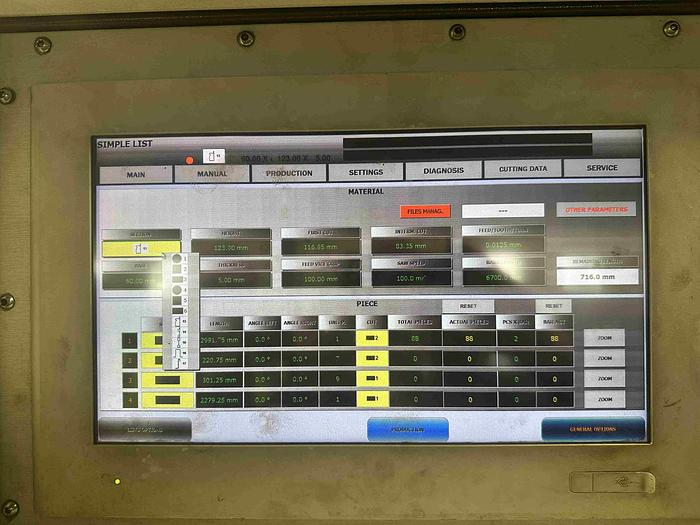

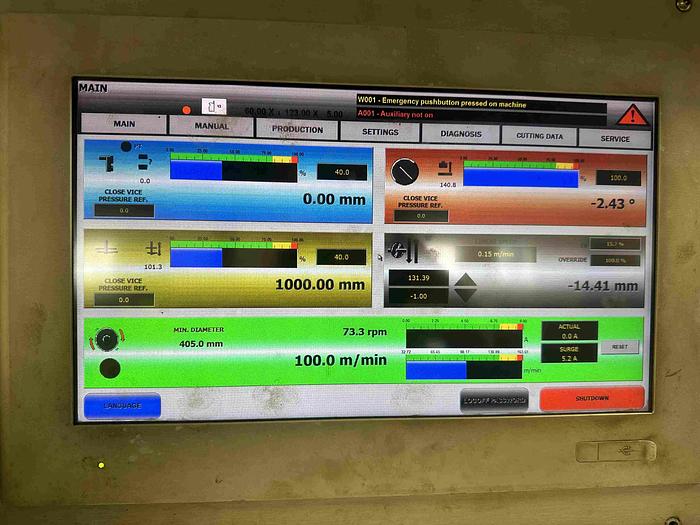

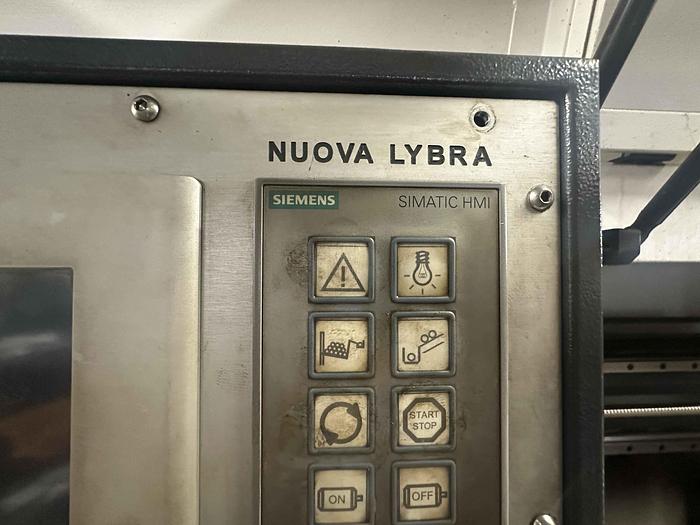

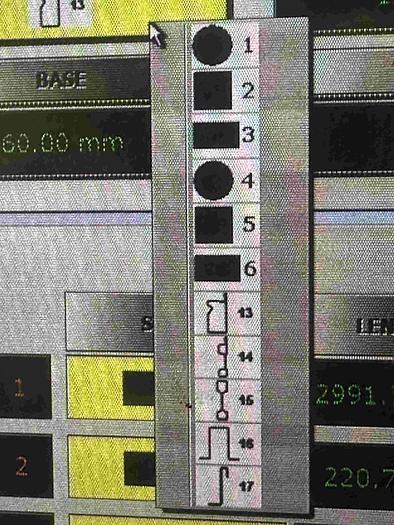

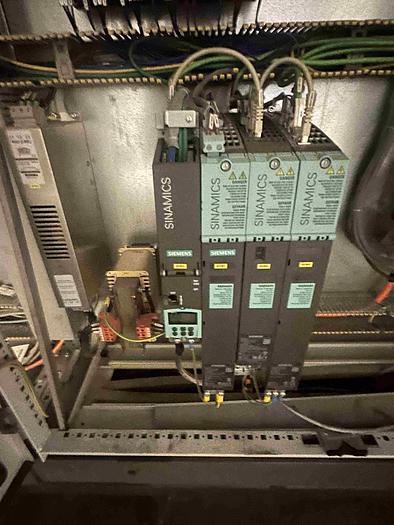

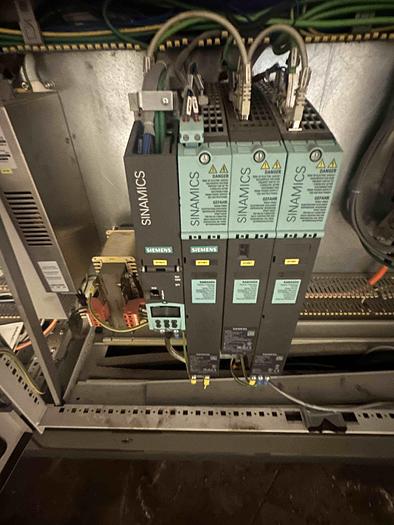

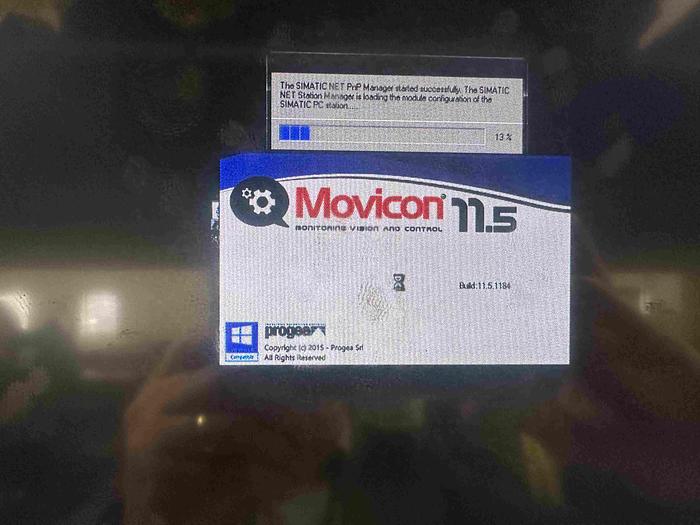

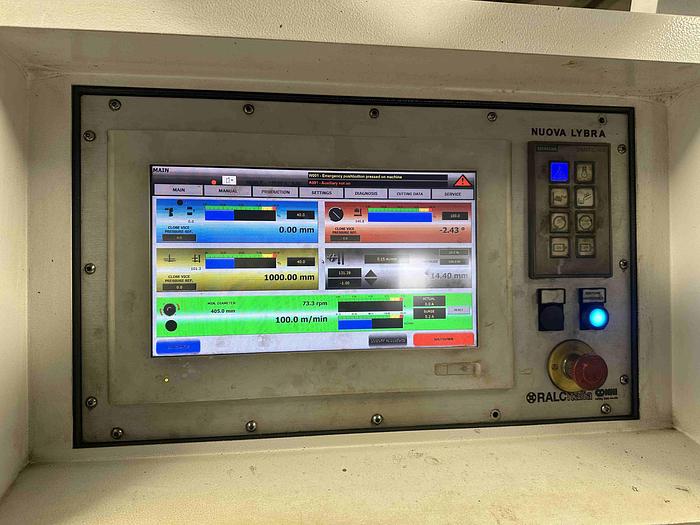

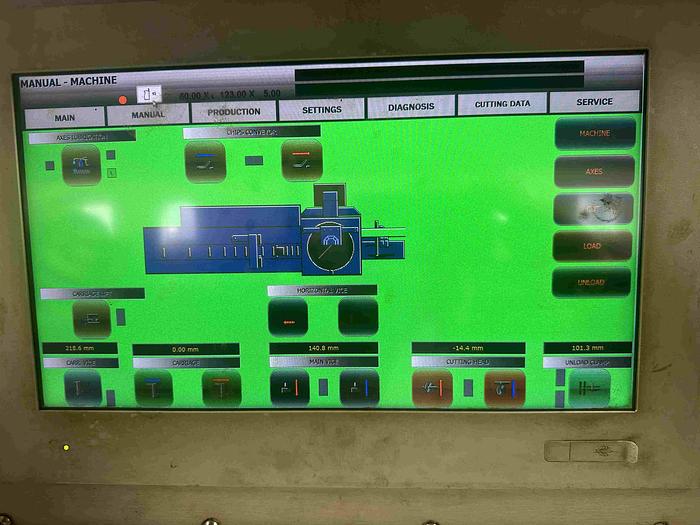

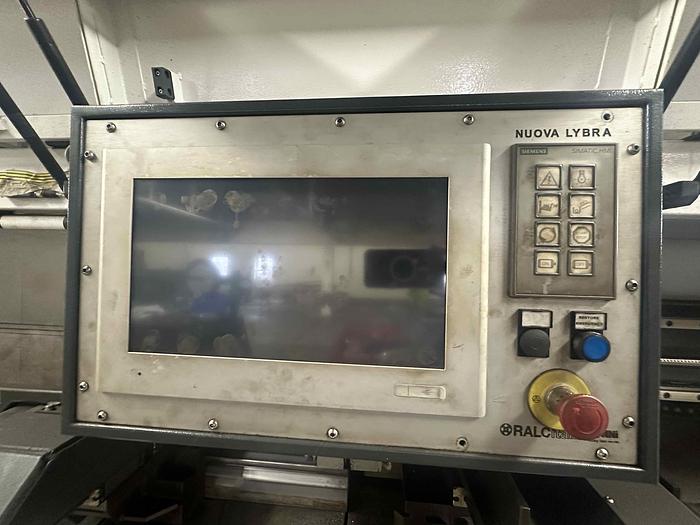

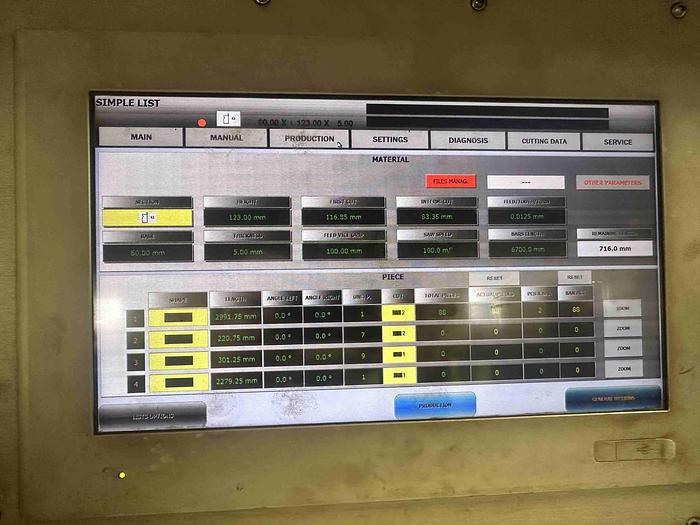

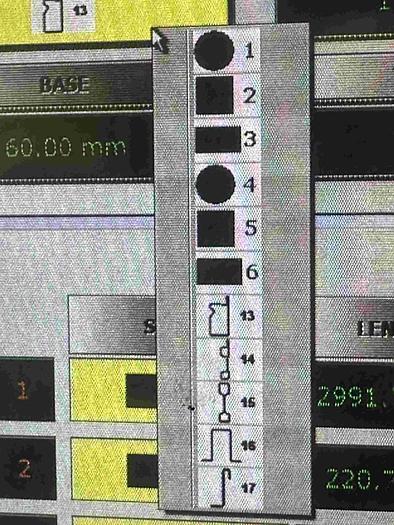

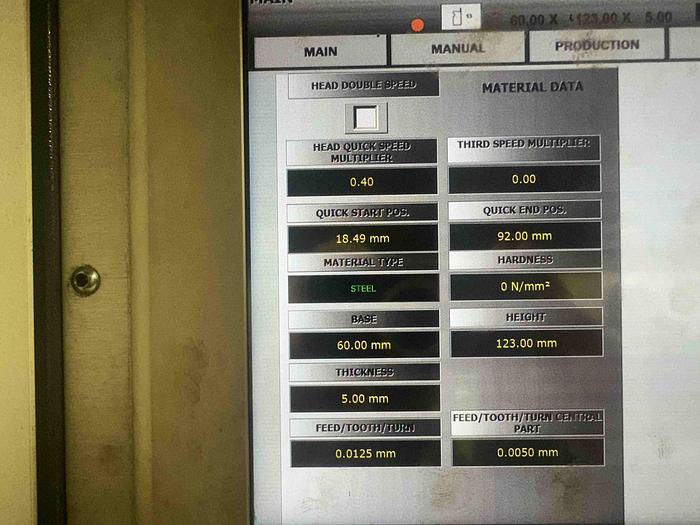

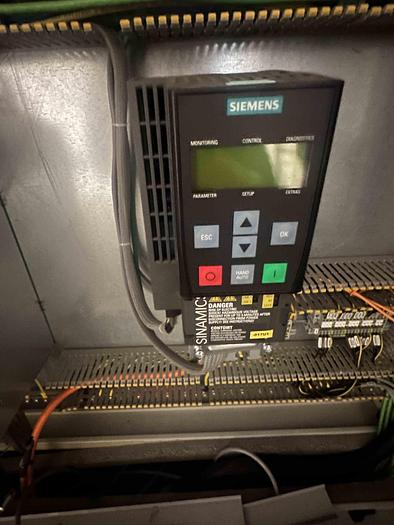

Control: Siemens Simatic with Windows Software System

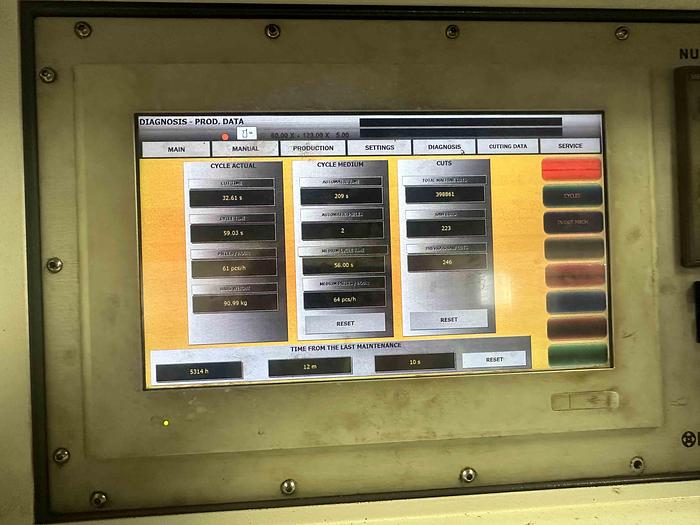

Hours: 5314hrs
Condition: Very Good
Machine Description
Extremely flexible and versatile, Nuova Lybra is the ideal sawing machine to ensure the highest level of automation in various types of production. It allows straight and angular cutting of a broad range of pipe sections and materials of varying thickness, and guarantees high performance thanks to the capacity for single, double and triple cutting. Its sturdy structure, clamping and axis management allows high-level precision, and the changeover speed also makes it ideal for small series.
Technical Features
The cutting head with completely automatic positioning is available for steel, stainless steel, aluminium, copper or brass. The modular structure allows the development of a cutting line perfectly customised to suit individual needs. Automatic loading is guaranteed for round, square, rectangular or special pipes and bars, for any length and production volume with rapid changeover.
Includes

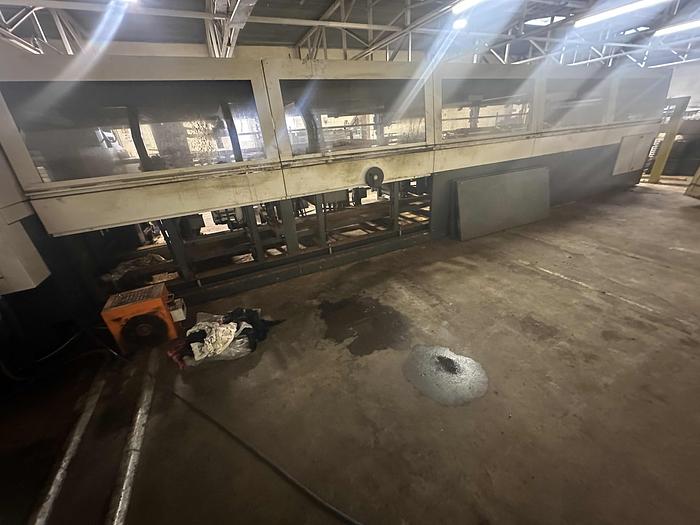

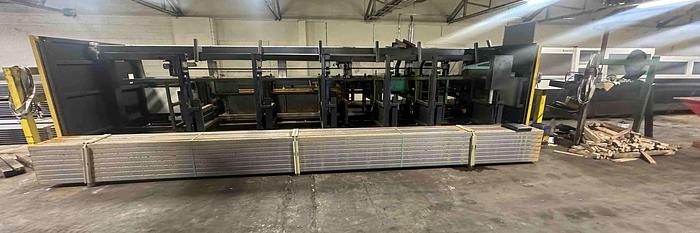

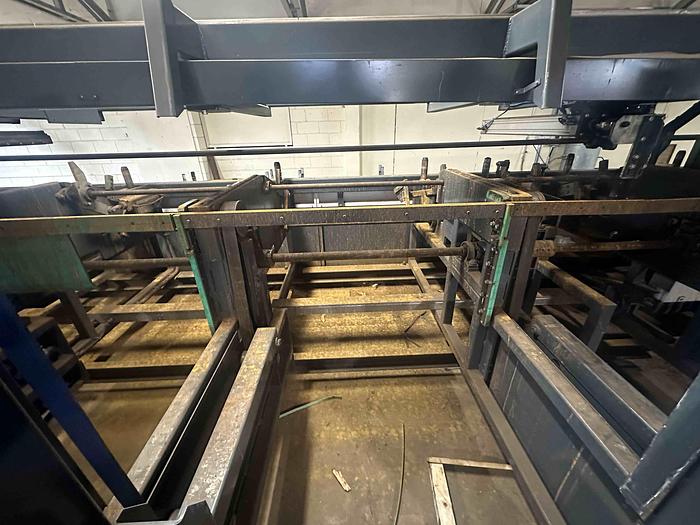

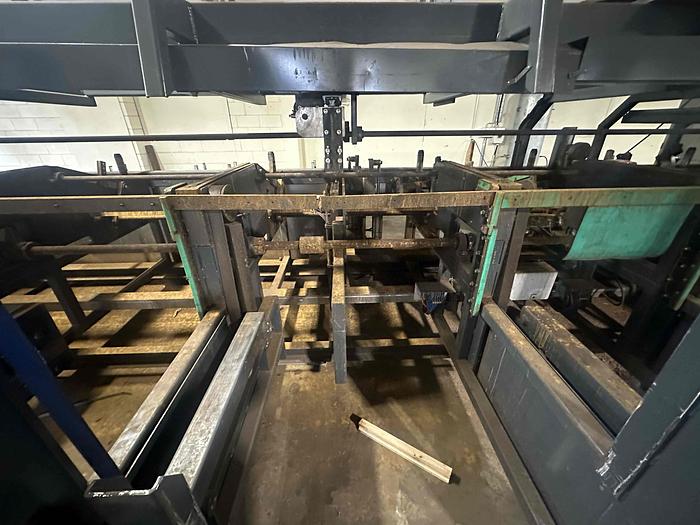

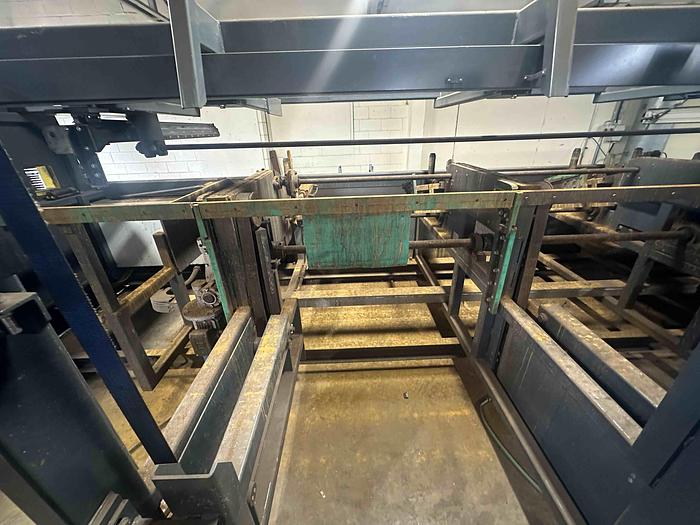

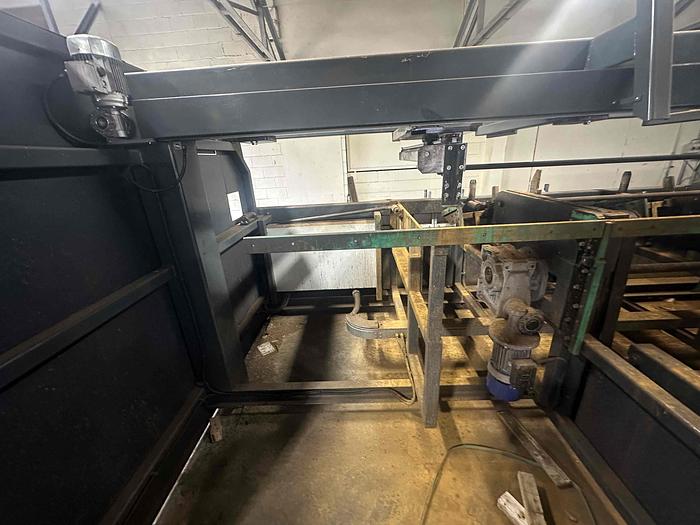

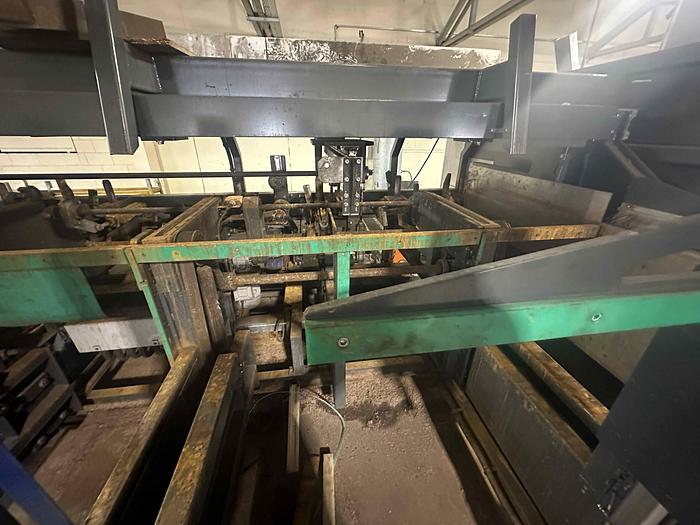

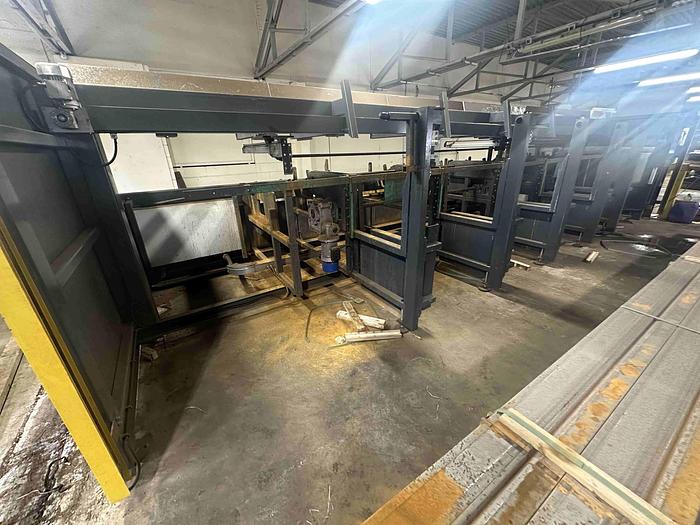

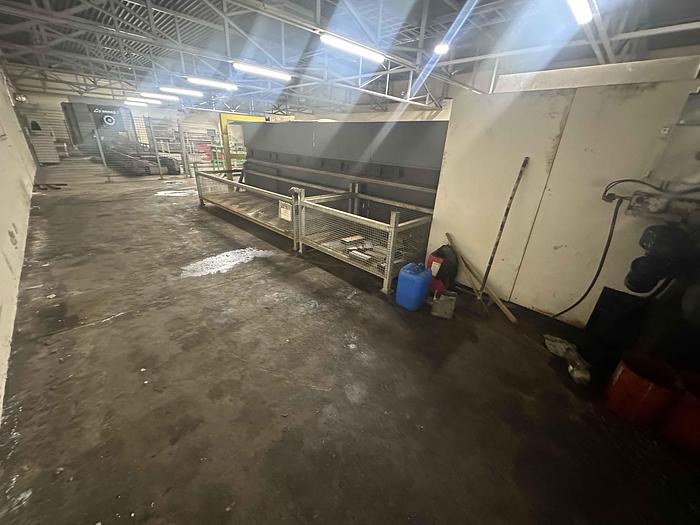

Special CM4FT6 Bundle Loading Magazine

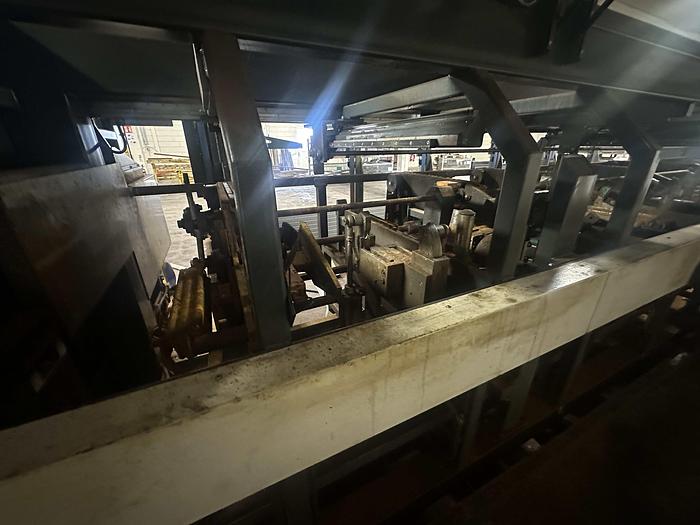

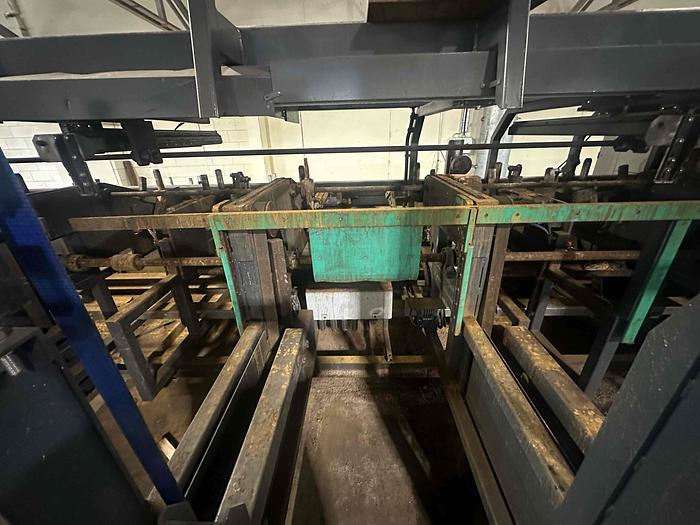

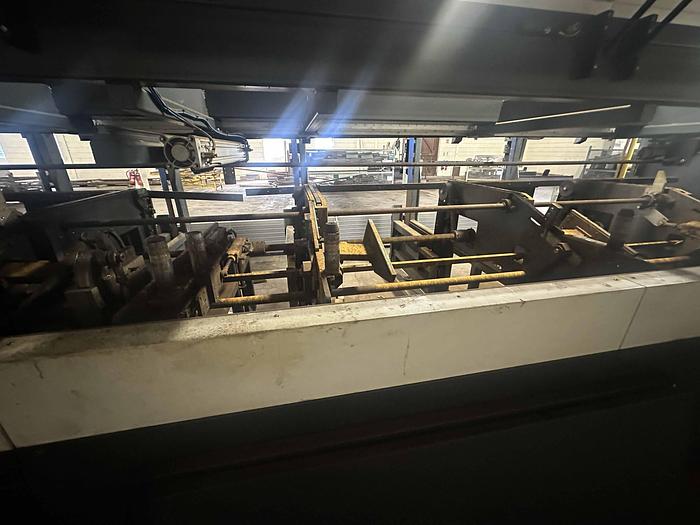

Automatic Feeding Carriage with integrated Lifting System
C200 Auto Table Cleaning System
Air Blow on Jaws
Chiller for Saw Blade

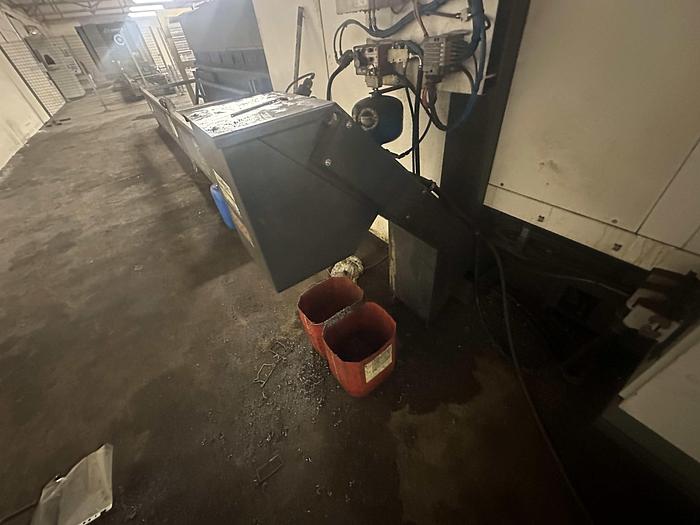

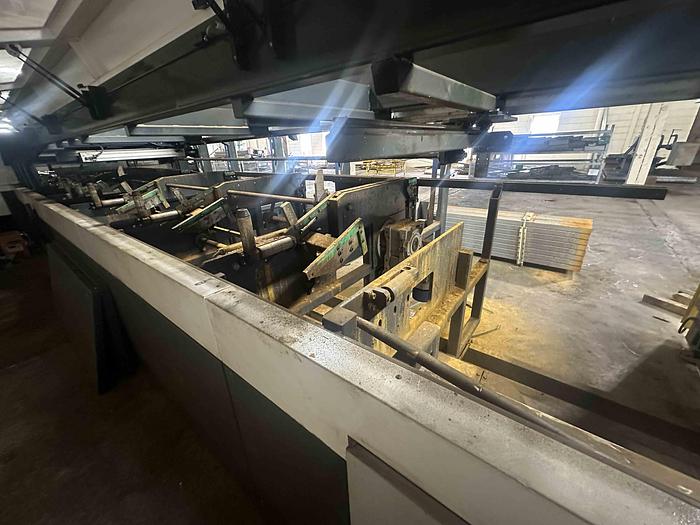

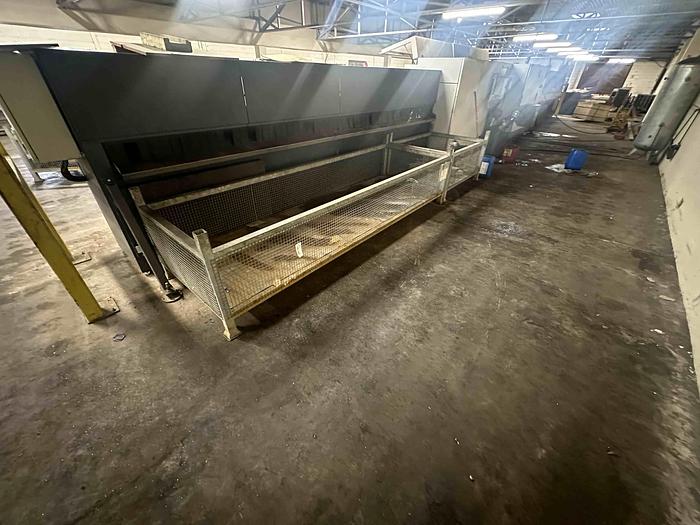

SC4. 4000 Automatic Ejector/Sorting System
Cutting Capacities
Max Cutting Capacity @ 90 Deg
Round: 145mm
Square: 130mm
Rectangular: 180 x 100mm
Max Cutting Capacity @ 45 Deg
Round: 135mm
Square: 110mm
Rectangular: 150 x 70mm
Max Cutting Capacity @ 30 Deg
Round: 110mm
Square: 90mm
Rectangular: 110 x 60mm
Technical Specifications

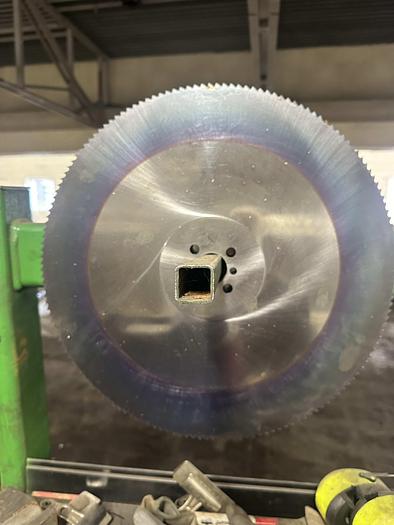

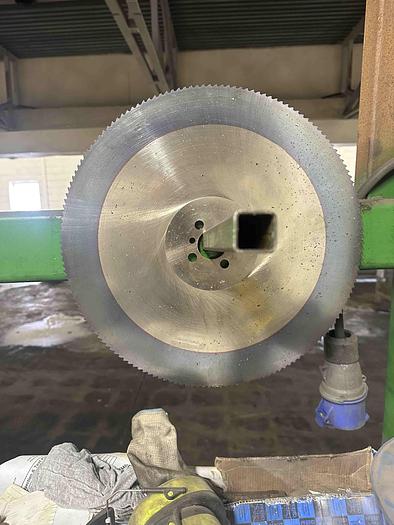

Blade Diameter: 350/400/450mm
Blade Fixing: 50/4/14/80mm or 40/4/12/64mm
Cutting Plan Height: 1050mm
Cutting Head Motor: 5.5kW
Blade Feeding: Variable
Blade Speed: 24 to 120rpm
Revolving Table: Automatic +/-60deg
Max Auto Feed in Single Stroke: 1900mm
Feed Carriage Speed: 10 to 60m/min

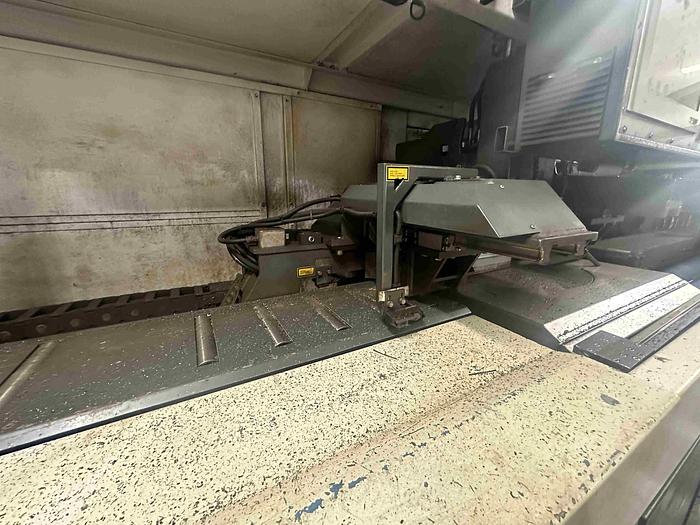

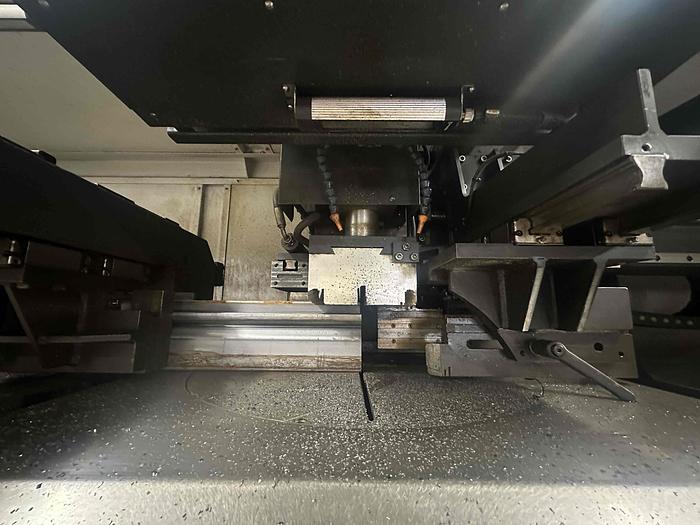

Vices: Hydraulic Horizontal Vice & Counter Vice
Min Remnant Part: 10mm
Machine Weight: 4,200kg
Loading System Capacities
Bar Length: 3500 to 7500mm
Max Load: 3000kg
Max Bundle Diameter: 500mm
Max Square Bundle: 600 x 600mm
Max Straightness Deviation: 1.5mm/m
Max Weight per Bar: 60kg
Loader Weight: 1400kg
Specifications
| Manufacturer | RALC Italia |
| Model | Nuova Lybra CNC Cutting Line |
| Year | 2019 |
| Condition | Used |

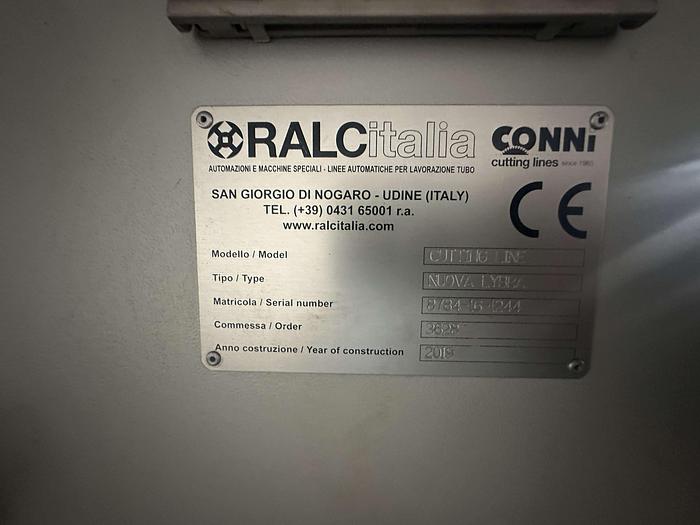

| Serial Number | 8784-16-1244 |
| Stock Number | 968753 |
| Condition | Very Good |
| Blade Diameter | 350/400/450mm |
| Blade Fixing | 50/4/14/80mm or 40/4/12/64mm |
| Cutting Plan Height | 1050mm |
| Cutting Head Motor | 5.5kW |
| Blade Feeding | Variable |
| Blade Speed | 24 to 120rpm |
| Revolving Table | Automatic +/-60deg |
| Feed Carriage Speed | 10 to 60m/min |
| Min Remnant Part | 10mm |
| Machine Weight | 4,200kg |
| Loader Weight | 1400kg |
