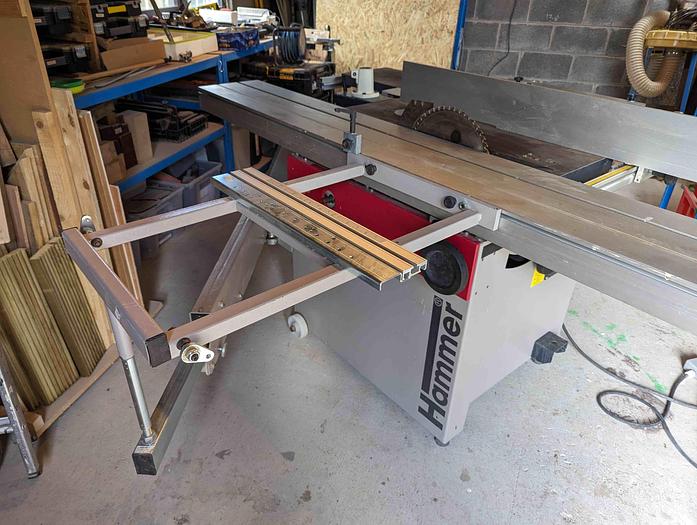

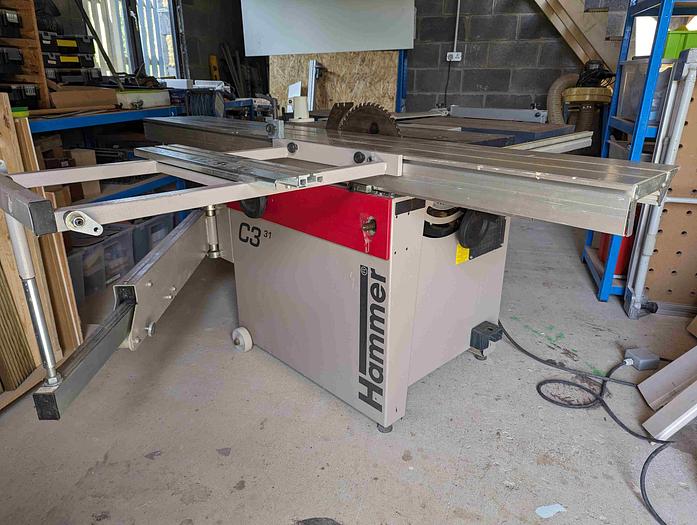

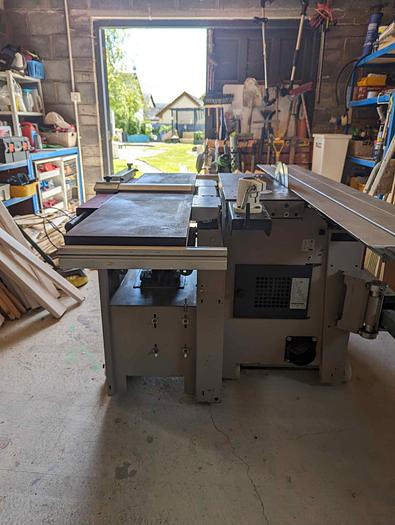

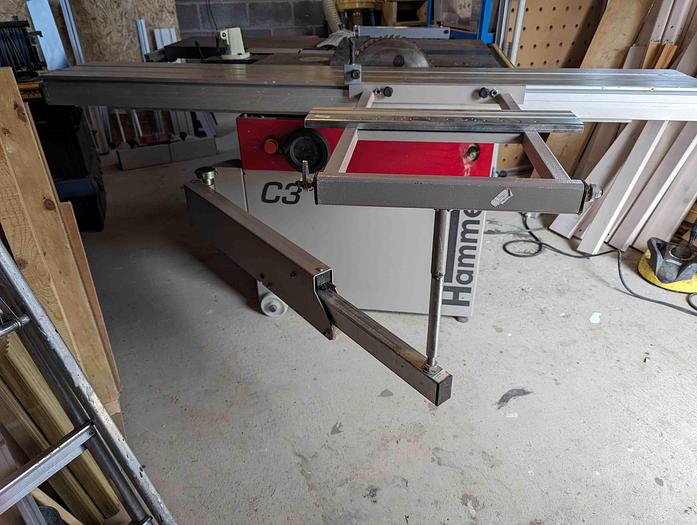

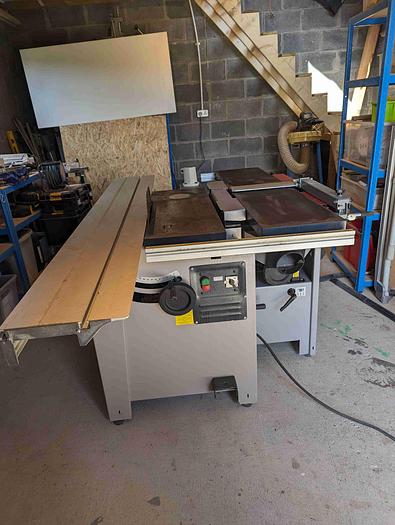

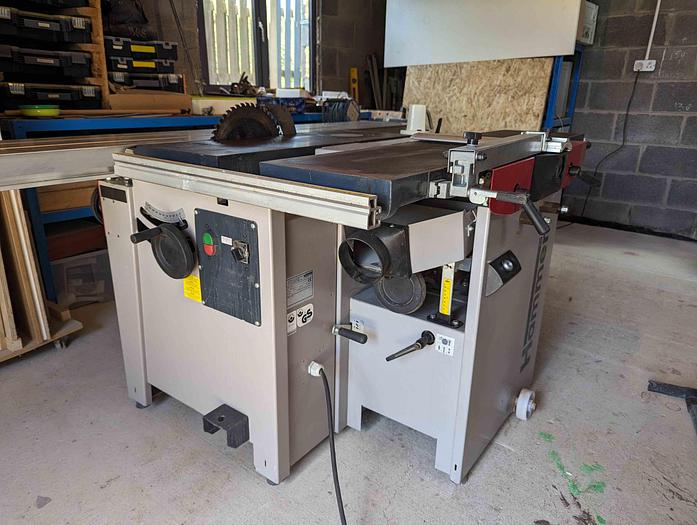

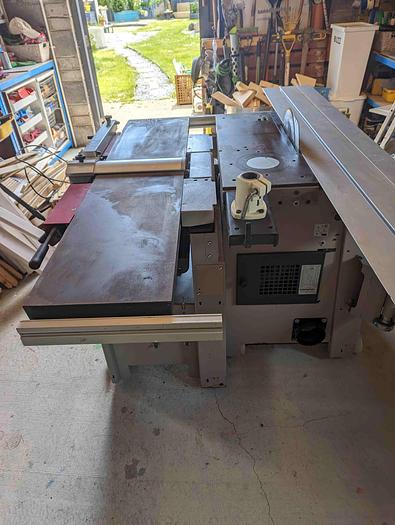

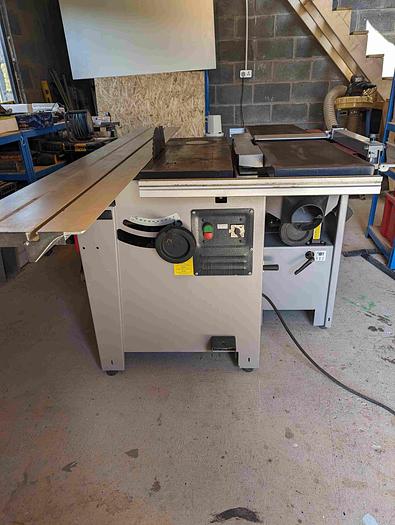

2012 Hammer C3 31/05 Combination Woodworking Machine
![Used 2012 Hammer C3 31/05 Combination Woodworking Machine](https://i.machineryhost.com/8b6dd7db9af49e67306feb59a8bdc52c/141507a0d632c746e571e644e15ce2ac/large-used-2012-hammer-c3-31-05-combination-woodworking-machine.jpg)
Description
Hammer C3 31/05 Combination Woodworking Machine
Machine Type: Combination machine - Planer/Thicknesser/Saw/Spindle Moulder
Year: 2012
Electrical Connection: 230V/1phase
Condition: Very Good
Description
C3 3l , o hobby workers dream! Modern machine technology grants quick change over times for either planing, sawing, moulding or mortising.
User friendliness and precision = wood working enjoyment.
Technical Specifications
Electrical Connection: 230V Single Phase
Forward & Reverse Rotation: Yes
Surface Planer Knifes: 3 x quick change
Planer Max Cutting Depth: 4mm

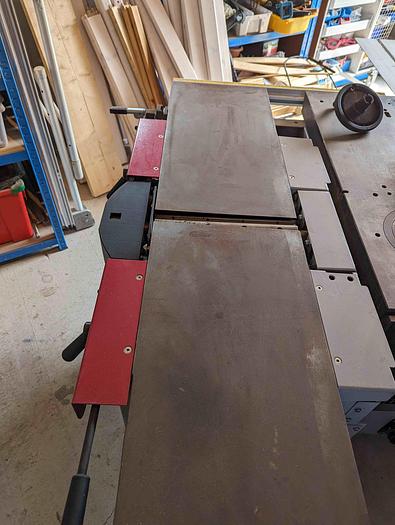

Surface Planer Width: 310mm
Planer Table Length: 1400mm
Plane Fence Tilt: 90 to 45Deg
Surface Planer Fence Length: 150 x 1150mm

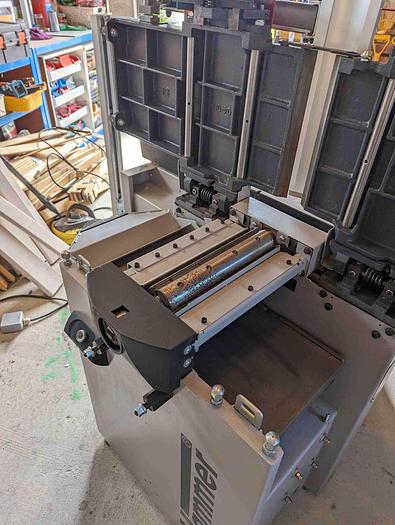

Thicknesser Planing Width: 306mm
Thicknesser Table Length: 540mm
Max Thicknessing Height: 225mm
Min Thicknessing Height: 4mm
Synchronised Feeder Drive: 6m/min
Saw Blade Diameter: 250 to 315mm
Saw Unit Speed: 4800rpm
Saw Blade Tilting: 90 to 45Deg
Max Cutting Height: 103mm
Saw Table Size: 860 x 300mm
Rip Capacity: 0-600

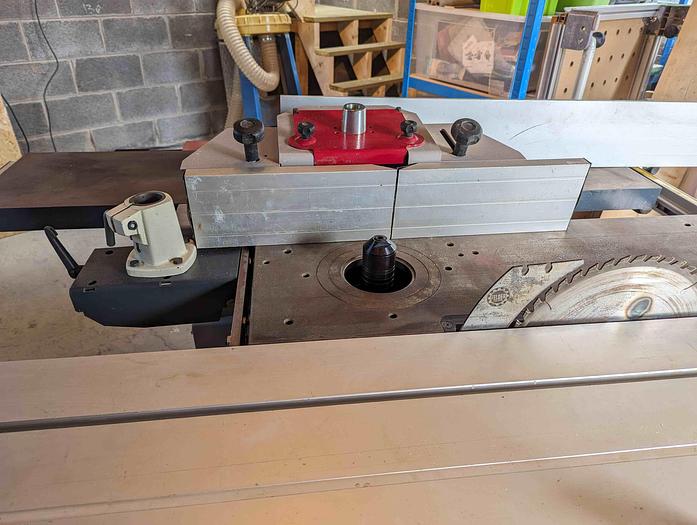

Spindle Moulder Spindle: Fixed
Spindle Moulder Height: Adjustable from Front
Spindle Moulder Speeds: 3000/6000/8000/10,000rpm
Spindle Diameter: 30mm
Spindle Usable Height: 100mm
Spindle Moulder Fence: 220mm
Max Tool Diameter: 220mm
Sliding Table: 800mm
Cutting Length: 865mm
Crosscut Fence: 900mm
Machine Weight: 540kg
Specifications
Manufacturer | Hammer |
Model | C3 31/05 Combination Woodworking Machine |
Year | 2012 |
Condition | Used |

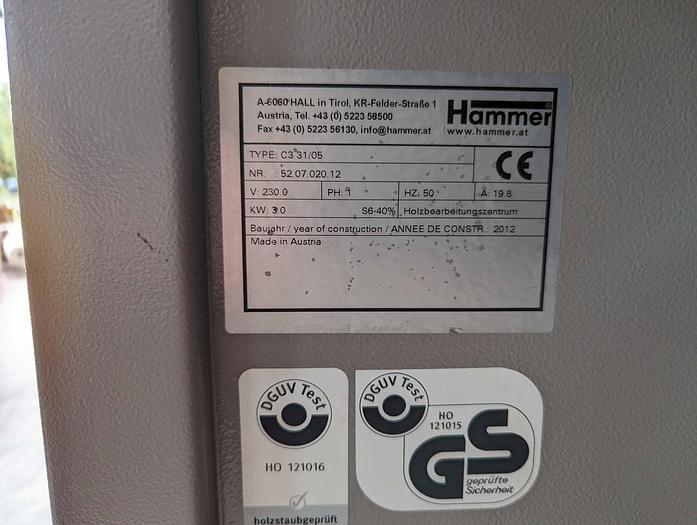

Serial Number | 52.07.020.12 |
Electrical Connection | 230V/1phase |
Condition | Very Good |
Forward & Reverse Rotation | Yes |
Surface Planer Knifes | 3 x quick change |
Planer Max Cutting Depth | 4mm |
Surface Planer Width | 310mm |
Planer Table Length | 1400mm |
Plane Fence Tilt | 90 to 45Deg |
Surface Planer Fence Length | 150 x 1150mm |
Thicknesser Planing Width | 306mm |
Thicknesser Table Length | 540mm |
Max Thicknessing Height | 225mm |
Min Thicknessing Height | 4mm |
Synchronised Feeder Drive | 6m/min |
Saw Blade Diameter | 250 to 315mm |
Saw Unit Speed | 4800rpm |
Saw Blade Tilting | 90 to 45Deg |
Max Cutting Height | 103mm |
Saw Table Size | 860 x 300mm |
Rip Capacity | 0-600 |
Spindle Moulder Spindle | Fixed |
Spindle Moulder Height | Adjustable from Front |
Spindle Moulder Speeds | 3000/6000/8000/10,000rpm |
Spindle Diameter | 30mm |
Spindle Usable Height | 100mm |
Spindle Moulder Fence | 220mm |
Max Tool Diameter | 220mm |
Sliding Table | 800mm |
Cutting Length | 865mm |
Crosscut Fence | 900mm |
Machine Weight | 540kg |
