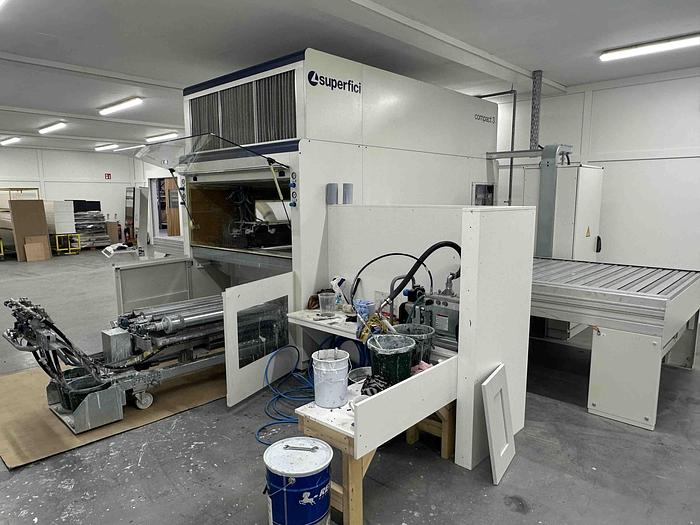

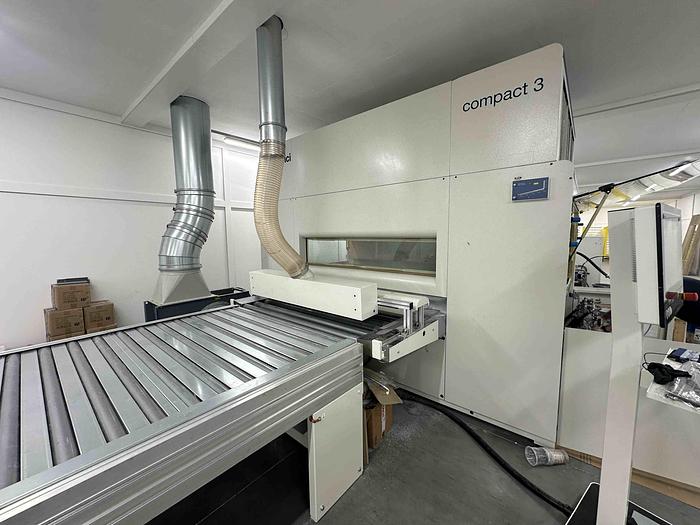

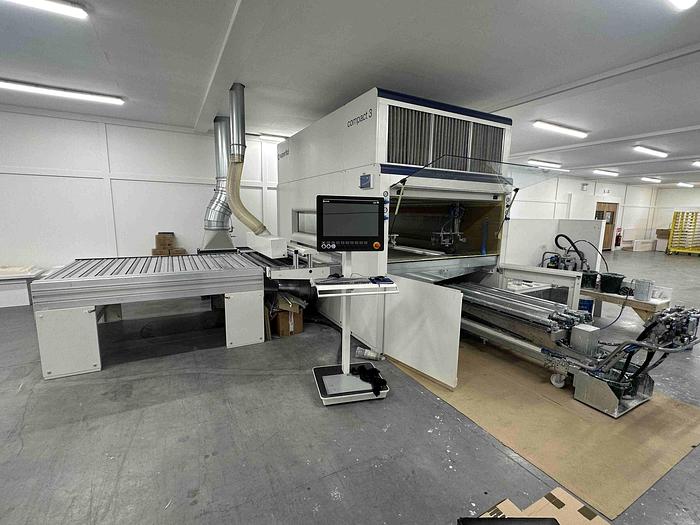

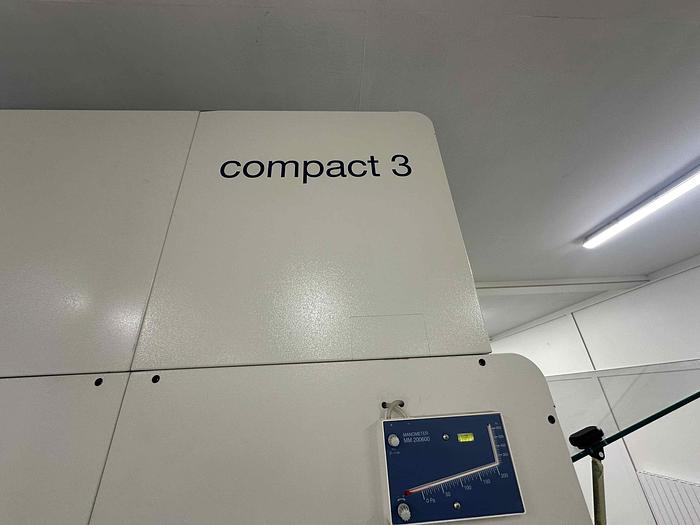

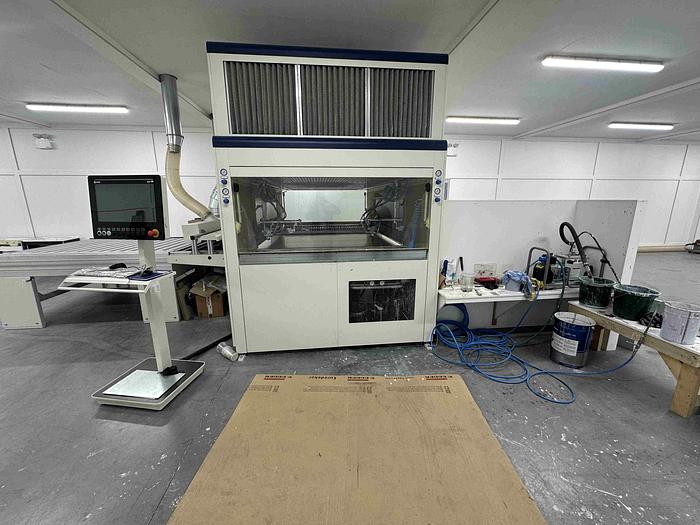

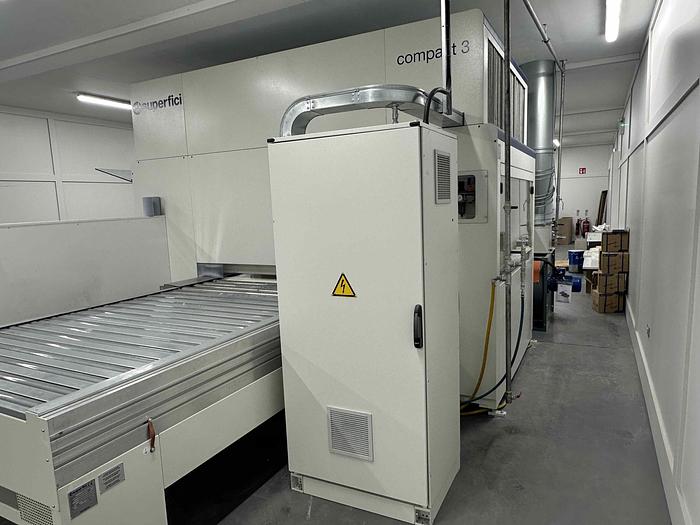

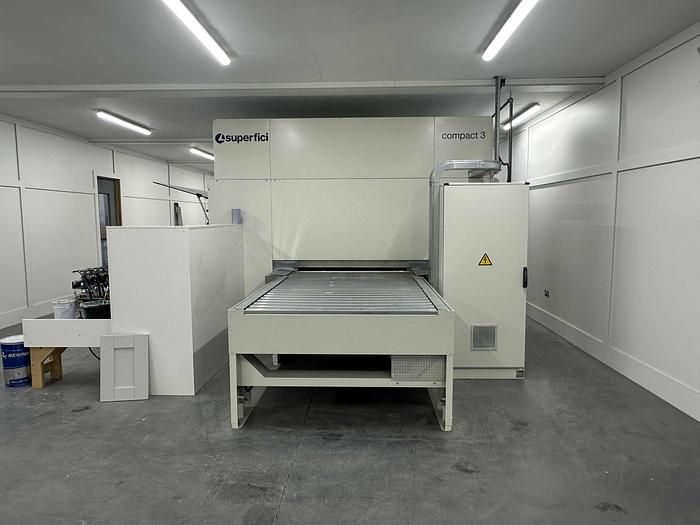

2021 Superfici Compact 3 R Automatic Spraying Machine

Superfici Compact 3 R Automatic Spraying Machine

Machine Type: Automatic Spraying Machine for Woodworking

Year: 2021

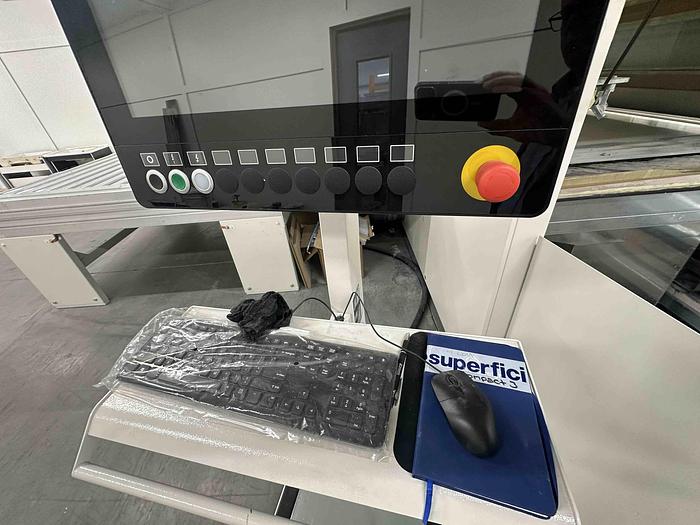

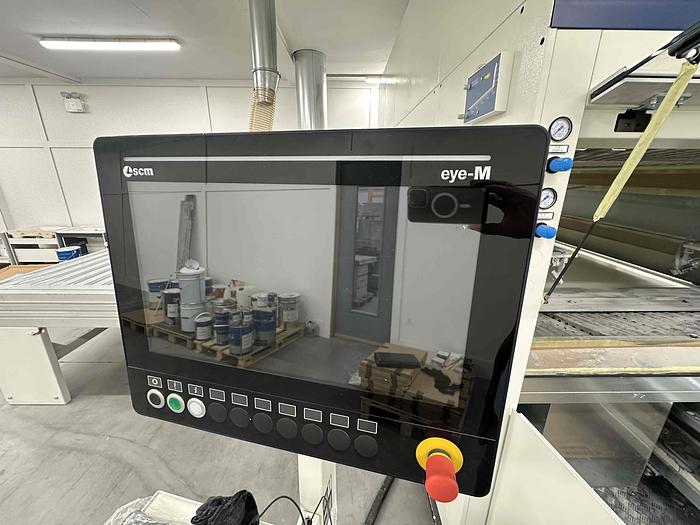

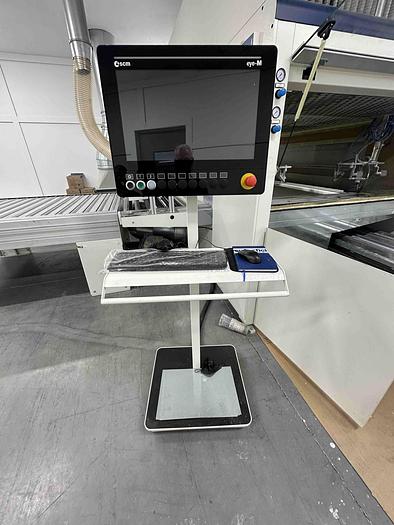

Control: SCM eye-M

Condition: Excellent (Never used)

Machine Description

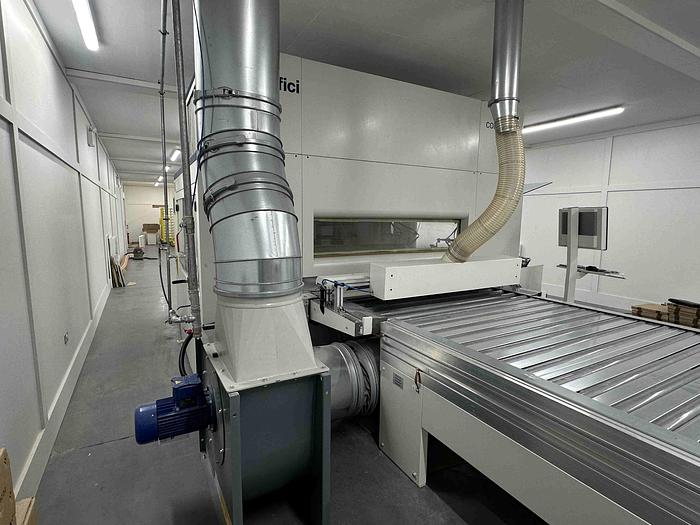

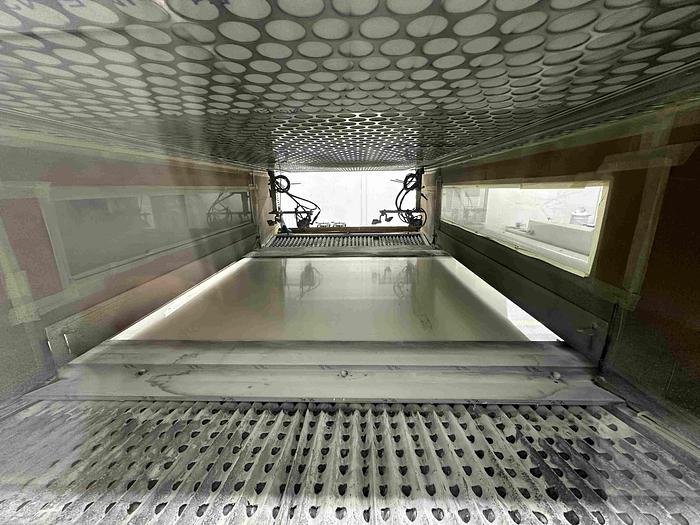

Thanks to the advanced technical specifications and high quality construction. The Compact Sprayer shows a special attention to the achievement of high quality standards in the final product, due to, for example, the lacquer application in two steps achieved by the double arm reciprocator and to the pressurized cabin with double stage air inlet filtration and full size filtering roof.

The space saving and inexpensive COMPACT 3 guarantees all the advantages of automated lines and makes them affordable to small and medium size companies. If combined with flat dryers for the fast flash off and drying of solvent based, water-borne or UV lacquers, COMPACT 3 is the basis of these automated lines, which fulfil the customers’ finishing needs.

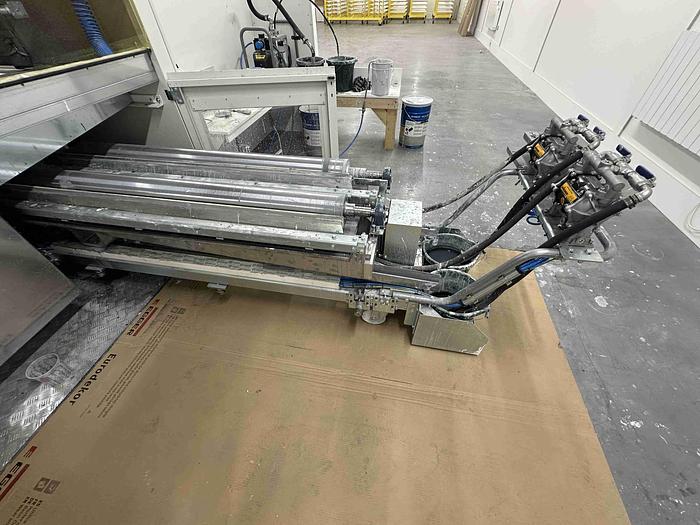

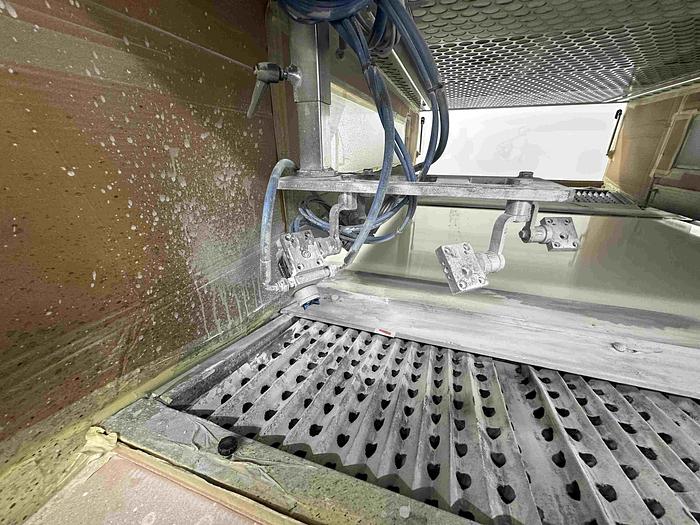

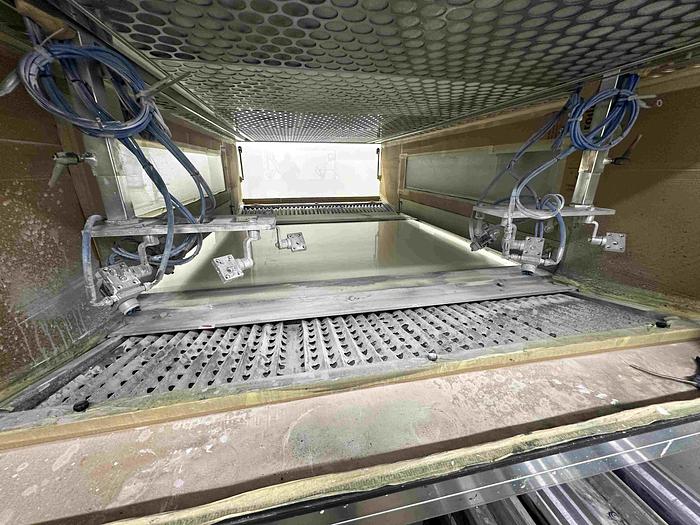

Compact 3 is always supplied with a double spraying arm, so as to have lacquer application in two stages for the best possible finish.

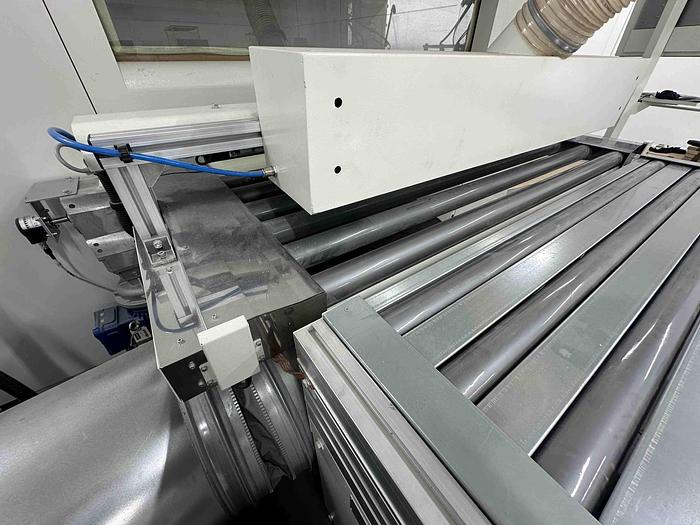

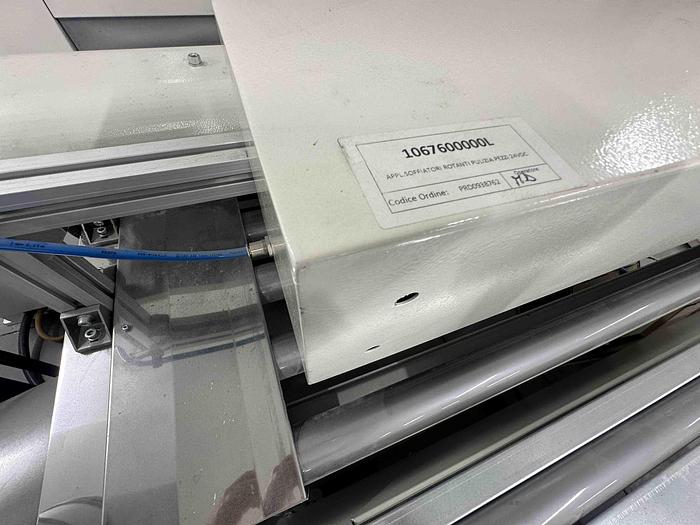

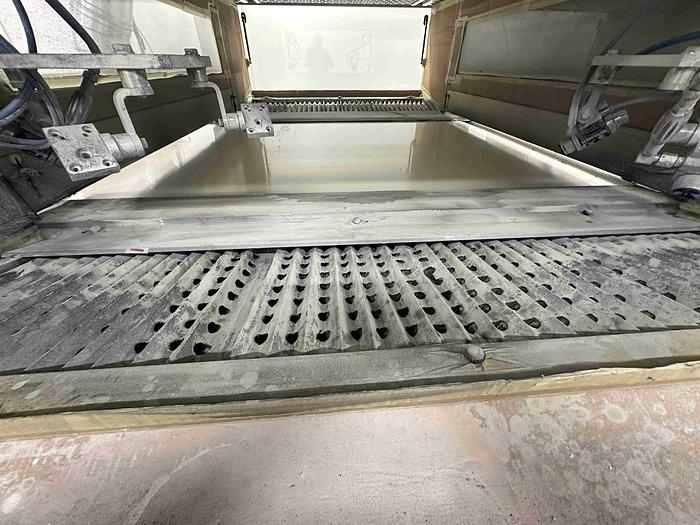

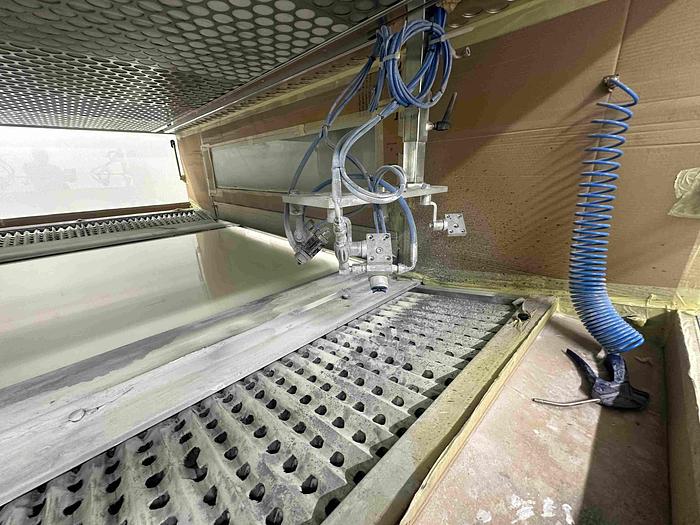

Machine executed with a self-cleaning conveyor belt, which continuously and automatically cleans the spraying belt, and, if possible for the lacquer type in use, the lacquer reclaiming and reuse.

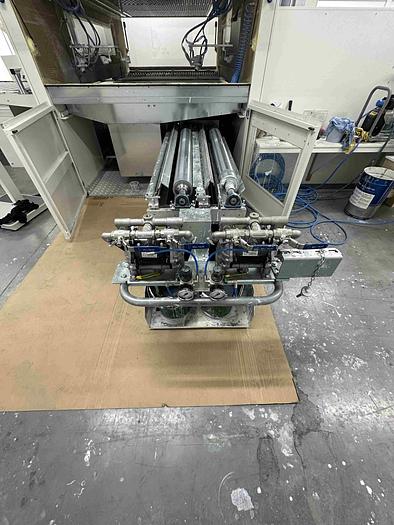

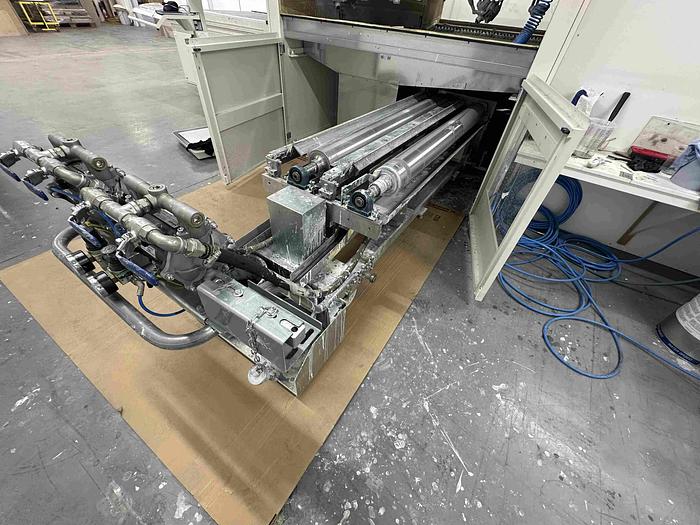

Lacquer reclaiming unit SCRAPE ON WET. The system’s principle is to apply on the belt the same lacquer material which is being sprayed.

The fresh applied lacquer re-activates the dry lacquer particles on the belt and it can be then easily removed by a scraper.

Technical Specifications

Working Width: 1300mm

Working Height: 900mm

Feed Speed: 2-6m/min

Reciprocator Motor Power: 4.4kW

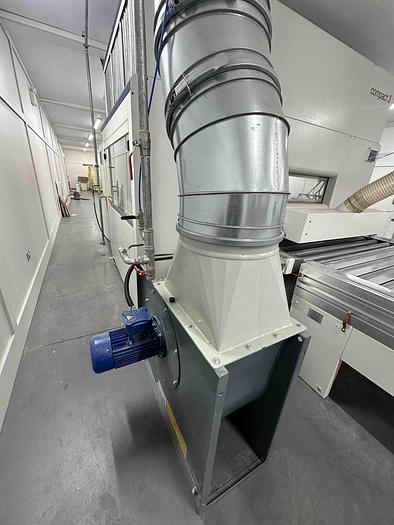

Air Volume: 8000m3/h

Cabin Height: 2785mm

Cabin Width: 3600mm

Cabin Length: 2000mm

Machine Total Length: 3385mm

Total Installed Power: 15.7kW
