2020 SCM DMC MB90 Automatic Brushing Machine

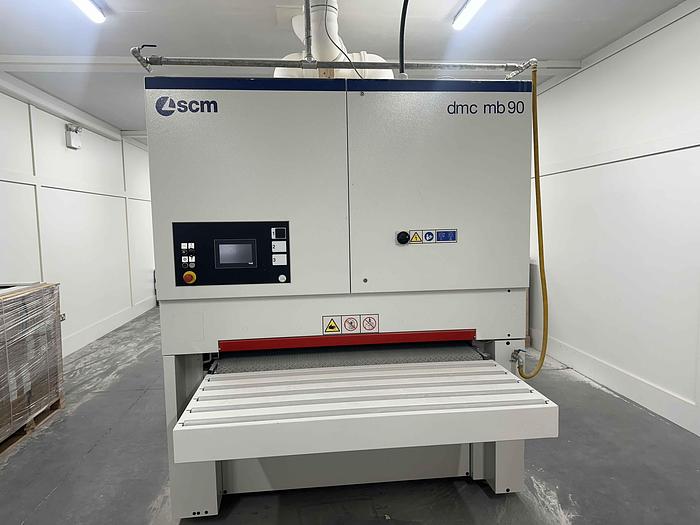

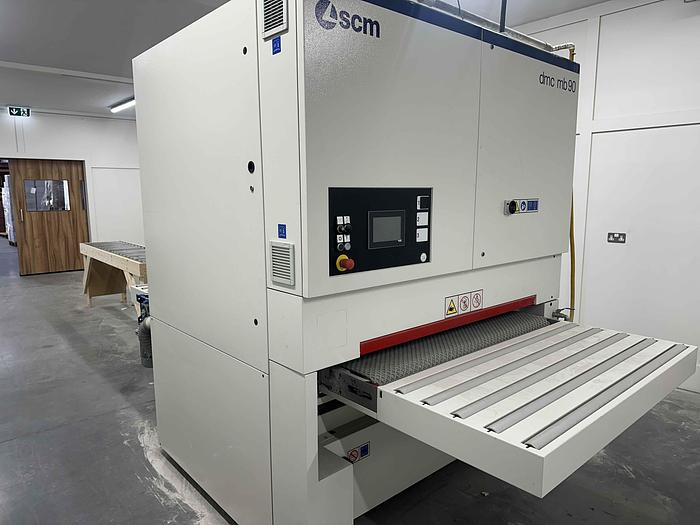

SCM DMC MB 90 Automatic Brushing Machine

Machine Type: Automatic Brushing Machine for Profiled Panels

Year: 2020

Version: DBB 135 - Sliding Disc Unit & Two Brush Units

Condition: Excellent

Machine Description

DMC MB 90 is the ideal solution for the finishing of routed MDF panels, assembled kitchen cabinet doors, doors and windows and similar profiled parts (picture frame strips, cableways, match boardings, skirting boards).

Parts can be rough or painted.

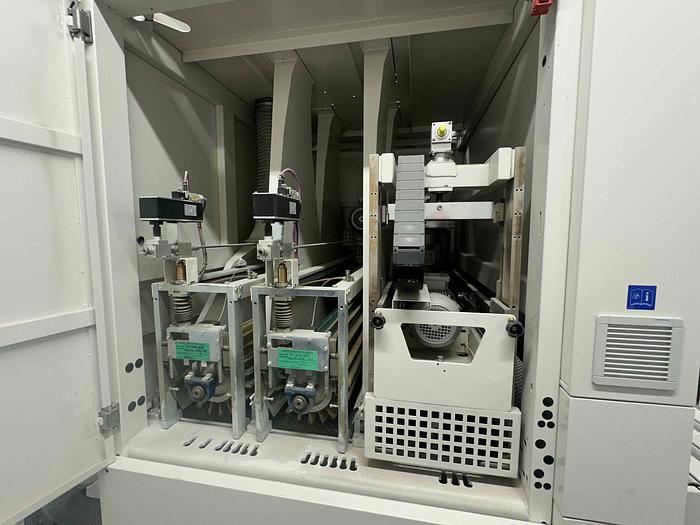

The machine has been designed to house and combine working units equipped with oscillating discs and brushing rollers, suitable for different sanding applications.

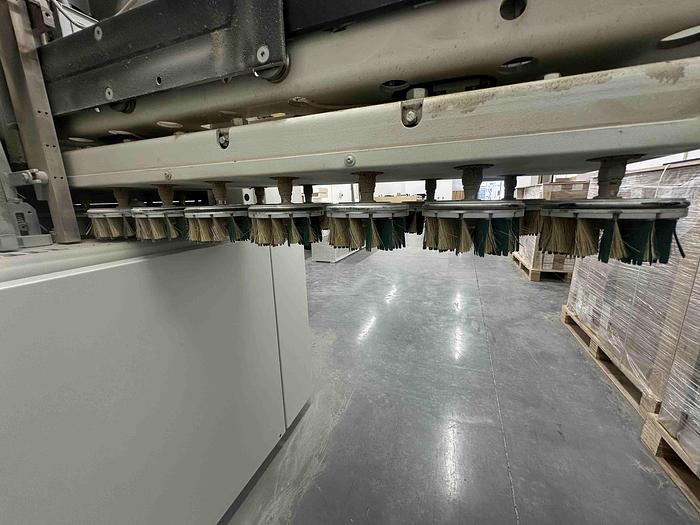

Oscillating discs unit: thanks to the side oscillating movement and a double raw counter-rotating discs structure, it is possible to effectively round the sharp edges and to reach those inaccessible areas on profiled panels.

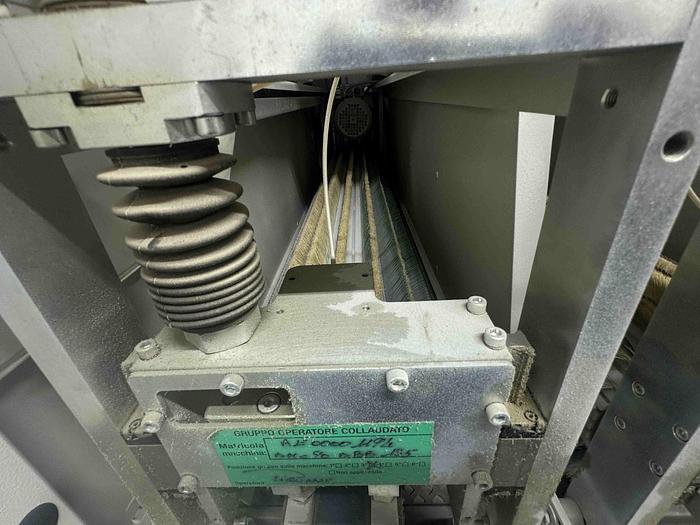

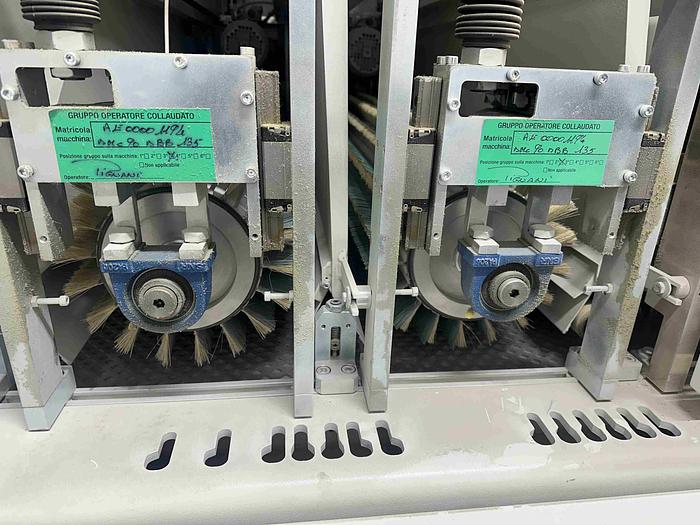

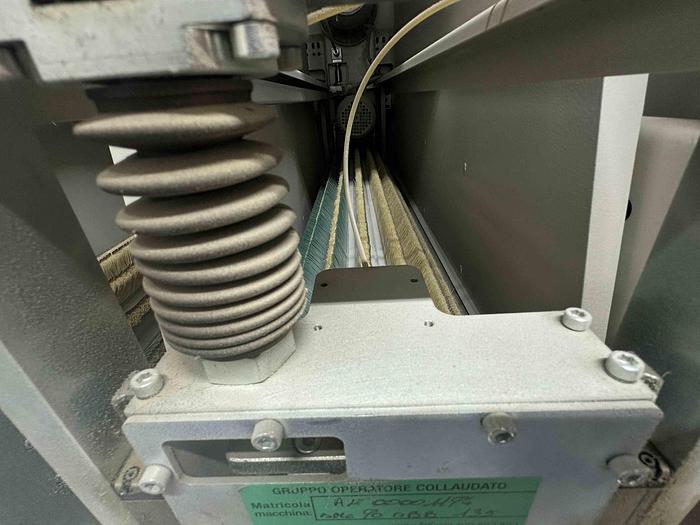

Brushing roller unit: equipped with an innovative system for the twist inclination adjustment and the side oscillating movement of the brushing roller, it guarantees a top class and uniform sanding quality on all parts of the panel.

Technical Specifications

Working Width: 1350mm

Mobile Work Table Working Thickness(min): 3mm

Mobile Work Table Working Thickness(max): 170mm

Fixed Work Table Working Thickness(min): 3mm

Fixed Work Table Working Thickness(max): 200mm

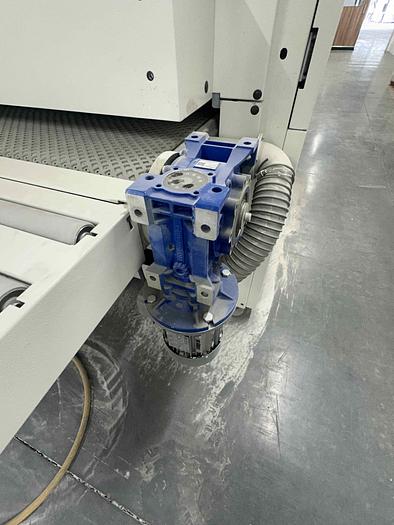

Feed Belt Speed: 3-18m/min

Oscillating Disc Unit: 17 Discs

Brushing Unit: 300mm

Machine Dimensions: 2580x1900x2590mm

Weight: 2420kg
