€4,300 + Vat

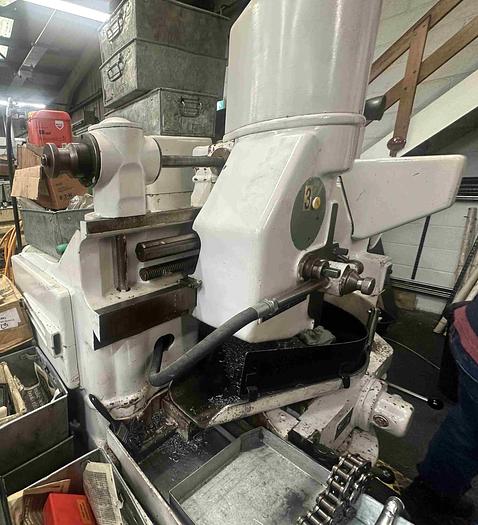

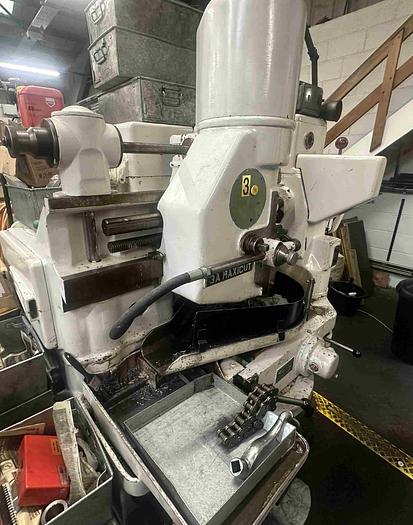

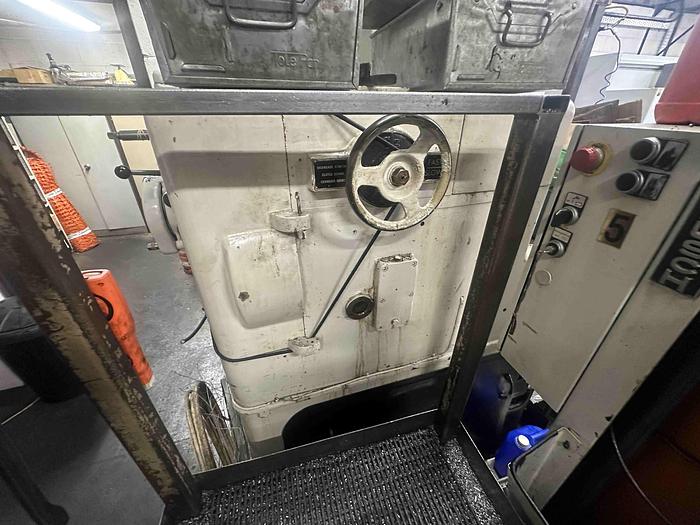

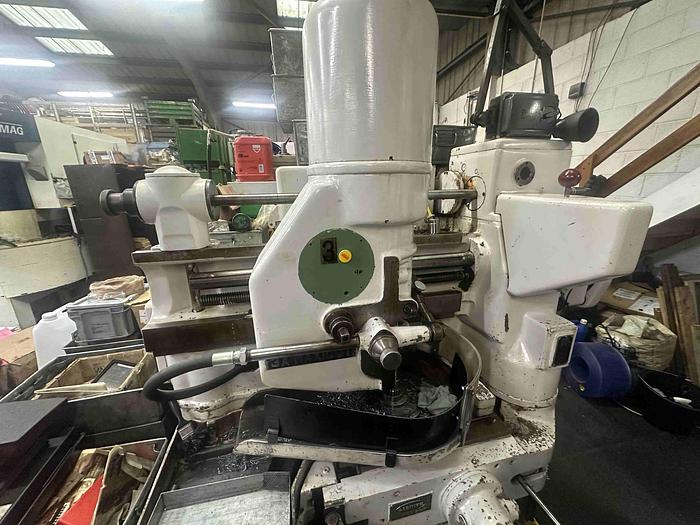

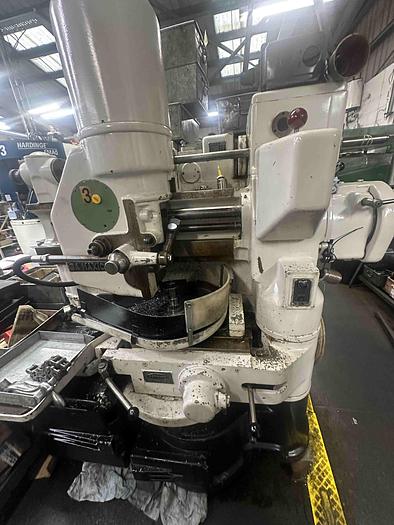

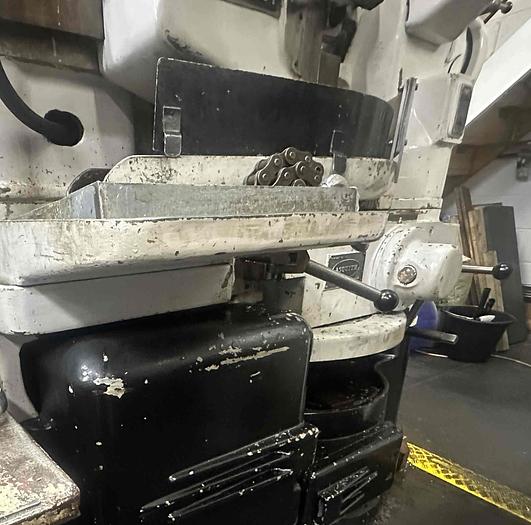

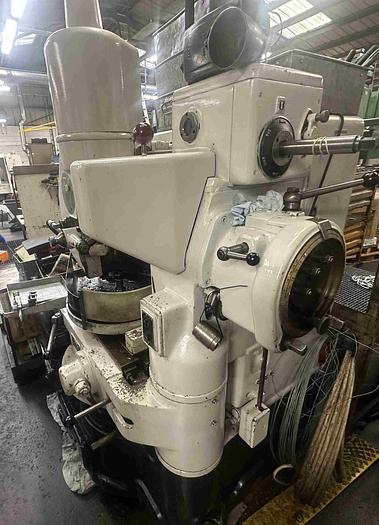

Drummond Maxicut 3A Heavy Duty Gear Shaping Machine
Description
Drummond Maxicut 3A Gear Shaping Machine
Machine Type: Heavy Duty Gear Shaping Machine
Condition: Very Good
Technical Specifications
Capacity External Spur & Helical Gears: 457mm(18")
Capacity Internal Spur & Helical Gears: 457mm(18")
Max Face Width: 125mm(5")
Max Helix Angle: 36 Deg
Diameter of Spindle Nose: 31.75mm(1.25")
Min Disc Cutter Diameter: 101.6mm(4")
Cutter Speeds: 50,83,98,12,153,162,237,300 Strokes/Min
Feeds: 980,1170,1470,1750,2020,2400 Strokes/Rev
Min Dist btw Work Spindle Face & Solid Cutter Spindle Shoulder: 44.45mm(1.75")
Max Dist btw Work Spindle Face & Solid Cutter Spindle Shoulder: 190.5mm(7.5")
Main Drive Motor: 3HP
Coolant Pump Motor: 1/8HP
Machine Dimensions: 1600x1450x2133mm
Machine Weight: 3400kg
Specifications
| Manufacturer | Drummond |
| Model | Maxicut 3A Heavy Duty Gear Shaping Machine |
| Condition | Used |
| Stock Number | 968724 |
| Condition | Very Good |
| Max Face Width | 125mm(5") |
| Max Helix Angle | 36 Deg |
| Diameter of Spindle Nose | 31.75mm(1.25") |
| Min Disc Cutter Diameter | 101.6mm(4") |
| Cutter Speeds | 50,83,98,12,153,162,237,300 Strokes/Min |
| Feeds | 980,1170,1470,1750,2020,2400 Strokes/Rev |
| Main Drive Motor | 3HP |
| Coolant Pump Motor | 1/8HP |
| Machine Dimensions | 1600x1450x2133mm |
| Machine Weight | 3400kg |
