2001 Hardinge EMAG Vertical CNC Lathe VL 3

Cork, Ireland

Sold

Description

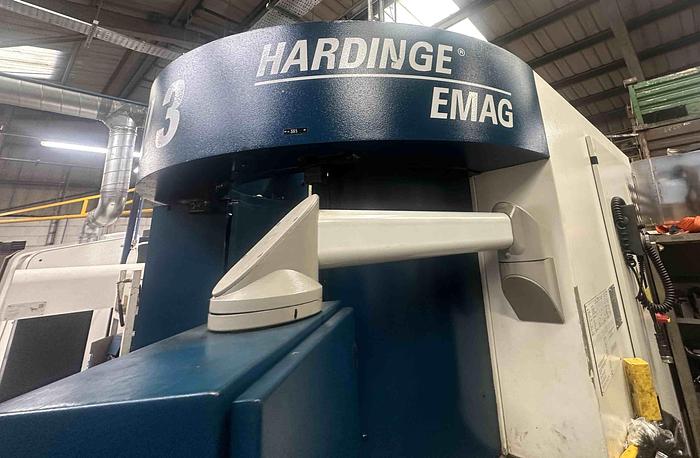

Hardinge Emag VL 3 Vertical CNC Lathe


Machine Type: Vertical CNC Lathe with Parts Magazine

Year: 2001

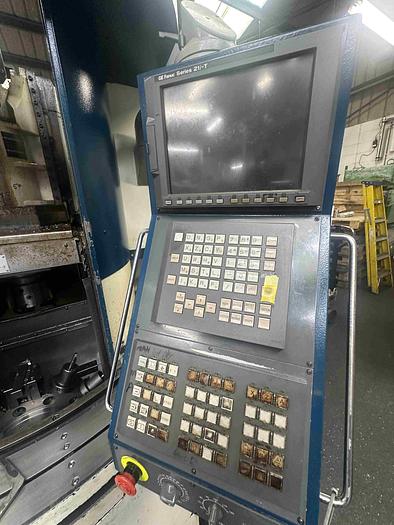

Control: Fanuc 21i-T

Condition: Very Good


Includes

Tool Holders

Chuck

Swarf Conveyor


Technical Specifications

Max Machining Diameter: 210mm

Max Machining Height: 100mm

X Axis Travel: 400mm

Z Axis Travel: 200mm

Turret: 12 Station

Spindle Nose: DIN55026

Max Spindle Power: 16kW

Spindle Speeds: 0-7500rpm

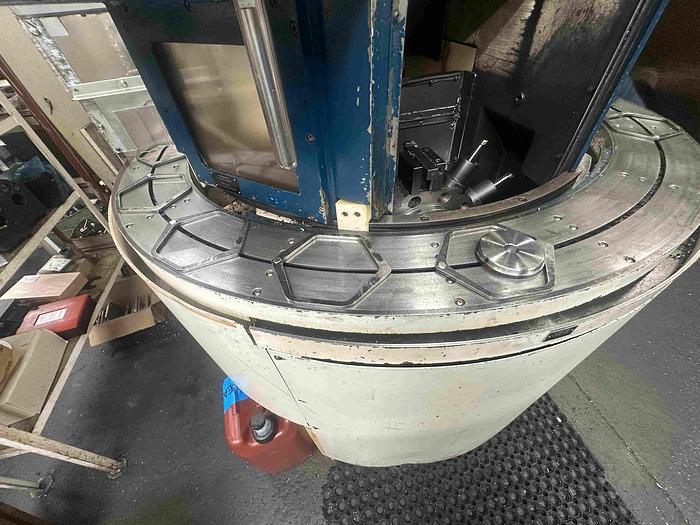

Part Magazine: 14 or 20 Positions

Max Part Diameter(20 Mag): 80mm

Max Part Diameter(14 Mag): 130mm

Installed Power: 28kW

Machine Dimensions: 2460x1550x2300mm

Machine Weight: 5500kg




Specifications

ManufacturerHardinge EMAG Vertical CNC Lathe
ModelVL 3
Year2001
ConditionUsed
Stock Number968727
Year2001
ControlFanuc 21i-T
ConditionVery Good
Max Machining Diameter210mm
Max Machining Height100mm
X Axis Travel400mm
Z Axis Travel200mm
Turret12 Station
Spindle NoseDIN55026
Max Spindle Power16kW
Spindle Speeds0-7500rpm
Part Magazine14 or 20 Positions
Max Part Diameter(20 Mag)80mm
Max Part Diameter(14 Mag)130mm
Installed Power28kW
Machine Dimensions2460x1550x2300mm
Machine Weight5500kg
