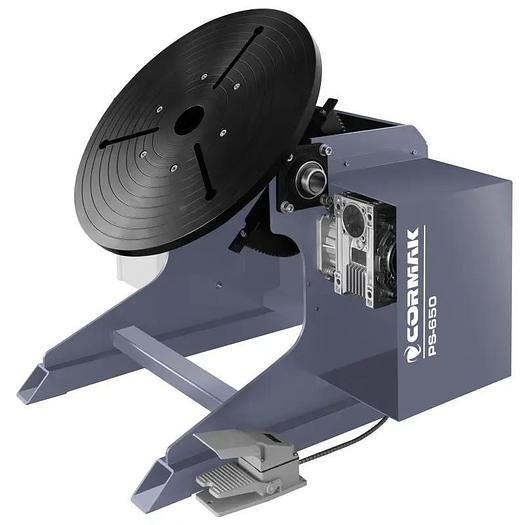

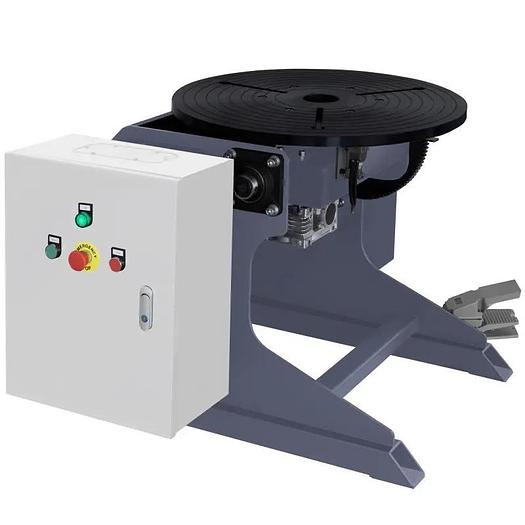

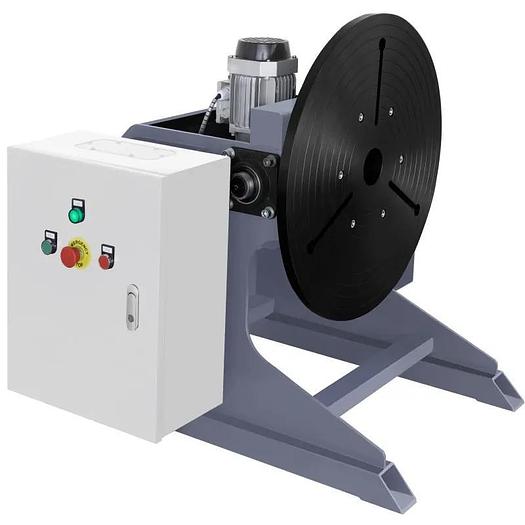

Cormak PS-650 Rotary Welding Positioner Table

Cormak PS-650 Rotary Welding Positioner Table

Machine Description

The CORMAK PS-650 rotator is a versatile auxiliary device that can be used in various production tasks.

The wide range of possibilities makes it suitable for use wherever elements need to be manipulated.

The welding, painting and mechanical industries have appreciated the quality and rotational capabilities of our positioners.

CORMAK rotators are the ideal solution wherever components or subassemblies need to be rotated, wound or rolled.

Functions

1. Direction of rotation switch: Allows you to control the direction of rotation of the rotator disc.
2. Direction of rotation switch: Allows you to change the direction of rotation of the disc.
3. Smooth regulation of the plate rotation speed: Thanks to this function, you can adjust the rotation speed of the plate to a specific job.
4. Compact, compact design: Solid construction ensures durability and strength of the device.
5. Control pedal: Facilitates control over the positioner's operation.
6. Thermal fuse: Provides additional safety during operation of the device.

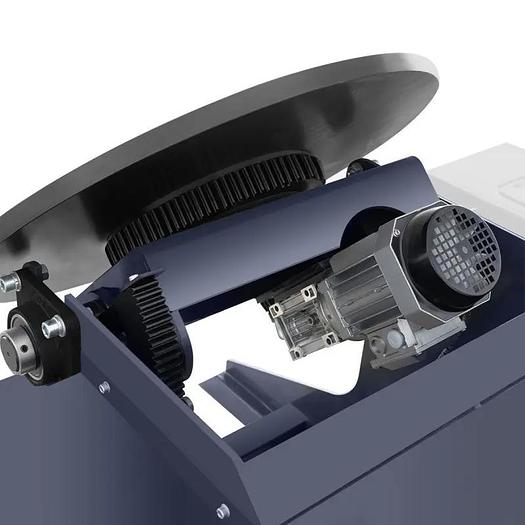

7. Brush motor: A brush motor is a type of DC electric motor that can be effective in various applications.
8. Plate tilt range 0 - 90°: The ability to tilt the rotator disc from 0 to 90 degrees is useful for welding in different positions.
9. Possibility of mounting a centering holder: Allows additional centering of elements.

Advantages

1. Higher work efficiency: The positioner helps to increase efficiency in assembly and welding processes.
2. Reduction of production costs: Automation or facilitation of rotation of elements can contribute to lower production costs.
3. Repeatability of made joints: The device helps to maintain consistency and quality of joints.
4. Flexibility in use: The ability to adjust the speed and direction of rotation makes the device flexible in adapting to different tasks.
5. Improvement of the welder's working conditions: Allows the welder to work more comfortably and comfortable positions during welding.

Machine Characteristics

• rotation direction switch
• rotation direction switch
• has limit switches
• high torque
• durable brass sleeve guaranteeing 100% mass transfer to the welded material
• smooth regulation of the plate rotation speed
• compact, compact design
• control pedal

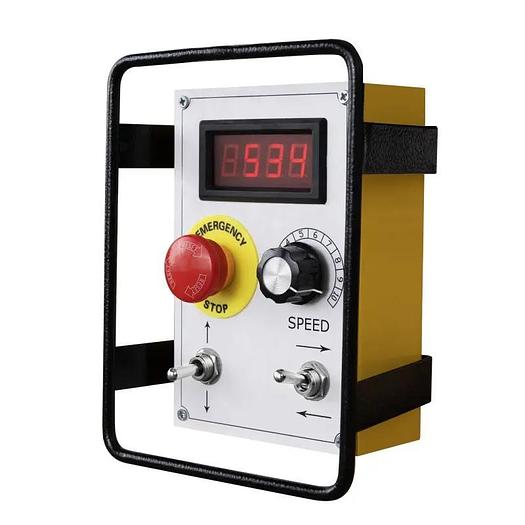

• remote control on the cable
• thermal fuse
• stable speed control
• plate tilt range 0 - 90°,
• possibility of mounting a self-centering holder

Technical Details

Rotation of table: 360°

Table rotation speed: 0.2 - 1.8 rpm/min

Speed Control: Variable

Table tilting: up to 90°

Work table diameter: 650 mm

Max Processing Diameter: 693 mm

Horizontal loading capacity: 400 kg

Vertical loading capacity: 200 kg

Motor power: 300 W

Voltage: 400 V

Dimensions: 850x700x680mm

Weight: 122 kg
