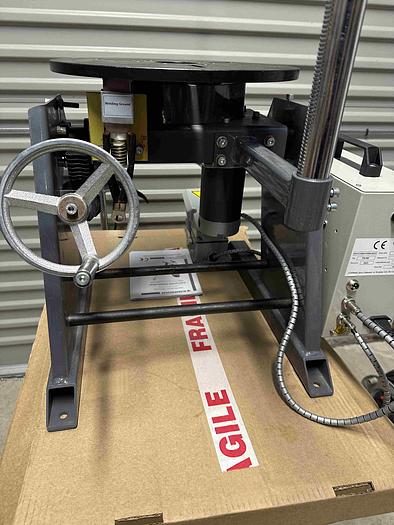

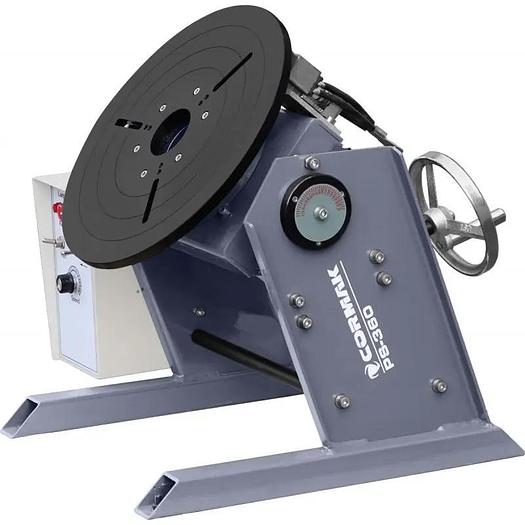

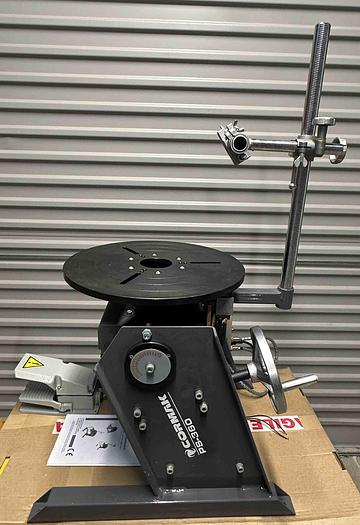

Cormak PS-360 Rotary Welding Positioner Table

Cormak PS-360 Rotary Welding Positioner Table

Machine Description

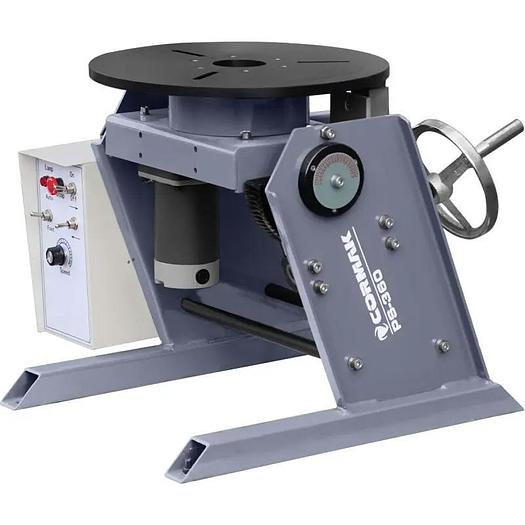

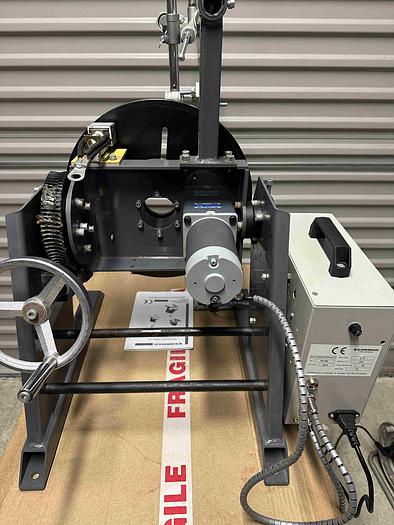

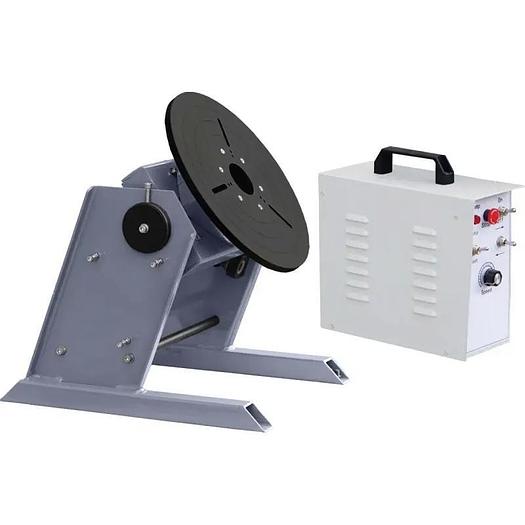

The CORMAK PS-360 rotator is a versatile auxiliary device that can be used in various production tasks.

The wide range of possibilities makes it suitable for use wherever elements need to be manipulated.

The welding, painting and mechanical industries have appreciated the quality and rotational capabilities of our positioners.

CORMAK rotators are the ideal solution wherever components or subassemblies need to be rotated, wound or rolled.

Additionally, the manipulators are equipped with a tool holder adjustable in several planes.

Functions

1. Versatility: The PS-360 positioner is a versatile auxiliary tool that can be used in various types of assembly and welding work.
2. Automated processes: The machine can be used in partially automated production processes, which contributes to increased work efficiency.
3. Welding in the optimal position : The device allows welding of cylindrical elements in the optimal position, which translates into safe, fast and accurate welding.
4. Solid construction: The solid construction of the machine ensures its durability and strength, which increases the quality of the work performed.

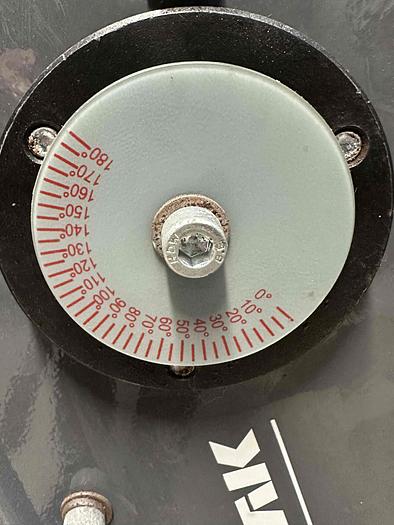

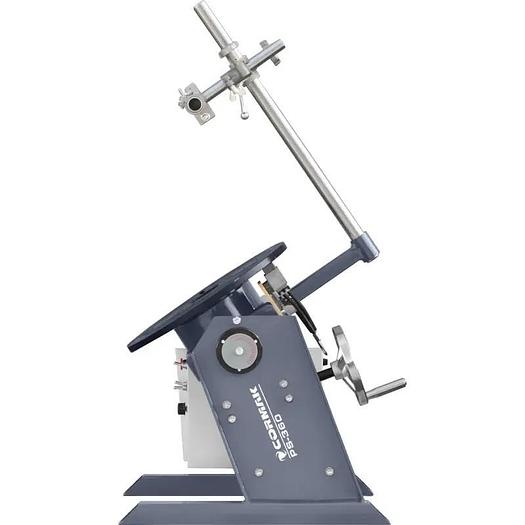

5. Tilt adjustment: The rotator disc can be tilted from 0 to 90 degrees, which gives flexibility in adapting it to a specific job.
6. Rotation speed adjustment: The possibility of smooth adjustment of the rotational speed of the rotator plate allows for adaptation to a specific application.

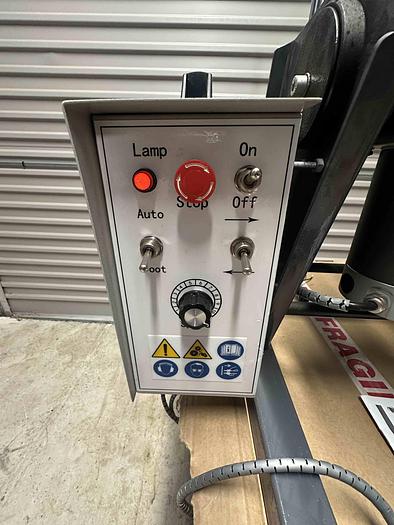

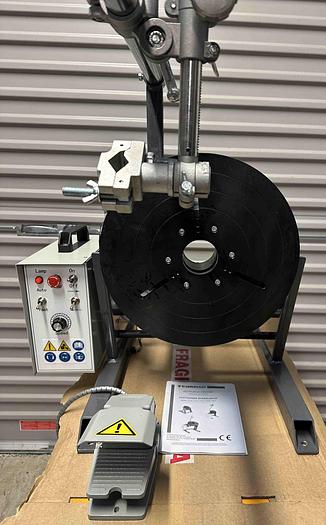

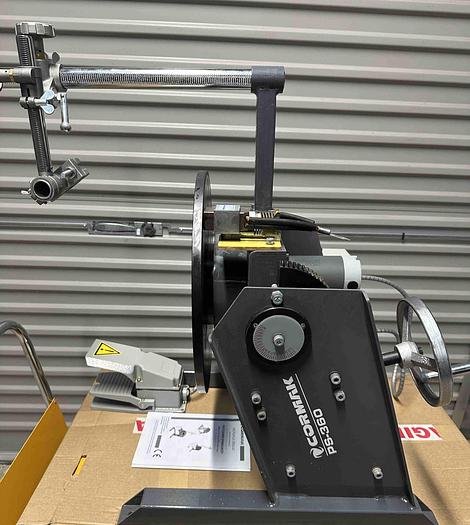

7. Pedal control: The device is equipped with a pedal that allows the welder to control the positioner's operation.

Advantages

1. Higher work efficiency: The positioner helps to increase efficiency in assembly and welding processes.
2. Reduction of production costs: Automation or facilitation of rotation of elements can contribute to lower production costs.
3. Repeatability of work: The device helps to maintain consistency and quality of joints.
4. Flexibility in use: The ability to adjust the speed and direction of rotation makes the device flexible in adapting to different tasks.
5. Improved working conditions: Allows the welder to work more comfortably and comfortable positions during welding.

Includes

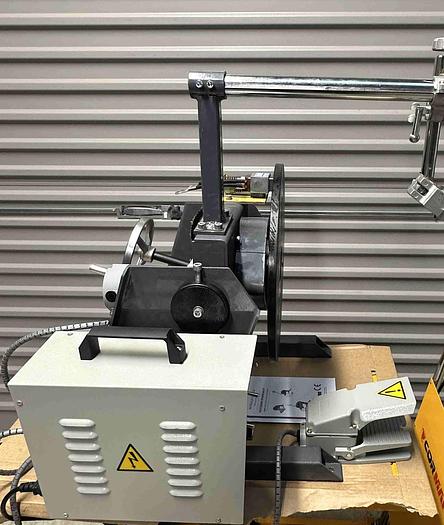

• PS-360 positioner device.

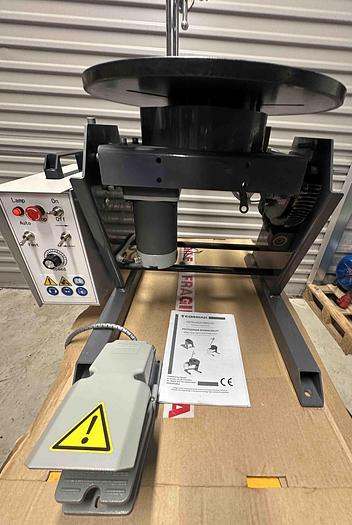

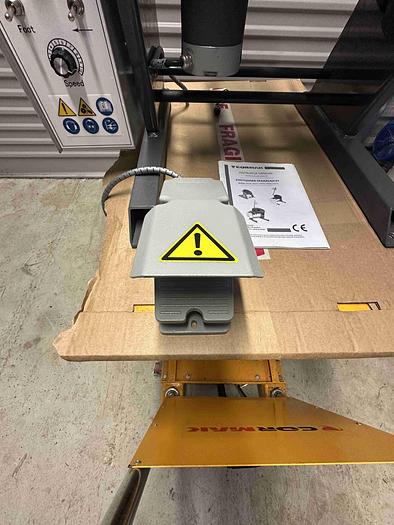

• Control pedal.

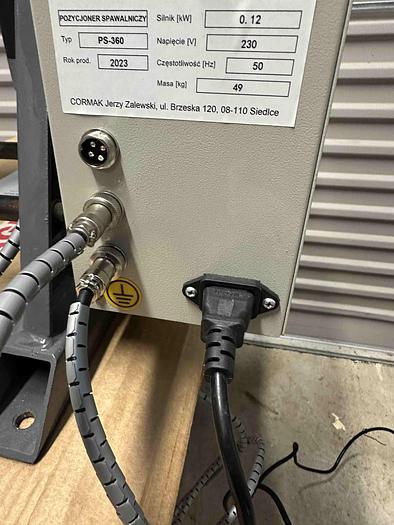

• Power cable.
• Operating instructions.

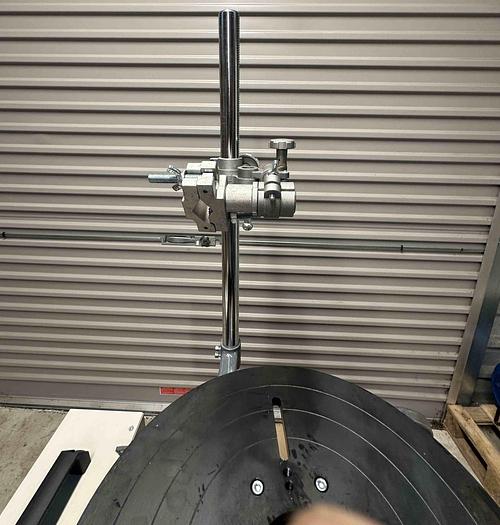

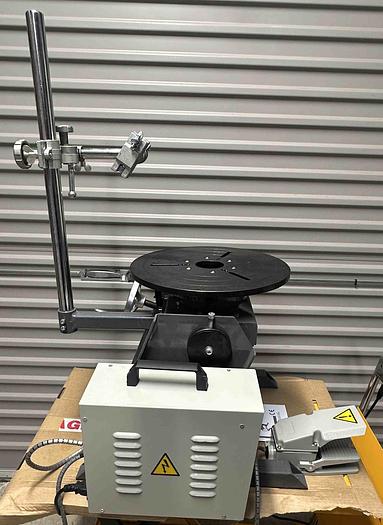

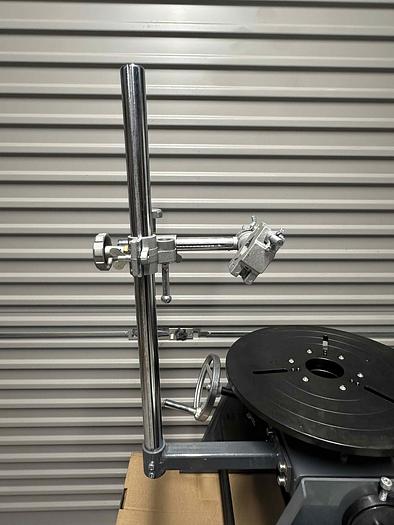

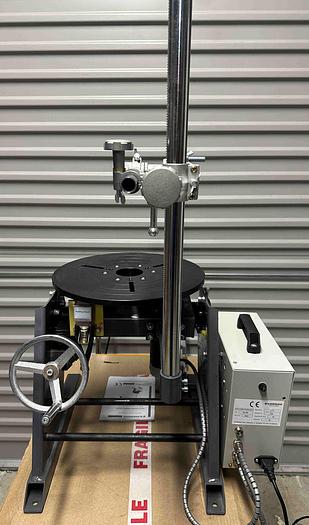

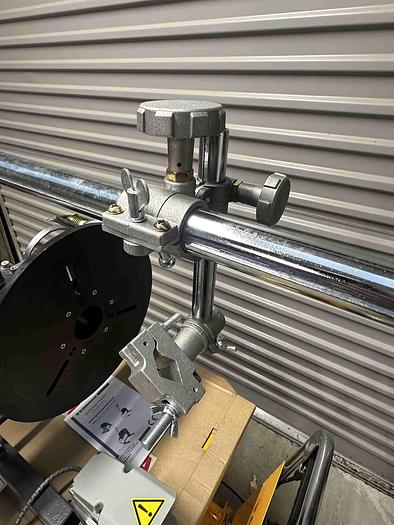

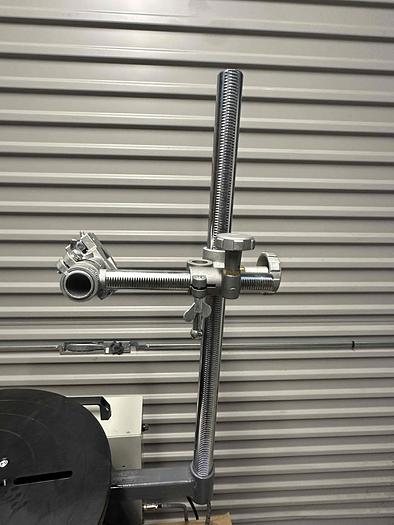

• Mast with welding holder.

Technical Details

Rotation of table: 360°

Table rotation speed: 0.2 - 5 rpm/min

Speed Control: Variable

Tilt Speed: Manual

Table tilting: up to 90°

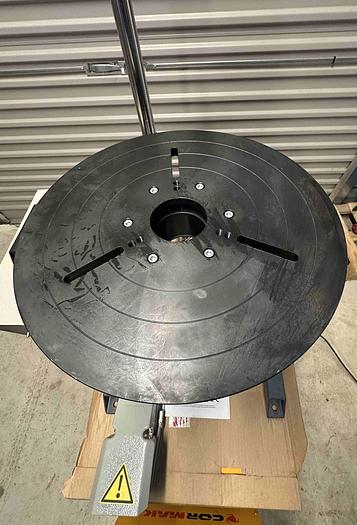

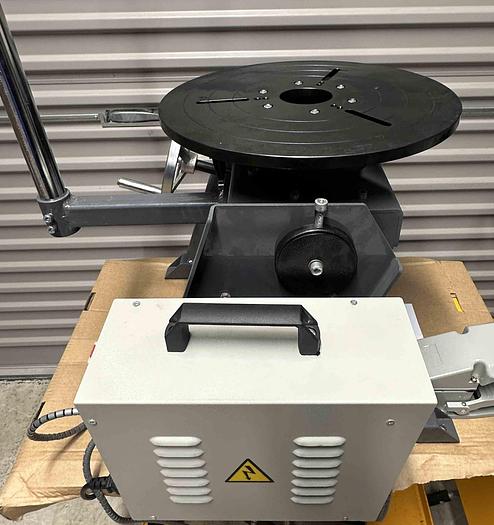

Work table diameter: 360 mm

Max table load: 100kg

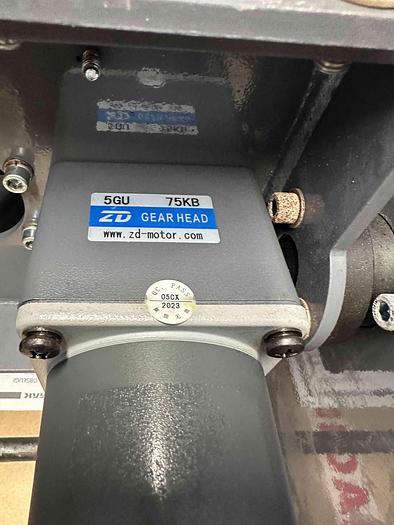

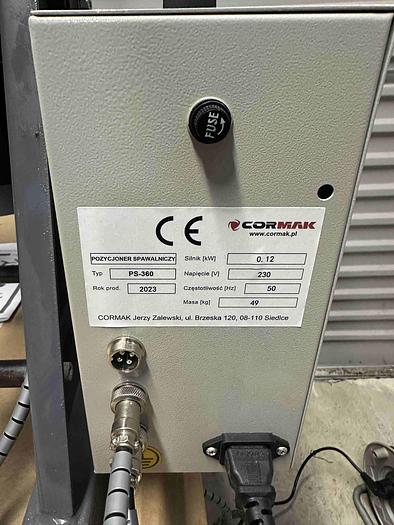

Motor power: 120 W

Voltage: 220 V

Dimensions: 530x550x500mm

Weight: 49 kg
