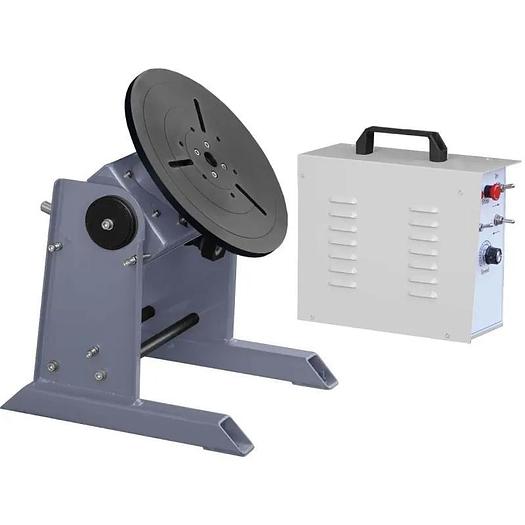

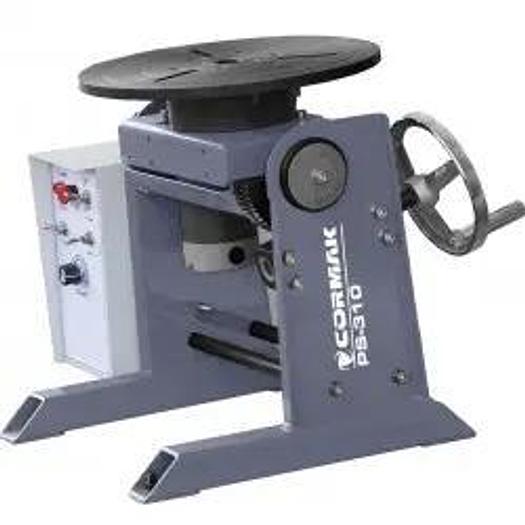

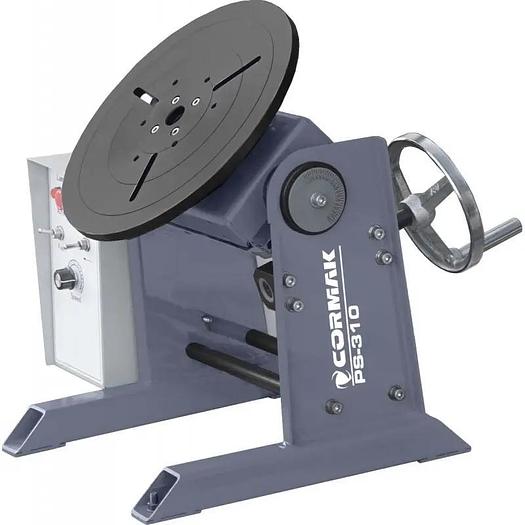

Cormak PS-310 Rotary Welding Positioner Table

Cormak PS-310 Rotary Welding Positioner Table

Machine Description

The CORMAK PS-310 rotator is a versatile auxiliary device that can be used in various production tasks.

The wide range of possibilities makes it suitable for use wherever elements need to be manipulated.

The welding, painting and mechanical industries have appreciated the quality and rotational capabilities of our positioners.

CORMAK rotators are the ideal solution wherever components or subassemblies need to be rotated, wound or rolled.

Additionally, the manipulators are equipped with a tool holder adjustable in several planes.

Functions

1. Direction of rotation switch: Allows you to control the direction of rotation of the rotator disc.
2. Direction of rotation switch: Allows you to change the direction of rotation of the disc.
3. Smooth regulation of the plate rotation speed: Thanks to this function, you can adjust the rotation speed of the plate to a specific job.
4. Compact, compact design: Solid construction ensures durability and strength of the device.
5. Control pedal: Facilitates control over the positioner's operation.
6. Thermal fuse: Provides additional safety during operation of the device.
7. Brush motor: A brush motor is a type of DC electric motor that can be effective in various applications.
8. Plate tilt range 0 - 90°: The ability to tilt the rotator disc from 0 to 90 degrees is useful for welding in different positions.
9. Possibility of mounting a centering holder: Allows additional centering of elements.

Advantages

1. Higher work efficiency: The positioner helps to increase efficiency in assembly and welding processes.
2. Reduction of production costs: Automation or facilitation of rotation of elements can contribute to lower production costs.
3. Repeatability of made joints: The device helps to maintain consistency and quality of joints.
4. Flexibility in use: The ability to adjust the speed and direction of rotation makes the device flexible in adapting to different tasks.
5. Improvement of the welder's working conditions: Allows the welder to work more comfortably and comfortable positions during welding.

Includes

• PS-310 positioner device.
• Control pedal.
• Power cable.
• Operating instructions.

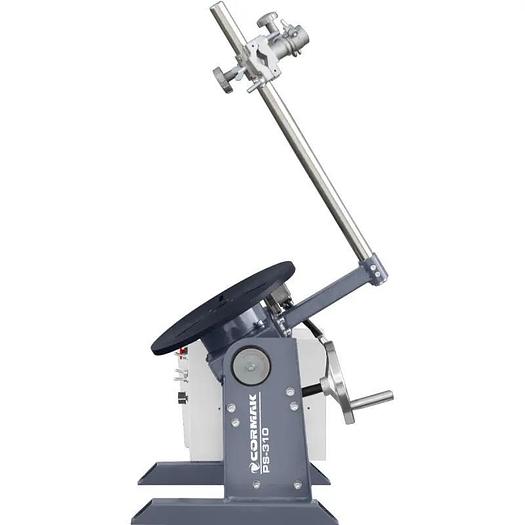

• Mast with welding holder.

Technical Details

Rotation of table: 360°

Table rotation speed: 1 - 15 rpm/min

Speed Control: Variable

Tilt Speed: Manual

Table tilting: up to 90°

Work table diameter: 310 mm

Maximum Load: 30kg

Motor power: 120 W

Voltage: 220 V

Dimensions: 500x500x440mm

Weight: 34 kg
