Hidrogarne CD-100/NC Hydraulic Press

1

Spain

orCall +353 838108745

Description

Hidrogarne CD-100/NC C Frame Hydraulic Press


Machine Type: C Frame Hydraulic Press


Description

Structure and Tables

The C-frame hydraulic press from the CD/NC series consists of an electro-welded structure made exclusively of S355JR steel. It is stabilized and machined at the end of the welding process to ensure perfect parallelism and precision. Calculated and designed using finite element software. With all this, we always guarantee our high standards of precision and quality.


It has a lower table made of C45E steel machined with DIN-650 slots.


Cylinder and Hydraulic Group

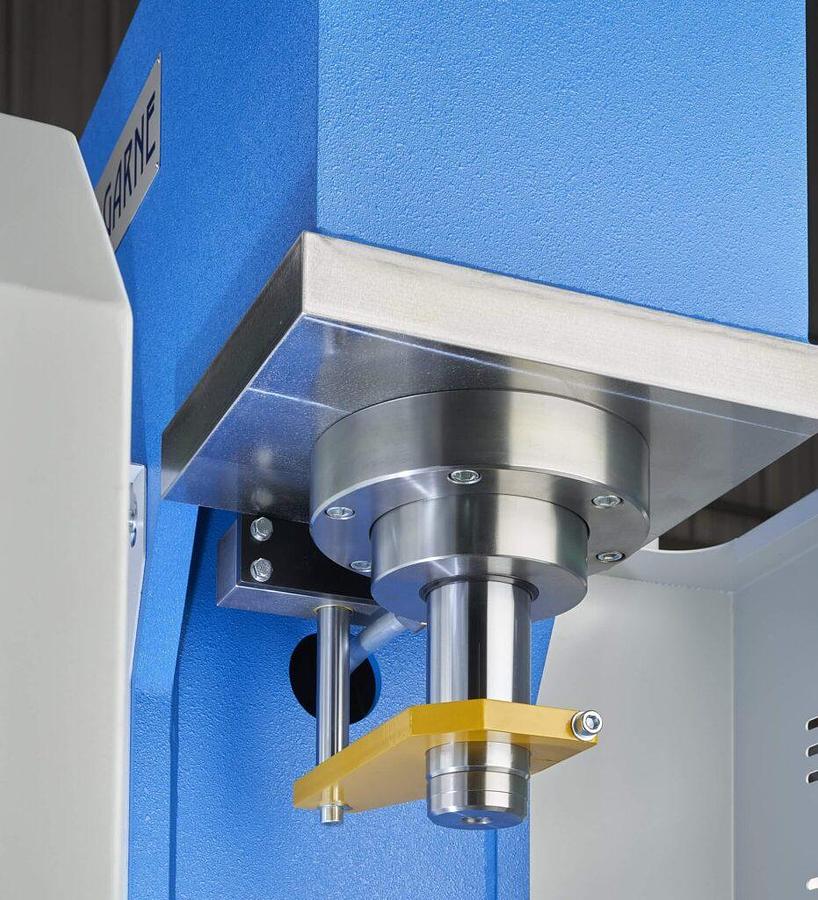

Double-acting cylinder with seamless cold-drawn tube, chrome-plated piston, and maintenance-free wear-resistant guides. Equipped with a detachable and interchangeable ram foot to prevent piston damage and machined at the end to adapt tools, moulds, or dies.


It incorporates an anti-rotation system installed on the cylinder using a clamp and guide bar.


Two-speed motorized hydraulic group with automatic disconnection of the fast speed. Includes cylinder decompression valve.


Electrical Installation and Safety

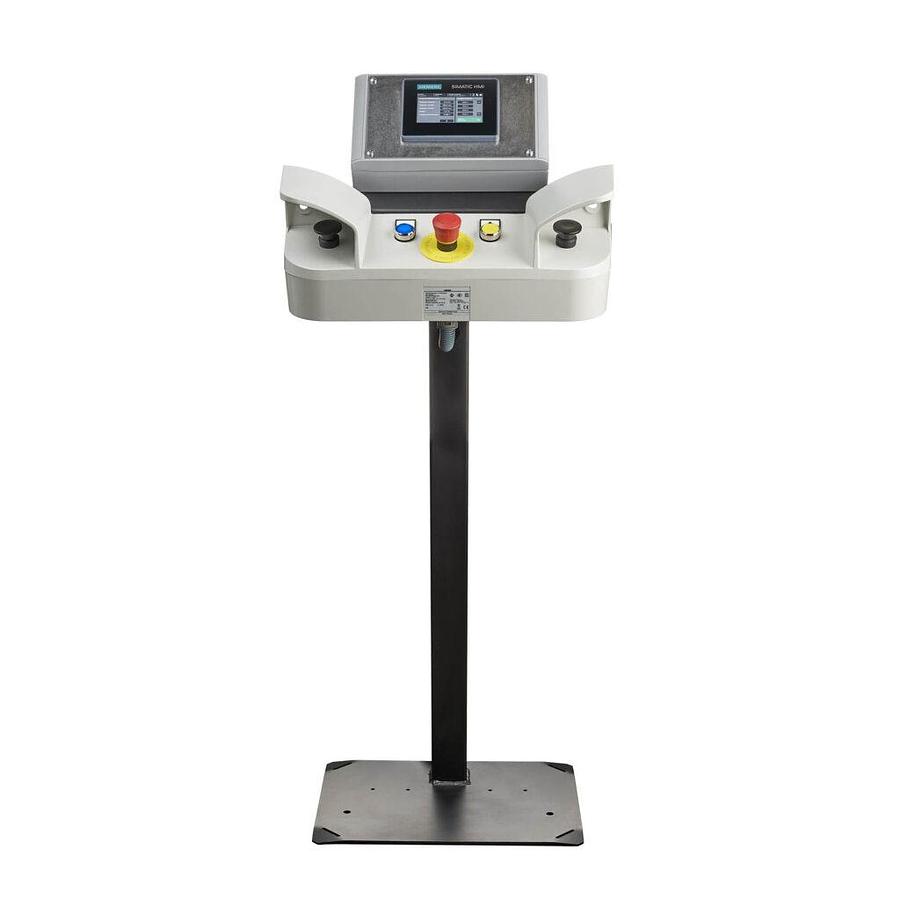

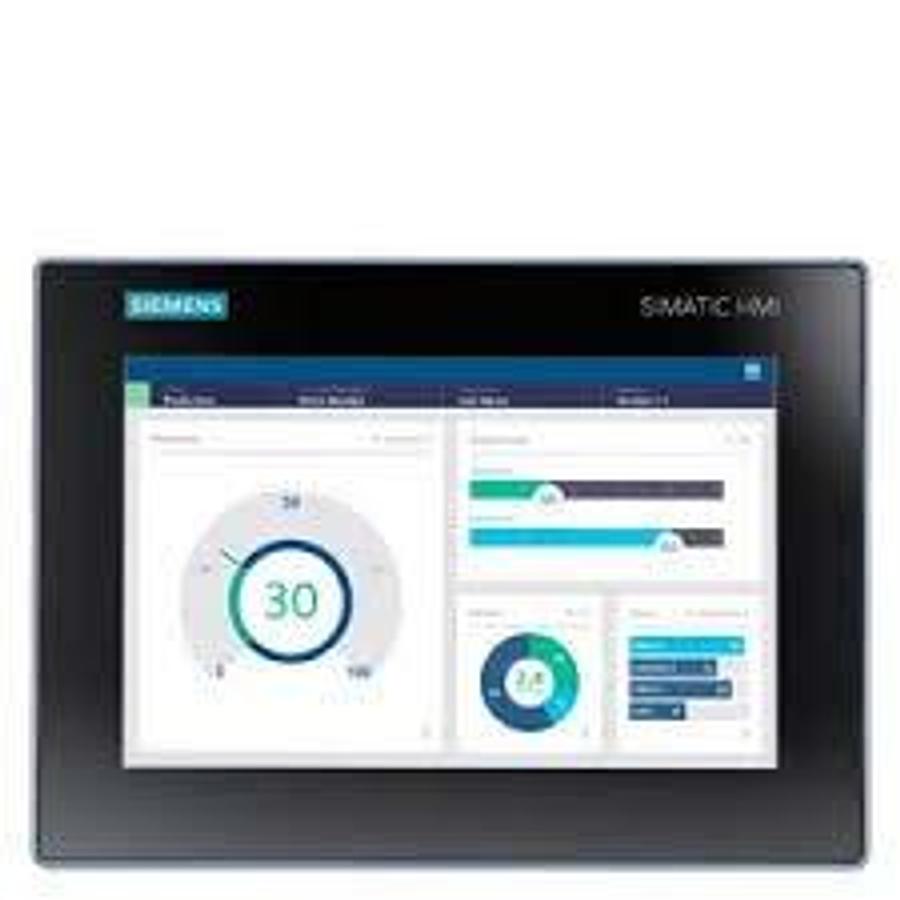

It incorporates a SIEMENS safety PLC model SIMATIC S7 1200 and a 4″ touchscreen model MTP-400 located at the top of the electrical drive pedal as standard. It allows programming the operating mode in semi-automatic and automatic, the power, the stroke, and the dwell time of the upper cylinder. It has a storage capacity of 99 recipes, and all the aforementioned values can be programmed in each recipe.


The electrical panel incorporates a selector that allows choosing the type of work we want to perform in manual or automatic position and a key selector for maintenance work.


Electrical and hydraulic maneuvers are redundant and self-controlled. They incorporate an additional safety block and self-control devices for maneuver and safety.


The operation is carried out by a two-handed level IV safety push button.


To ensure the safety of the C-frame hydraulic press, they incorporate fixed side protections with a front opening of 600 mm.


They allow the installation of a hydraulic cushion or ejector.


They are supplied with an instruction manual.


All our C-frame hydraulic press models comply with and meet all essential safety and health requirements according to CE regulations.


Technical Specifications

Power: 100T

Motor Power: 13kW

Throat Depth: 325mm

Working Speed: 4-9mm/s

Approach Speed: 40mm/s

Return Speed: 62mm/s

Maximum Pressure: 320bar

Piston Stroke: 250mm

Lower Table: 550x550mm

Max Vertical Light: 400mm

Working Height: 900mm

Dimensions: 850x1470x2155mm

Weight: 2500kg


Optional Accessories

Vertical light of 600 mm

Vertical light of 800 mm

Cylinder stroke of 450 mm

Folding equipment of 415 mm in length. Promecam clamping system.

Hydraulic ejector.

Cooling equipment for the hydraulic group.

Control panel with articulated arm

Industry 4.0

Router for remote access

Geometry adapted to your needs.

Specifications

ManufacturerHidrogarne
ModelCD-100/NC Hydraulic Press
ConditionNew
Machine TypeC Frame Hydraulic Press
Power100T
Motor Power13kW
Throat Depth325mm
Working Speed4-9mm/s
Approach Speed40mm/s
Return Speed62mm/s
Maximum Pressure320bar
Piston Stroke250mm
Lower Table550x550mm
Max Vertical Light400mm
Working Height900mm
Dimensions850x1470x2155mm
Weight2500kg
