Hidrogarne CM-100/NC Hydraulic Press With Upper Table

Hidrogarne CM-100/NC C Frame Hydraulic Press With Upper Table

Machine Type: C Frame Hydraulic Press

Series: CM-NC Series

Description

We have designed the CM/CN hydraulic presses series with a range of four different power ranging from 50 to 150 tonnes.

Specifically designed to perform work involving deep-drawing, stamping, die-cutting, forming, etc.

The latest generation CM series hydraulic presses now feature a wide range of uses including the possibility of incorporating these machines in automatic production lines.

They operate with hydraulic pressure below 320 BAR to ensure greater durability of the entire hydraulic system.

Structure and Tables

These CM/NC series hydraulic presses consist of an electro-welded structure made exclusively of S355JR steel. It is stabilized and machined at the end of the welding process to ensure perfect parallelism and precision. Calculated and designed with finite element software. With all this, we always guarantee our high standards of precision and quality.

They are equipped with an upper table and a lower table made of C45E steel machined with DIN 650 slots. The upper table ensures perfect parallelism through two lateral cylindrical guides with a diameter of 50 mm with maintenance-free bimetallic bushings.

Cylinder and Hydraulic Group

Double-acting cylinder with seamless cold-drawn tube, chrome-plated piston, and maintenance-free wear-resistant guides.

Motorized hydraulic group with two speeds with automatic disconnection of the fast speed. Includes cylinder decompression valve.

Electrical Installation and Safety

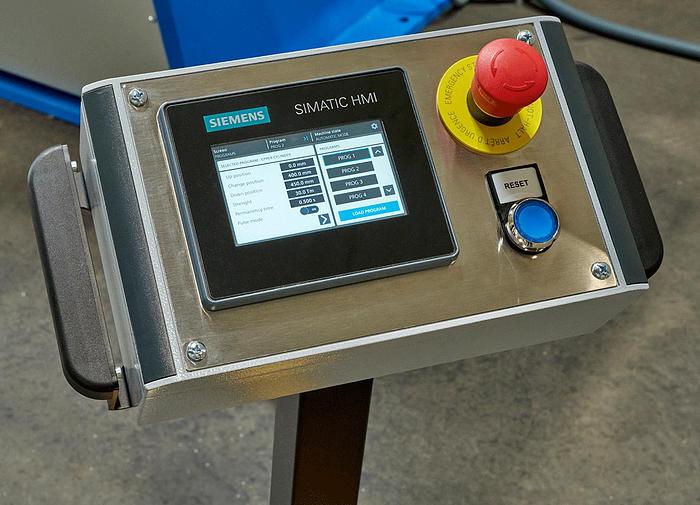

It incorporates a SIEMENS safety PLC model SIMATIC S7 1200 and a 4″ touchscreen model MTP-400 located at the top of the electrical drive pedal as standard. It allows programming the operating mode in semi-automatic and automatic, the power, the stroke, and the dwell time of the upper cylinder. It has a storage capacity of 99 recipes, and all the aforementioned values can be programmed in each recipe.

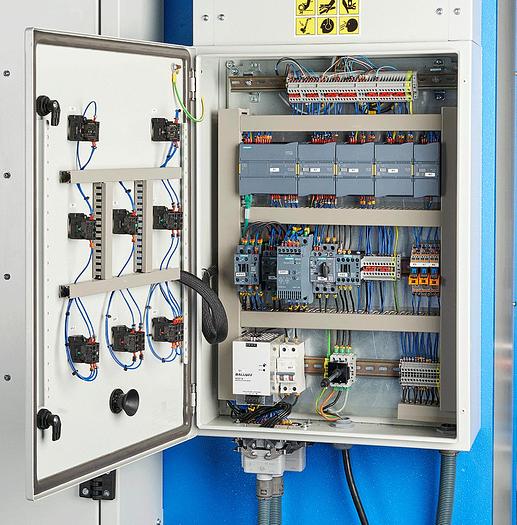

The electrical panel incorporates a selector that allows choosing the type of work we want to perform in manual or automatic position and a key selector for maintenance work.

Electrical and hydraulic maneuvers are redundant and self-controlled. They incorporate an additional safety block and self-control devices for maneuver and safety.

To ensure safety, it incorporates type 4 PLe safety light curtains, located in the front work area, two accessible side protections with polycarbonate windows, and interior LED lighting.

The operation is carried out by a low-voltage electric pedal.

They allow the installation of a hydraulic cushion or ejector.

Supplied with an instruction manual.

Complies with and satisfies all essential safety and health requirements according to CE regulations.

Technical Specifications

Power: 100T

Motor Power: 13kw

Throat Depth: 325mm

Working Speed: 3-9mm/s

Approach Speed: 40mm/s

Return Speed: 62mm/s

Maximum Pressure: 319bar

Piston Stroke: 250mm

Lower Table: 800x550mm

Upper Table: 650x400

Max Vertical Light: 400mm

Working Height: 900mm

Dimensions: 1240x1590x2250mm

Weight: 3150kg

Optional Accessories

600 mm vertical light.

800 mm vertical light.

450 mm piston stroke.

SIEMENS PLC mod. SIMATIC S7 1200 with 7″ touch screen mod. MPT-700.

Hydraulic cushion.

Hydraulic ejector.

Cooling equipment for the hydraulic group.

Control panel with articulated arm.

Industry 4.0

Router for remote access.

Geometry adapted to your needs.
