Hidrogarne HV-150/NC Horizontal Ram Hydraulic Presses

1

Spain

orCall +353 838108745

Description

Hidrogarne HV-150/NC Horizontal Ram Hydraulic Presses


Machine Type: Straightening Hydraulic Presses

Series: HV/NC Series


Description

Our HV/NC series horizontal hydraulic ram press is designed with a range of three different powers ranging from 150 to 300 tons.


Horizontal hydraulic presses are specially designed for straightening and bending profiles, bars, and beams.


The horizontal design of the machine allows us to easily handle large beams and profiles. The latest generation HV series horizontal hydraulic press has evolved into a versatile machine, capable of incorporating a variety of tooling options.


They operate at a hydraulic pressure below 320 BAR to ensure greater durability of the entire hydraulic system.


Structure and Tables

The HV/NC series horizontal straightening hydraulic presses consist of a C-shaped electro-welded structure made exclusively of S355JR steel. It is stabilized and machined at the end of the welding process to ensure perfect parallelism and precision. Calculated and designed using finite element software. With all this, we always guarantee our high standards of robustness, precision, and quality.


They are equipped with a main push table and a rear support table made of high-strength steel and machined with DIN 650 grooves. They incorporate support blocks made of C45E steel as standard. The main table ensures perfect parallelism through four cylindrical guides with maintenance-free bimetallic bushings with friction-free maintenance.


They incorporate two adjustable height accompanying rollers located on each side as standard.


Cylinder and Hydraulic Group

Double-acting cylinder with seamless cold-drawn tube, chrome-plated piston, and maintenance-free wear-resistant guides.


Two-speed motorized hydraulic group with automatic disconnection of the fast speed. Includes cylinder decompression valve.


Electrical Installation and Safety

Electrical installation equipped with a motor guard and emergency stop.


Meets and satisfies all essential safety and health requirements according to CE regulations.


Supplied with an instruction manual.


Technical Specifications

Power: 150T

Motor Power: 4kw

Working Speed: 2mm/s

Approach Speed: 9.9mm/s

Return Speed: 15.4mm/s

Maximum Pressure: 320 bar

Piston stroke: 450mm

Supporting table: 2000x500mm

Diameter of guides: 50mm

Main table: 500x500mm

Working height: 900mm

Supporting blocks: 100x100x500mm

Dimensions: 2520x2000x1570mm

Weight: 6700kg


Optional Accessories:

Basic feeding rails from 3,000 mm to 12,000 mm with height adjustment.

Motorized feeding rails from 3,000 mm to 12,000 mm.

Hydraulic lifting and tilting of feeding rails.

Folding equipment of 415 mm in length. PROMECAM clamp

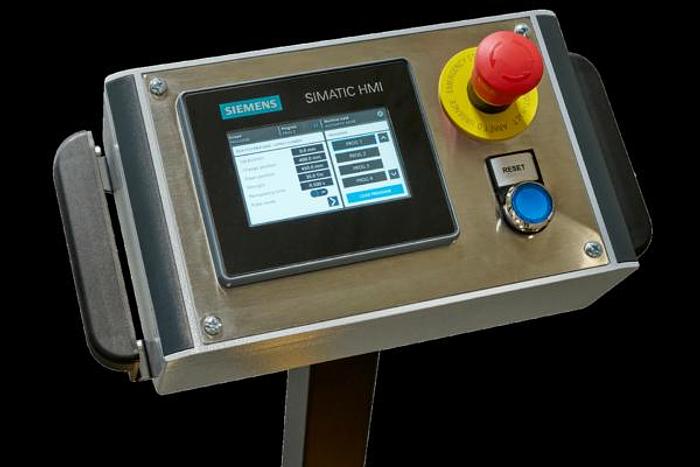

SIEMENS CNC mod. SIMATIC S7 with 7″ touch screen MTP-700

Cooling equipment for the hydraulic group.

Industry 4.0

Router for remote access

Geometry adapted to your needs.




Specifications

ManufacturerHidrogarne
ModelHV-150/NC Horizontal Ram Hydraulic Presses
ConditionNew
Machine TypeHorizontal Ram Hydraulic Presses
Power150T
Motor Power4kW
Working Speed2mm/s
Approach Speed9.9mm/s
Return Speed15.4mm/s
Maximum Pressure (up to 320 bar)320 bar
Piston Stroke450mm
Supporting table2000×500mm
Diameter of guides50mm
Main table500×500mm
Working height900mm
Supporting blocks100x100x500mm
Dimensions2520x2000x1570mm
Weight [kg]6700kg
