Hidrogarne S Series SD-80 Hydraulic Workshop Presses

1

Spain

orCall +353 838108745

Description

Hidrogarne S Series SD-80 Hydraulic Workshop Presses


Machine Type: Hydraulic Workshop Presses

Series: Series S


Description

The  Hidrogarne S series motorized  double-frame hydraulic press  is designed with a range of four different powers  ranging from 80 to 200 tons. The double-frame hydraulic press is specially designed to perform  extraction, bushing, straightening , etc. work.


The S Series double-post hydraulic presses work with a  maximum hydraulic pressure of 320 BAR  to ensure greater durability  of the entire hydraulic system.



Structure

The   S-Series  double-post hydraulic presses consist of a four-post electro-welded frame with open sides .


The double-post hydraulic press has a  mobile bed that allows it to be positioned at different heights . It is fixed by means of two pins located at the bottom of the bed. The  raising and lowering system is by means of chains driven by the press cylinder . It includes two milled support blocks.


We can differentiate them into two models:

  • Double-head hydraulic press SD models : They have a  fixed head.
  • Double-post hydraulic press SL models : They have a  laterally movable head  fitted with a manual locking system. Movement by means of rolling.


Cylinder and Hydraulic Group

Double-acting cylinder with chrome-plated piston and  maintenance-free wear-resistant guides. It is equipped with a removable and interchangeable plunger to prevent damage to the piston.


Single speed motorized hydraulic group.


Glycerin pressure gauge with reading in tons.


Cylinder actuation by means of hydraulic lever distributor.


Electrical Installation and Security

Electrical installation provided with  motor guard with emergency stop .


They are supplied with an instruction manual.


It meets and satisfies all essential health and safety requirements according to CE regulations .


Technical Specifications

Power: 80T

Engine power: 3kw

Piston stroke: 250mm

Maximum pressure:320 bar

Work speed: 3.8mm/s

Return speed: 4.7mm/s

Head displacement: mm/s

Front light: 1050mm

Side light: 210mm

Max vertical light: 1020mm

Light bench: 255mm

Dimensions: 1530x980x2275mm

Weight: 690kg


Optional Accessories:

Hoist bench with reducer.

Two-speed hydraulic group.

Front pressure regulator

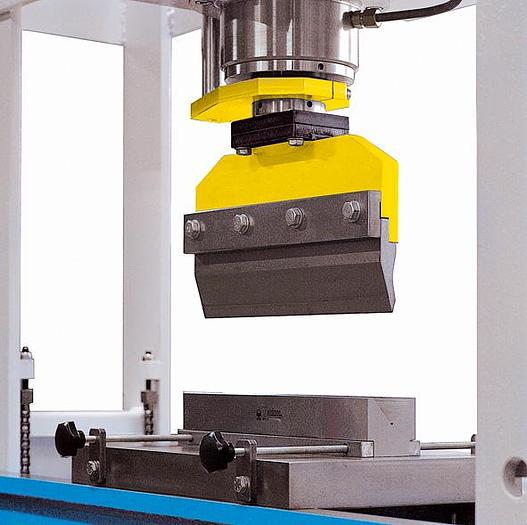

Folding equipment 415 mm long. PROMECAM clamping.

Additional 1 speed hand pump

Anti-rotation cylinder.

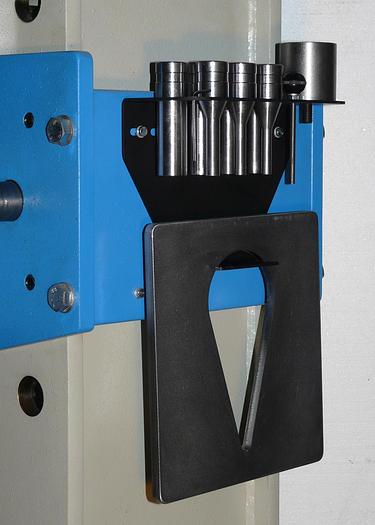

Chuck set, with adapter and base plate (Ø 10-12-15-17-20-25-30 mm)

“V” support blocks





Specifications

ManufacturerHidrogarne
ModelS Series SD-80 Hydraulic Workshop Presses
ConditionNew
Machine TypeHydraulic Workshop Presses
Power80T
Engine Power3kW
Piston stroke250mm
Maximum pressure320 bar
Work speed3.8mm/s
Return speed4.7mm/s
Front light1050mm
Side light210mm
Max vertical light1020mm
Light bench255mm
Dimensions1530x980x2275mm
Weight [kg]690kg
