Hidrogarne MV-1000E/NC Hydraulic Press With Four Chromed Cylindrical Columns of 250MM Diameter For Vulcanization and Deep Drawing

Hidrogarne MV-1000E/NC Hydraulic Press With Four Chromed Cylindrical Columns of 250MM Diameter For Vulcanization and Deep Drawing

Machine Type: Customized Hydraulic Presses

Series: Vulcanization

Description

The MV-1000E/NC hydraulic press belongs to the M/NC series and is custom-designed for demanding vulcanization and deep drawing applications.

It features four 250 mm diameter chrome-plated cylindrical columns made of C45E steel, specially manufactured to ensure optimal performance in these applications.

It utilizes an optimized hydraulic system with a pressure of up to 290 Bar, ensuring prolonged durability and reliability.

It meets and satisfies all essential safety and health requirements according to CE regulations.

Structure and Tables

Central table with T-slots guided by the four columns and bronze-graphite bushings.

Lower table with T-slots and front hydraulic extraction capable of moving loads up to 25 TN.

Useful dimensions of the tables: 1500×1500 mm.

Tables include two heated plates capable of reaching temperatures up to 250ºC.

Controlled by a thermal system TL 42-1/4 that allows pressure and temperature recording, visualization, and data storage.

Thermal plate precision is ±5%.

Includes a cooling circuit.

Equipped with a SIEMENS S-7/1200 KP-400 NC to regulate table travel, working pressure, hydraulic peripherals, program pressing time, and speed changes.

Cylinder and Hydraulic Group

4 main cylinders, each with 250 TN capacity.

Two lateral cylinders for rapid approach and return of the central table.

Two-speed motorized hydraulic group with automatic disconnection of the fast speed.

Pressure and control solenoid valves by REXROTH.

Double vane pump for high and low pressure by DENISON-PARKER.

Includes hydraulic connections for auxiliary peripherals and air-oil cooling equipment.

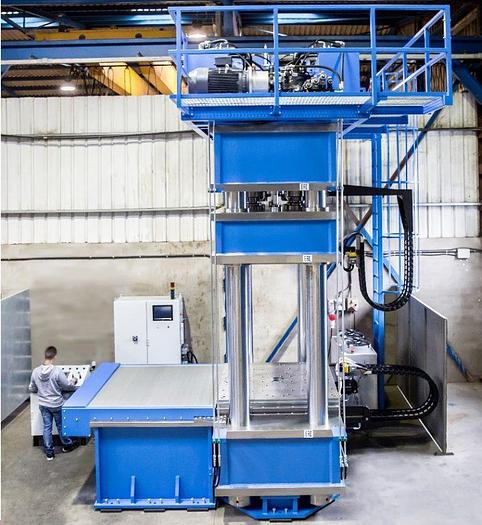

The hydraulic group is located at the top of the press, with a transit walkway installed for easy access.

All M series hydraulic presses include a lateral pressure switch to regulate the most suitable pressure setting for each type of work.

Glycerin manometer with tonnage reading.

Electrical Installation and Safety

Equipped with a SIEMENS SIMATIC S7 1200 safety PLC and a 4” KTP-400 touchscreen located in the electrical panel. Allows programming of the operating mode in semi-automatic and automatic, power, travel, and dwell time. It has a storage capacity of 99 recipes, with all the above values programmable per recipe.

The electrical panel includes a selector to choose the type of work in manual or automatic cycle mode.

Also includes a selector for choosing fast approach speed, slow working speed, and tooling adjustments.

Electrical and electronic materials are from SCHNEIDER, SIEMENS, and LG brands.

Electrical and hydraulic operations are redundant and self-controlled. Includes an additional safety block and self-control devices for operation and safety. Includes verification and certification of correct operation and safety distance for photoelectric cells.

Operation is performed via a two-hand pushbutton.

For safety, it includes laser and area protection with level IV photoelectric barriers.

Technical Specifications

Power: tn 1000

Speeds: 2

Engine Power: kW 30

Piston Stroke: mm 1.500

Approach Speed: mm/s 90

Working Speed: mm/s 3

Return Speed: mm/s 110

Guide Diameter: mm 250

Maximum Pressure: Bar 290

Useful Table Area: mm 1.500 x 1.500

Front Light: mm 1.750

Side Light: mm 800

Vertical Light: mm 2.500

Working Height: mm 800

Weight: kg 60.000
