Hidrogarne RM-150E/NC Hydraulic Press For Precision Reproduction of Parts Using Elastoforming System (Aeronautics)
Description
Hidrogarne RM-150E/NC Hydraulic Press For Precision Reproduction of Parts Using Elastoforming System (Aeronautics)
Machine Type: Customized Hydraulic Presses
Series: Elastoforming
Description

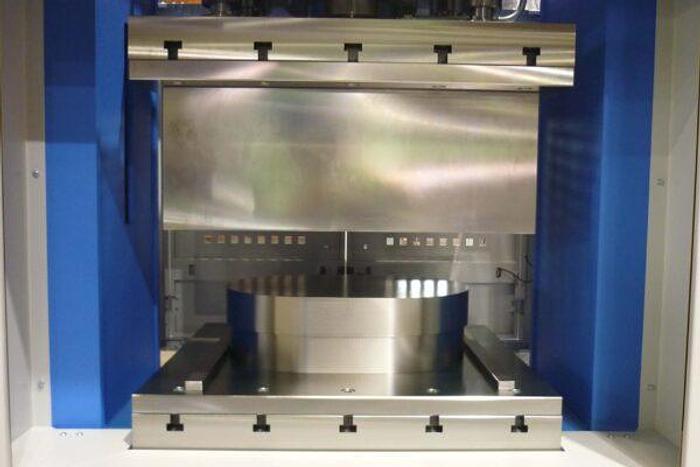

The RM-150E/NC rigid arch hydraulic press belongs to the R/NC series and is custom-designed to house a rubber container for reproducing high-precision aerospace parts.
It features an electro-welded structure made exclusively from S355JR steel. The structure is stabilized and machined at the end of the structural welding process to ensure perfect parallelism and precision, designed using finite element software.
It uses an optimized hydraulic system with a pressure of 305 Bar, ensuring prolonged durability and reliability.
It meets and satisfies all essential safety and health requirements according to CE regulations.
Structure and Tables
Equipped with an upper and lower table made from C45E steel, machined with DIN-650 slots. The upper table ensures perfect parallelism with four lateral cylindrical guides with maintenance-free bimetallic anti-friction bearings.
Cylinder and Hydraulic Group
Double-acting cylinder with a lapped sleeve, chrome-plated piston, and maintenance-free anti-wear guides.
Two-speed motorized hydraulic group with automatic disconnection of the high speed. Includes a cylinder decompression valve.
Electrical Installation and Security
Includes a standard Siemens safety PLC model SIMATIC S7 1200 and a 7” MTP-700 touch screen. Allows programming of semi-automatic and automatic modes, power, stroke, and dwell time of the upper cylinder. It has a storage capacity for 300 recipes, with each recipe capable of storing all the above values.
The electrical cabinet includes a selector for choosing between manual or automatic operation and a key selector for maintenance tasks.
Electrical and hydraulic operations are redundant and self-monitored. Includes an additional safety block and self-monitoring devices for operation and safety.
Includes verification and certification of proper operation and safety distance for photoelectric cells.
For safety, it includes type 4 PLe photoelectric safety barriers located in the front work area, two fixed lateral protections, and a practical rear protection with a magnetic disconnection detector, polycarbonate windows, and LED interior lighting.
Technical Specifications
Power: tn 150
Engine Power: kW 7.5
Working Speed: mm/s 3.9
Approach Speed: mm/s 20
Return Speed: mm/s 30
Maximum Pressure: Bar 305
Piston Stroke: mm 450
Guide Diameter: mm 50
Lower Table: mm 1.000 x 850
Upper Table: mm 900 x 800
Maximum Vertical Light: mm 800
Front Light: mm 1.250
Working Height: mm 950
Total Front: mm 2.585
Total Side: mm 1.470
Total Height: mm 3.610
Weight: kg 12.150
Specifications
| Manufacturer | Hidrogarne |
| Model | RM-150E/NC Hydraulic Press For Precision Reproduction of Parts Using Elastoforming System (Aeronautics) |
| Condition | New |
| Machine Type | RM-150E/NC Hydraulic Press For Precision Reproduction of Parts Using Elastoforming System (Aeronautics) |
| Power | 150 |
| Engine Power | 7.5 |
| Working Speed | 3.9 |
| Approach Speed | 20 |
| Return Speed | 30 |
| Maximum Pressure | 305 |
| Piston Stroke | 450 |
| Guide Diameter | 50 |
| Lower Table | 1.000 x 850 |
| Upper Table | 900 x 800 |
| Maximum Vertical Light | 800 |
| Front Light | 1.250 |
| Working Height | 950 |
| Total Front | 2.585 |
| Total Side | 1.470 |
| Total Height | 3.610 |
| Weight [kg] | 12.150 |
