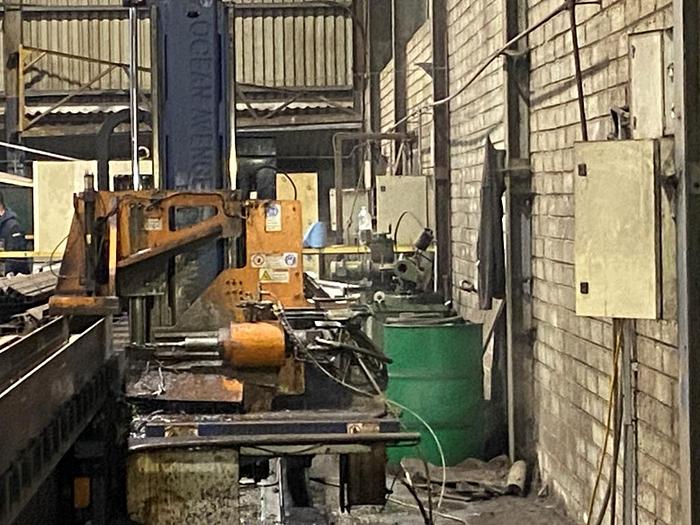

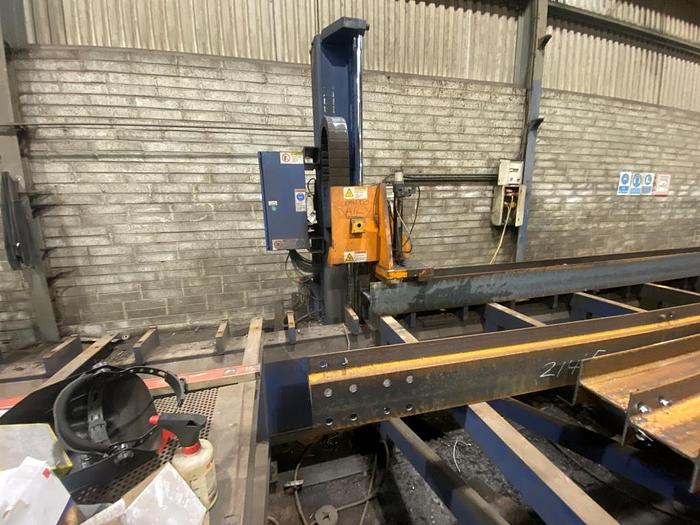

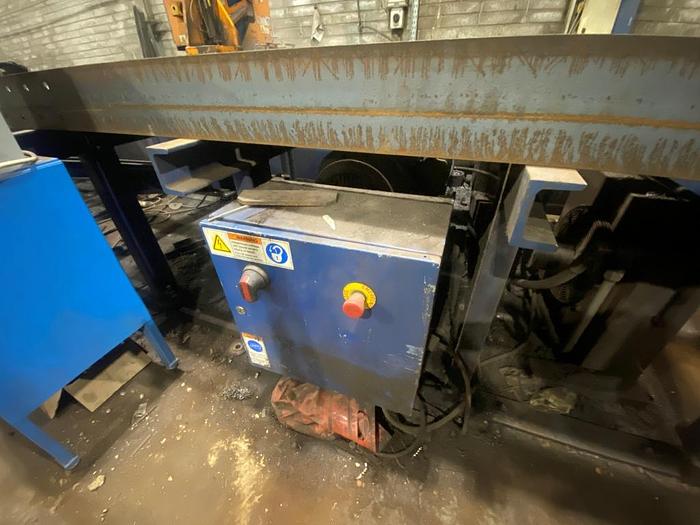

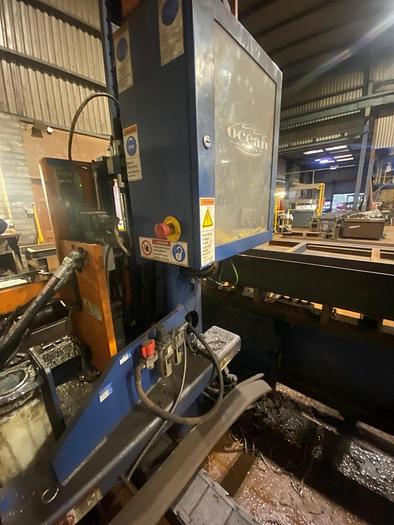

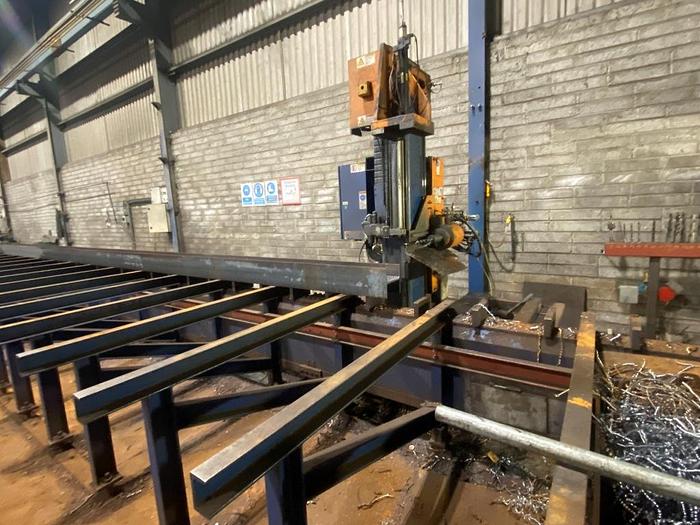

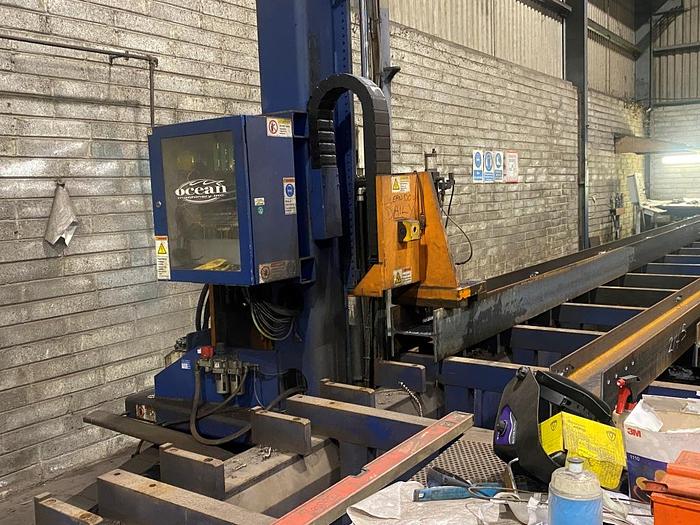

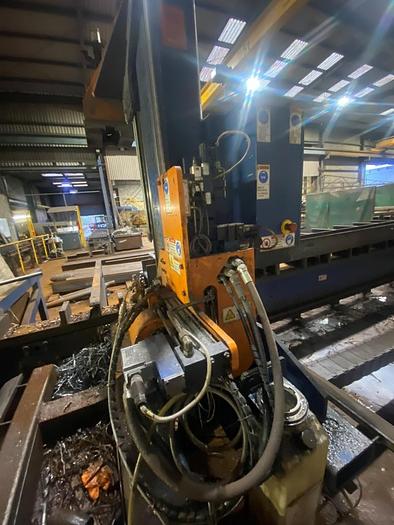

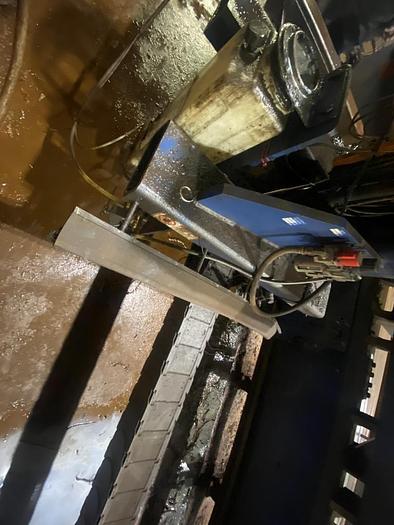

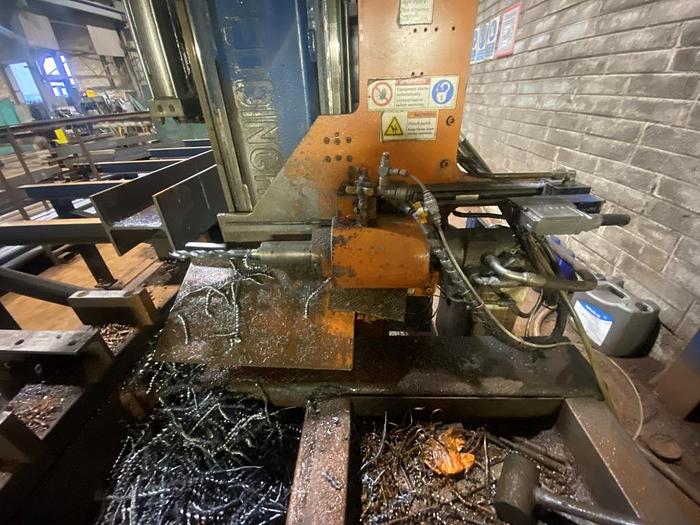

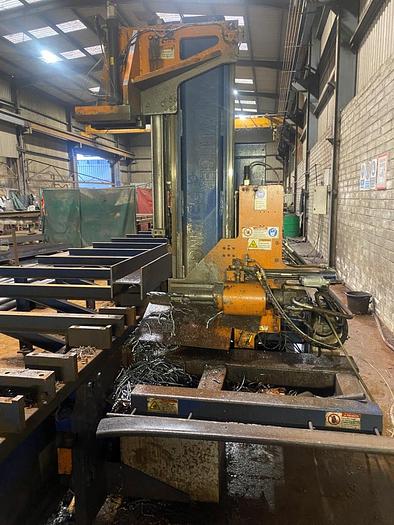

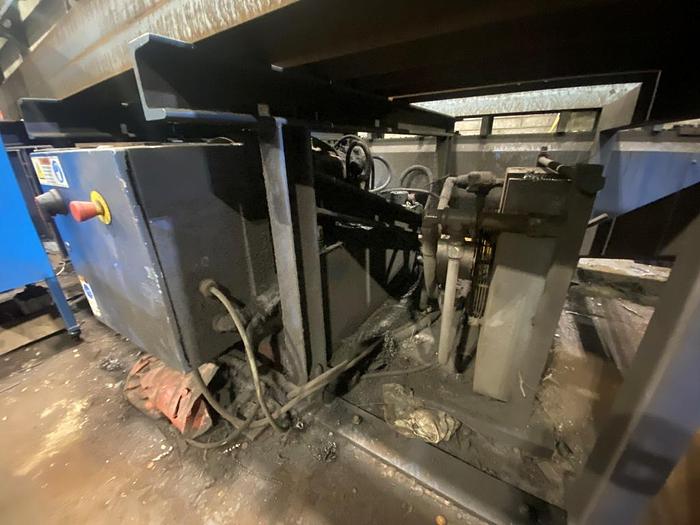

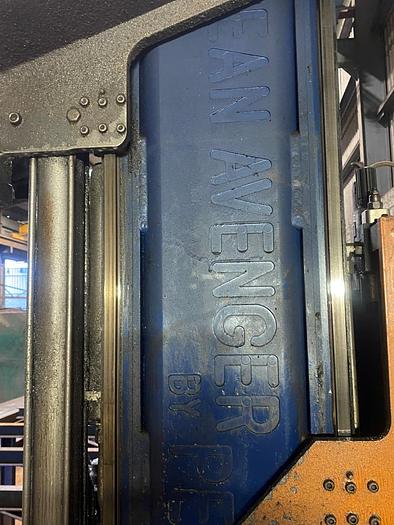

2005 Peddinghaus Avenger MDL1000B CNC Beam Drilling Line
Description
2005 Peddinghaus Avenger MDL1000/B CNC Beam Drilling Line
Machine Type: Single Spindle CNC Beam Drilling Line

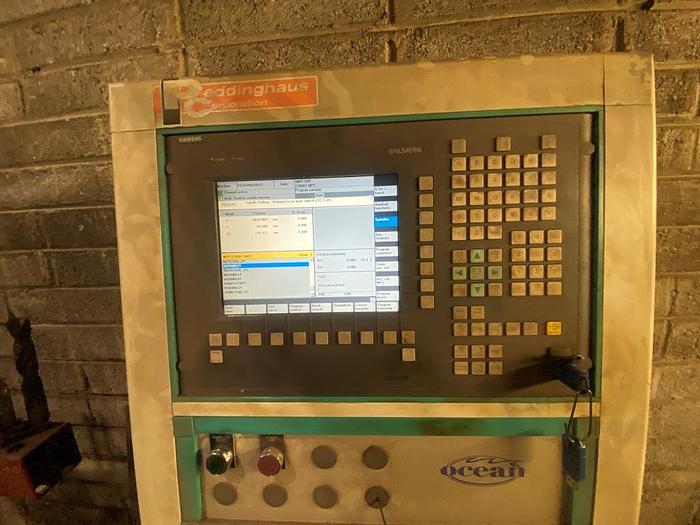

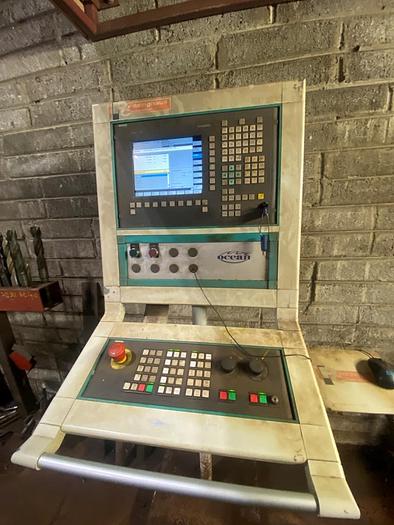

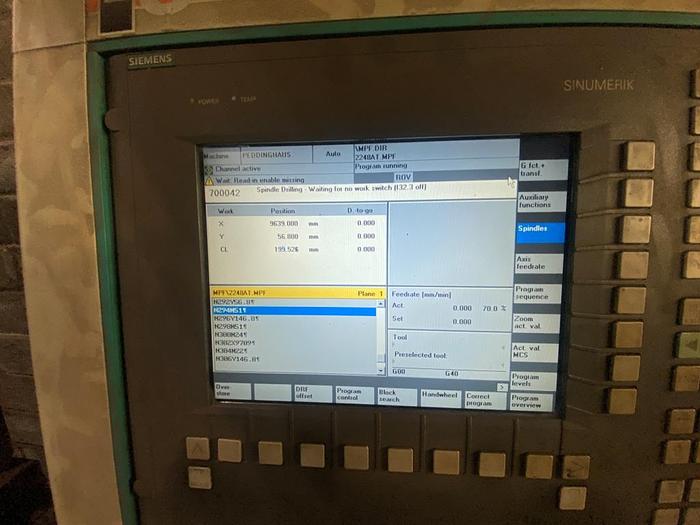

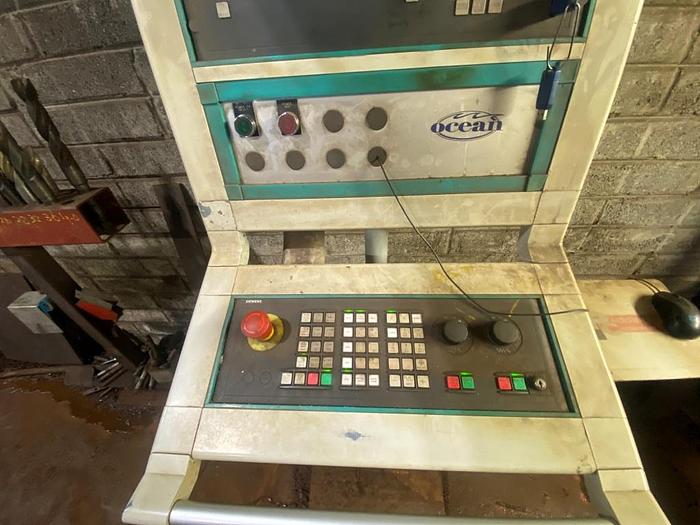

Control: Siemens Sinumerik
Year: 2005

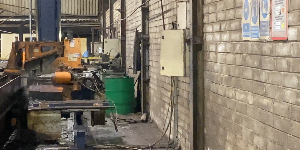

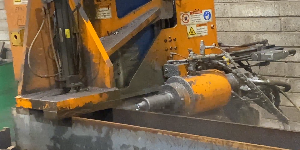

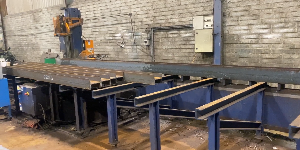

Condition: Good. Can be viewed running
Includes

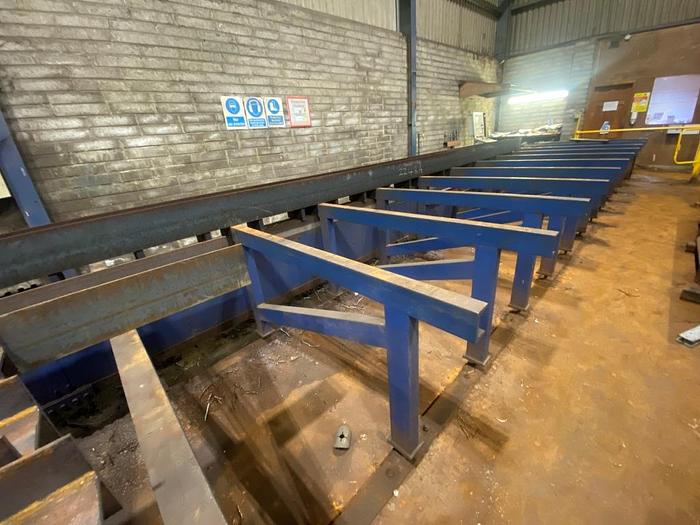

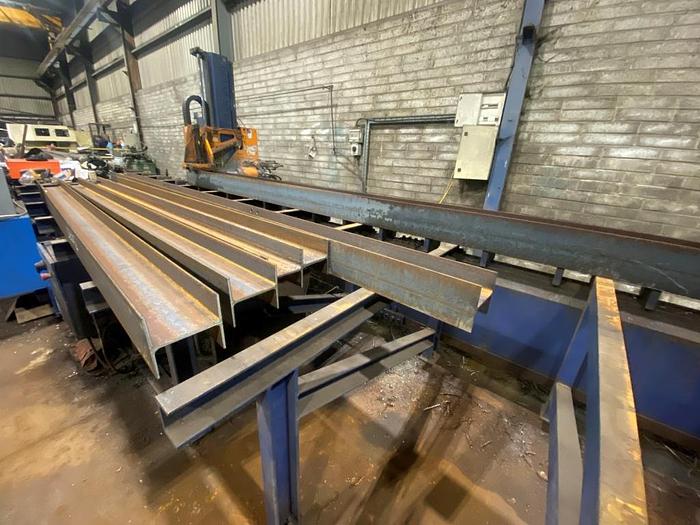

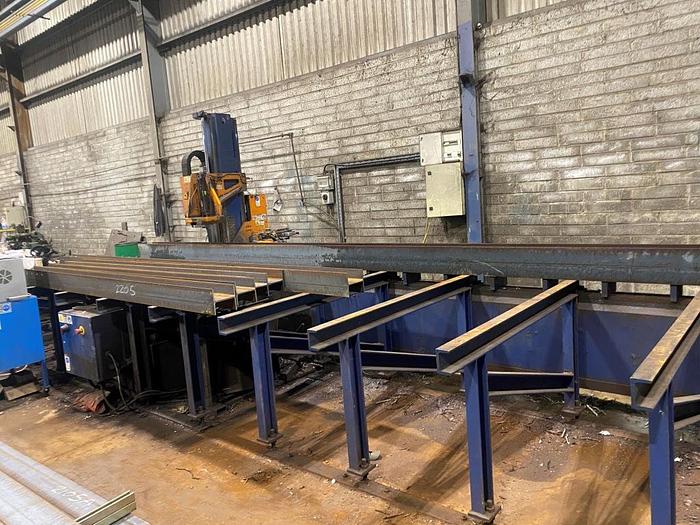

60ft Table
Technical Specification
Max Beam Size: 60ft x 40" (18.3m x 1000mm)
Max Beam Weight: 730lbs/ft (1088kg/m)

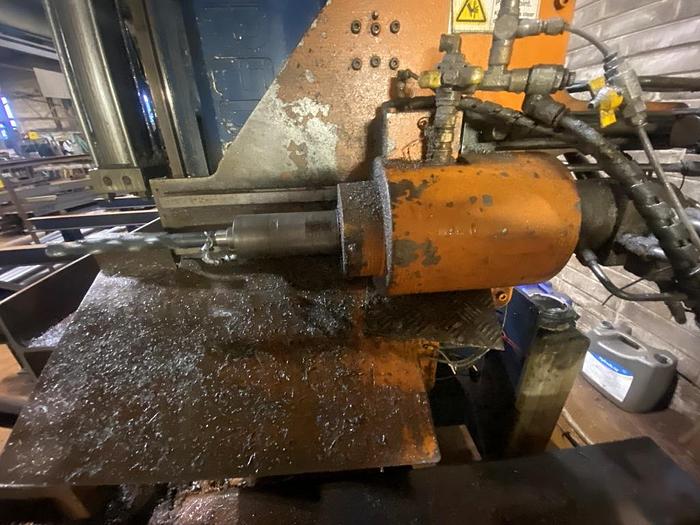

Min Drill Diameter: 1/4" (6.5mm)
Max Drill Diameter: 2" (50mm)
Max Thickness: Up to 10" (250mm)
Max Speed X-axis: 120 ft/min (37m/min.)
Max Speed Y-axis: 120 ft/min (37m/min.)
Spindle Power: 13 3/4hp (10KW)
Drilling Feed Rate: 2" – 10" per min (50-254mm/min) infinitely variable
Spindle Stroke: 13" (330mm) max
Total power: 20 HP (14.9 KW)
Power Supply: 400V, 3-ph, 50 Hz
Average Output: 200 to 400 holes per hour depending on the profile drilled
Approx Floor Space Required: 20.5 x 3.5m
Machine Height: 2.56m
Specifications
| Manufacturer | Peddinghaus |
| Model | Avenger MDL1000B CNC Beam Drilling Line |
| Year | 2005 |
| Condition | Used |
| Control | Siemens Sinumerik |
| Year | 2005 |
| Max Beam Size | 60ft x 40" (18.3m x 1000mm) |
| Max Beam Weight | 730lbs/ft (1088kg/m) |
| Min Drill Diameter | 1/4" (6.5mm) |
| Max Drill Diameter | 2" (50mm) |
| Max Thickness | Up to 10" (250mm) |
| Max Speed X-axis | 120 ft/min (37m/min.) |
| Max Speed Y-axis | 120 ft/min (37m/min.) |
| Spindle Power | 13 3/4hp (10KW) |
| Spindle Stroke | 13" (330mm) max |
| Total power | 20 HP (14.9 KW) |
| Power Supply | 400V, 3-ph, 50 Hz |
| Approx Floor Space Required | 20.5 x 3.5m |
| Machine Height | 2.56m |
