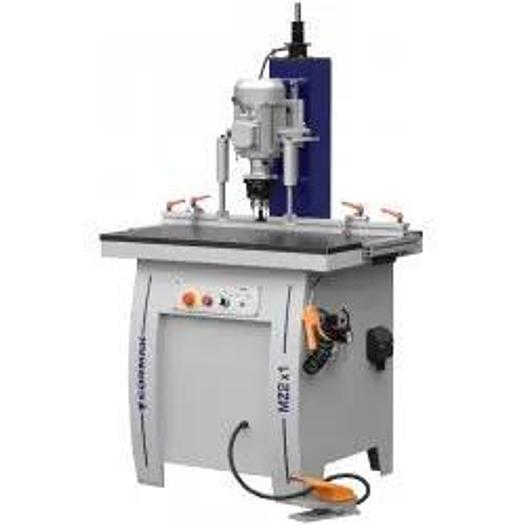

Cormak MZ 2x1 Hinge Drill
Description
Cormak MZ 2x1 Hinge Drill
Machine Type: Drilling Machine for Hinges
Machine Description
Pneumatic hinge drill from BLUM. The pneumatic drilling feed ensures comfortable work and the ability to handle the material being processed with two hands.

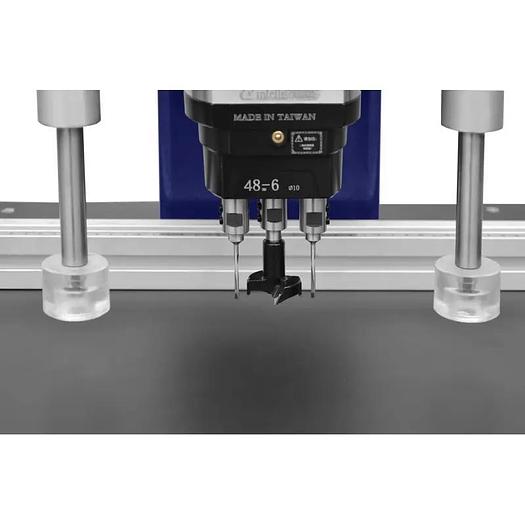

As standard equipped with BLUM drilling head.
It stands out on the market by its massive structure, wide table, which enables a large support surface. The wide-spaced arms allow a long element to be placed between them.

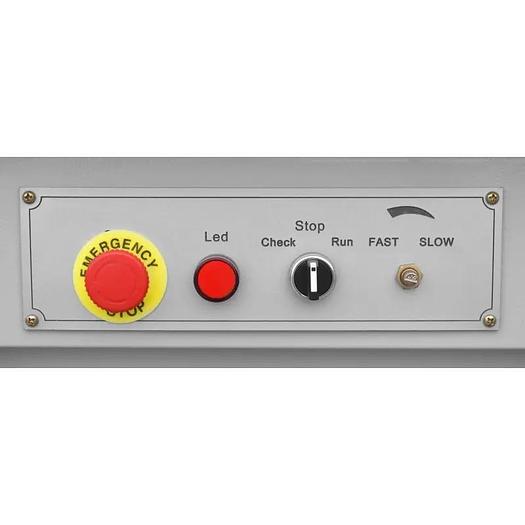

The drill has an intuitive control panel, where you can find, among others a safety switch or an easy-to-use feed speed control system.

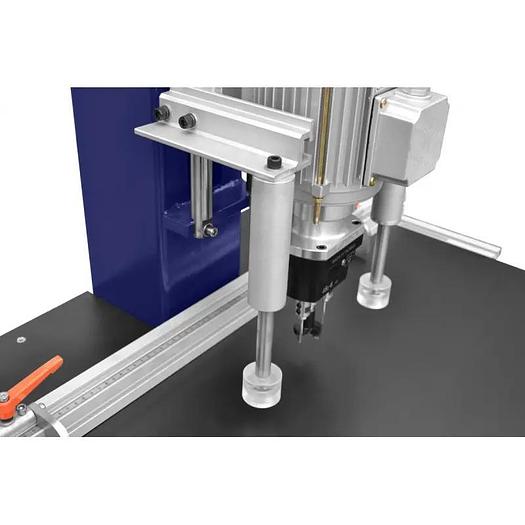

This model is equipped with a pneumatic drilling feed and pressure system.

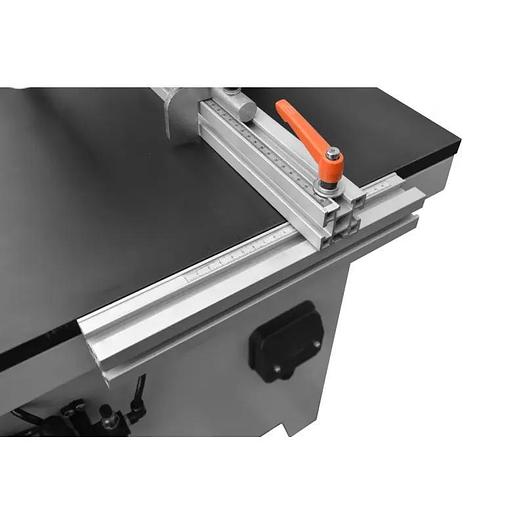

Quick and precise adjustment with 2 aluminum rulers, and the exact setting of the drilling size is secured by clamps with stoppers.
Includes
Cutter Ø35 mm
2 x drill Ø2 mm
Air blow gun
Technical Specifications
Inner diameter of the chuck: 10 mm
Max. drilling diameter: 50 mm
Max drilling depth: 60mm
Speed: 2,800 rpm
Motor power: 1.5 kW / 400 V
Working pressure: 6-8 Bar
Dimensions: 900 x 850 x 1500 mm
Weight: 100 kg
Specifications
| Manufacturer | Cormak |
| Model | MZ 2x1 Hinge Drill |
| Condition | New |
| Machine Type | Drilling Machine for Hinges |
| Max. drilling diameter | 50 mm |
| Max drilling depth | 60mm |
| Speed | 2,800 rpm |
| Working pressure | 6-8 Bar |
| Weight | 100 kg |
