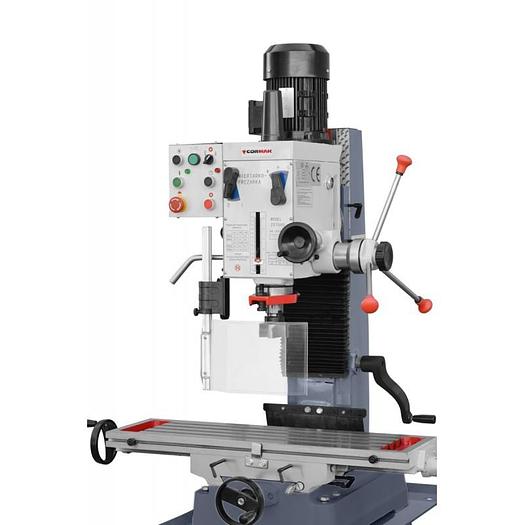

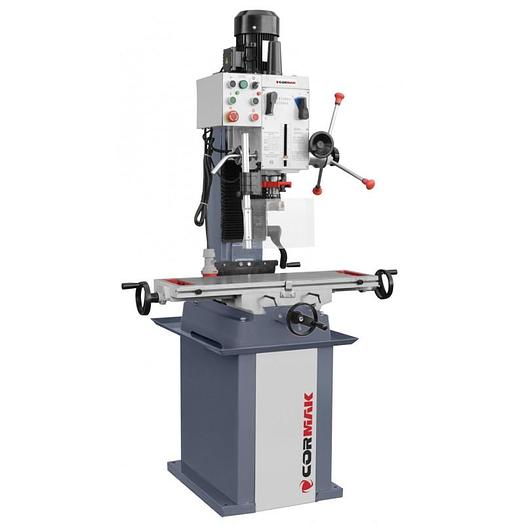

Cormak ZX 7045 Milling & Drilling Machine

Cormak ZX 7045 Milling & Drilling Machine

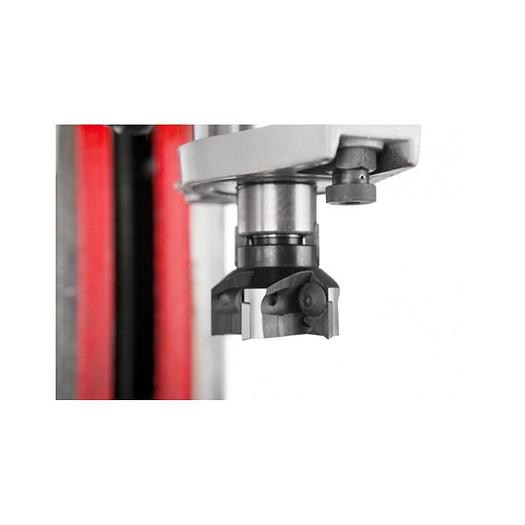

This machine can be used for drilling, reaming and expanding holes up to 45/40 mm in cast iron and threading screws for M12 mm, milling up to 80 mm width, and counter boring up to 22 mm. It is also suitable for cutting and face milling.

SPECIFICATION Heavy stable cast iron

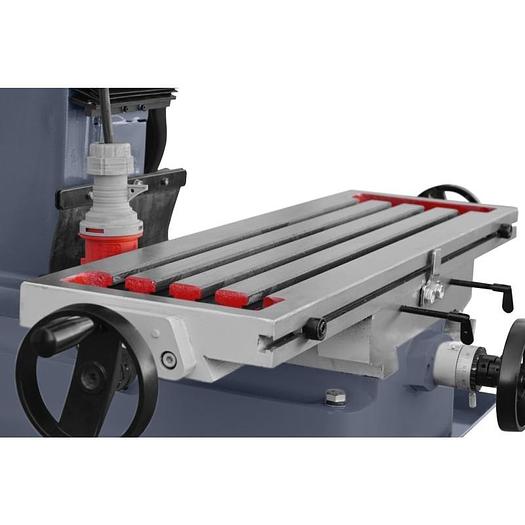

Large cross table with precisely ground surface Vee Guides Quiet operation thanks to ground gear wheels Left and right rotation Rotating head +/- 90 degrees

Height adjustable head

TECHNICAL DATA Maximum drilling size (Cast Iron):45 mm Maximum drilling size (Mild Steel): 32mm Maximum face milling: 80 mm Maximum end milling: 28 mm Spindle taper: MT4 Spindle speed 50 - 3024 rpm Max. Distance of spindle nose from the table: 475 mm Dimensions Of Work Table: 820 X 240 mm Travel (x): 550mm Travel (y): 170mm Motor: 1100W, 1400 min-1 Packing Size: 1140 x 800 x 1040 mm Power: 400V Net Weight: 270 Kg INCLUDED EQUIPMENT: Mk4 / B18 Drill Chuck Shank Hand tools Drill Chuck 3-16 mm / B18 MK4 / MK3 reduction sleeve MK3 / MK2 reduction sleeve Instruction manual OPTIONAL EQUIPMENT

Machine Base

Machine Vice Rotary Vices Tilting Vices Precision Vices Dividing Table Dividing Head Clamping Set
