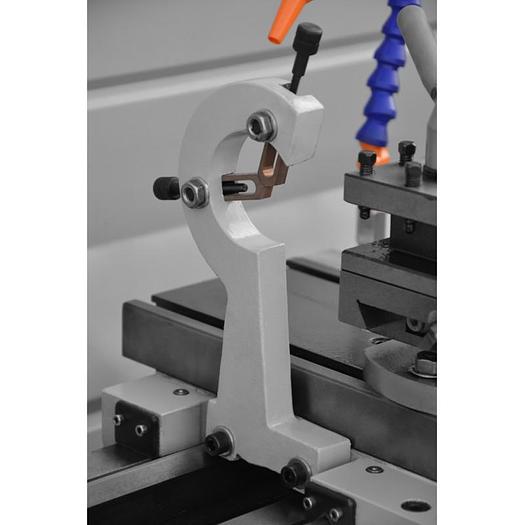

Cormak 310 x 900 Universal Single Phase Lathe
Description
New Cormak 310 x 900 Universal Single Phase Manual Lathe Power: 230V Single Phase Machine Features Precise design 2 axes digital readout Large spindle bore – Ø 36 mm Heavily ribbed prism cast iron bed Inductively hardened and precisely ground bed guides Ensured accuracy of spindle nose better than 0.009 mm Accuracy of lathe chuck speed better than 0.04 mm Left/right switch on the control panel With a lead screw for threading or automatic longitudinal feed Lead screw and feed shafts in two sintered bearings

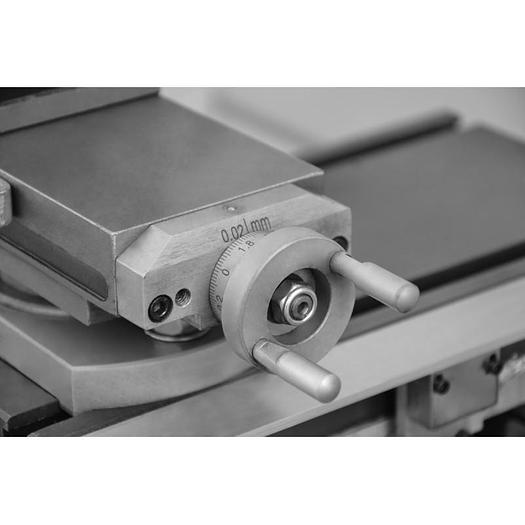

Automatic longitudinal and transverse feeds Lead screw and feed shaft guard Knobs by the slides with adjustable 0.04/0.02 precise scaling Set of change gears for threading included as standard Emergency stop button Smooth and efficient drive of excellent spindle speed adjustment VARIO model equipped with an inverter for smooth spindle speed adjustment Digital speed indicator Solid steel base as standard
Standard Equipment
Machine Base

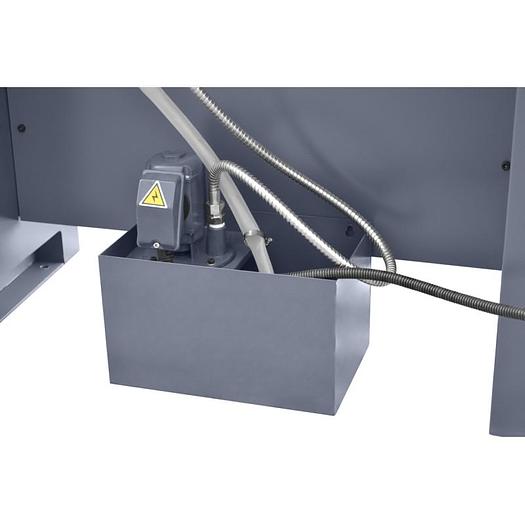

Coolant system
Live Center
2 Axis Digital readout

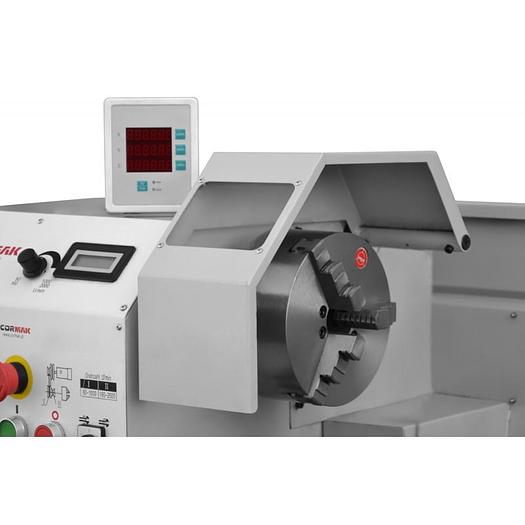

160mm 3 Jaw Chuck

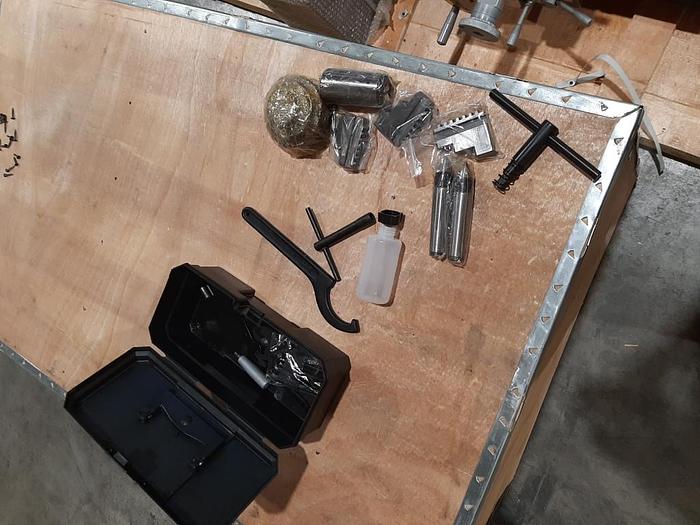

Chuck key
Tools Technical Specification:
Swing Over Bed: 310mm
Distance Between Centers: 800mm
Swing Over Cross-Slide: 190mm
Spindle Nose: MT3
Spindle Bore: 36mm

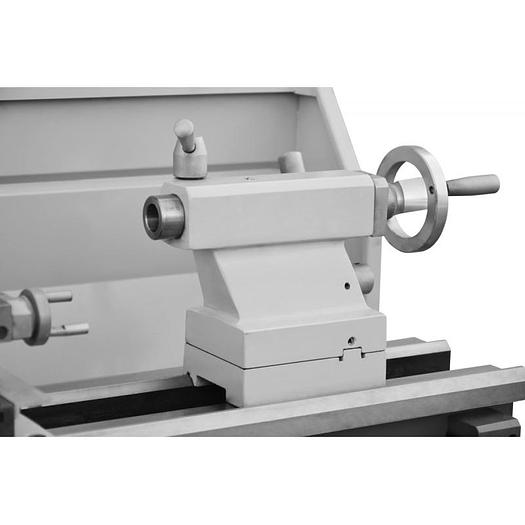

Speed Speed: 80 -2000 RPM Speed Ranges: 2 Main Motor: 1.5kW 230V Metric Threading: 0.2 - 3.5mm/rev Imperial Threading: 56-8 Gg/Inch Longitudinal Feedrate: 0.085 - 0.832mm/rev Traverse Feedrate: 0.01 - 0.1mm/rev Max Top-slide Travel: 65mm Max Cross-Slide Travel: 150mm Max Carriage Travel: 376mm Tailstock Quill Travel: 70mm Tailstock Taper: MT3
Machine Dimensions: 1685 x 745 x 1590mm
Weight: 260 Kg
Specifications
Manufacturer | Cormak |
Model | 310 x 900 Vario Speed Lathe |
Condition | New |
Power | 230V Single Phase |
Swing Over Bed | 310mm |
Distance Between Centres | 800mm |
Swing Over Cross-Slide | 190mm |
Spindle Nose | MT3 |
Spindle Bore | 36mm |
Spindle speed | 80 - 2000rpm |
Speed Ranges | 2 |
Main Motor Power | 1.5kW Single Phase |
Weight | 260 Kg |
