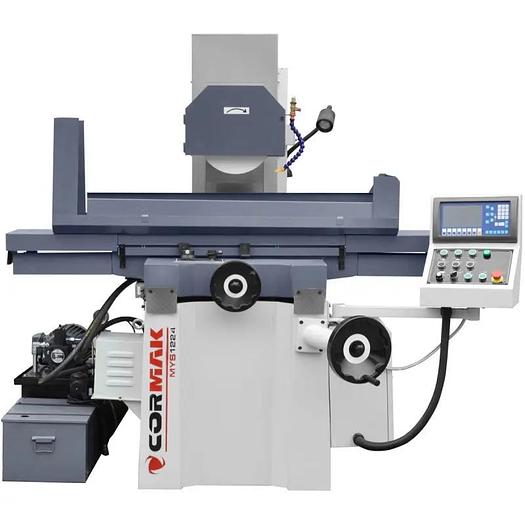

Cormak 600 x 300 Surface Grinder

Cormak 600 x 300 Semi Automatic Surface Grinder

Machine Type: Semi Automatic Surface Grinder

Year: New

Capacity: 600 x 300mm

Description

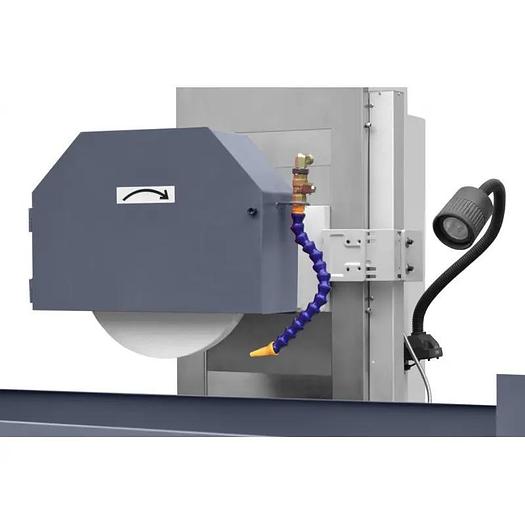

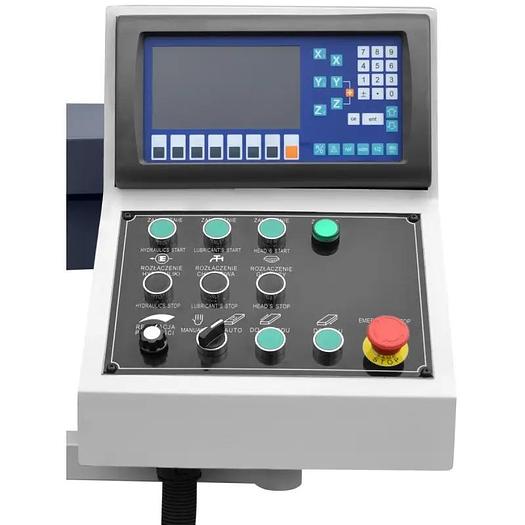

Surface Grinding machine for continuous operation in production, tool shops and renovation departments. The machine has a modern, sturdy design. Its headstock operates on two pairs of guides. Hydraulic feeds for 2 axes, by default comes with a digital display.

Machine Features

Hydraulic feed in 2 axes

Tempered and precisely ground linear guides

Central lubrication system

Sturdy structure

High machining accuracy

Technical Specifications

Table dimensions: 600×300 mm

Maximum table feed: 630×320 mm

Distance from table surface to spindle axis: 520 mm

Table mounting T-slot: 1×14 mm

Table longitudinal speed: 3–20 m/min

Rapid vertical feed speed: 360 mm/min

Transverse travel equal to 1 grade on the vernier scale: 0.01 mm

Transverse travel equal to 1 wheel turn: 2 mm

Transverse feed addition: 0–8 mm/min

Transverse feed: 600 mm/min

Grinding wheel dimensions: 300×30×76.2 mm

Grinding wheel speed: 2850 rpm

Manual vertical travel equal to 1 grade on the vernier scale: 0.01 mm

Grinding accuracy: 300:0.005 mm

Grinding roughness: Ra 0.32

Manual vertical travel for rotating: 2 mm

Main motor power: 2.2 kW

Flood coolant pump motor power: 40 W

Dimensions: 1960×1480×1850mm

Weight: 1400 kg
