1999 Colgar PI 316/21 Hydraulic Pressbrake
Sold
Description
1999 Colgar PI 316/21 Hydraulic Downstroking Pressbrake
Year: 1999
Capacity: 2.1m x 32Ton Pressbrake

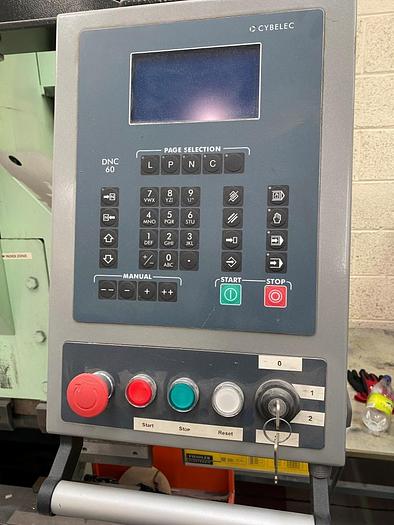

Control: Cybelec DNC60 CNC Control
Axis: Y, X, R , Z1, Z2
Technical Specification
Bending Length: 2100mm
Tonnage: 32 Ton

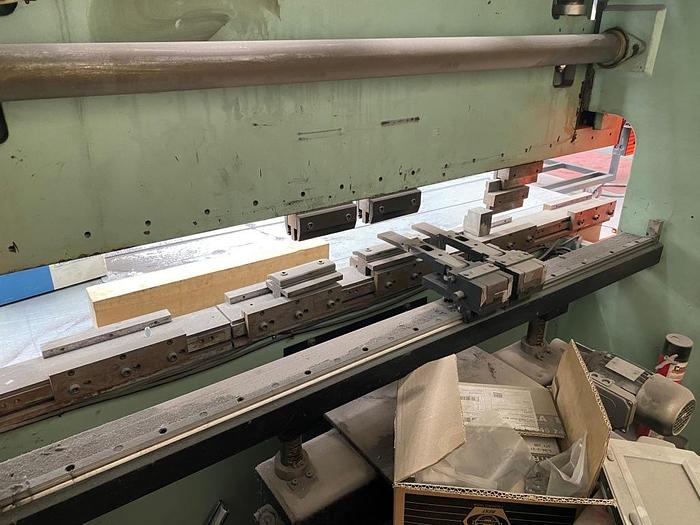

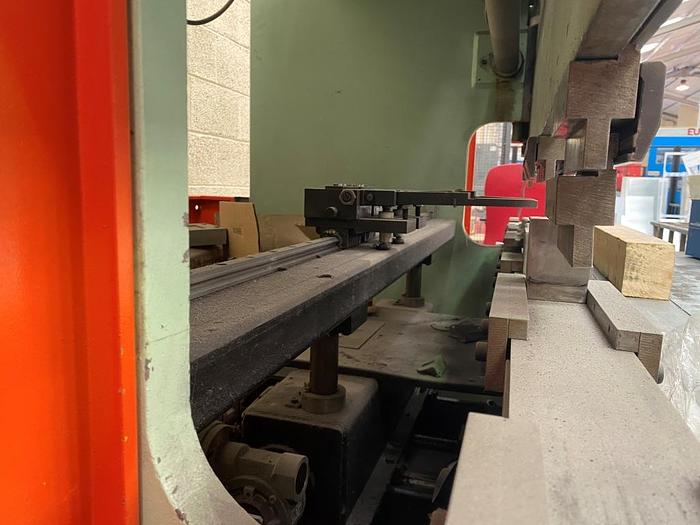

Backgauge: Programmable X & R, Manual Z1 & Z2
Power: 380V, 3ph,50Hz
Installed Power: 5kW
Working Stroke: 20-100mm
Working Speed: 5-22mm/s
Approach Speed: 110mm/s
Return Speed: 140mm/s
Machine Dimensions: 2500 x 1300 x 2150mm
Machine Weight: 2000kg
Includes:
2 x Backgauge Fingers

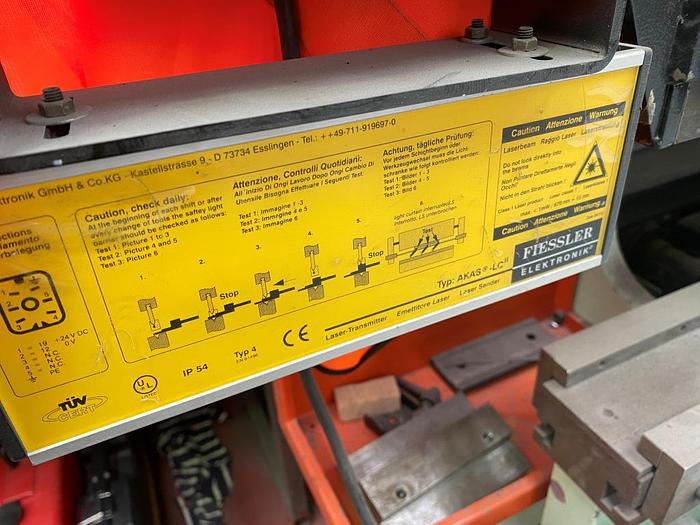

Fiesler Light Guards

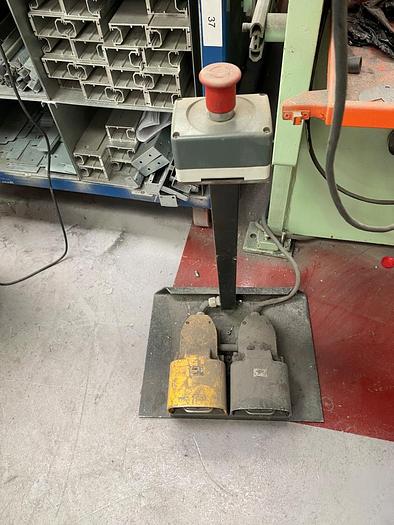

Footpedal with Emergency Stop

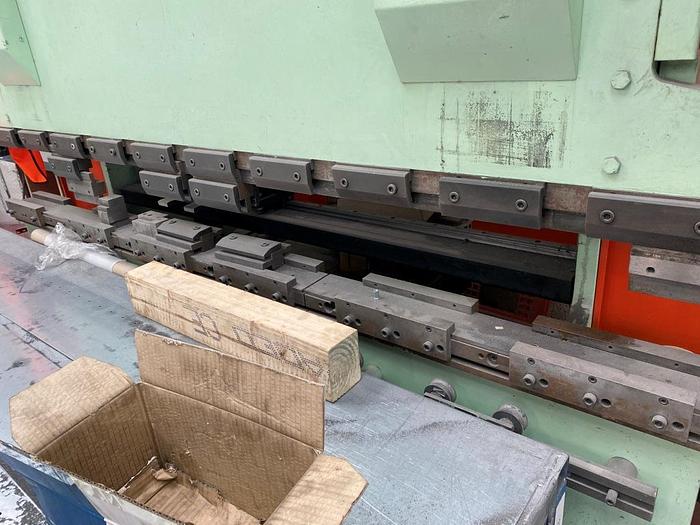

Full Length of Eurostyle Top Tool
Full Length of Eurostyle Single Vee Bottom Tool
Specifications
| Manufacturer | Colgar |
| Model | PI 316/21 Hydraulic Pressbrake |
| Year | 1999 |
| Condition | Used |

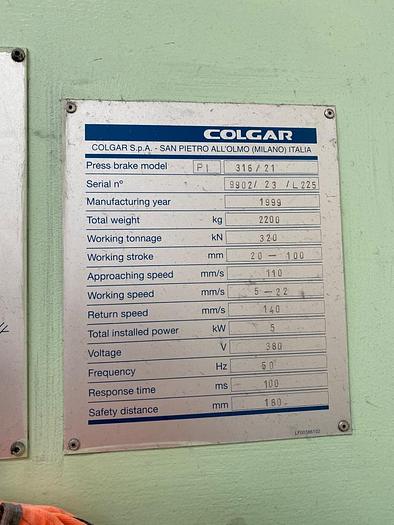

| Serial Number | 9902/23/L225 |
| Year | 1999 |
| Capacity | 2.1m x 32Ton Pressbrake |
| Control | Cybelec DNC60 CNC Control |
| Bending Length | 2100mm |
| Tonnage | 32 Ton |
| Power | 380V, 3ph,50Hz |
| Installed Power | 5kW |
| Working Stroke | 20-100mm |
| Working Speed | 5-22mm/s |
| Approach Speed | 110mm/s |
| Return Speed | 140mm/s |
| Machine Dimensions (L x W x H) | 2500 x 1300 x 2150mm |
| Machine Weight | 2000kg |
