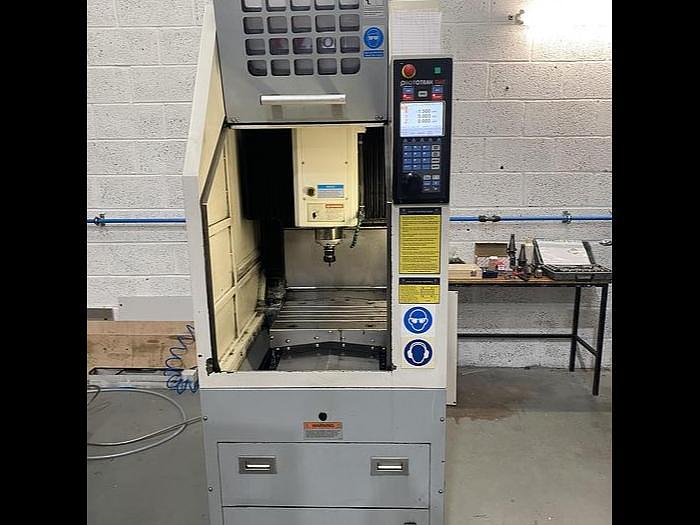

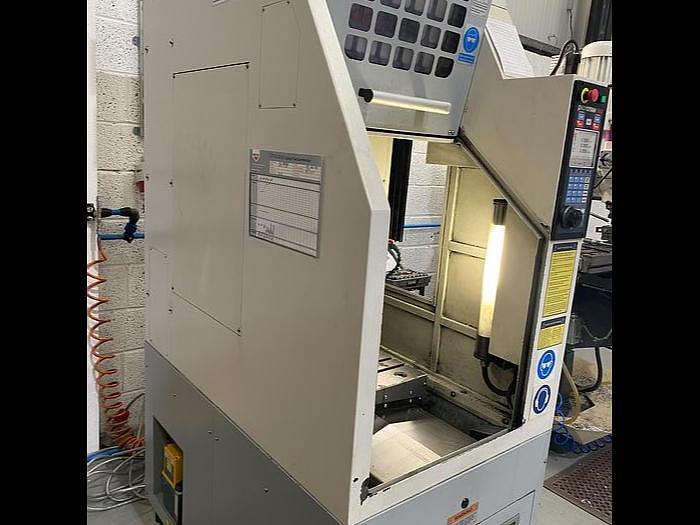

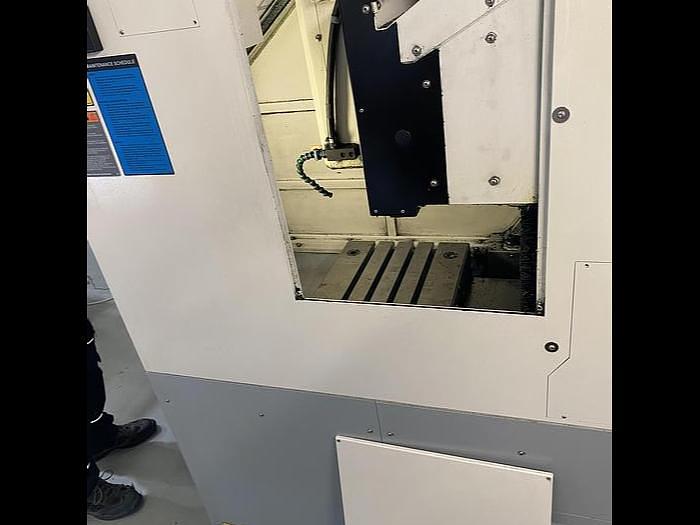

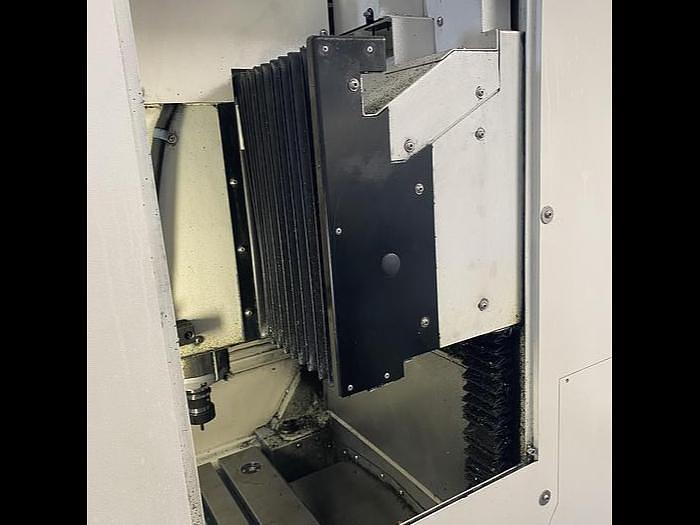

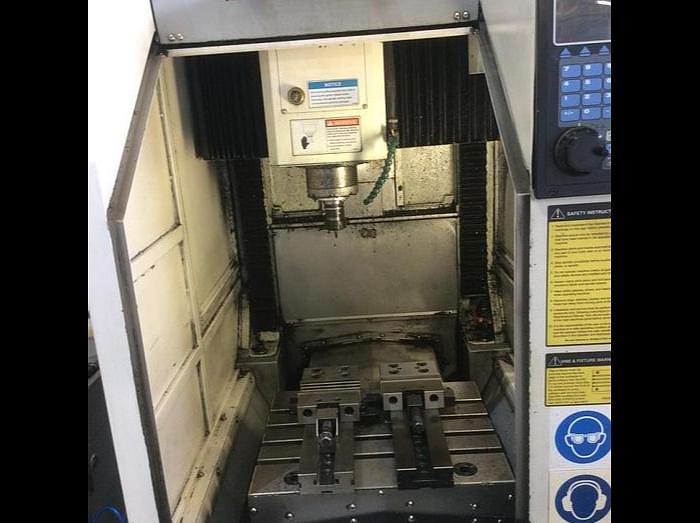

2014 XYZ 2-OP Vertical Machining Center

2014 XYZ 2-OP Vertical Machining Center

Year: 2014

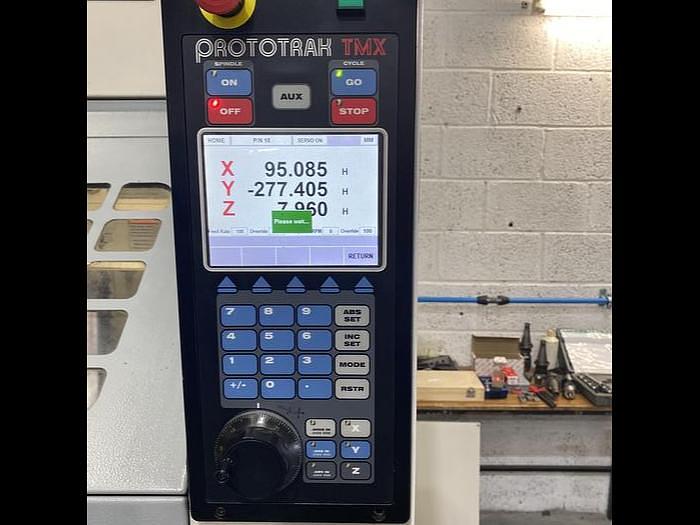

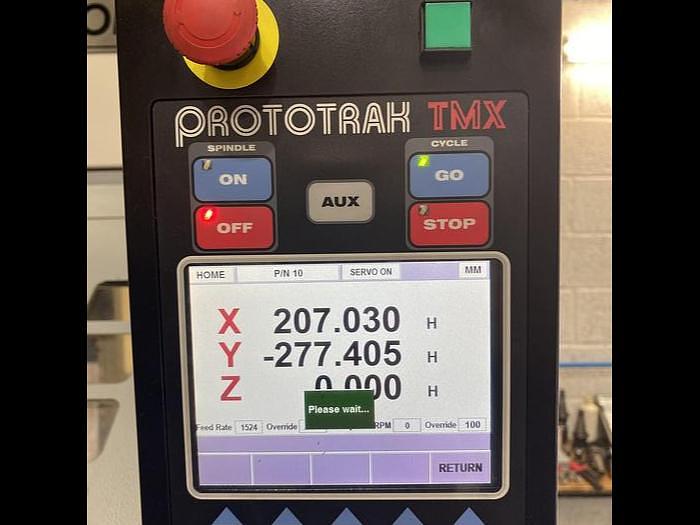

Control: Prototrak TMX 3 Axis CNC Control

XYZ 2-OP

Cell manufacturing for all machine shops with NO increase in labour.

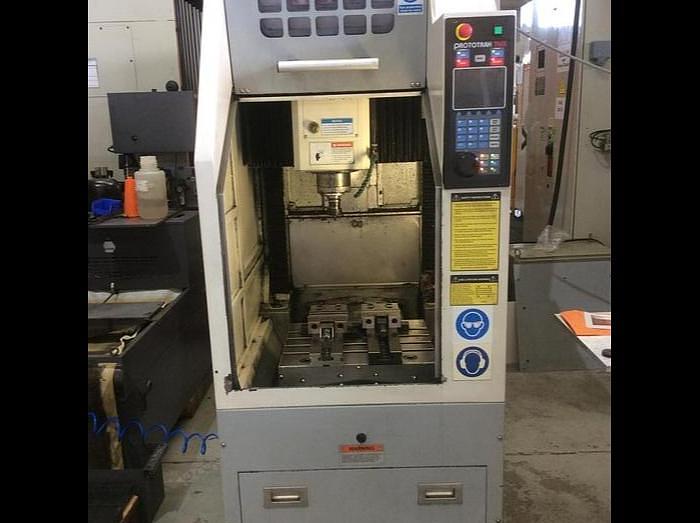

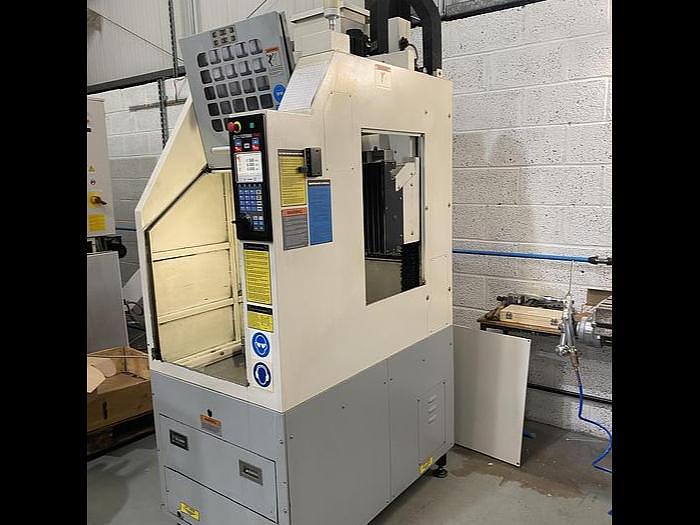

The XYZ 2-OP, a portable VMC designed and built to free up your more expensive machine tools from the every day drudgery of ”second operations”. The XYZ 2-OP features the ”easy to use” ProtoTRAK® control.

The XYZ 2-OP is so easy to use that all workshops will be able to achieve ”cell set ups” quickly and easily improving production without the need to employ extra skilled labour.

Includes:

5 x Tool Holders

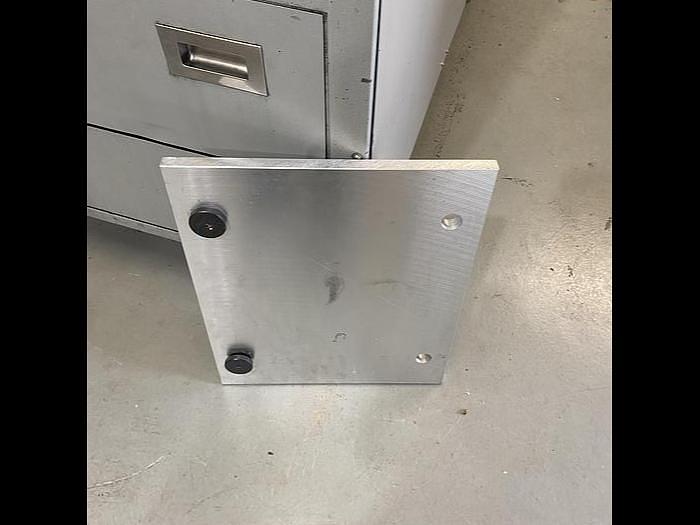

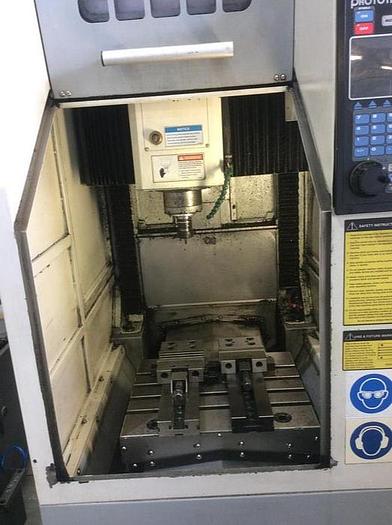

Original Quick Change Fixture Plate

Standard Equipment

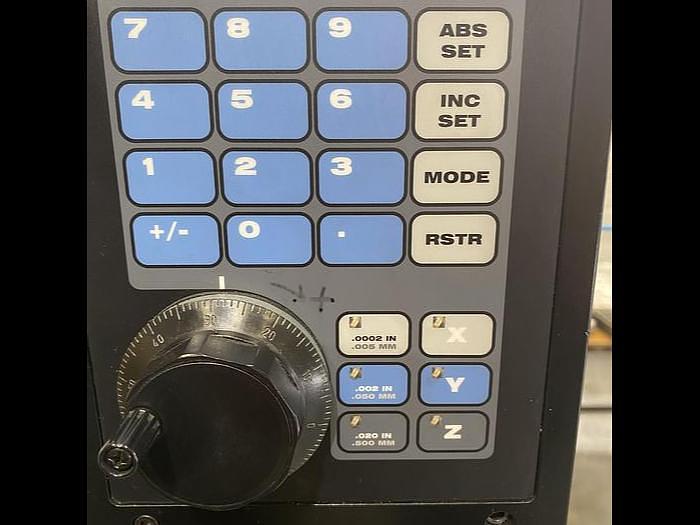

ProtoTRAK® TMX 3 Axis CNC control.

Optimised digital servo’s.

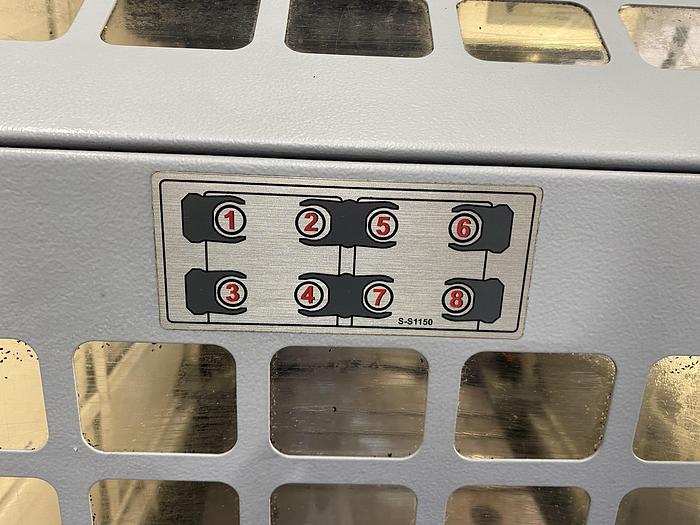

8 Station Toolchanger.

6000 RPM Spindle.

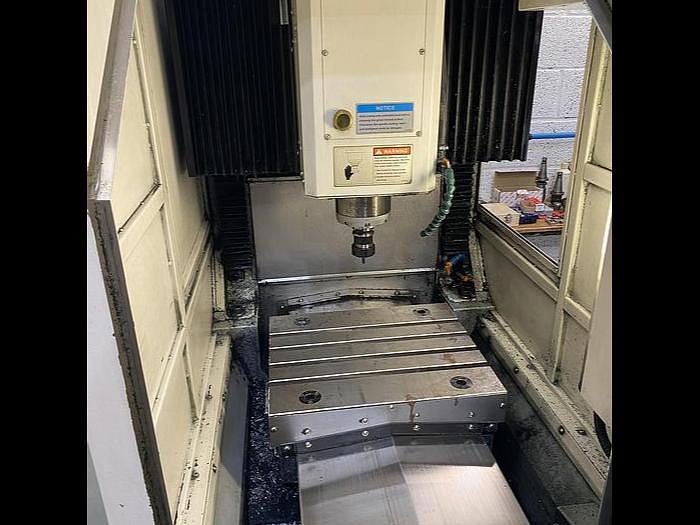

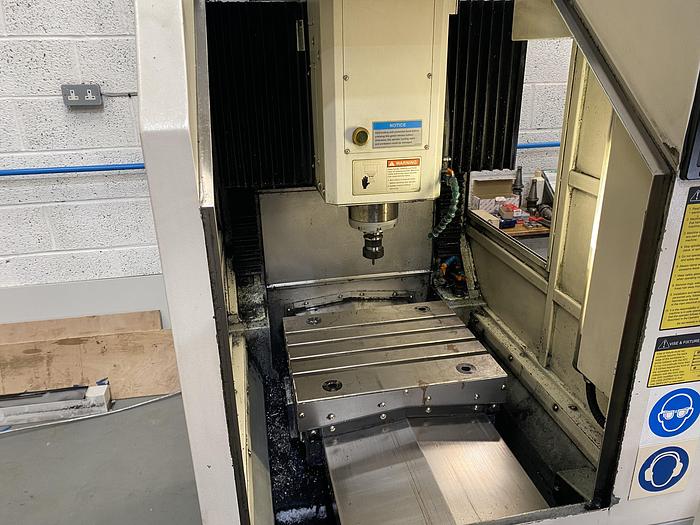

Jergens ball lock table.

Pallet truck.

Rigid Tapping.

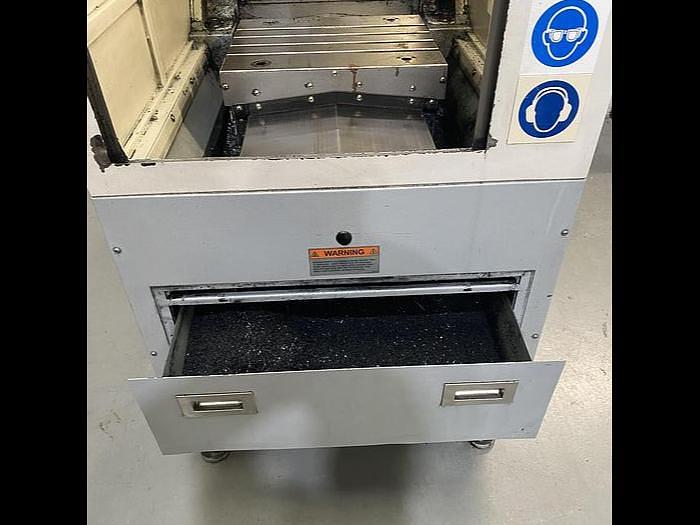

Flood coolant.

Washdown coolant.

Worklight.

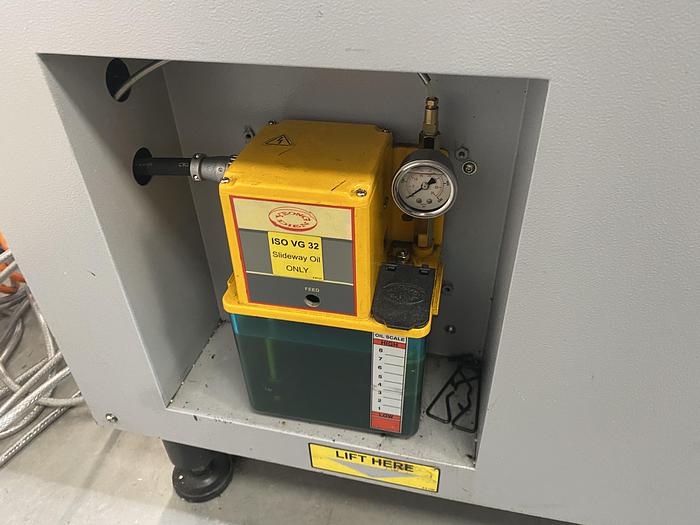

Auto Lubrication.

Pull Studs.

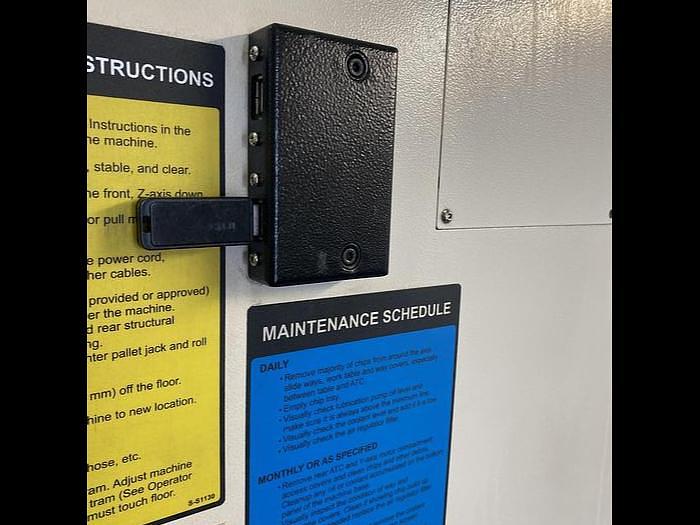

USB port.

Networking.

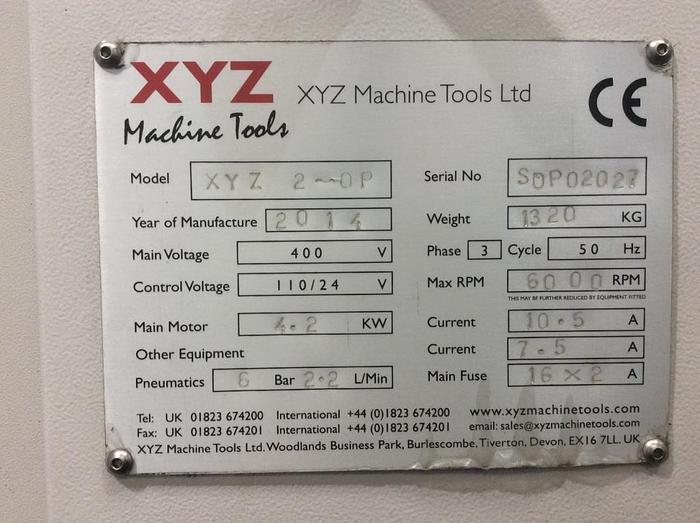

Technical Specification

Spindle Motor: 3HP

Spindle Speeds: 50-6000rpm

Spindle Taper: BT30

Pull Stud Type: JIS B6339

Spindle to Table: 70-525mm

Table Size: 457 x 381mm

Max Table Load: 250kg

T Slots: 4 off @ 63mm Centres

T Slot Width: 16mm

X Axis Travel: 355mm

Y Axis Travel: 305mm

Z Axis Travel: 455mm

Ballscrew: 6mm Pitch

AC Digital Servo Motors Max Torque: 7Nm (X & Y), 9Nm (Z)

Rapid Feedrate: 15m/min

Cutting Feedrate: 15m/min

Tool Changer: 8 Station

Max Tool Diameter: 50mm

Coolant Tank Capacity: 68L

Slideway Type: Linear Ball Rail

Machine Dimensions: 775 x 1380 x 2520mm

Machine Weight: 1100kg

Power Requirements: 400V/3Phase/ 20A

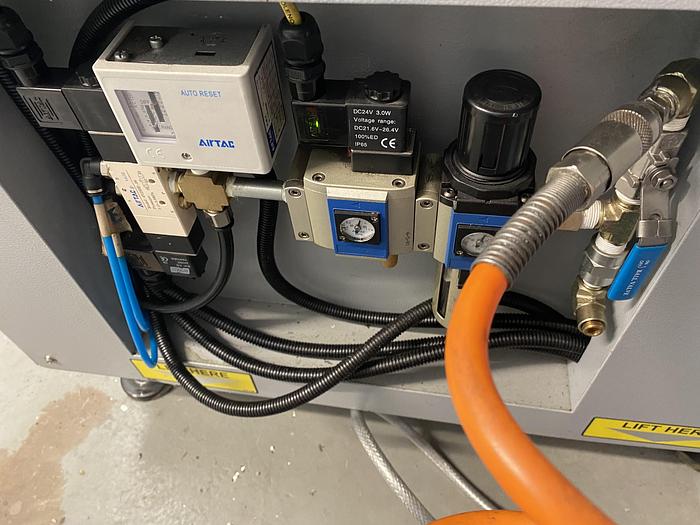

Air Requirements: 6 Bar/220l/min
