RHTC 30 ton HF2 with movable cylinder

RHTC Presses 30 ton HF2 with movable cylinder

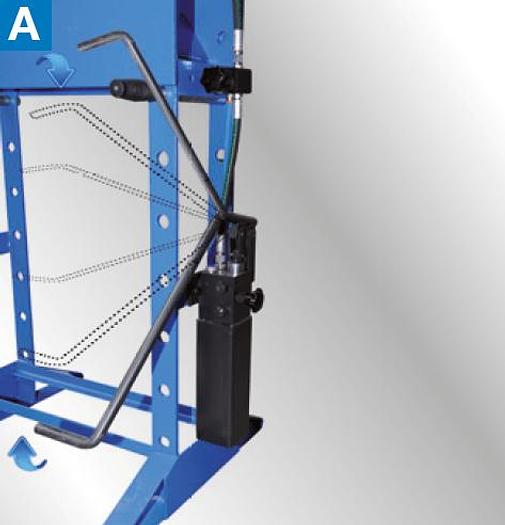

Our 30 ton H-frame press can be operated by hand as well as by foot: the handpump is interchangeable to a foot pump. This hydraulic workshop press has a movable cylinder and the height of the work table is easy to adjust.

The hand- and foot operated Profi Presses have an integrated manometer and a chrome piston (that returns automatically).

Standard supplied with a set of V-blocks.

These manual workshop presses are made in Europe and delivered according to the CE standards.

Technical specifications:

Pressure force [kN]: 294.3

Pressure max. [bar]: 374.6

Cylinder stroke [mm]: 160

System capacity [dm³]: 1,65

Movable cylinder: yes

Working width [mm]: 565

Weight [kg]: 165

Diameters:

Inside diameter of cylinder [mm]: 115

Diameter of piston rod [mm]: 40

Diameter of piston head [mm]: 50

Features:

Hand- and foot operated

Movable cylinder

The height of the worktable is easy to adjust

Integrated pressure manometer

Chromed piston

Automatic piston return

V-block set

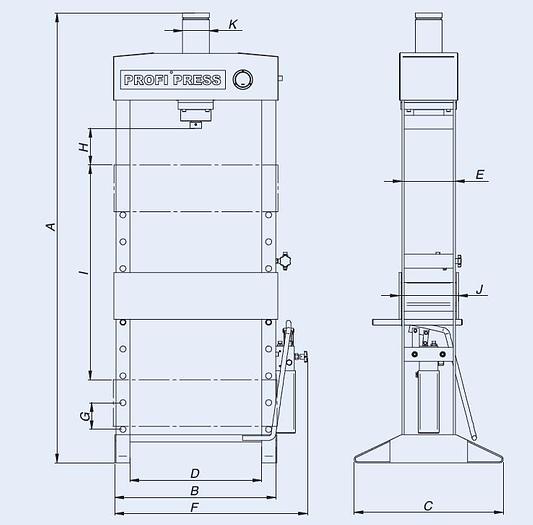

Dimensions of the 30 ton H-frame press in mm:

A: 2010

B: 685

C: 643

D: 565

E: 230

F: 836

G: 115

H: 162

I: 920

J: 255

K: 115

(See diagram above)
