RHTC 160 ton M/H-M/C-2 Motorized Workshop Press

RHTC Presses 160 ton M/H-M/C-2

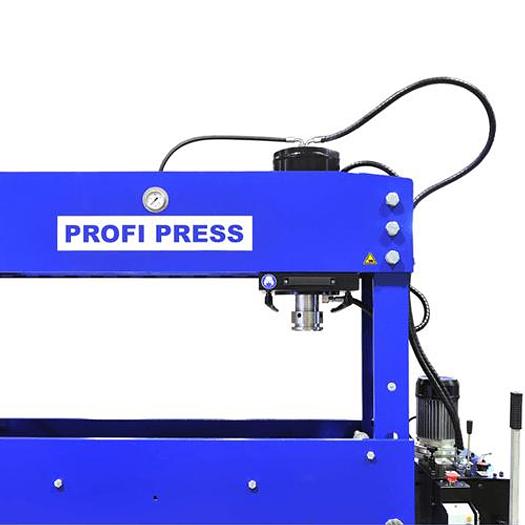

This 160 ton workshop press is equipped with a movable cylinder (left-right) and an in-height adjustable working table.

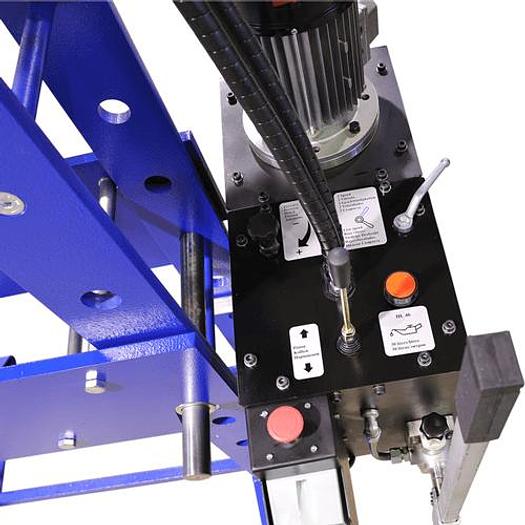

The motorised hydraulic unit is provided with a pressure regulator, 2 speeds, a joystick and a hand pump for precision pressing.

The motorized workshop presses from RHTC are exclusively made in the Netherlands and eminently suitable for general assembly and straightening work or testing work pieces: a must-have for every workshop.

These Profi Press models are made out of quality steel and the hydraulic system is very precise, whether operated electrically or manually with its hand pump.

Available in:

• 30 TON M/H-2
• 60 TON M/H-M/C-2
• 100 TON M/H-M/C-2
• 100 TON M/H-M/C-2 D=1500
• 160 TON M/H-M/C-2
• 160 TON M/H-M/C-2 D=1500
• 200 TON M/H-M/C-2
• 300 TON M/H-M/C-2

Technical specifications:

Pressure force [kN]: 1570

Maximum pressure [bar]: 255

Piston stroke [mm]: 400

Oil delivery [ltr/min]: 7.1/27.6

Oil capacity [dm³]: 57

Working speed [mm/sec]: 2.40

Approaching speed [mm/sec]: 7.48

Return speed [mm/sec]: 9.35

Motor power [kW]: 3

Voltage [V]: 400/3

Frequency [Hz]: 50/60

Revolutions per minute [rpm]: 3000

Insulation protection [IP]: 54

Working width [mm]: 1100

Weight [kg]: 1195

Diameters:

Inside diameter of cylinder [mm]: 280

Diameter of piston rod [mm]: 125

Diameter of piston head [mm]: 160

Features

Movable cylinder (left-right)

Integrated pressure manometer

Pressure regulation

Hydraulic unit with two speeds

In height adjustable working table

Joystick for the control of the piston

Hand pump for precise press work

Optional Accessories:

Foot pedal or hand remote controller

V-block set for extra support for the 160 ton workshop press

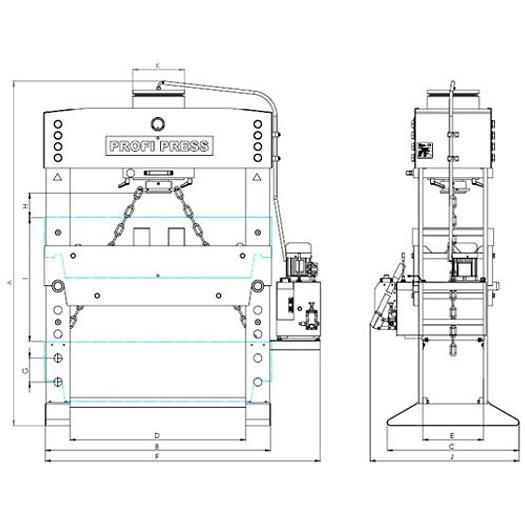

Dimensions:

A: 2200

B: 1410

C: 825

D: 1100

E: 380

F: 1725

G: 150

H: 180

I: 750

J: 935

K: 325

(See above diagram)
