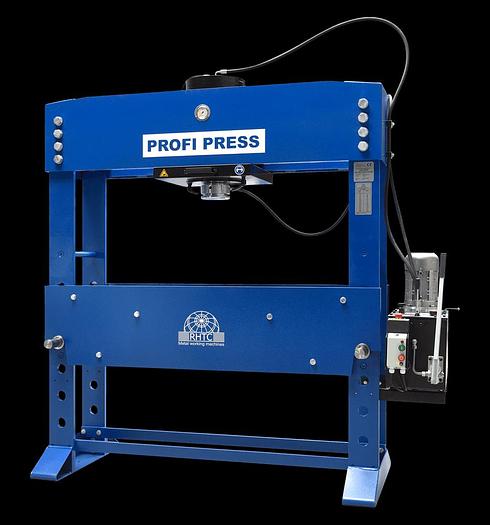

RHTC 160 ton M/H-M/C-2 D Motorized Workshop Press

RHTC Presses 160 ton M/H-M/C-2 D=1500mm

This 160 ton hydraulic press has an extra wide working width (1500 mm) for handling larger materials.

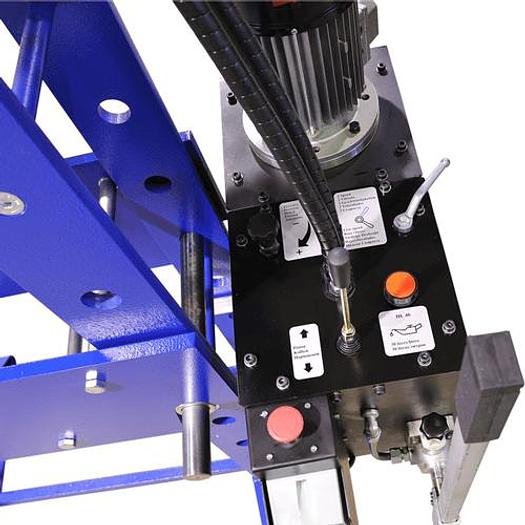

Equipped with a movable cylinder (left-right), in-height adjustable working table, pressure regulation, 2 speeds, joystick and a hand pump for precision pressing.

The motorized workshop presses from RHTC are exclusively made in the Netherlands and eminently suitable for general assembly and straightening work or testing work pieces: a must-have for every workshop.

These Profi Press models are made out of quality steel and the hydraulic system is very precise, whether operated electrically or manually with its hand pump.

Available in:

• 30 TON M/H-2
• 60 TON M/H-M/C-2
• 100 TON M/H-M/C-2
• 100 TON M/H-M/C-2 D=1500
• 160 TON M/H-M/C-2
• 160 TON M/H-M/C-2 D=1500
• 200 TON M/H-M/C-2
• 300 TON M/H-M/C-2

Technical specifications:

Pressure force [kN]: 1570

Maximum pressure [bar]: 255

Piston stroke [mm]: 400

Oil delivery [ltr/min]: 7.1/27.6

Oil capacity [dm³]: 57

Working speed [mm/sec]: 2.40

Approaching speed [mm/sec]: 7.48

Return speed [mm/sec]: 9.35

Motor power [kW]: 3

Voltage [V]: 400/3

Frequency [Hz]: 50/60

Revolutions per minute [rpm]: 3000

Insulation protection [IP]: 54

Working width [mm]: 1500

Weight [kg]: 1430

Diameters:

Inside diameter of cylinder [mm]: 280

Diameter of piston rod [mm]: 125

Diameter of piston head [mm]: 160

Features:

Movable cylinder (left-right)

Extra wide working width

Integrated pressure manometer

Pressure regulation

Hydraulic unit with two speeds

In height adjustable working table

Joystick for the control of the piston

Hand pump for precise press work

Optional Accessories:

Foot pedal or hand remote controller to operate the cylinder of this 160 ton hydraulic press

V-block set for extra support

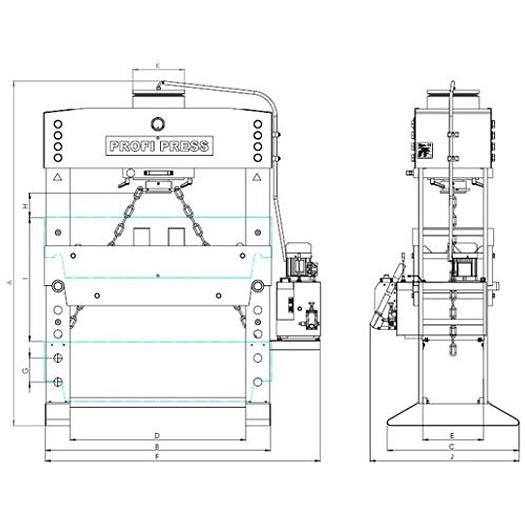

Dimensions:

A: 2270

B: 1810

C: 825

D: 1500

E: 380

F: 2125

G: 150

H: 180

I: 750

J: 935

K: 325

(See above diagram)
