Microcut 1 1/2 Manual Turret Milling Machine

1

Cork, Ireland

Sold

Description

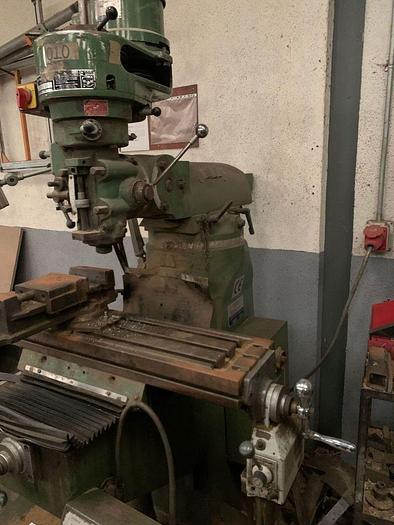

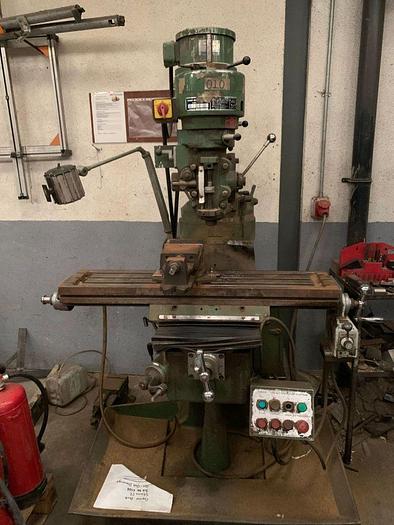

Used Microcut 1 1/2 Manual Turret Milling Machine


Type: Manual Turret Milling Machine


Technical Specification

Head: Belt Driven Head

Speed Selection: Belt Adjusted

Table Size: 1000 x 200mm

X Axis Travel: 700mm

Y Axis Travel: 300mm

Z Axis Travel: 350mm

Quill Stroke: 120mm

Spindle Taper: R8

Spindle Speeds: 80 - 2720rpm


Approx. Weight: 1300kg


Includes:

Power Feed in X Axis

Machine Vice

Machine Light

Coolant Splash Tray


Show All

Specifications

ManufacturerMicrocut
Model1 1/2 Manual Turret Milling Machine
ConditionUsed
Serial Number970334S
TypeManual Turret Milling Machine
HeadBelt Driven Head
Speed SelectionBelt Adjusted
Table Size1000 x 200mm
X Axis Travel700mm
Y Axis Travel300mm
Z Axis Travel350mm
Quill Stroke120mm
Spindle TaperR8
Spindle Speeds80 - 2720rpm
Approx. Weight1300kg
