RHTC PPHV-220 Cambering Press
Description
RHTC Presses PPHV-220
Our 220 ton straightening press is a robust and durable cambering press. This hydraulic press has a piston stroke of 450 mm (which can be regulated by means of the end-stroke switches) and the maximum opening between the supporting back table and pushing main table is 800 mm. Made in Europe and we guarantee a very high quality for these straightening machines.
Our Profi Press 220 ton straightening press meets and satisfies the essential health and safety requirements in accordance with the latest CE-standards.
These cambering presses are especially designed to carry out the straightening and bending of profiles, bars and beams. The horizontal design of this cambering machine permits an easy handling of large beams and profiles. Made in Europe.
Technical specifications:
Pressure force [tn]: 220
Motor power [kw]: 5.5
Throat depth [mm]: 330
Working speed [mm/sec]: 2.2
Approaching speed [mm/sec]: 9
Return speed [mm/sec]: 16.2
Pressure max. [bar]: 320
Piston stroke [mm]: 450
Guides diameter [mm]: 60
Opening between tables [mm]: 800
Supporting back table [mm]: 2500 x 600
Pushing main table [mm]: 600 x 600
Two support blocks back table [mm]: 120 x 120 x 600
One support block main table [mm]: 120 x 120 x 600
Working height [mm]: 950
Total length [mm]: 2800
Total width [mm]: 2500
Overall height [mm]: 1700
Weight [kg]: 11150
Features:
Large supporting back table
Pushing main table
Support blocks (movable) and T-grooves on both tables
In height adjustable accompanying roller at both sides of the machine
Four cylindrical lateral guides for a perfect alignment of the main table
Adjustable end-stroke switches
Selector for manual / semi-automatic operation
Selector for working with 1 or 2 speeds

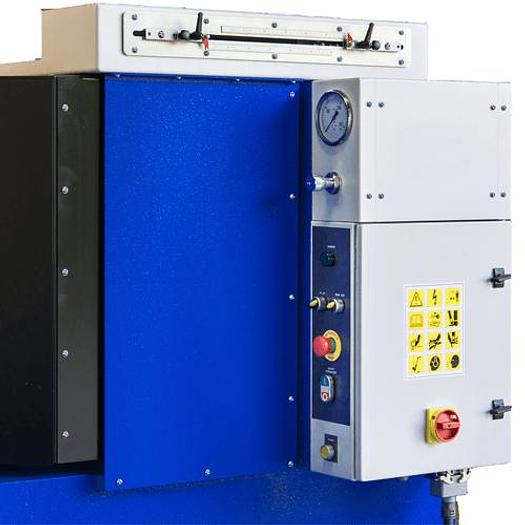

Pressure regulator and manometer
Optional accessories:
Supporting back table of 4, 6 or 8 meter

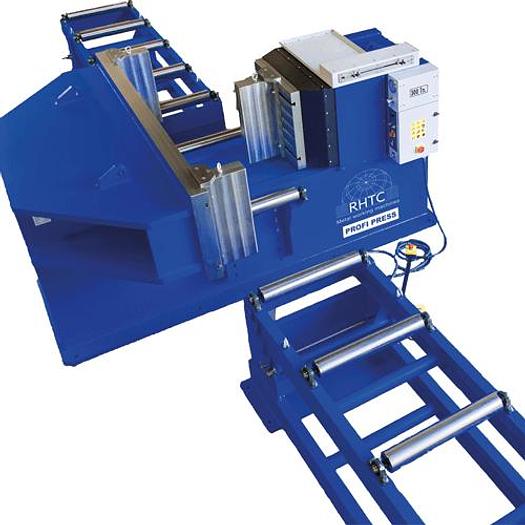

Basic supply rails (as shown in the picture) with height adjustment (available in different lengths)
CNC Siemens
415 mm folding tool-set (PROMECAN clamping system)
Specifications
| Manufacturer | RHTC |
| Model | PPHV-220 Cambering Press |
| Condition | New |
| Pressure force [tn] | 220 |
| Motor power [kw] | 5.5 |
| Throat depth [mm] | 330 |
| Working speed [mm/sec] | 2.2 |
| Approaching speed [mm/sec] | 9 |
| Return speed [mm/sec] | 16.2 |
| Pressure max. [bar] | 320 |
| Piston stroke [mm] | 450 |
| Guides diameter [mm] | 60 |
| Opening between tables [mm] | 800 |
| Supporting back table [mm] | 2500 x 600 |
| Pushing main table [mm] | 600 x 600 |
| Working height [mm] | 950 |
| Total length [mm] | 2800 |
| Total width [mm] | 2500 |
| Overall height [mm] | 1700 |
| Weight [kg] | 11150 |
