RHTC PPCM-50 C-Frame Press

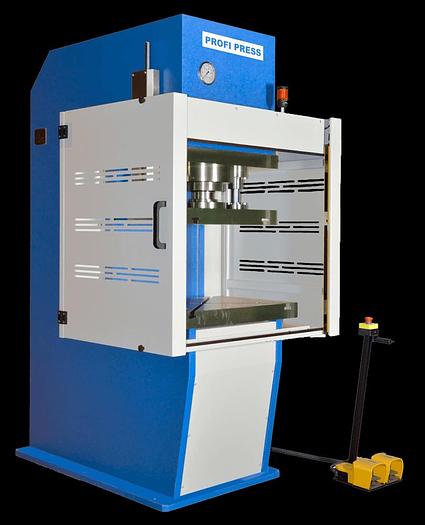

RHTC Profi Press Hydraulic C Frame Press PPCM-50

This 50 ton C frame press is suitable for performing work involving deep-drawing, forming and stamping.

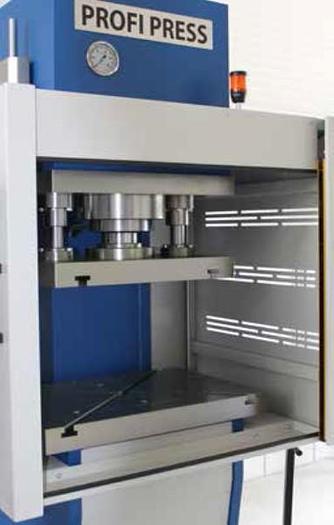

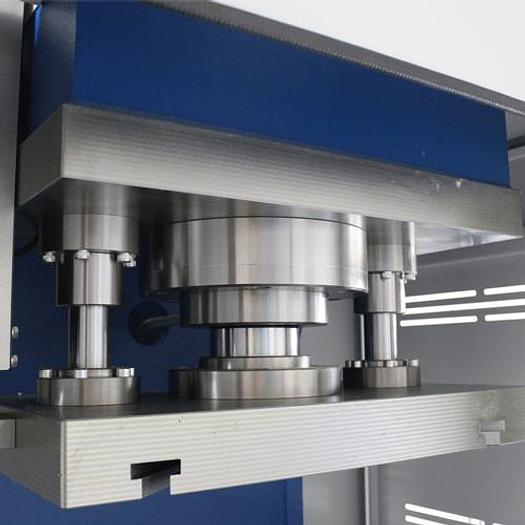

Designed with an upper- and lower table with DIN-650 T-grooves. The upper table ensures a perfect alignment by means of two cylindrical lateral guides (∅ 50 mm).

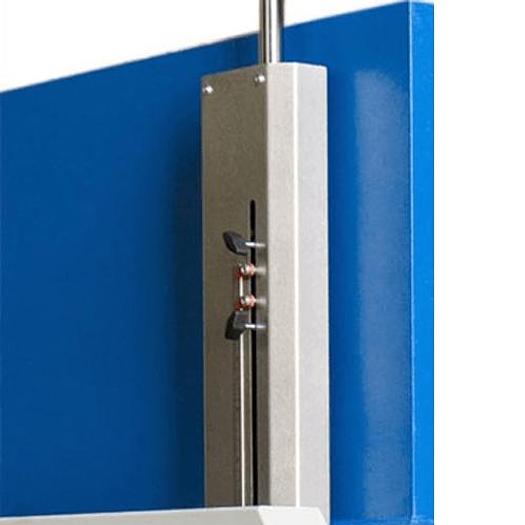

We produce this 50 ton C frame press with a selector for manual / semi-automatic / automatic work-mode, two speeds, a pressure switch and light guards in the frontal working area of the press. The cylinder stroke is easy to adjust with the end-stroke switches.

These C-frame presses of RHTC consist of an electro welded structure made out of S355JR steel and are designed for stamping, die-cutting and forming / to incorporate in automated production lines. Made in Europe.

These C-frame press models are equipped with a mechanized lower table with T-grooves. The cylinder is mechanized at the end to adapt tools and moulds.The cylinder stroke is easy to adjust with the end-stroke switches on the side of the presses. Operation of these PPCD-models is carried out by a two-hand push button with level IV security module. The safety for these C-frame models is guaranteed by two fixed lateral protection screens and a front opening of 600 mm. The control panel features a selector for manual or semi-automatic operation and a selector for the two different cylinder speeds (fast approach speed and slow working speed). It also contains a pressure switch and manometer.

Available in:

PPCM-50

PPCM-80

PPCM-100

PPCM-150

Technical specifications:

Force [tn]: 50

Motor power [kw]: 4

Throat depth [mm]: 265

Working speed [mm/sec]: 6.3

Approaching speed [mm/sec]: 32

Return speed [mm/sec]: 42

Maximum pressure [bar]: 320

Piston stroke [mm]: 250

Guides diameter [mm]: 50

Lower table size [mm]: 700 x 450

Upper table size [mm]: 550 x 300

Max. vertical light [mm]: 400

Working height [mm]: 850

Total length [mm]: 1290

Total width (frontal) [mm]: 1160

Overall height [mm]: 2085

Weight [kg]: 1750

Features:

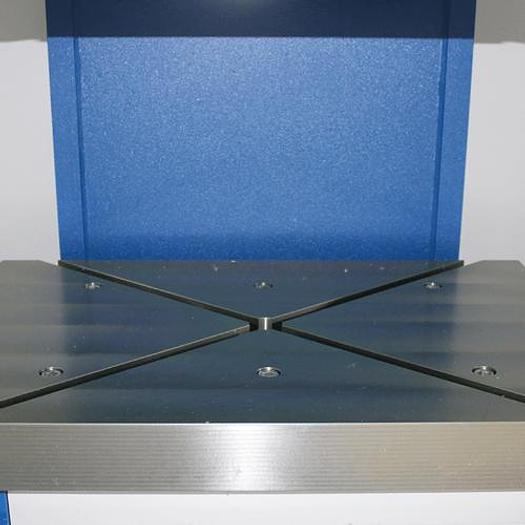

Equipped with an upper- and lower table with T-grooves (DIN-650); tools can be easily fastened onto the tables

Perfect alignment thanks to two lateral guides for the upper table

Two lateral protection screens (which can be opened) with level IV safety light guards at the front

The cylinder stroke is easy to adjust with the end-stroke switches

Manual / semi-automatic / automatic mode

Two cylinder speeds

Pressure switch and manometer

Operation by means of a foot pedal

Optional accessories:

Geometry adapted to your requirements (for example larger tables, a larger vertical light or a larger piston stroke)

Higher speeds with a different pump

Hydraulic ejector placed in the upper- or lower table (or both)

Hydraulic cushion

PLC Siemens mod. SIMATIC S7 1200 with 7” touch screen

Cooling equipment for the hydraulic group by an air-oil cooling system
