RHTC PB 50 -3 Profile Bending Machine

RHTC Presses PB 50-3

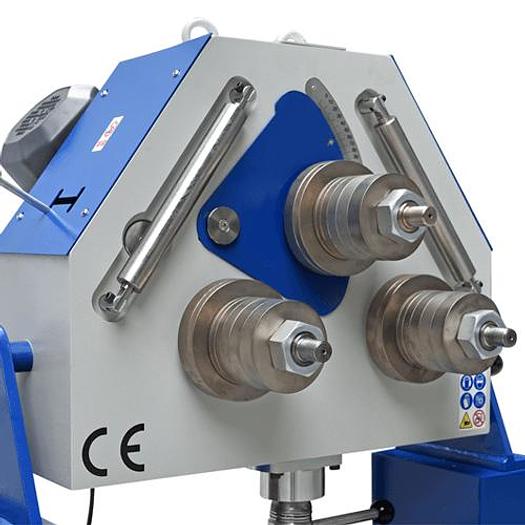

The Profi Bend PB 50-3 is a profile bending machine with a shaft diameter of 50 mm. With the Profi Bend you can bend a huge variety of different profiles. And in almost any desired radius. The profile bender consists of two lower guide rolls and one top roll whose working position can be adjusted by means of the hand pump / hydraulic system. Thanks to this hydraulic system you can set and adjust the position of the top roll very precisely.

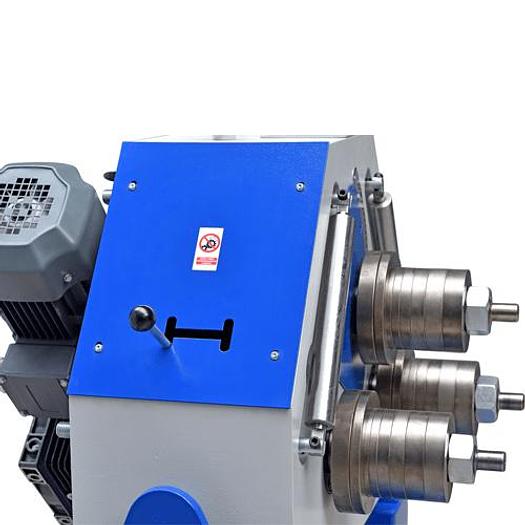

Our Profi Bend profile bending machines have 2 working positions: a vertical position and a horizontal position. It is very easy to switch between these two positions. The 3 rolls are driven by a motor. It is possible to disconnect the upper bending roll from the drive, so you can work with 2 or with 3 driven rolls. The turning directions of the rolls is controlled by the foot pedal of this roll bender.

The adjustment of the position of the upper roll is very easy. The PB 50-3 is equipped with a hand wheel for a manual adjustment

Available in:

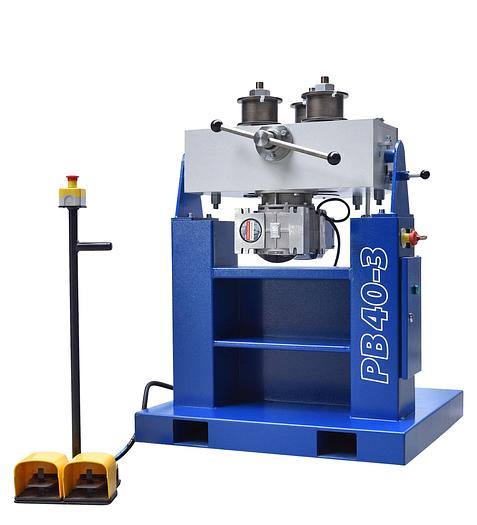

PB 40-3

PB 50 -3H (hydraulic)

Technical specifications:

Shaft diameter [mm]: 50

Roll diameter [mm]: 150

Rotational speed of rollers [rpm]: 10

Voltage [v/Hz]: 400/50

Driving motor [kW]: 1.5

Adjusting way [mm]: 120

Weight [kg]: 355

Total length [mm]: 1100

Total width [mm]: 800

Overall height [mm]: 1400

Features:

Manual adjustment of the upper roll with a hand wheel

Vertical and horizontal working position

Three driven rolls

Foot pedal

Delivered with standard set of rollers

Capacities

20 x 6mm ø300mm

60 x 10mm ø500mm

50 x 10mm ø300mm

100 x 15mm ø400mm

15mm ø250mm

35mm ø600mm

25 x 25 x 4mm ø350mm

50 x 50 x 6mm ø500mm

30 x 30 x 4mm ø350mm

60 x 60 x 6mm ø800mm

30 x 30 x 4mm ø350mm

60 x 60 x 6mm ø800mm

30 x 15 x 4mm ø300mm

80 x 45 x 6mm ø600mm

30 x 15 x 4mm ø350mm

80 x 45 x 6mm ø800mm

10mm ø250mm

35mm ø500mm

30 x 1.5mm ø600mm

70 x 1.5mm ø1500mm

20 x 20 x 2mm ø250mm

50 x 50 x 3mm ø1400mm

Optional accessories:

Special sets of rollers (steel or plastic)

Spiral bending device

Yoke

Distance rollers
