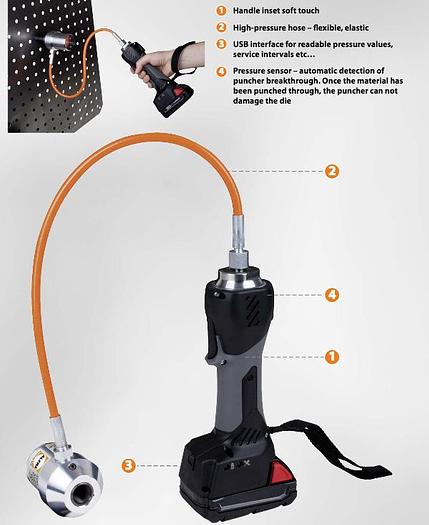

Alfra GmbH Accu-Compact Flex

Alfra Compact™ straight punch driver

Technical Specifications:

Punching Circular Holes: up to 82 mm Ø, 3.0 mm sheet steel (S235), 2.0 mm stainless steel (F = 600 N/mm2)

89 - 152 mm Ø (with special draw bolt and spacer sleeve) 2.0 mm sheet steel (S235),1.5 mm stainless steel (F = 600 N/mm2)

Punching Shaped holes:

68 x 68 mm, 3.0 mm sheet steel (S235),2.0 mm stainless steel (F = 600 N/mm2) 92 x 92 mm (with special draw bolt and spacer sleeve), 2.0 mm sheet steel (S235),1.5 mm stainless steel (F = 600 N/mm2)

Punching force: 75 kN

Hydraulic pressure max.: 680 bar

Piston stroke: 18 mm

Hydraulic hose length: 600 mm

Tool mounting: 19 mm

Hydraulic medium: HLP32 hydraulic oil

Weight: 2.5 kg with Battery
